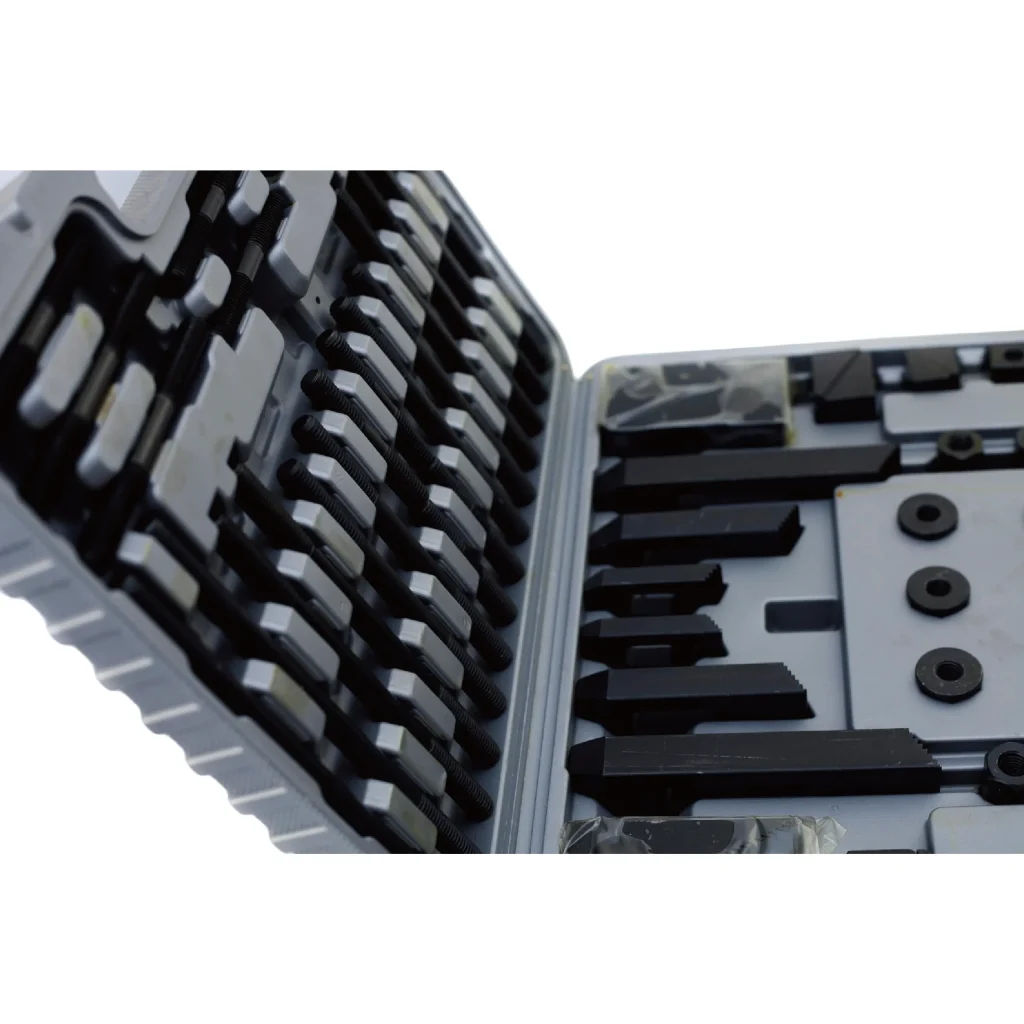

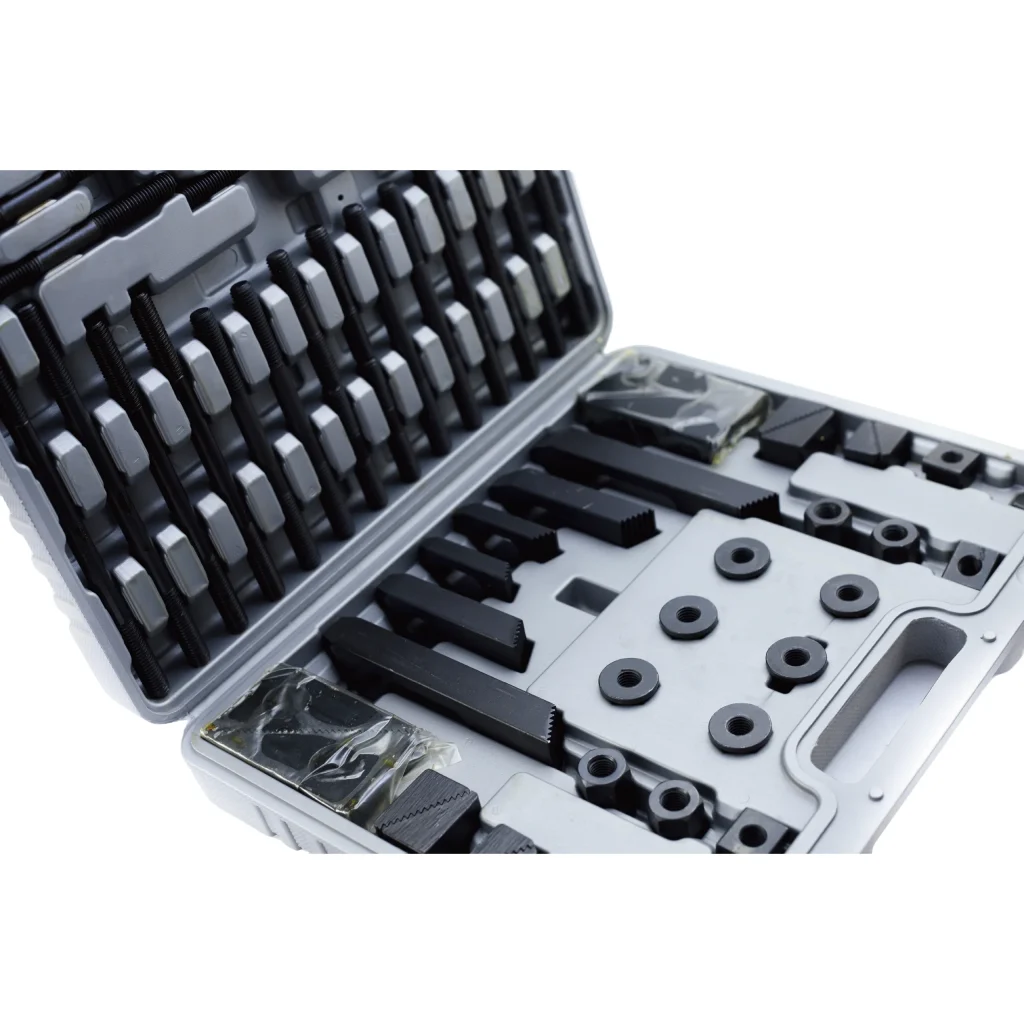

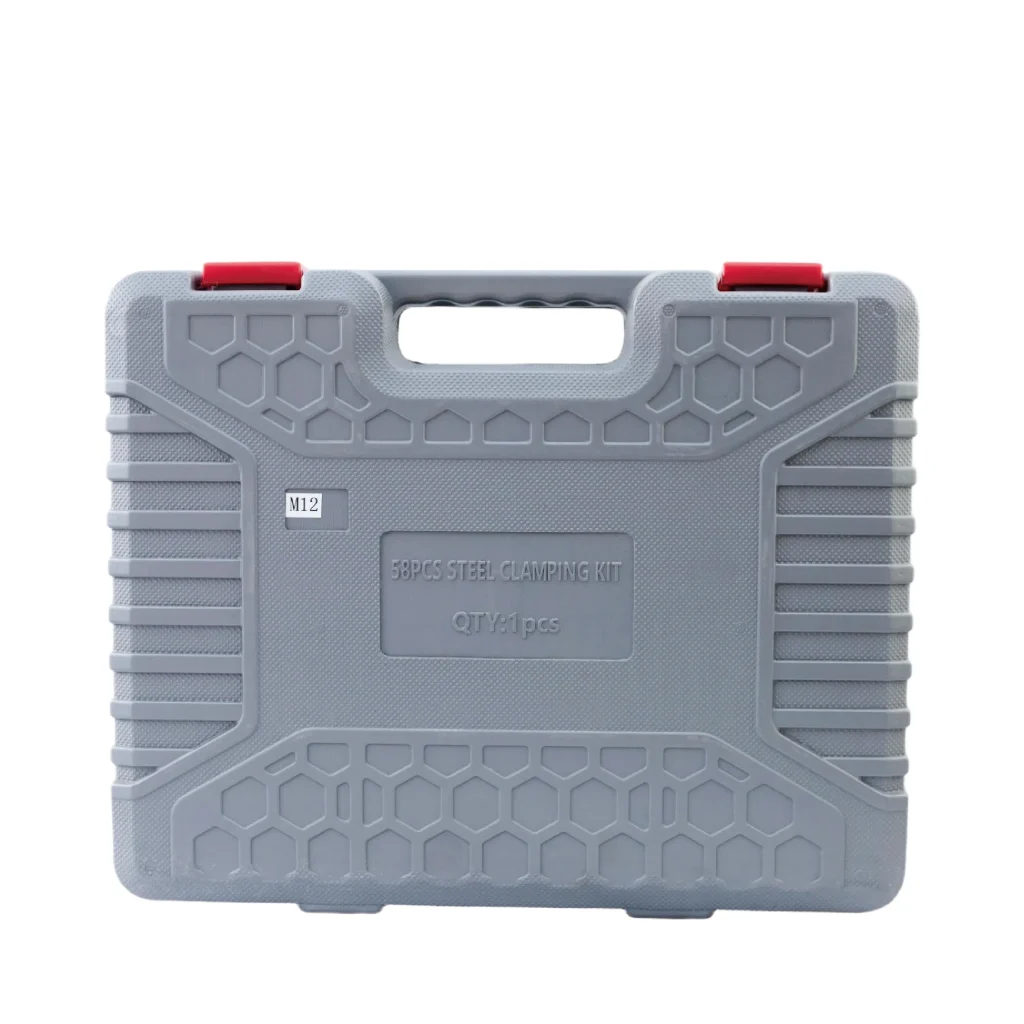

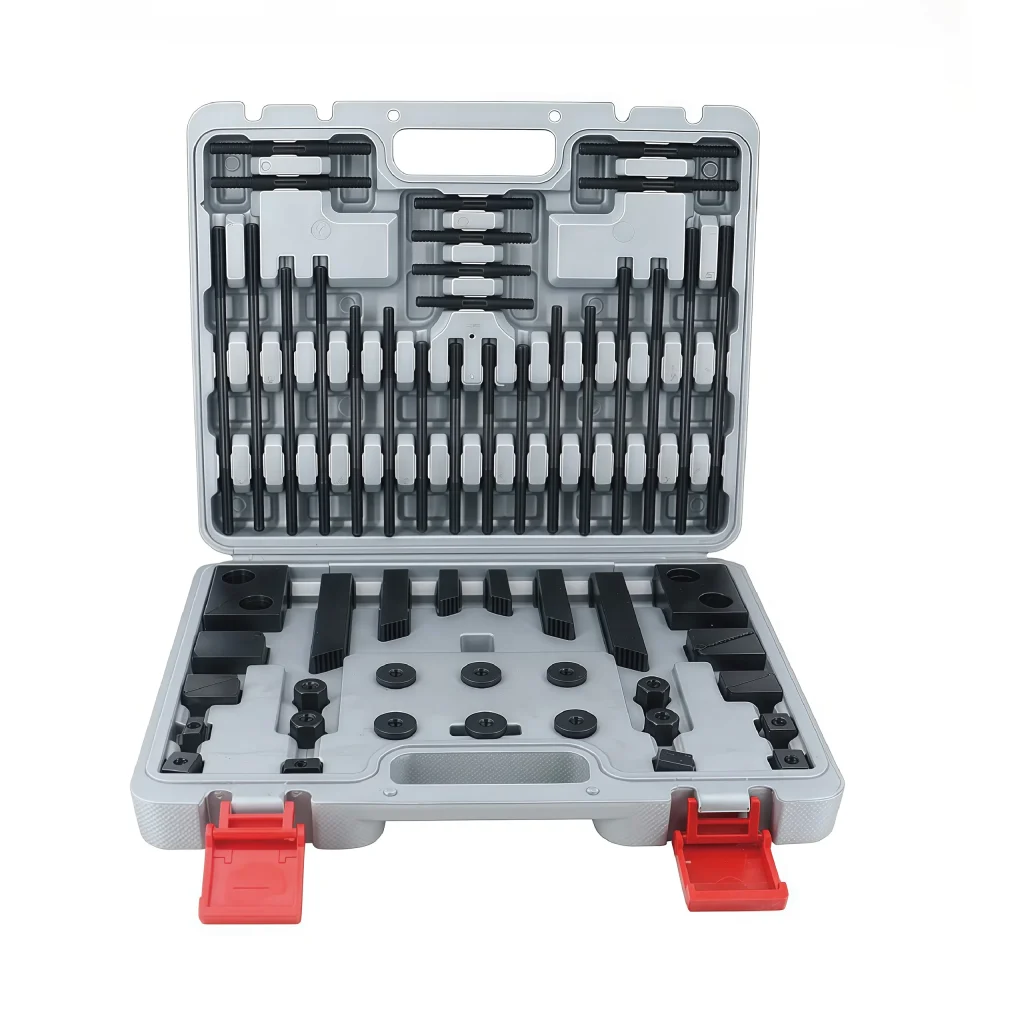

| 58pcs steel clamping kits | ||
| 订单号 Order No. |
T型螺母尺寸（美制） Stud Size (US) |
螺栓尺寸（美制） Stud Size (US) |
| YT-0101 | 3/8 | 5/6-18 |
| YT-0102 | 7/16 | 3/8-16 |
| YT-0103 | 1/2 | 3/8-16 |
| YT-0104 | 9/16 | 3/8-16 |
| YT-0105 | 9/16 | 1/2-13 |
| YT-0106 | 5/8 | 1/2-13 |
| YT-0107 | 11/16 | 1/2-13 |
| YT-0108 | 11/16 | 5/8-11 |
| YT-0109 | 3/4 | 5/8-11 |
| YT-0110 | 13/16 | 5/8-11 |
| 订单号 | T型螺母尺寸（公制） | 螺栓尺寸（公制） |
| Order No. | Tsble T-slot Size(MM) | Stud Size(MM) |
| YT-0201 | 9.7 | M8x1.25 |
| YT-0202 | 11.7 | M10x1.5 |
| YT-0203 | 13.7 | M10x1.5 |
| YT-0204 | 13.7 | M12x1.75 |
| YT-0205 | 15.7 | M12x1.75 |
| YT-0206 | 15.7 | M14x2 |
| YT-0207 | 17.7 | M14x2 |
| YT-0208 | 17.7 | M16x2 |
| YT0209 | 19.7 | M16x2 |
