Product Details & Technical Resources

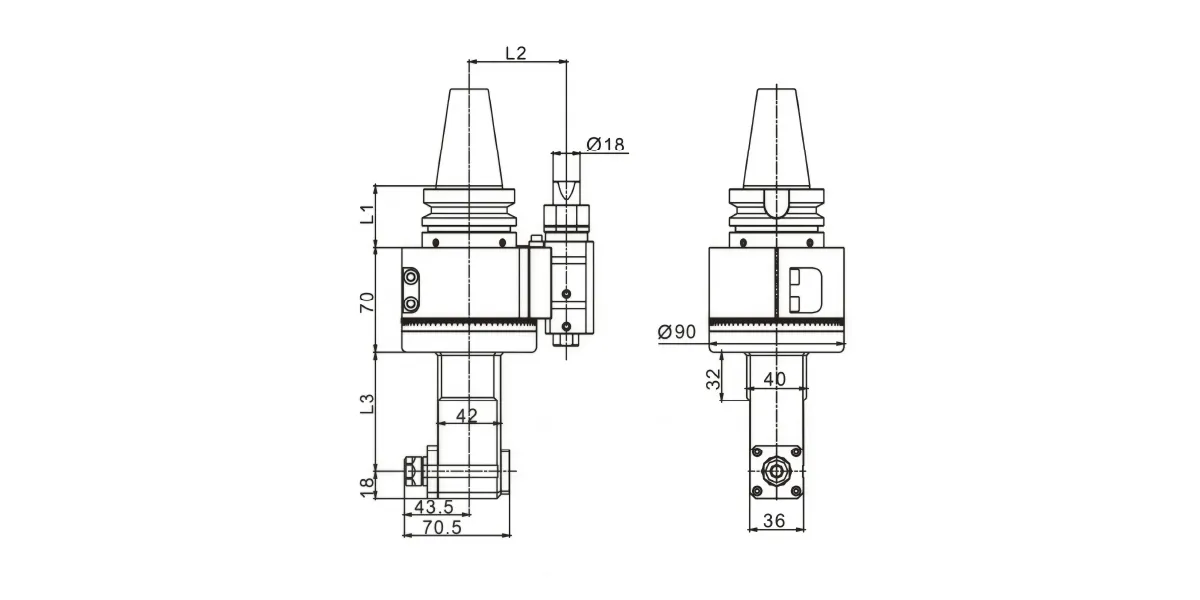

CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.

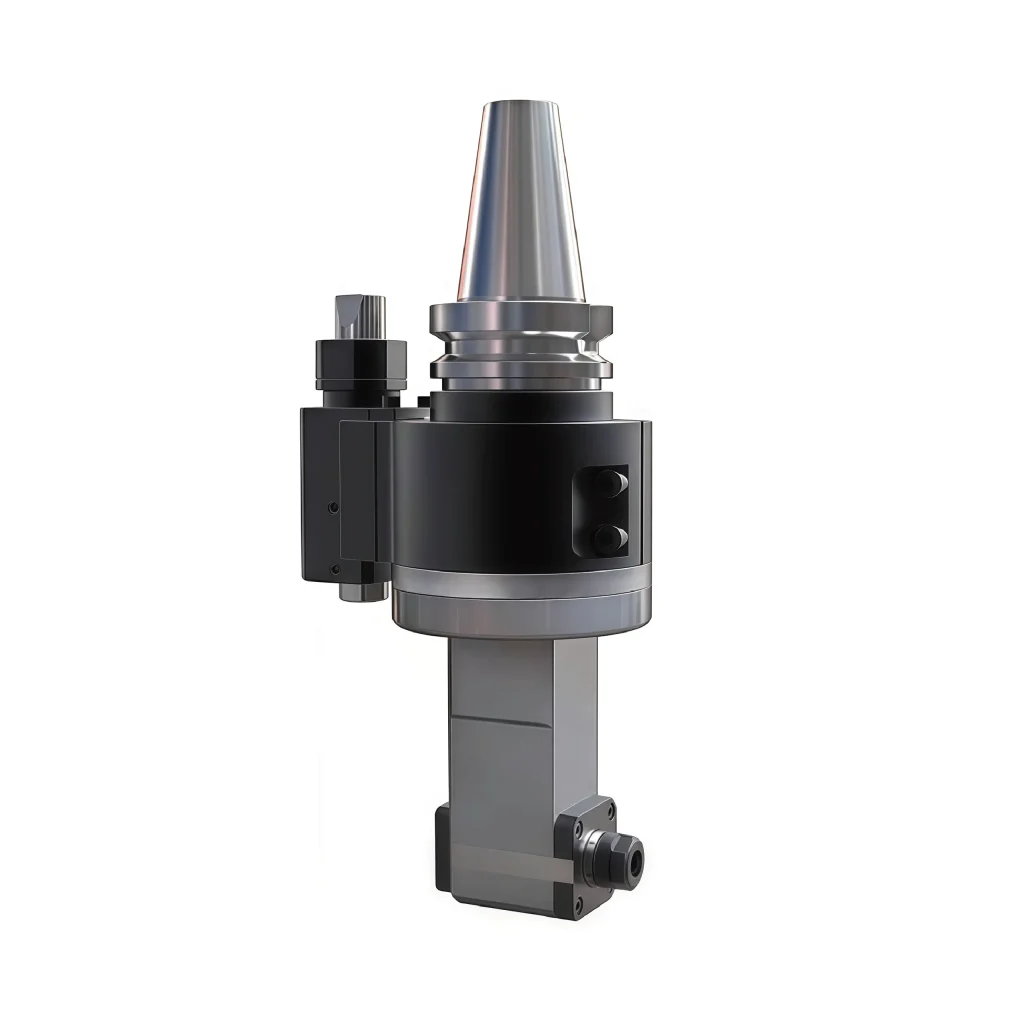

| AG90-ER11 Right Angle Head | ||||||||
| MODEL | OUT PUT |
L1 | L2 | L3 | POWER | RPMmax | Tmax | GR |
| AG90-ER11-80 | ER11 | 41/48 | 65/80 | 80 | 1KW | 4500RPM | 6NM | 1:1 |
| AG90-ER11-140 | ER11 | 41/48 | 65/80 | 140 | 1KW | 4500RPM | 6NM | 1:1 |
| AG90-ER11-200 | ER11 | 41/48 | 65/80 | 200 | 1KW | 4500RPM | 6NM | 1:1 |
