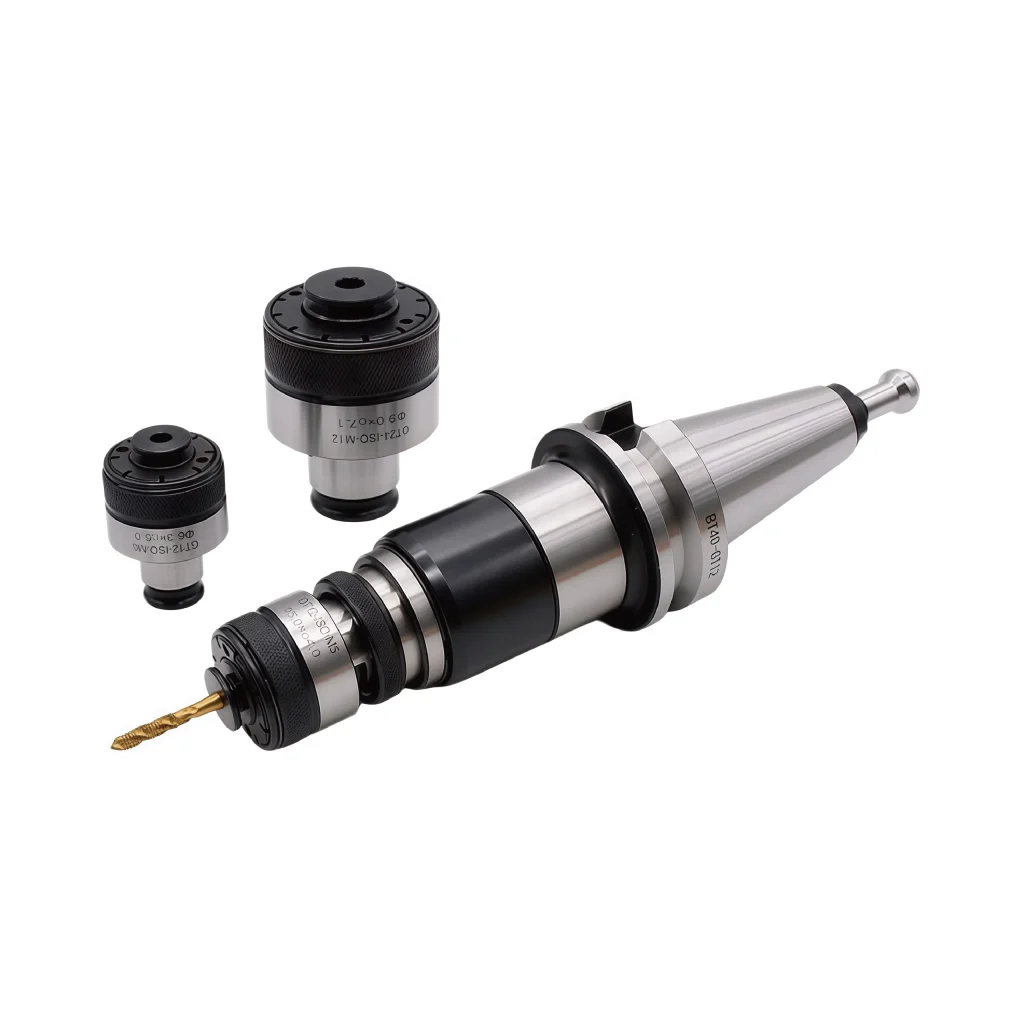

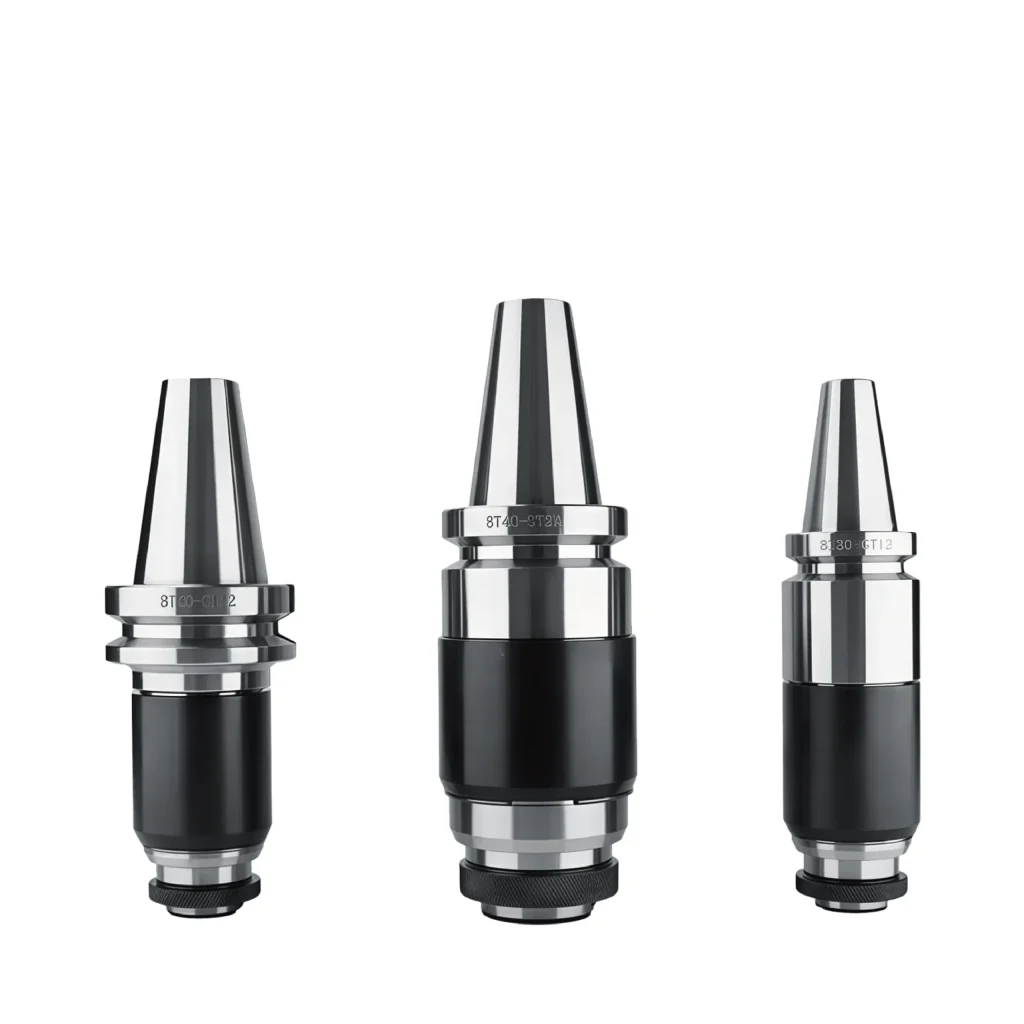

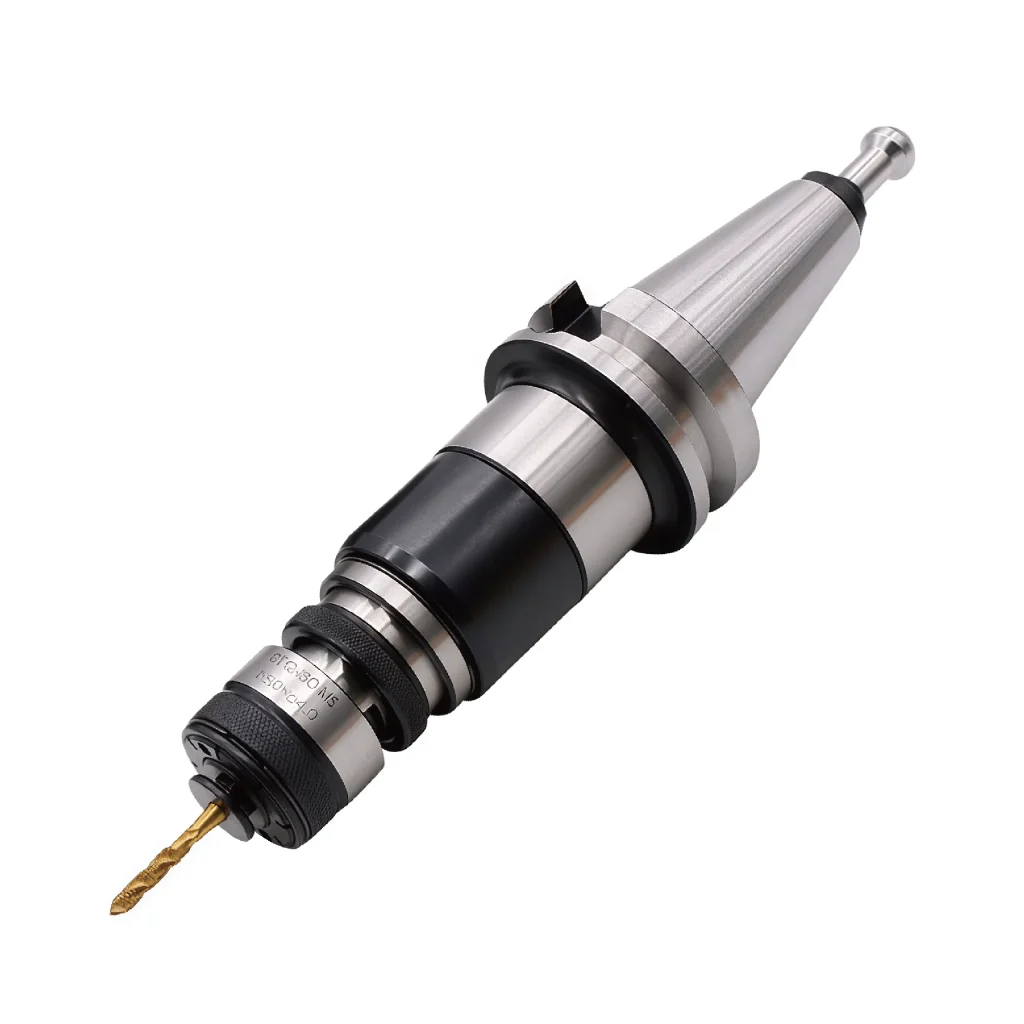

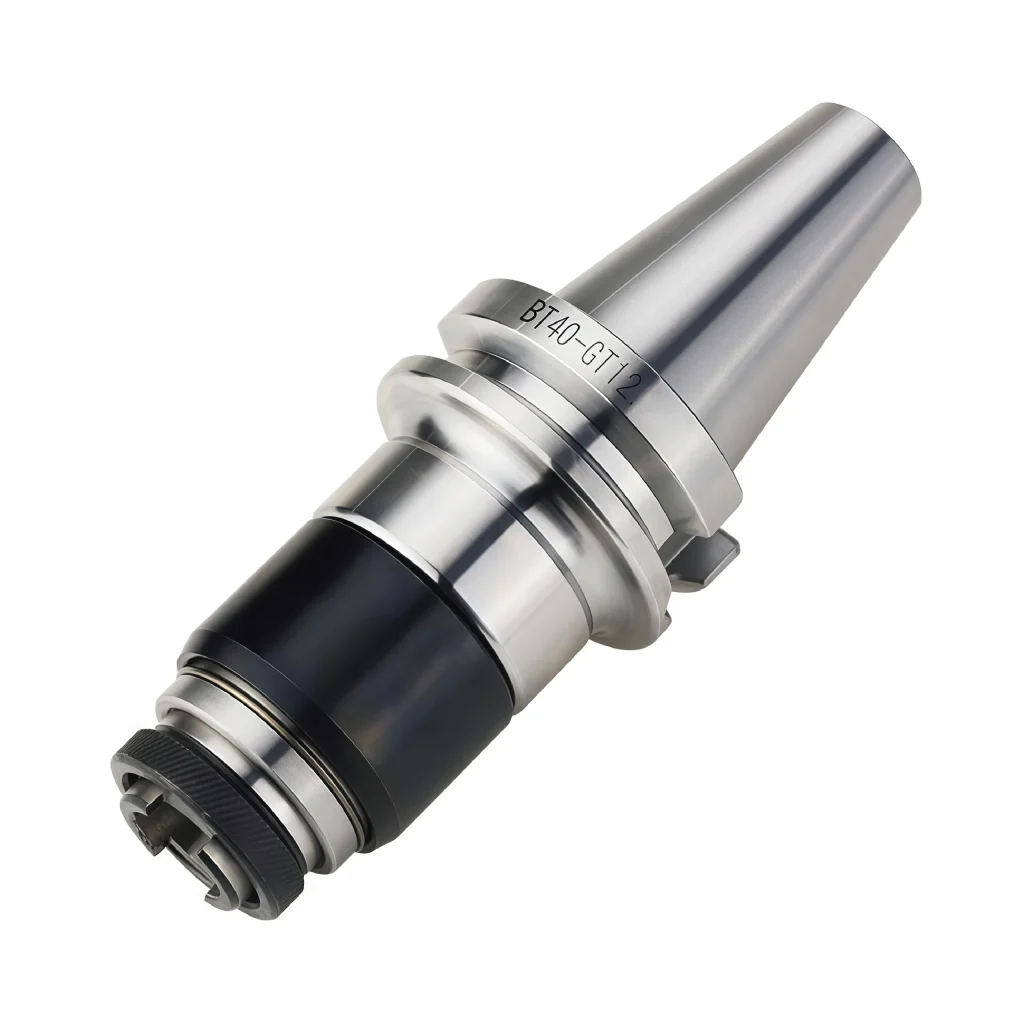

BT/BBT Micro-Retractable Compensation Tapping Chucks
Product Details & Technical Resources

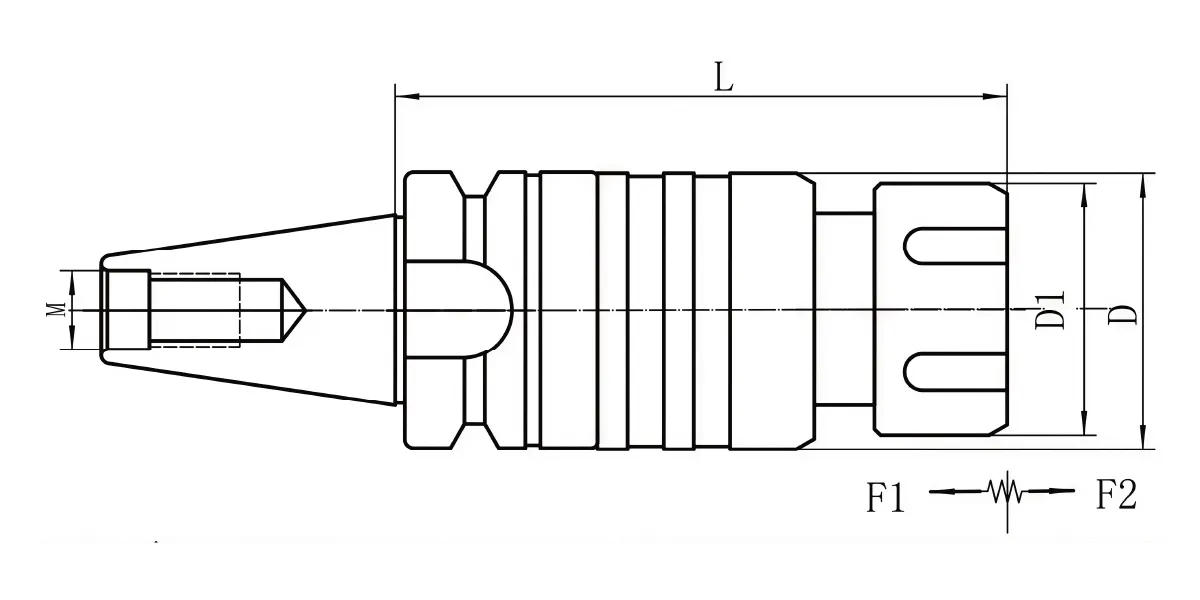

CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.
| BT/BBT Micro-Retractable Compensation Tapping Chucks | ||||||||
| 订单号 order No. |
Range 攻丝范围 |
∅D | ∅D1 | L | Lenght Comp 伸缩长度 |
M | Collet s 攻丝筒夹 |
|
| Comp 压缩 F2 |
Tens 伸长 F1 |
|||||||
| BT/BBT30-V16-100L | M3-M10 | 46 | 28 | 100 | 0.5mm | 0.5mm | M12 | ER16 |
| BT/BBT30-V20-100L | M3-M12 | 34 | ER20 | |||||
| BT/BBT30-V25-100L | M3-M16 | 42 | ER25 | |||||
| BT/BBT30-V32-110L | M6-M20 | 50 | 110 | ER32 | ||||
| BT/BBT40-V16-110L | M3-M10 | 46 | 28 | 110 | 0.5mm | 0.5mm | M16 | ER16 |
| BT/BBT40-V20-110L | M3-M12 | 34 | ER20 | |||||
| BT/BBT40-V25-110L | M3-M16 | 42 | ER25 | |||||
| BT/BBT40-V32-120L | M6-M20 | 50 | 120 | ER32 | ||||
| BT/BBT50-V16-120L | M3-M10 | 46 | 28 | 120 | 0.5mm | 0.5mm | M24 | ER16 |
| BT/BBT50-V20-120L | M3-M12 | 34 | ER20 | |||||
| BT/BBT50-V25-120L | M3-M16 | 42 | ER25 | |||||
| BT/BBT50-V32-130L | M6-M20 | 50 | 130 | ER32 | ||||
