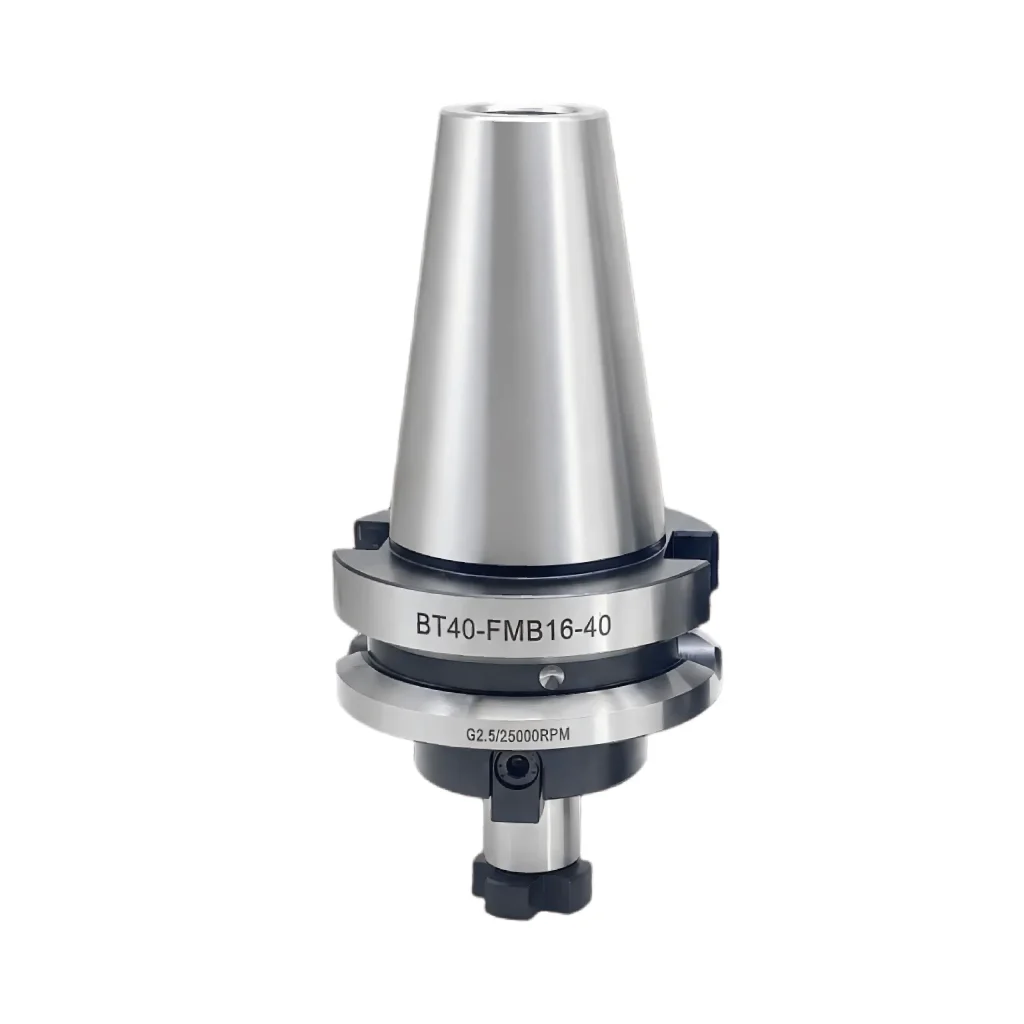

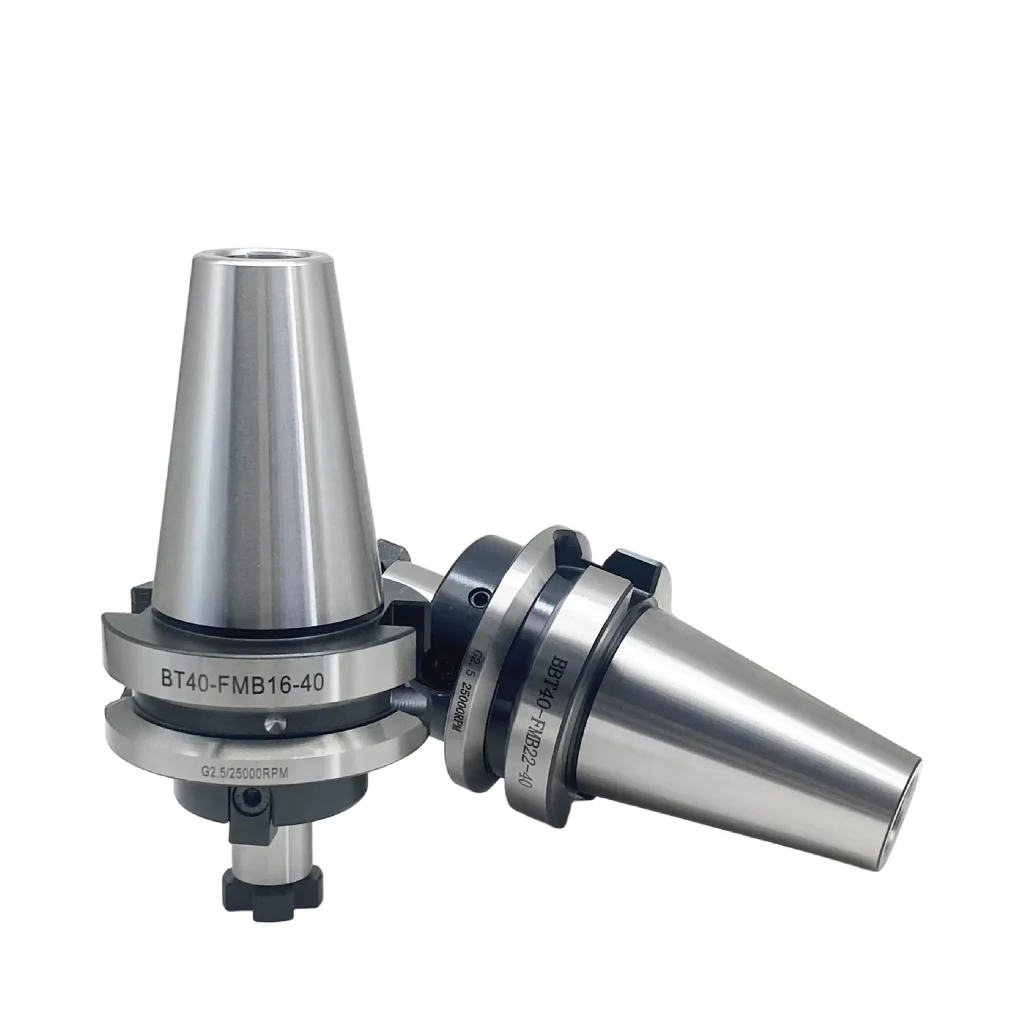

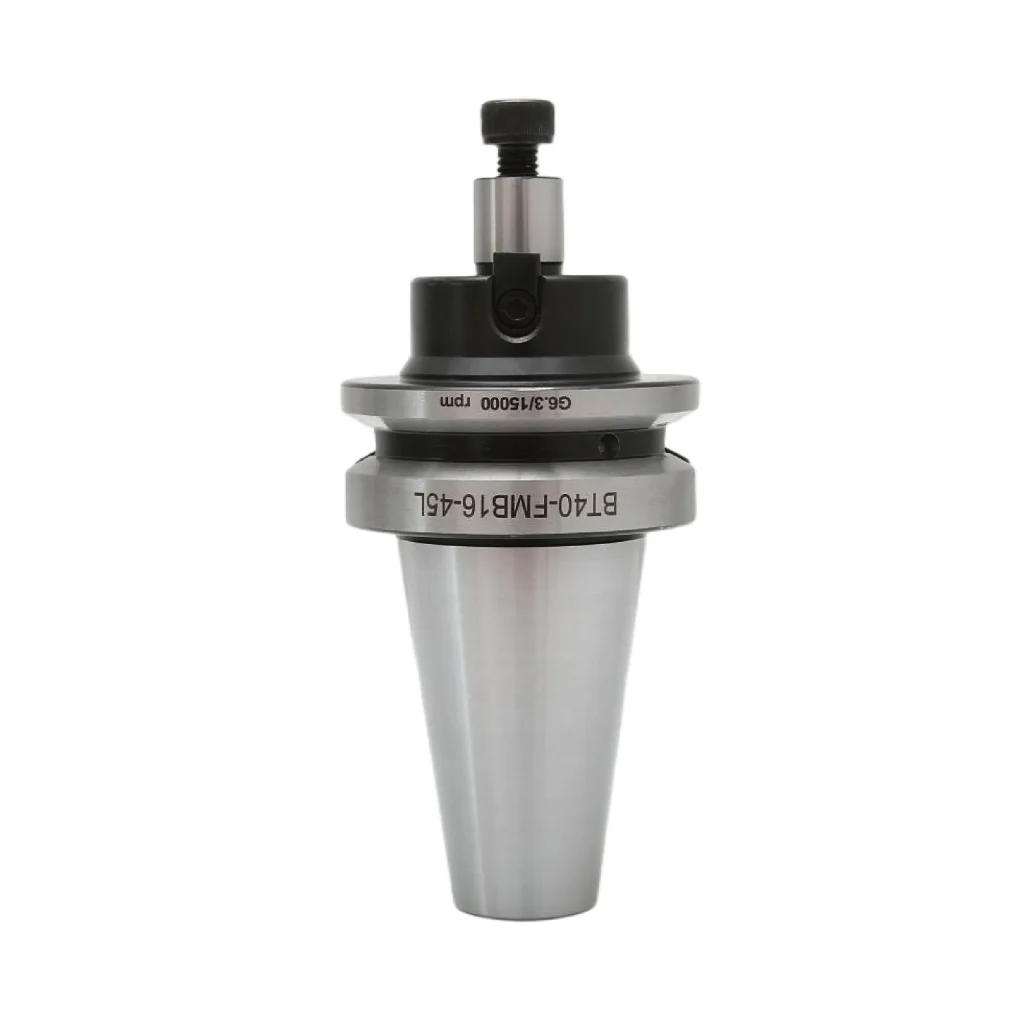

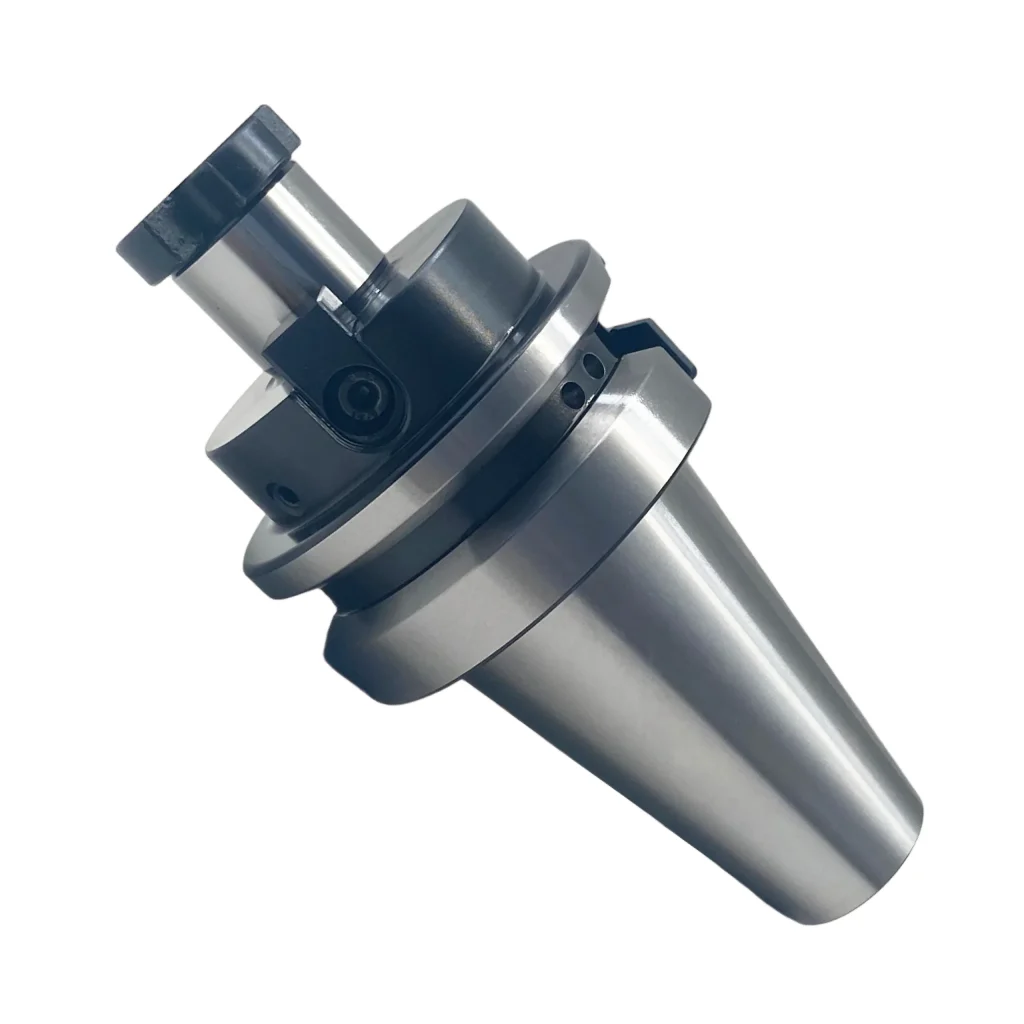

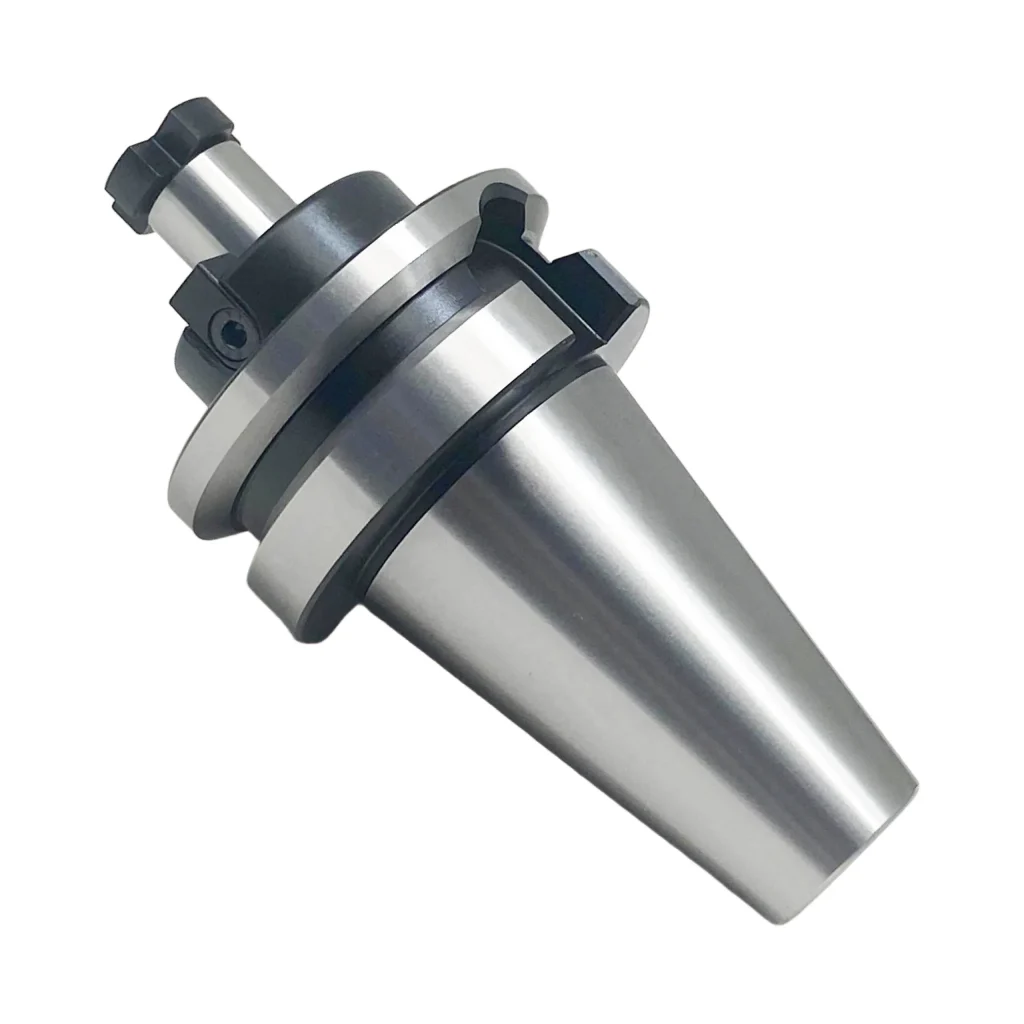

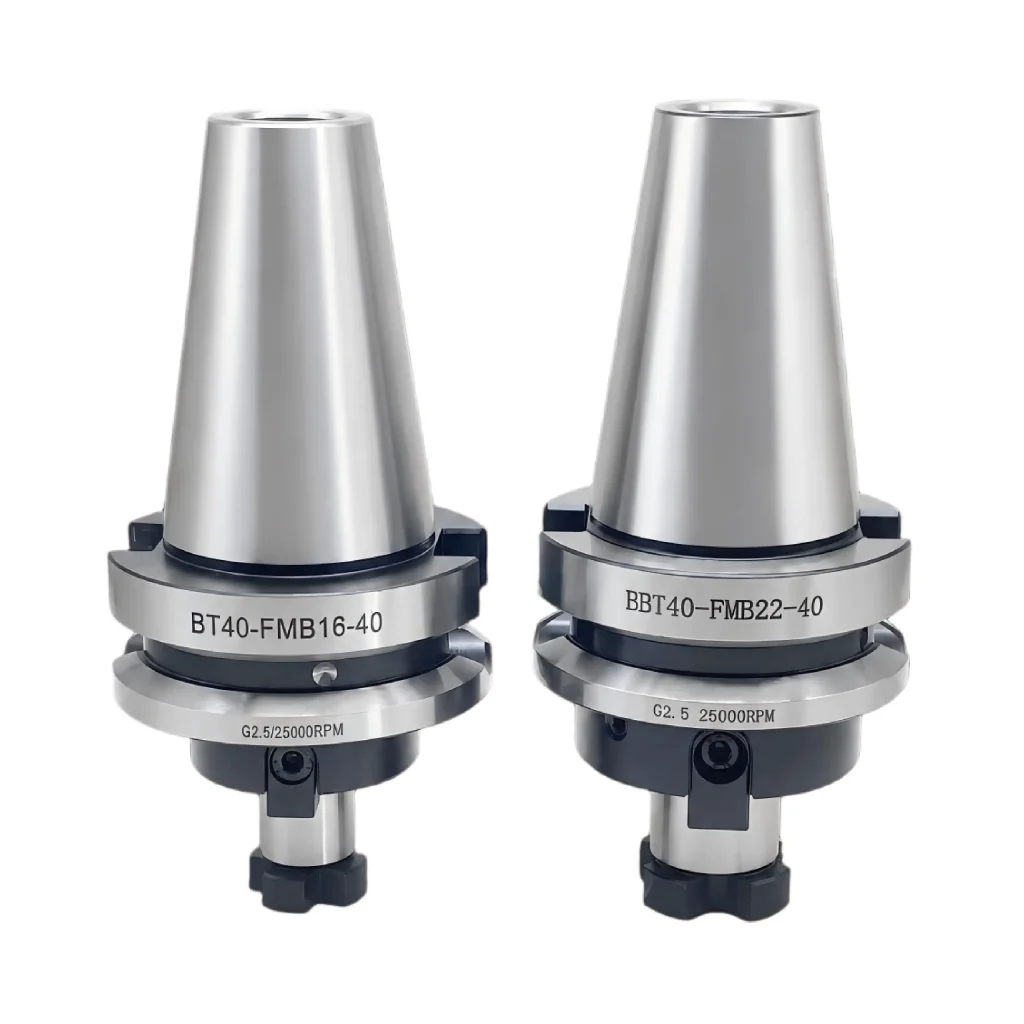

BT BBT-FMB Face Mill Arbor

Request a Quote

Product Details & Technical Resources

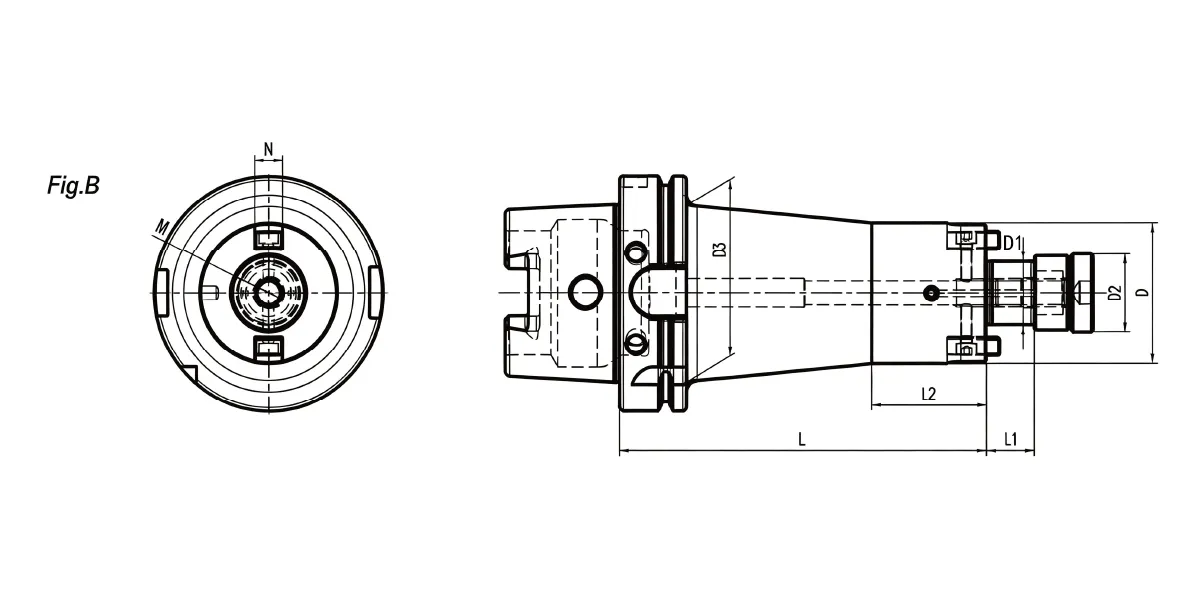

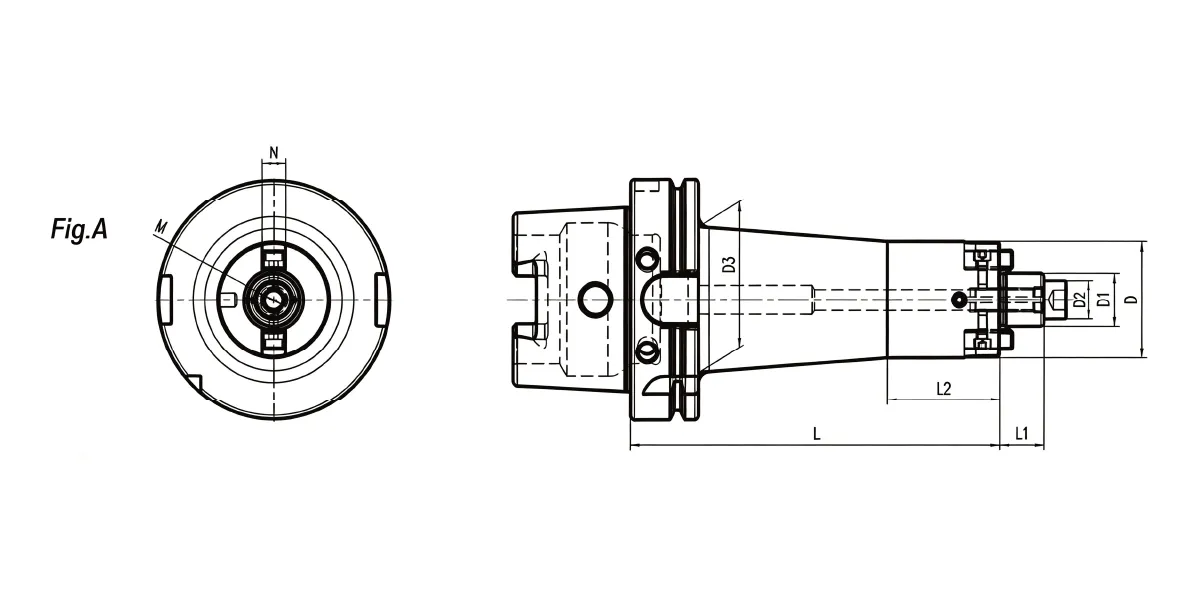

CAD Drawings

Access product dimension drawings and structural references to support selection, installation and project planning.

Technical Specifications

Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.

BT Face Mill Arbor
型号 MODEL	尺寸SIZE (mm)
JIS B 6339-A		D	D1	D2	L	L1	M	N	Fig
BT30-FMB16-60	30	38	16	13	60	17	M8×1.25	8	A
BT30-FMB22-45	30	48	22	16	45	19	M10×1.5	10	A
BT30-FMB22-60	30	48	22	16	60	19	M10×1.5	10	A
BT30-FMB22-100	30	48	22	16	100	19	M10×1.5	10	A
BT30-FMB27-45	30	60	27	33	45	21	M12×1.75	12	B

型号 MODEL	尺寸SIZE (mm)
JIS B 6339-A		D	D1	D2	L	L1	P	M	Q	N	Fig
BT40-FMB16-60	40	38	16	13	60	17	-	M8×1.25	-	8	A
BT40-FMB16-90	40	38	22	13	90	17	-	M8×1.25	-	8	A
BT40-FMB16-100	40	38	22	13	100	17	-	M8×1.25	-	8	A
BT40-FMB16-120	40	38	22	13	120	17	-	M8×1.25	-	8	A
BT40-FMB22-45	40	48	27	16	45	19	-	M10×1.5	-	10	A
BT40-FMB22-60	40	48	22	16	60	19	-	M10×1.5	-	10	A
BT40-FMB22-90	40	48	22	16	90	19	-	M10×1.5	-	10	A
BT40-FMB22-100	40	48	22	16	100	19	-	M10×1.5	-	10	A
BT40-FMB22-120	40	48	27	16	120	19	-	M10×1.5	-	10	A
BT40-FMB27-45	40	60	22	33	45	21	-	M12×1.75	-	12	B
BT40-FMB27-60	40	60	22	33	60	21	-	M12×1.75	-	12	B
BT40-FMB27-90	40	60	22	33	90	21	-	M12×1.75	-	12	B
BT40-FMB27-100	40	60	27	33	100	21	-	M12×1.75	-	12	B
BT40-FMB27-120	40	60	22	33	120	21	-	M12×1.75	-	12	B
BT40-FMB27-160	40	60	22	33	160	21	-	M12×1.75	-	12	B
BT40-FMB32-45	40	78	22	40	45	24	-	M16×2	-	14	B
BT40-FMB32-60	40	78	27	40	60	24	-	M16×2	-	14	B
BT40-FMB32-90	40	78	22	40	90	24	-	M16×2	-	14	B
BT40-FMB32-100	40	78	22	40	100	24	-	M16×2	-	14	B
BT40-FMB32-160	40	78	22	40	160	24	-	M16×2	-	14	B
BT40-FMB40-60	40	89	27	50	60	27	66.7	M20×2.5	M12×1.75	16	C
BT40-FMB40-120	40	89	22	50	120	27	66.7	M20×2.5	M12×1.75	16	C
BT40-FMB40-160	40	89	22	50	160	27	66.7	M20×2.5	M12×1.75	16	C

BT50-FMB16-60	50	38	16	13	60	17	-	M8×1.25	-	8	A
BT50-FMB16-90	50	38	16	13	90	17	-	M8×1.25	-	8	A
BT50-FMB16-100	50	38	16	13	100	17	-	M8×1.25	-	8	A
BT50-FMB16-120	50	38	16	13	120	17	-	M8×1.25	-	8	A
BT50-FMB22-60	50	48	22	16	60	19	-	M10×1.5	-	10	A
BT50-FMB22-90	50	48	22	16	90	19	-	M10×1.5	-	10	A
BT50-FMB22-100	50	48	22	16	100	19	-	M10×1.5	-	10	A
BT50-FMB22-120	50	48	22	16	120	19	-	M10×1.5	-	10	A
BT50-FMB27-45	50	60	27	33	45	21	-	M12×1.75	-	12	B
BT50-FMB27-60	50	60	27	33	60	21	-	M12×1.75	-	12	B
BT50-FMB27-90	50	60	27	33	90	21	-	M12×1.75	-	12	B
BT50-FMB27-100	50	60	27	33	100	21	-	M12×1.75	-	12	B
BT50-FMB27-120	50	60	27	33	120	21	-	M12×1.75	-	12	B
BT50-FMB27-160	50	60	27	33	160	21	-	M12×1.75	-	12	B
BT50-FMB32-45	50	78	32	40	45	24	-	M16×2	-	14	B
BT50-FMB32-60	50	78	32	40	60	24	-	M16×2	-	14	B
BT50-FMB32-90	50	78	32	40	90	24	-	M16×2	-	14	B
BT50-FMB32-100	50	78	32	40	100	24	-	M16×2	-	14	B
BT50-FMB32-120	50	78	32	40	120	24	-	M16×2	-	14	B
BT50-FMB32-150	50	78	32	40	150	24	-	M16×2	-	14	B
BT50-FMB32-200	50	78	32	40	200	24	-	M16×2	-	14	B
BT50-FMB40-45	50	89	40	40	45	27	66.7	M20×2.5	M12×1.75	16	C
BT50-FMB40-90	50	89	40	40	90	27	66.7	M20×2.5	M12×1.75	16	C
BT50-FMB40-120	50	89	40	40	120	27	66.7	M20×2.5	M12×1.75	16	C
BT50-FMB40-160	50	89	40	40	160	27	66.7	M20×2.5	M12×1.75	16	C
BT50-FMB60-70	50	129	60	-	70	40	101.6	M30×3.5	M16×2	25.4	C
BT50-FMB60-120	50	129	60	-	120	40	101.6	M30×3.5	M16×2	25.4	C
