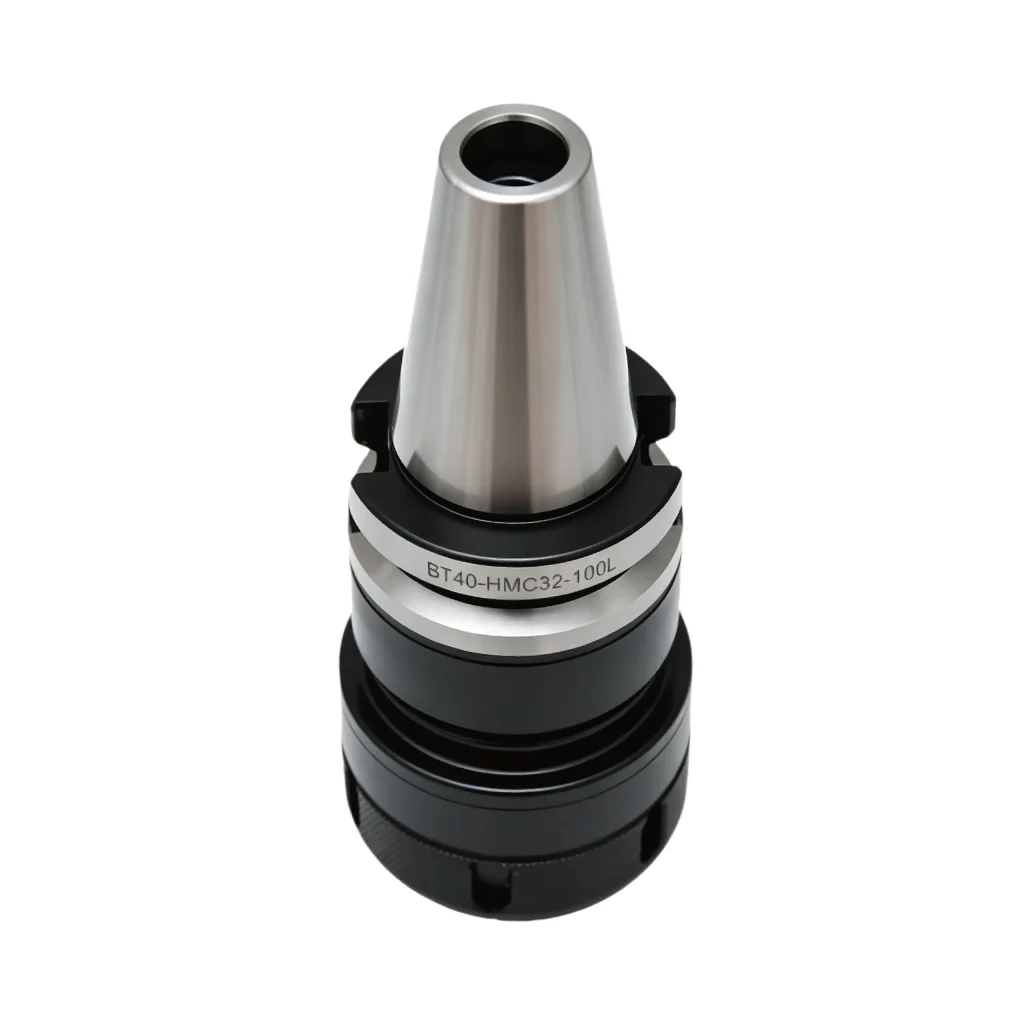

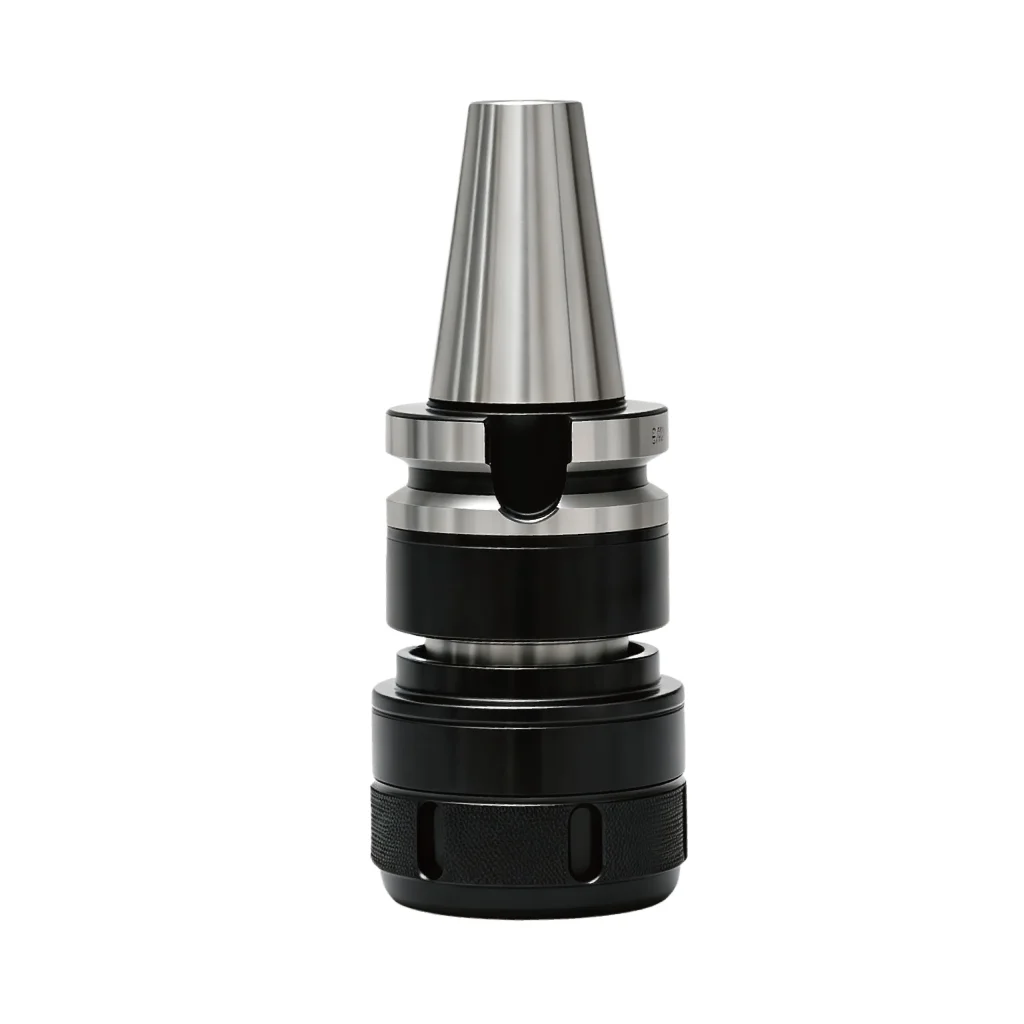

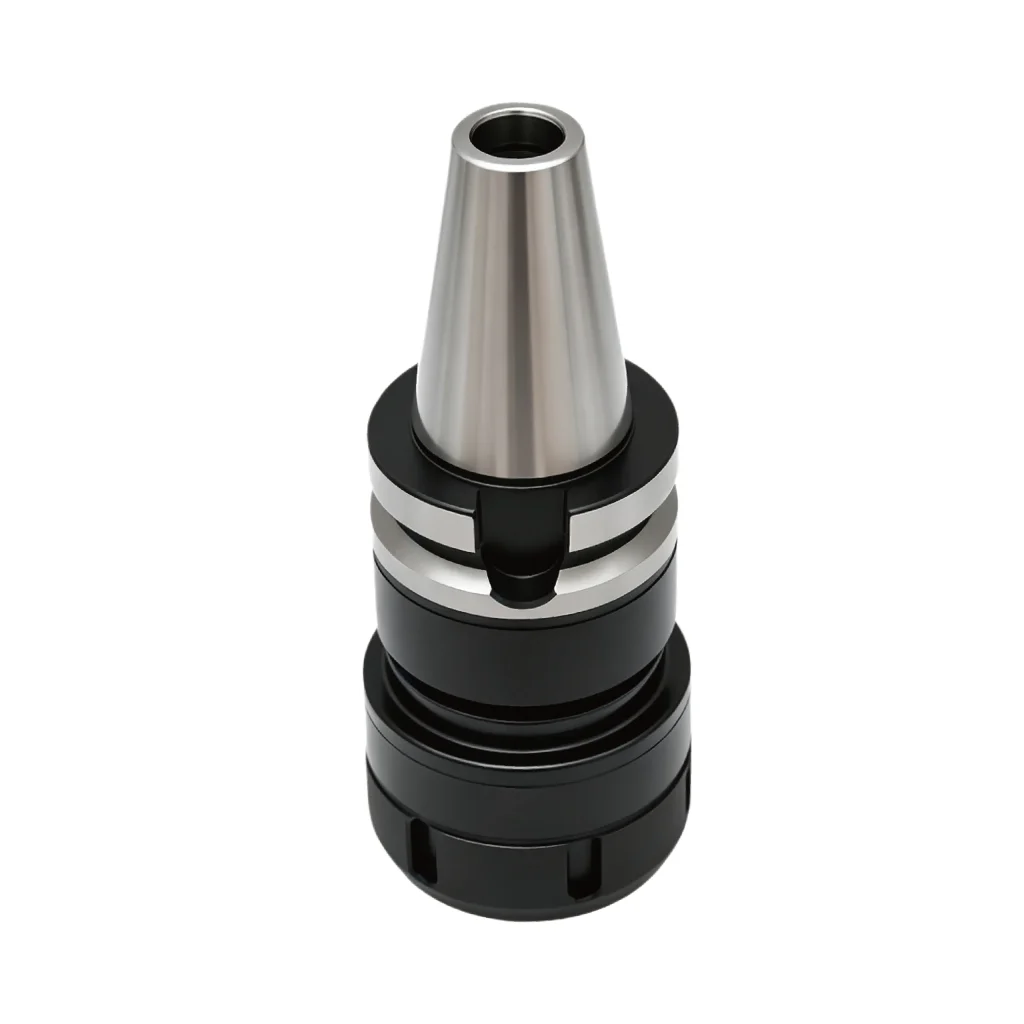

BT-C POWER MILLING HOLDER
Power chuck shank is a commonly used shank in cutting machining, mainly for clamping straight-shank tools such as end mills and reamers.
It usually consists of the shank body, locking nut, needle roller cage and other components. The front end of the shank features a small-taper cone with spiral grooves in the inner bore. When turning the locking nut, the contact area between needle rollers and the shank body increases to generate clamping force.
Accuracy:The circlip clamping causes minimal deformation. Runout at 3×D can be stably maintained between 5μm and 8μm, ensuring machining accuracy and surface quality.
Product Details & Technical Resources

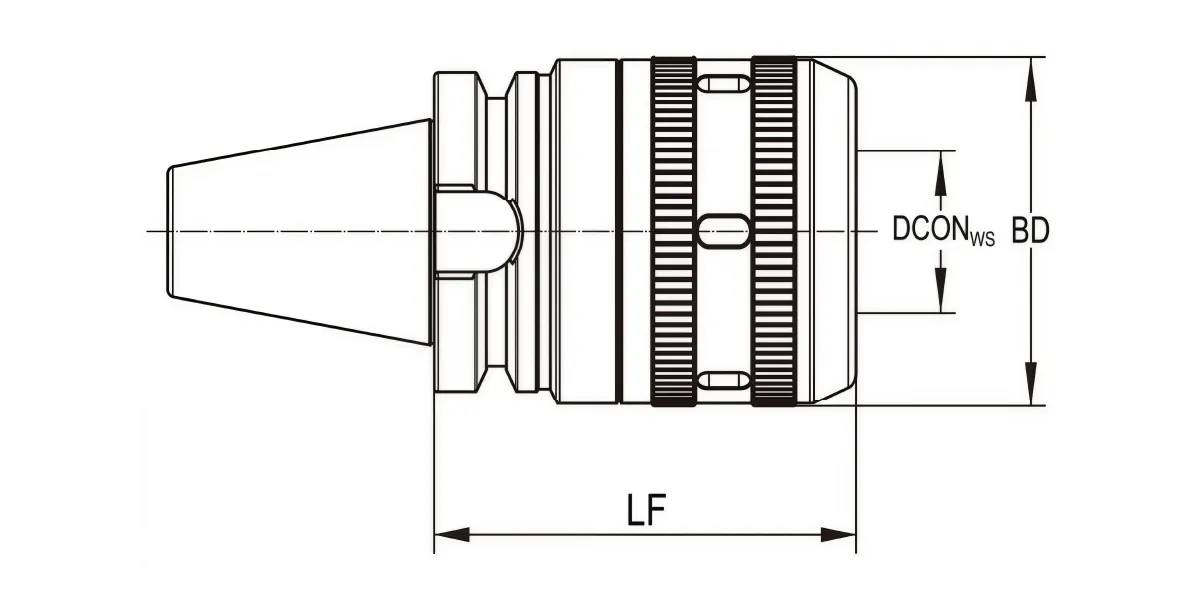

CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.
| BT Power Milling Chuck | ||||
| 型号 MODEL |
尺寸SIZE (mm) |
|||
| JIS B 6339-AD | DCONWS | BD | LF | |
| BT30-C20-95 | 30 | 20 | 52 | 95 |
| BT40-C20-80 | 40 | 20 | 52 | 80 |
| BT40-C20-95 | 40 | 20 | 52 | 95 |
| BT40-C20-120 | 40 | 20 | 52 | 120 |
| BT40-C25-100 | 40 | 25 | 60 | 100 |
| BT40-C25-120 | 40 | 25 | 60 | 120 |
| BT40-C32-105 | 40 | 32 | 69 | 105 |
| BT50-C20-105 | 50 | 20 | 52 | 105 |
| BT50-C20-135 | 50 | 20 | 52 | 135 |
| BT50-C25-110 | 50 | 25 | 60 | 110 |
| BT50-C25-135 | 50 | 25 | 60 | 135 |
| BT50-C25-165 | 50 | 25 | 60 | 165 |
| BT50-C32-110 | 50 | 32 | 69 | 110 |
| BT50-C32-135 | 50 | 32 | 69 | 135 |
| BT50-C32-165 | 50 | 32 | 69 | 165 |
| BT50-C32-200 | 50 | 32 | 69 | 200 |
| BT50-C42-110 | 50 | 42 | 86 | 110 |
| BT50-C42-160 | 50 | 42 | 86 | 160 |
