Product Details & Technical Resources

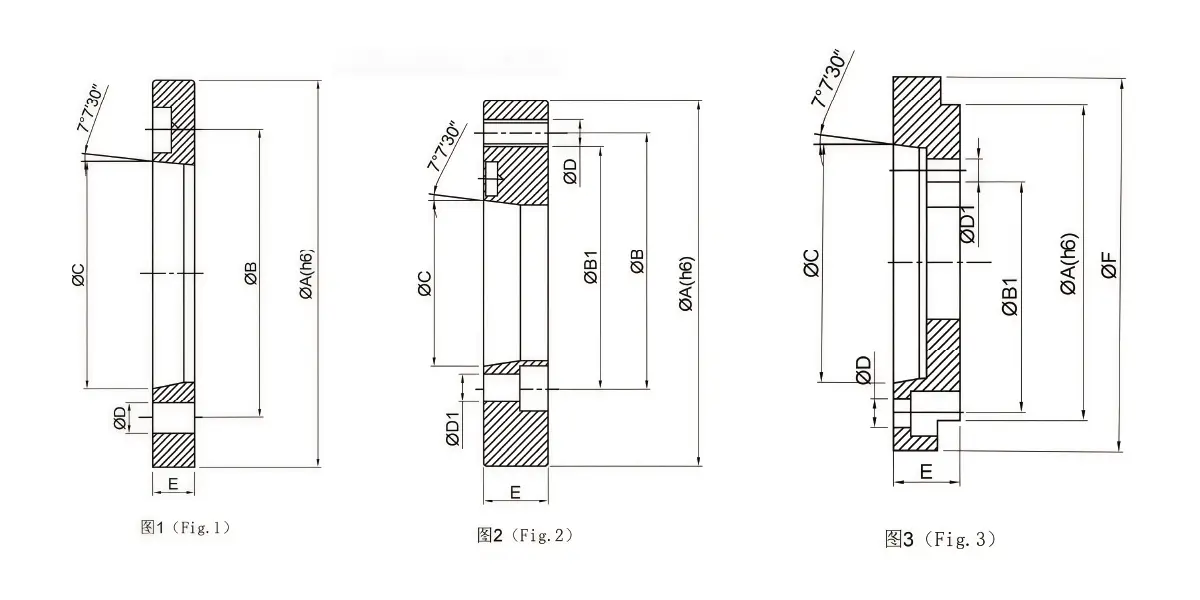

CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.

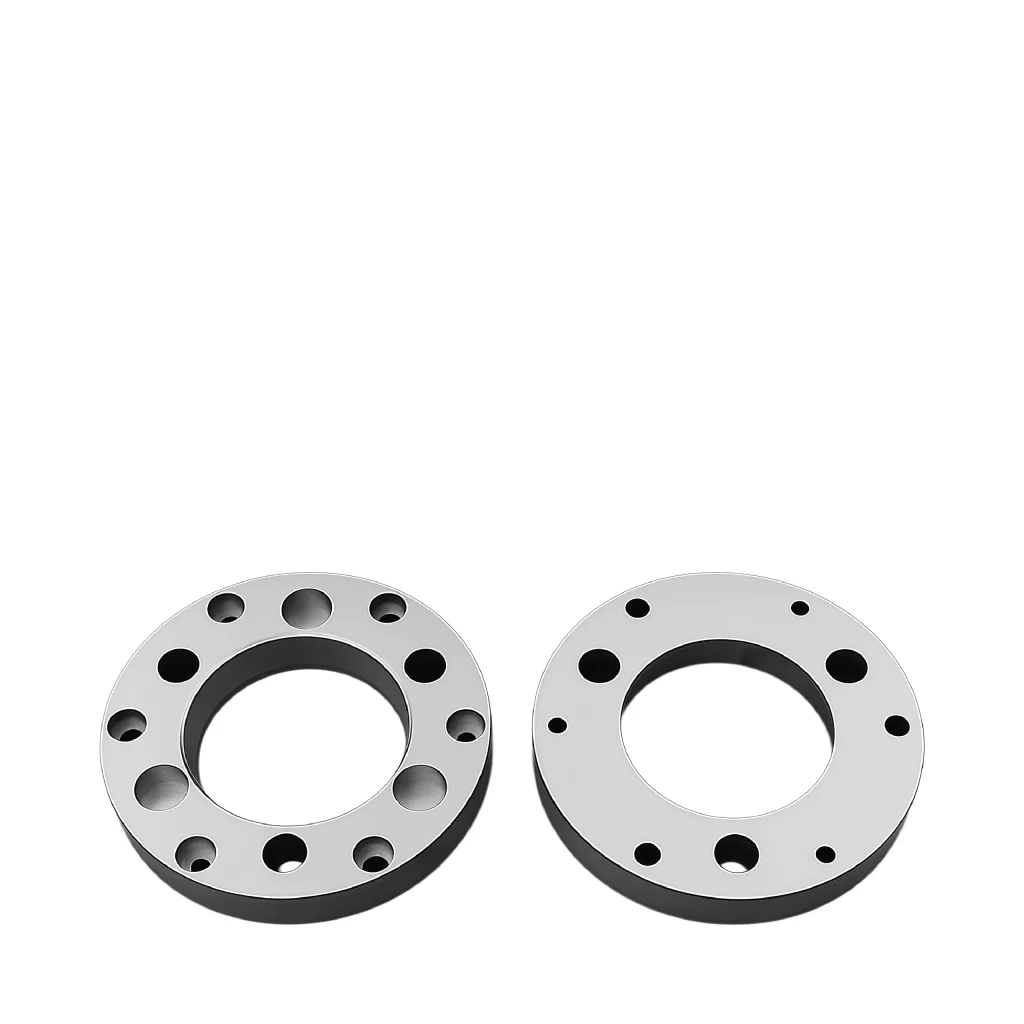

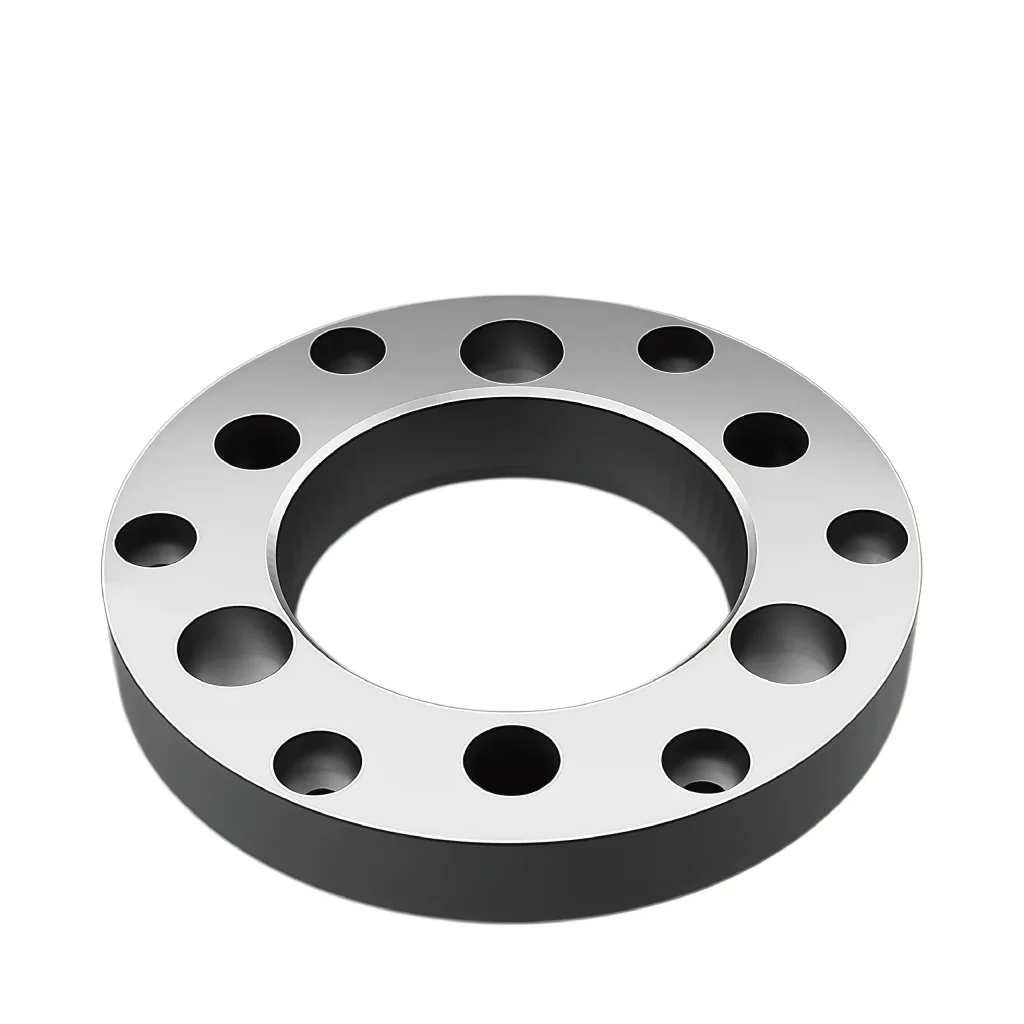

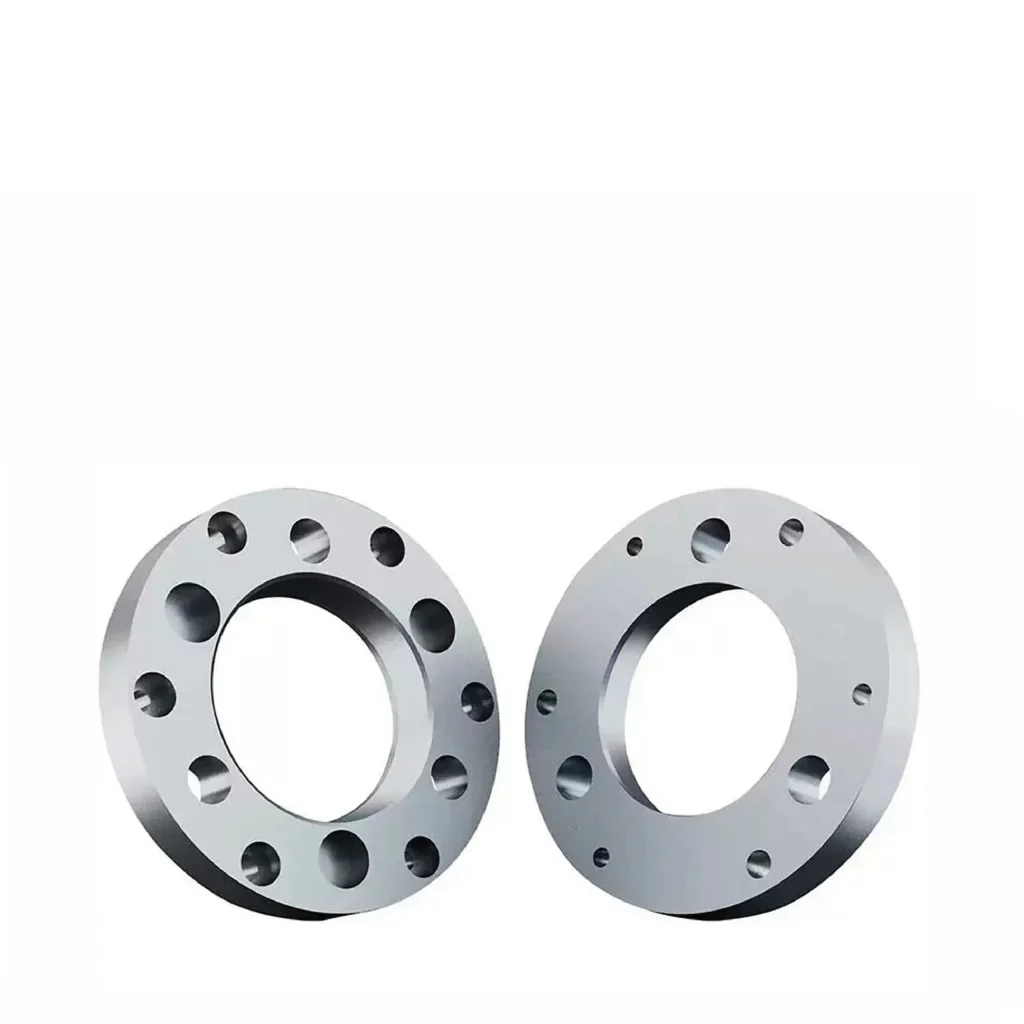

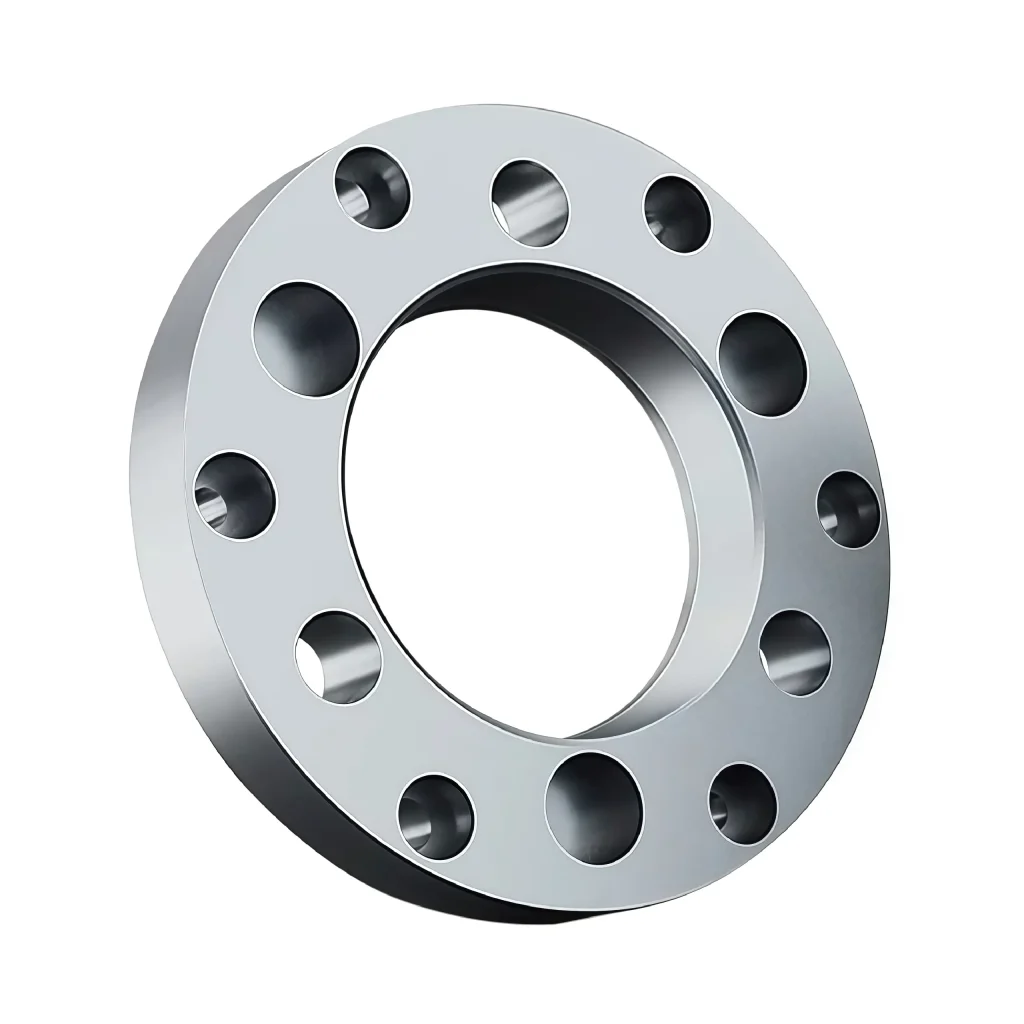

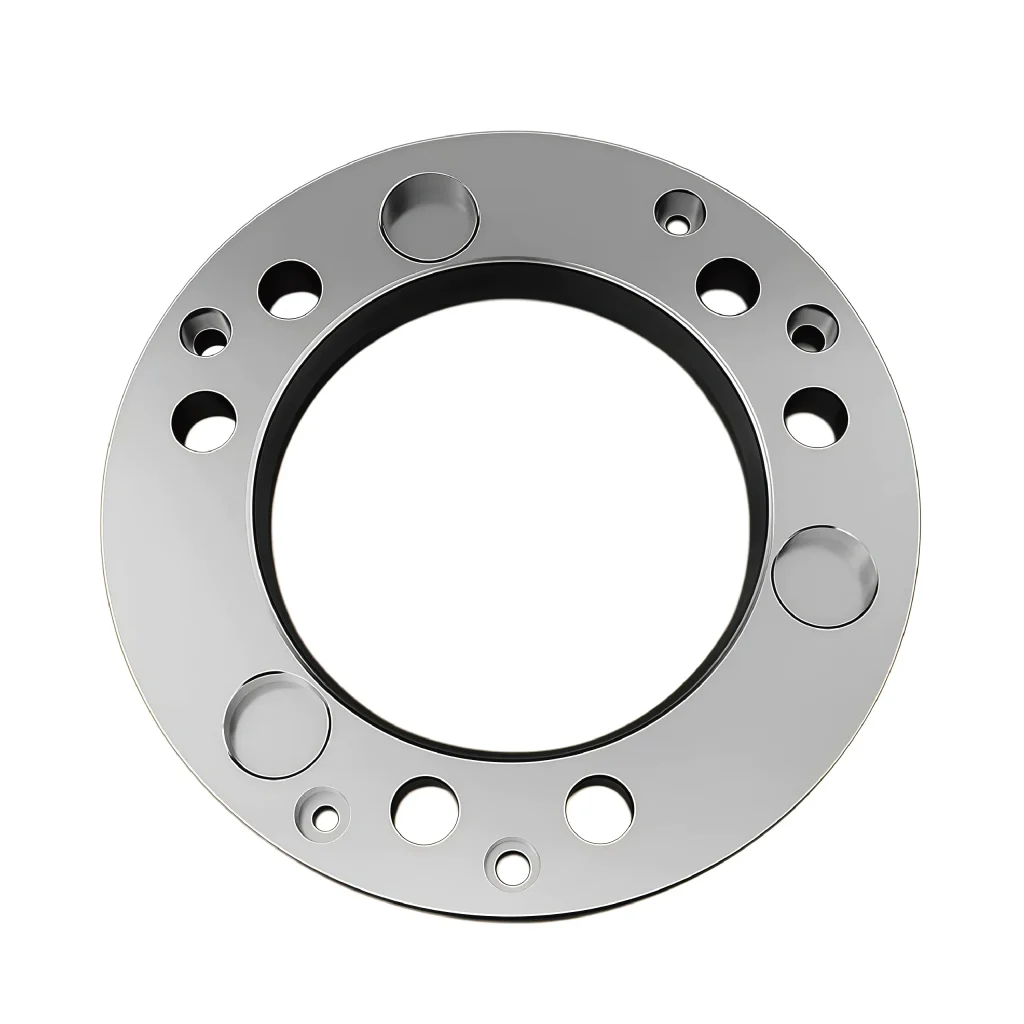

| Chuck Flanges | |||||||||||
| 订单号 Order No. |
主轴轴端 | A(h6) (mm) |
B (mm) |
B1 (mm) |
C (mm) |
D (mm) |
D1 (mm) |
E (mm) |
F (mm) |
参考图 | 重量 Weight |
| JSA00504 | A4 | 80 | 82.6 | 一 | 63.51 | 9 | 一 | 20 | 一 | 图1(Fig.1) | 0.55 |
| JSA00604 | A4 | 140 | 104.8 | 82.6 | 63.51 | 11 | M10 | 20 | 一 | 图1(Fig.2) | 1.60 |
| JSA00605 | A5 | 140 | 104.8 | 一 | 82.56 | 11 | 一 | 15 | 一 | 图1(Fig.1) | 1.00 |
| JSA00606 | A6 | 140 | 104.8 | 133.4 | 106.38 | 13 | M10 | 30 | 165 | 图1(Fig.3) | 3.50 |
| JSA00805 | A5 | 170 | 133.4 | 104.8 | 82.56 | 11 | M12 | 24 | 一 | 图1(Fig.2) | 2.70 |
| JSA00806 | A6 | 170 | 133.4 | 一 | 106.38 | 13 | 一 | 17 | 一 | 图1(Fig.1) | 1.50 |
| JSA00808 | A8 | 170 | 133.4 | 171.4 | 139.72 | 17 | M12 | 40 | 210 | 图1(Fig.3) | 6.20 |
| JSA01006 | A6 | 220 | 171.4 | 133.4 | 106.38 | 13 | M16 | 28 | 一 | 图1(Fig.2) | 3.00 |
| JSA01008 | A8 | 220 | 171.4 | 一 | 139.72 | 17 | 一 | 18 | 一 | 图1(Fig.1) | 2.70 |
| JSA01508 | A8 | 300 | 235 | 171.4 | 139.72 | 17 | M20 | 22 | 一 | 图1(Fig.2) | 8.50 |
| JSA01511 | A11 | 300 | 235 | 一 | 196.87 | 21 | 一 | 22 | 一 | 图1(Fig.1) | 6.50 |
| JSA01515 | A15 | 300 | 235 | 330.2 | 285.78 | 25 | M20 | 50 | 380 | 图1(Fig.3) | 22.00 |
| JSA02108 | A8 | 380 | 330.2 | 171.4 | 139.72 | 17 | M22 | 27 | 一 | 图1(Fig.2) | 21.00 |
| JSA02111 | A11 | 380 | 330.2 | 235 | 196.87 | 21 | M22 | 27 | 一 | 图1(Fig.2) | 18.00 |
| JSA02115 | A15 | 380 | 330.2 | 一 | 285.78 | 23 | 一 | 27 | 一 | 图1(Fig.1) | 10.00 |
| JSA02120 | A20 | 380 | 330.2 | 463.6 | 412.78 | 27 | M22 | 58 | 520 | 图1(Fig.3) | 55.00 |
