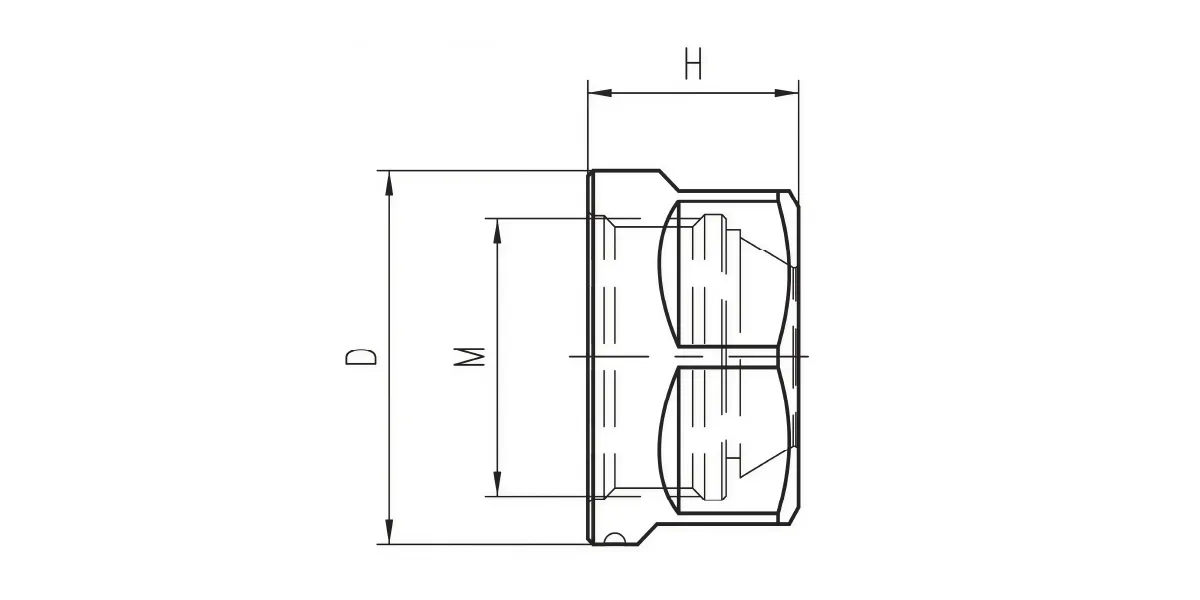

CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.

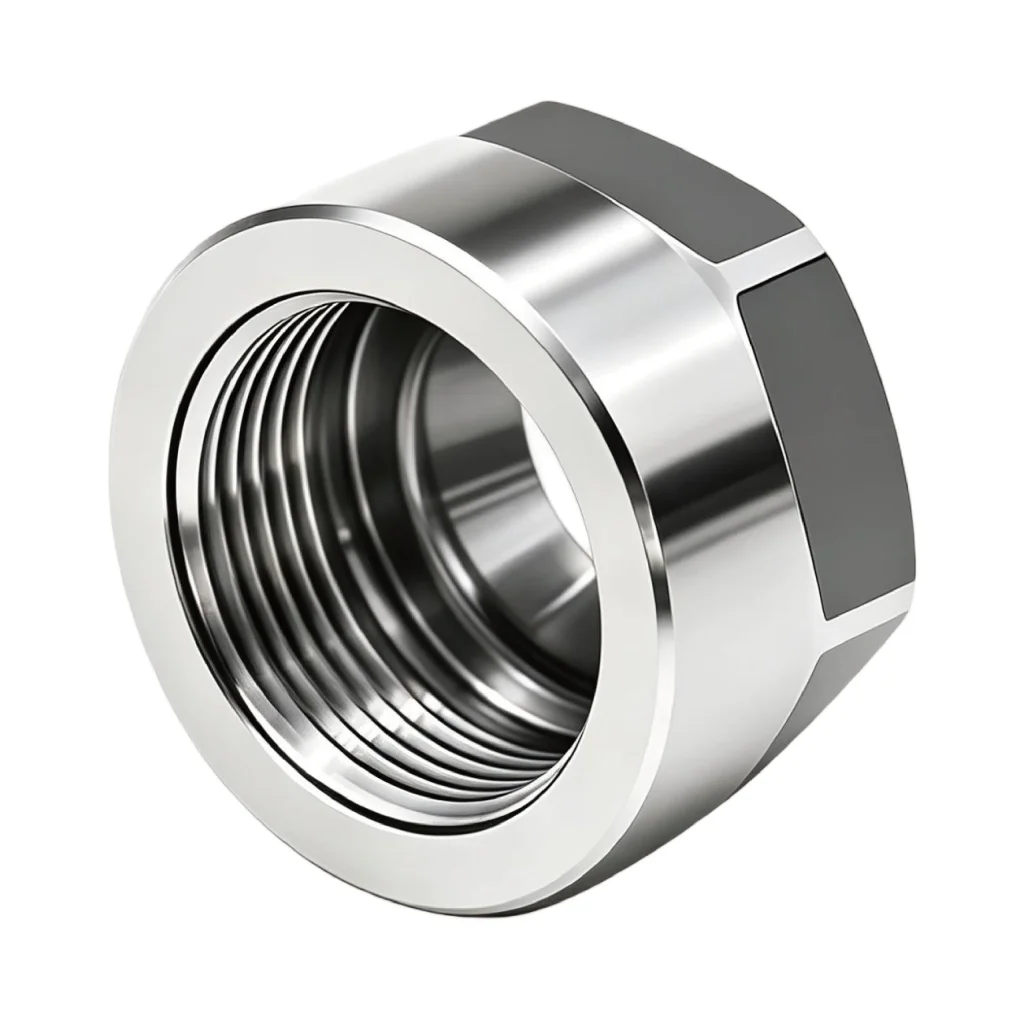

| Collet Nuts ER-A |
|||||
| 型号 MODEL |
尺寸SIZE | ||||
| D | M(mm) | H | 描述/DESCRIPTION | ||
| ER11-A | 19 | M14x0.75 | 12 | For ER16 collet chucks | |
| ER16-A | 28 | M22×1.5 | 18 | For ER20 collet chucks | |

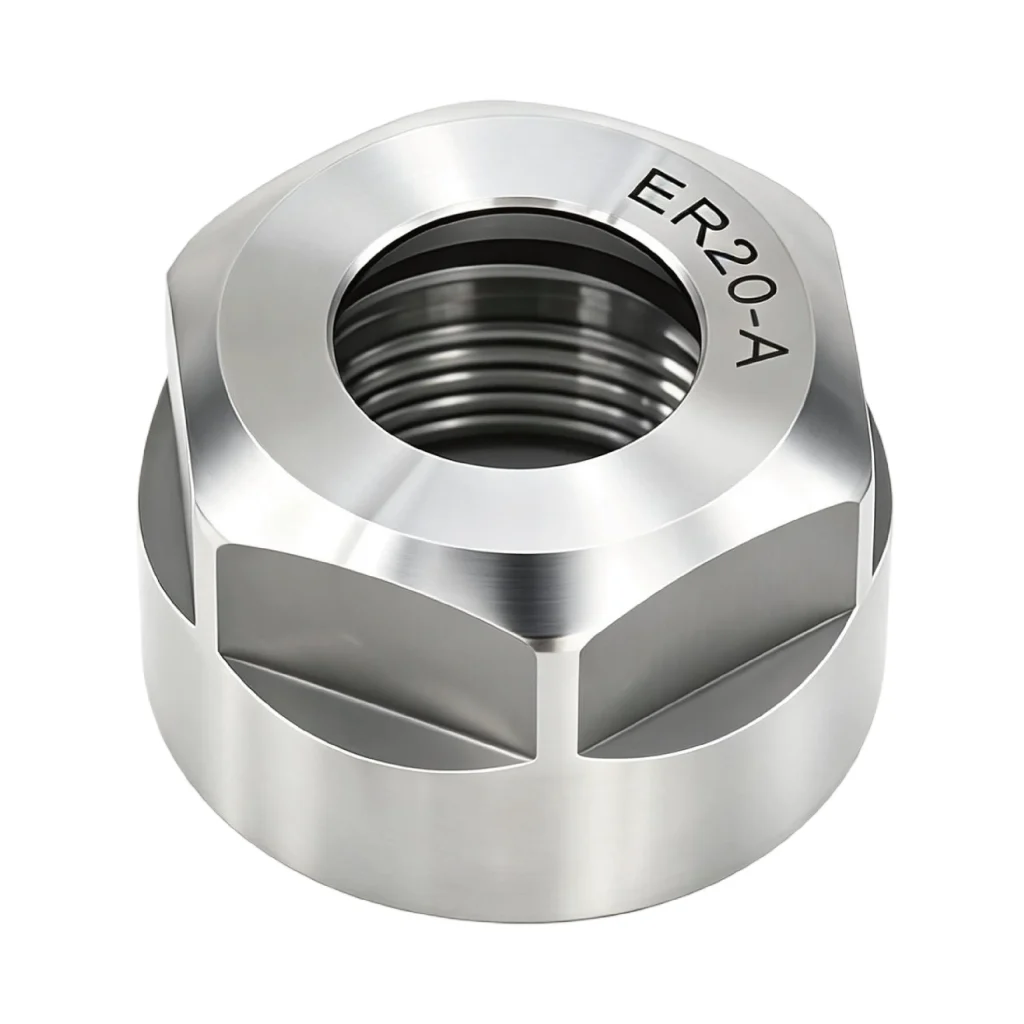

| ER20-A | 34 | M25×1.5 | 19.5 | For ER20 collet chucks | |
