Product Details & Technical Resources

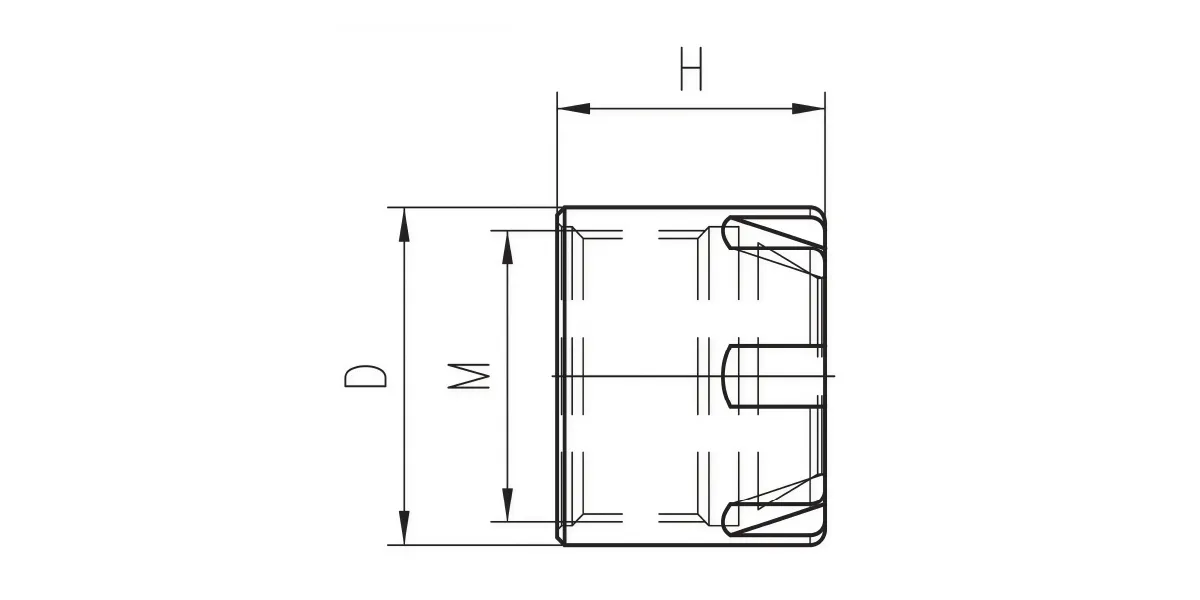

CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.
| Collet Nuts ER-M |
||||
| 型号 MODEL |
尺寸SIZE | |||
| D | M (mm) | H | 描述/DESCRIPTION | |
| ER11-M | 16 | M13×0.75 | 12 | For ER11 tool holders |
| ER16-M | 22 | M19×1 | 18 | For ER16 tool holders |
| ER20-M | 28 | M24×1 | 19 | For ER20 tool holders |
| ER25-M | 35 | M30×1 | 20 | For ER25 tool holders |
