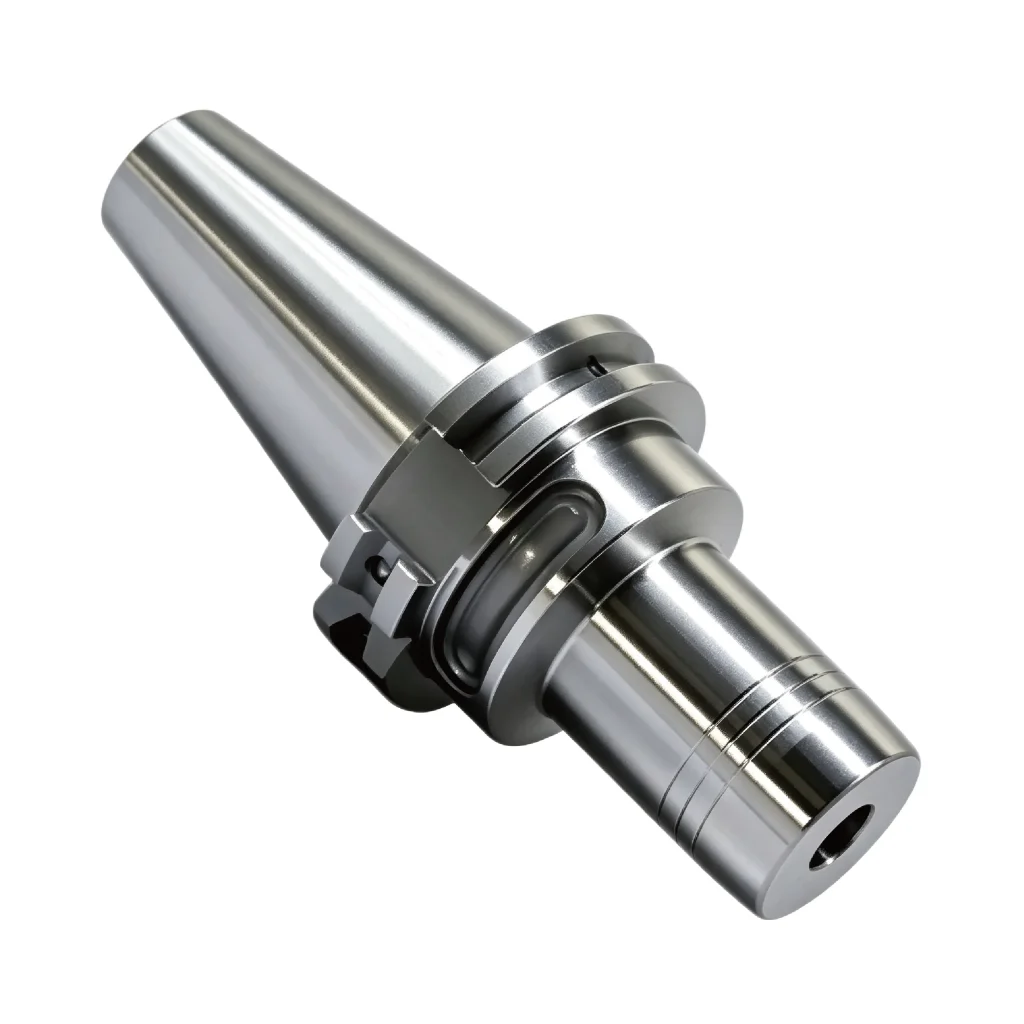

DIN 69871 SK40 Hydraulic Holder
The SK40 Hydraulic Tool Holder is a widely used, high-performance tooling solution standard in modern CNC machining. Built with a 7:24 taper compliant with DIN ISO 7388-1, it features an internal piston and valve system that delivers highly accurate and ultra-secure tool clamping through uniform hydraulic expansion.
Product Details & Technical Resources

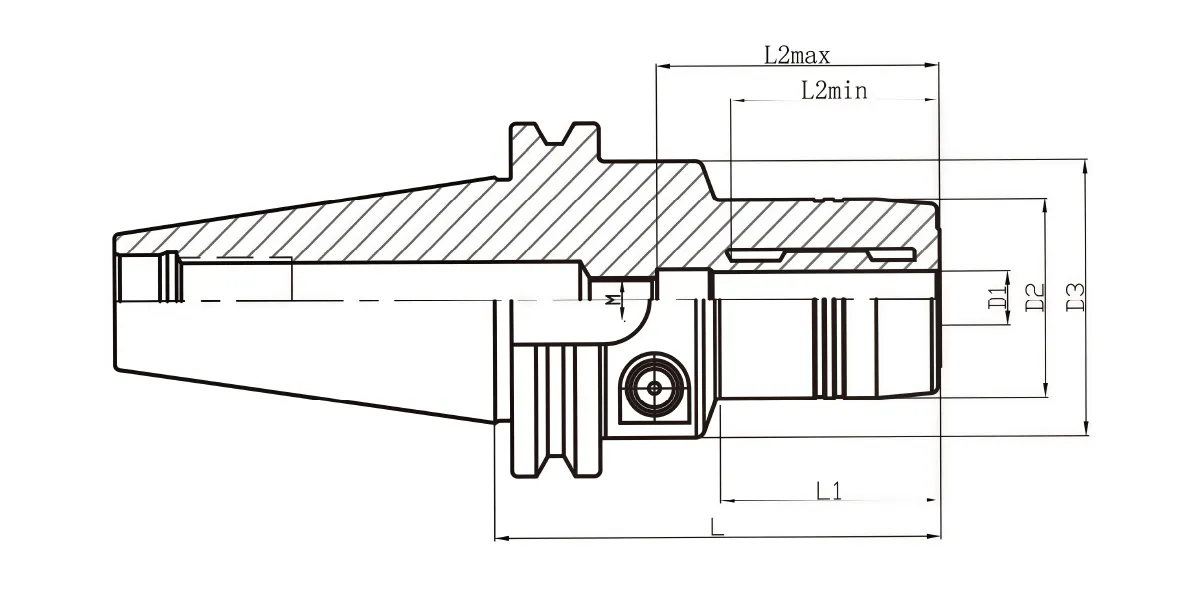

CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.
| SK40 Hydraulic Holder | ||||||||
| 订单号 order No. |
D1 | D2 | D3 | L | L1 | L2min | L2max | M |
| SK40-HDCO6-80.5L | 6 | 30 | 50 | 80.5 | 38 | 28 | 44 | M5 |
| SK40-HDC08-80.5L | 8 | 32 | 50 | 80.5 | 38 | 28 | 44 | M6 |
| SK40-HDC10-80.5L | 10 | 36 | 50 | 80.5 | 40 | 37 | 51 | M8 |
| SK40-HDC12-80.5L | 12 | 38 | 50 | 80.5 | 40 | 37 | 51 | M8 |
| SK40-HDC16-80.5L | 16 | 42 | 50 | 80.5 | 41 | 41 | 52 | M12 |
| SK40-HDC20-80.5L | 20 | 42 | 50 | 80.5 | 41 | 41 | 52 | M12 |
