DIN 69871 SK50 Hydraulic Holder

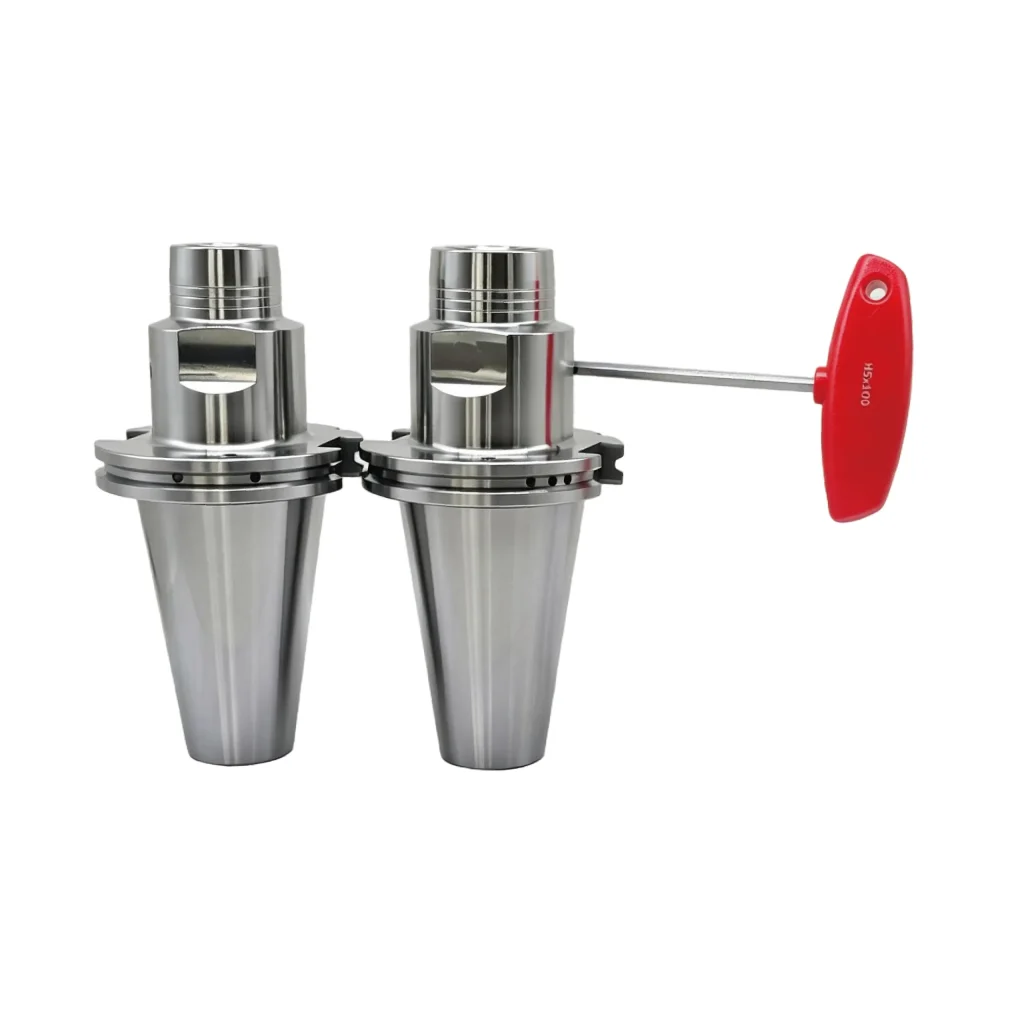

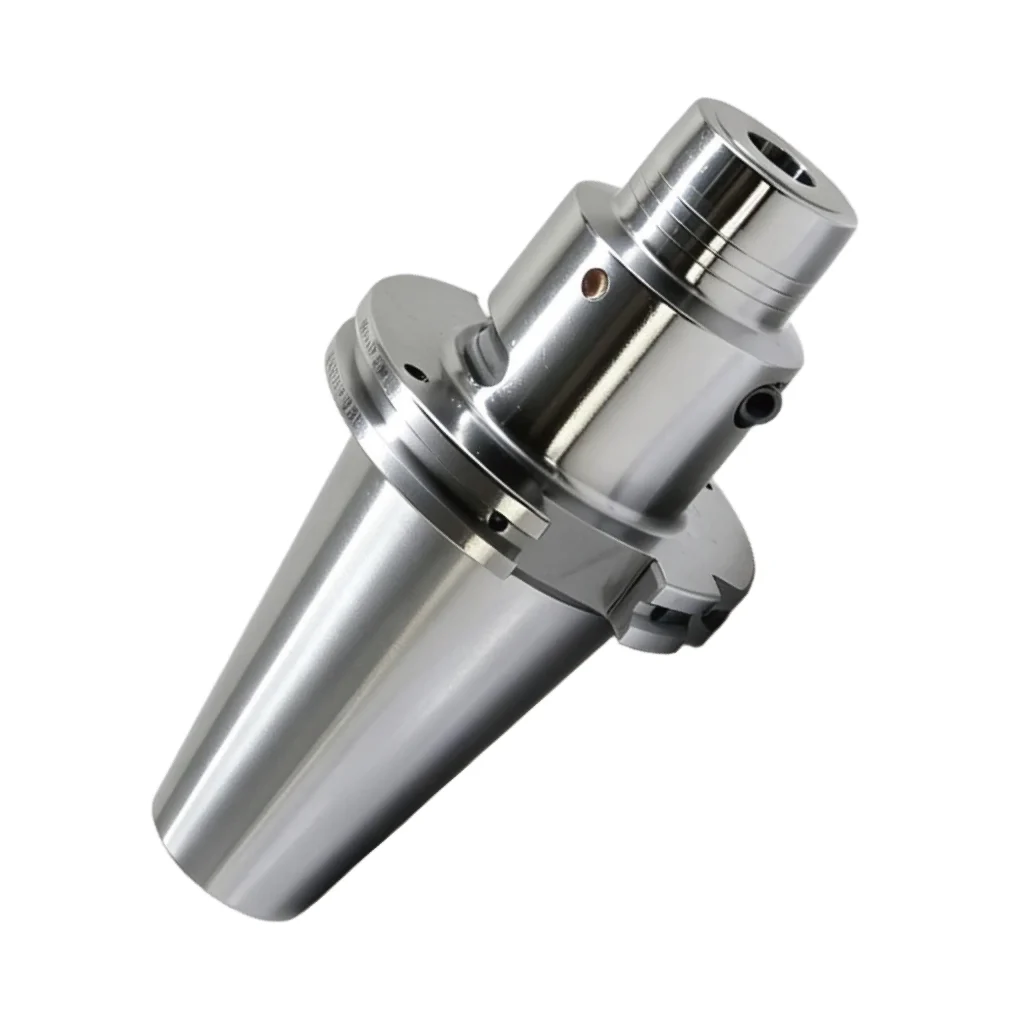

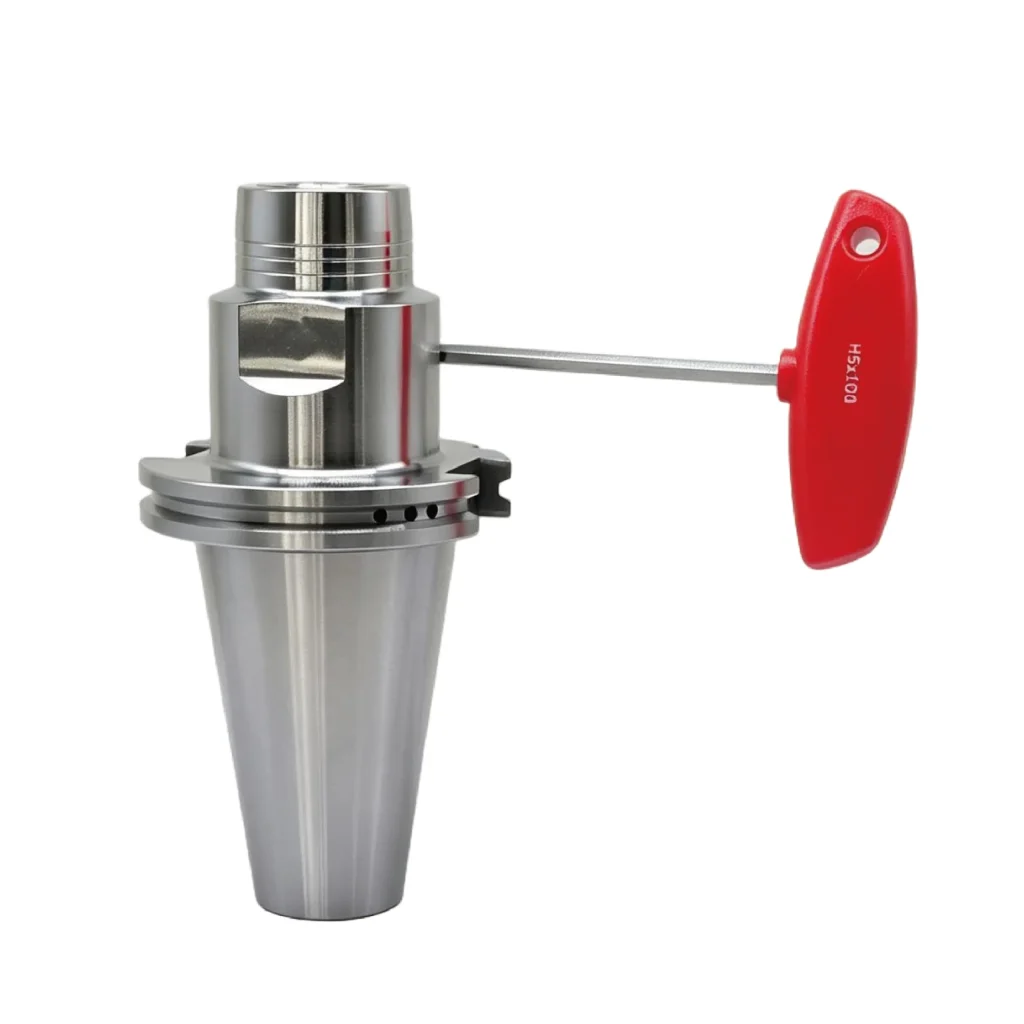

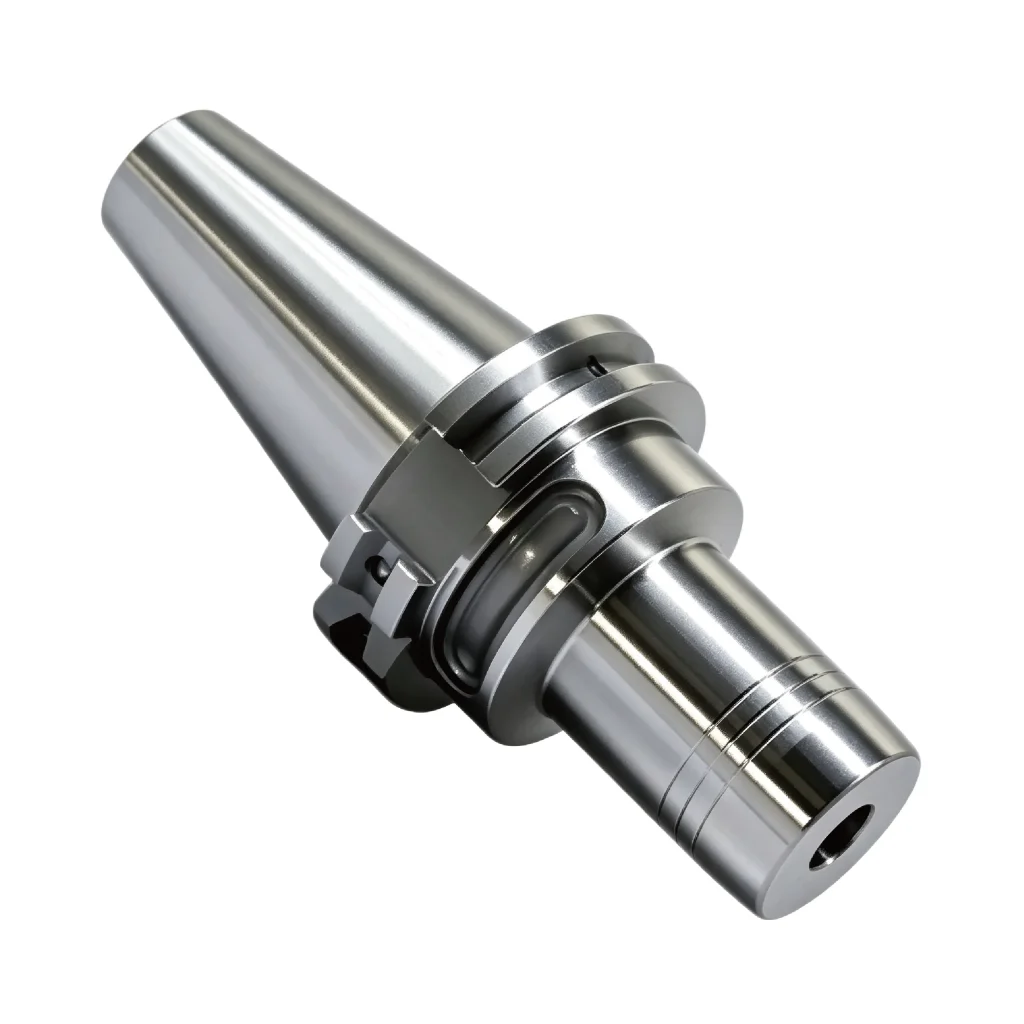

The SK50 Hydraulic Tool Holder is a heavy-duty, high-performance tooling solution standard in large-scale CNC machining. Featuring a 7:24 taper compliant with DIN ISO 7388-1, it utilizes a piston-driven hydraulic system to deliver uniform, symmetric, and ultra-precise clamping.
Product Details & Technical Resources

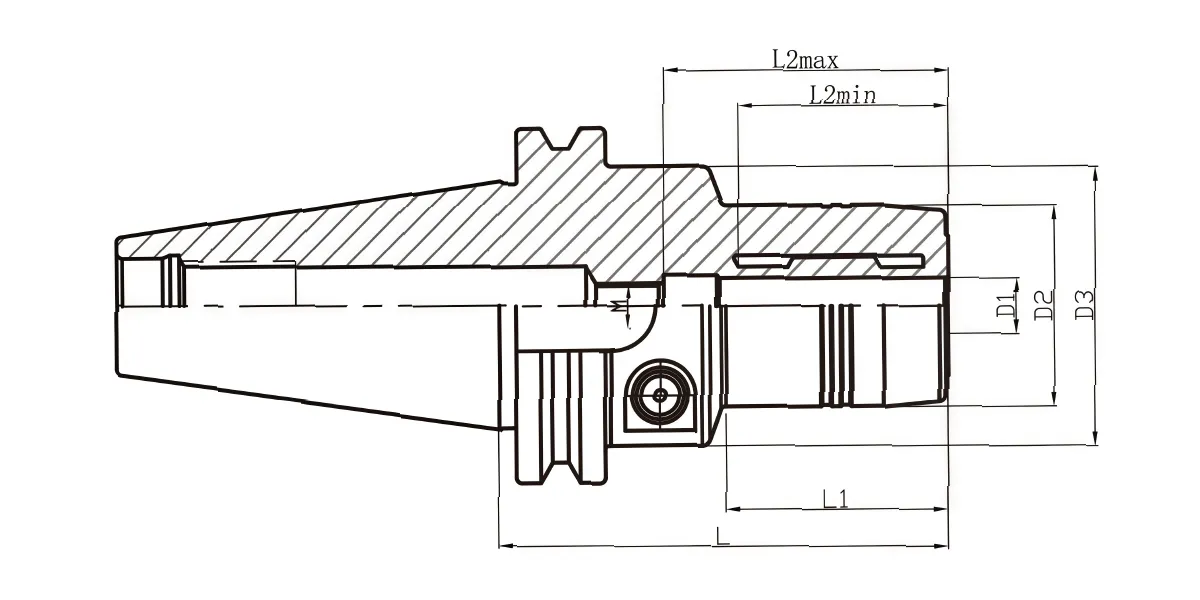

CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.
| SK50 Hydraulic Holder | ||||||||
| 订单号 order No. |
D1 | D2 | D3 | L | L1 | L2min | L2max | M |
| SK50-HDC06-90L | 6 | 30 | 50 | 90 | 38.5 | 28 | 44 | M5 |
| SK50-HDC08-90L | 8 | 32 | 50 | 90 | 38.5 | 28 | 44 | M6 |
| SK50-HDC10-90L | 10 | 36 | 50 | 90 | 40.5 | 37 | 51 | M8 |
| SK50-HDC12-90L | 12 | 38 | 50 | 90 | 40.5 | 37 | 51 | M8 |
| SK50-HDC14-90L | 14 | 40 | 50 | 90 | 40.5 | 41 | 52 | M12 |
| SK50-HDC16-90L | 16 | 42 | 50 | 90 | 40.5 | 41 | 52 | M12 |
| SK50-HDC20-90L | 20 | 42 | 50 | 90 | 40.8 | 41 | 53 | M12 |
| SK50-HDC25-110L | 25 | 52 | 57 | 110 | 60 | 49 | 65 | M12 |
| SK50-HDC32-110L | 32 | 63 | 63 | 110 | 91 | 52 | 65 | M12 |
