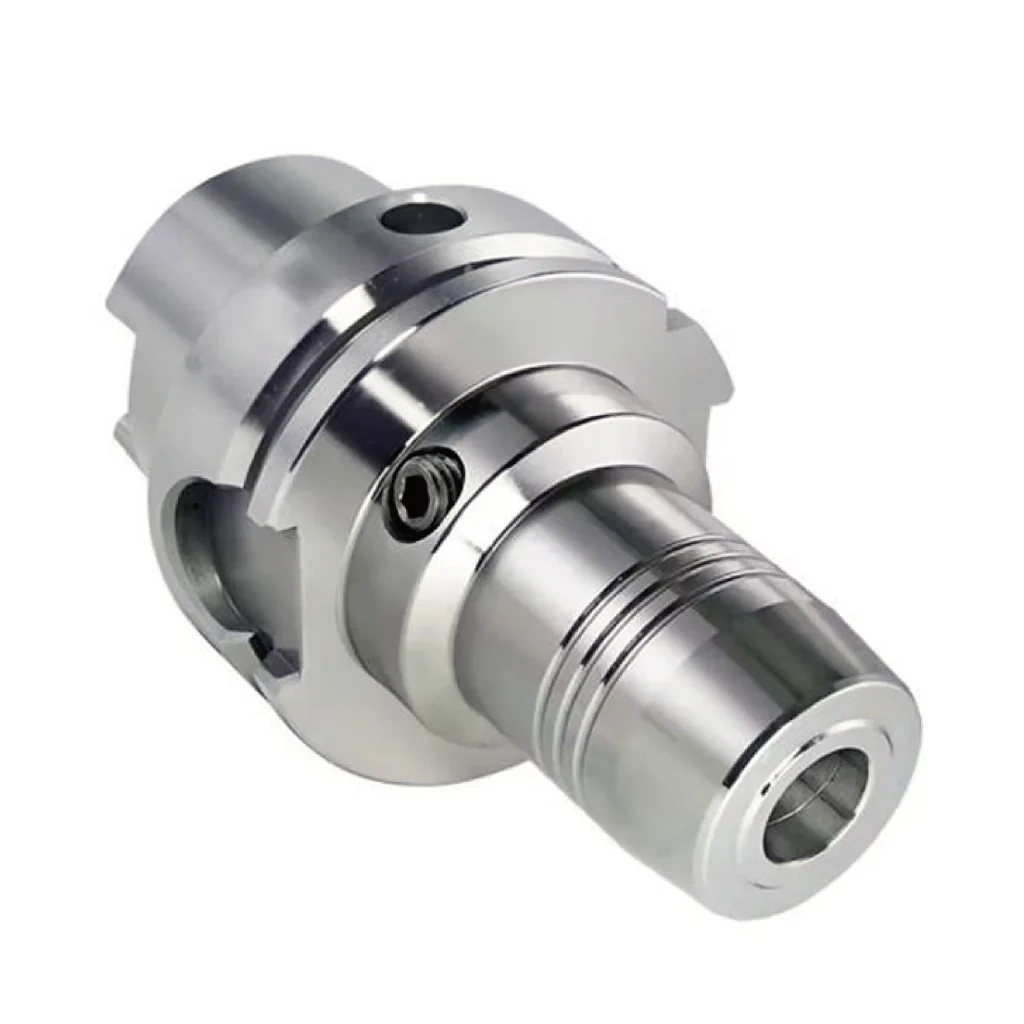

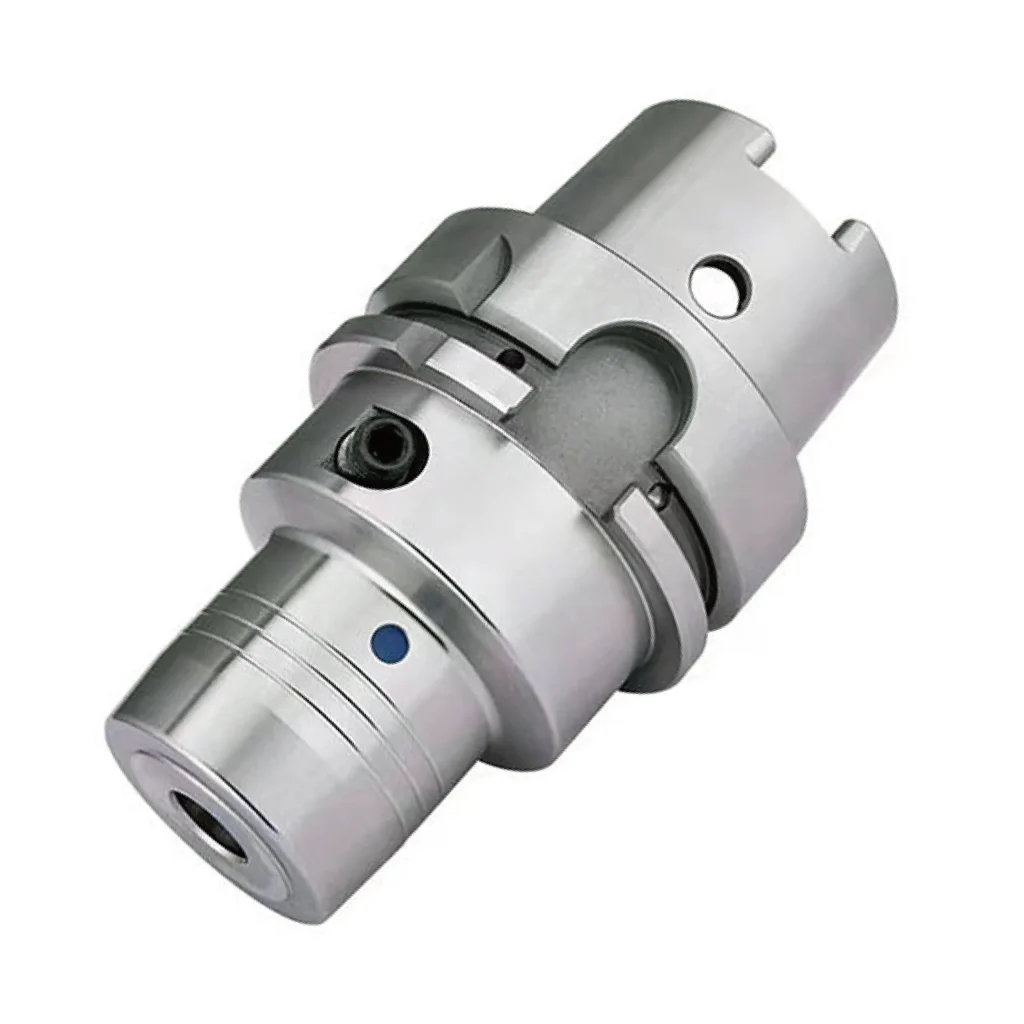

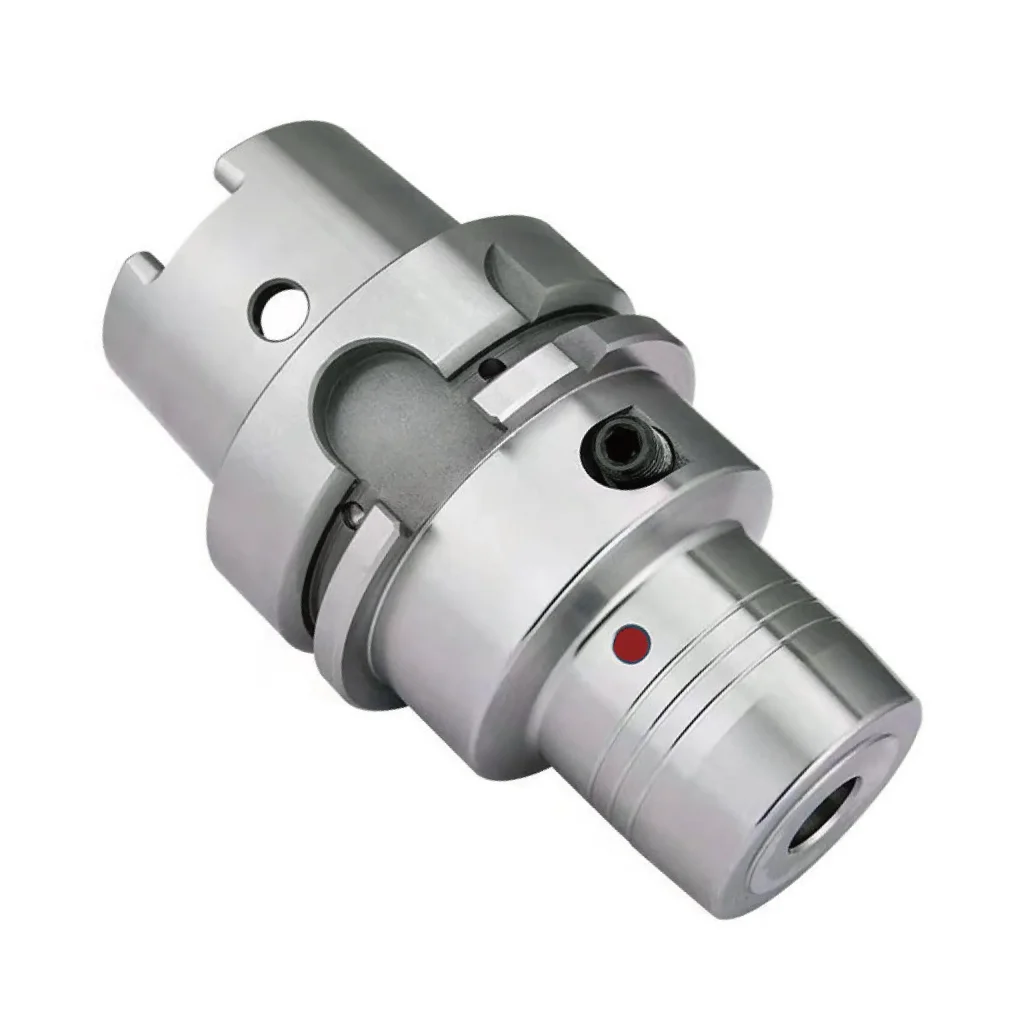

DIN 69883 HSK-A63 Hydraulic Holder
The HSK63A Hydraulic Tool Holder is a premier, high-speed tooling solution designed to maximize machining performance. Utilizing a advanced 1:10 short taper dual-face contact system, it achieves simultaneous clamping on both the taper and the flange face, offering ultimate rigidity and micro-level run-out precision.
Product Details & Technical Resources

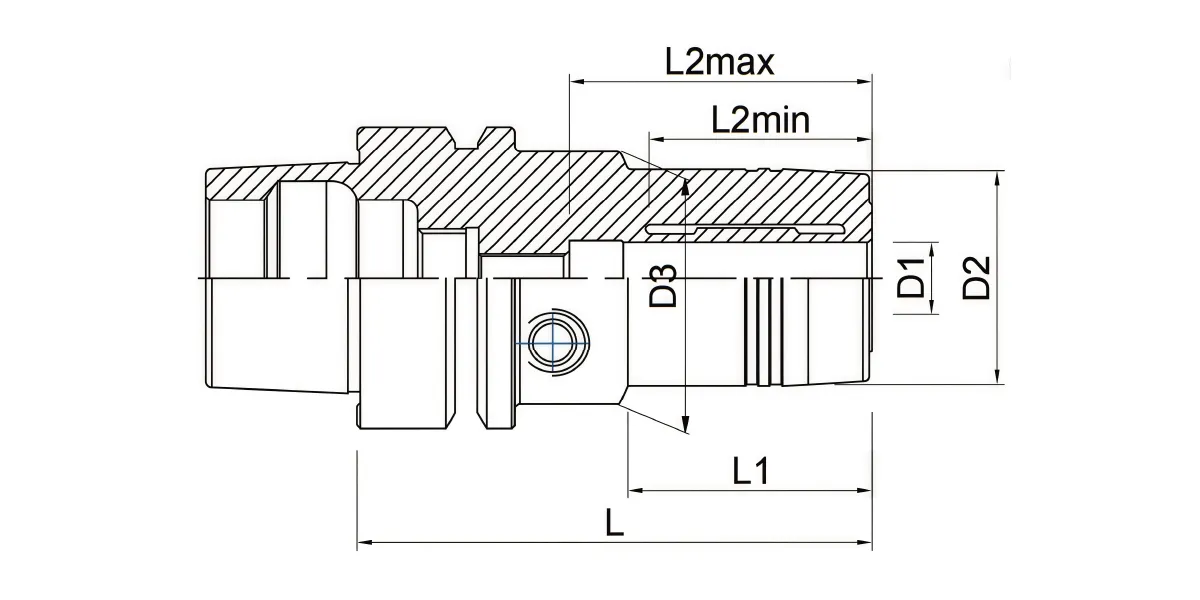

CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.
| HSK-A63 Hydraulic Holder | ||||||||
| 订单号 order No. |
D1 | D2 | D3 | L | L1 | L2min | L2max | M |
| HSK50A-HDCO6-70L | 6 | 30 | 42 | 70 | 25.5 | 26 | 38 | M5 |
| HSK50A-HDCO8-70L | 8 | 32 | 42 | 70 | 26 | 28 | 38 | M6 |
| HSK50A-HDC10-80L | 10 | 34 | 42 | 80 | 32.6 | 34 | 45 | M8 |
| HSK50A-HDC12-85L | 12 | 36 | 42 | 85 | 40 | 36 | 50 | M8 |
| HSK50A-HDC16-90L | 16 | 40 | 42 | 90 | 43 | 41 | 52 | M8 |
| HSK50A-HDC20-90L | 20 | 42 | 42 | 90 | 64 | 41 | 52 | M8 |
| HSK63A-HDCO6-80L | 6 | 32 | 48 | 80 | 32 | 29 | 46 | M5 |
| HSK63A-HDCO6-125L | 6 | 32 | 48 | 125 | 38.5 | 28 | 44.5 | M5 |
| HSK63A-HDC08-80L | 8 | 34 | 50 | 80 | 32 | 29 | 46 | M6 |
| HSK63A-HDC08-125L | 8 | 32 | 48 | 125 | 38.5 | 28 | 44.5 | M6 |
| HSK63A-HDC10-80L | 10 | 36 | 50 | 80 | 32 | 31 | 50 | M8 |
| HSK63A-HDC10-125L | 10 | 36 | 50 | 125 | 40 | 37 | 51 | M8 |
| HSK63A-HDC12-80L | 12 | 38 | 50 | 80 | 32 | 32 | 50 | M8 |
| HSK63A-HDC12-125L | 12 | 38 | 50 | 125 | 41 | 37 | 51 | M8 |
| HSK63A-HDC14-80L | 14 | 40 | 50 | 80 | 40 | 38 | 50 | M8 |
| HSK63A-HDC16-90L | 16 | 42 | 50 | 90 | 41 | 40 | 51 | M8 |
| HSK63A-HDC16-125L | 16 | 42 | 50 | 125 | 43 | 40 | 52 | M8 |
| HSK63A-HDC18-90L | 18 | 42 | 50 | 90 | 41 | 40 | 51 | M8 |
| HSK63A-HDC20-90L | 20 | 42 | 50 | 90 | 41 | 40 | 52.5 | M8 |
| HSK63A-HDC20-120L | 20 | 44 | 50 | 125 | 41 | 40 | 52.5 | M8 |
| HSK63A-HDC20-175L | 20 | 42 | 50 | 175 | 41 | 40 | 52.5 | M8 |
| HSK63A-HDC20-200L | 20 | 42 | 50 | 200 | 45 | 40 | 52.5 | M8 |
| HSK63A-HDC25-110L | 25 | 53 | 63 | 110 | 55.5 | 45 | 61 | M8 |
| HSK63A-HDC32-110L | 32 | 63 | 63 | 110 | 一 | 55 | 65 | M8 |
