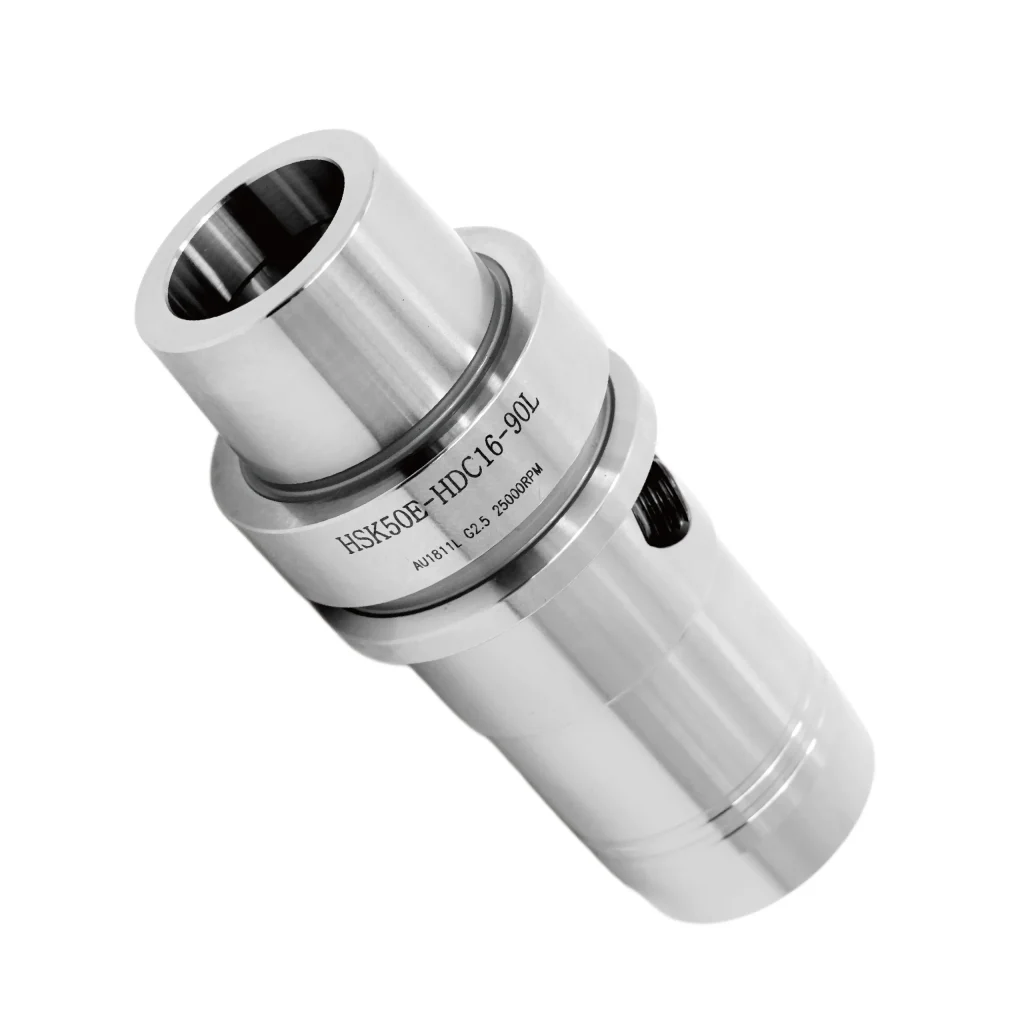

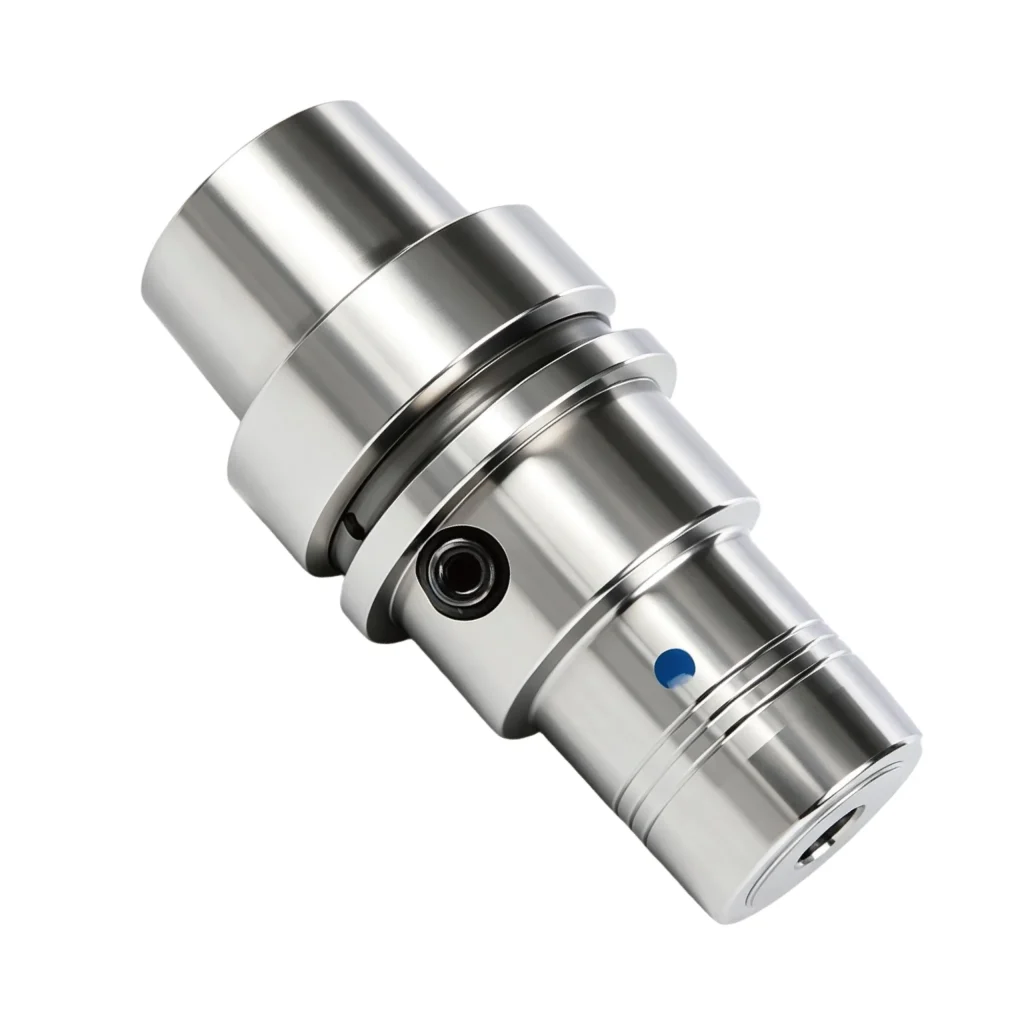

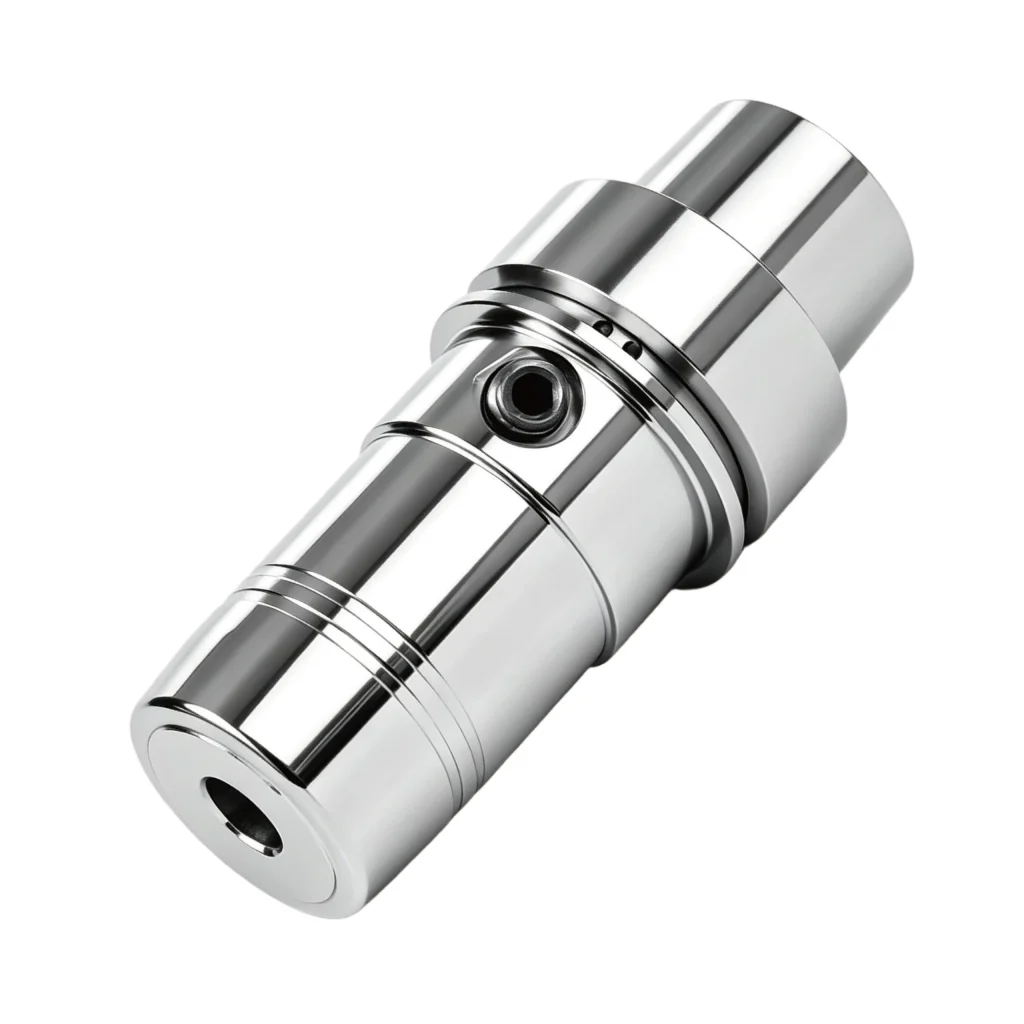

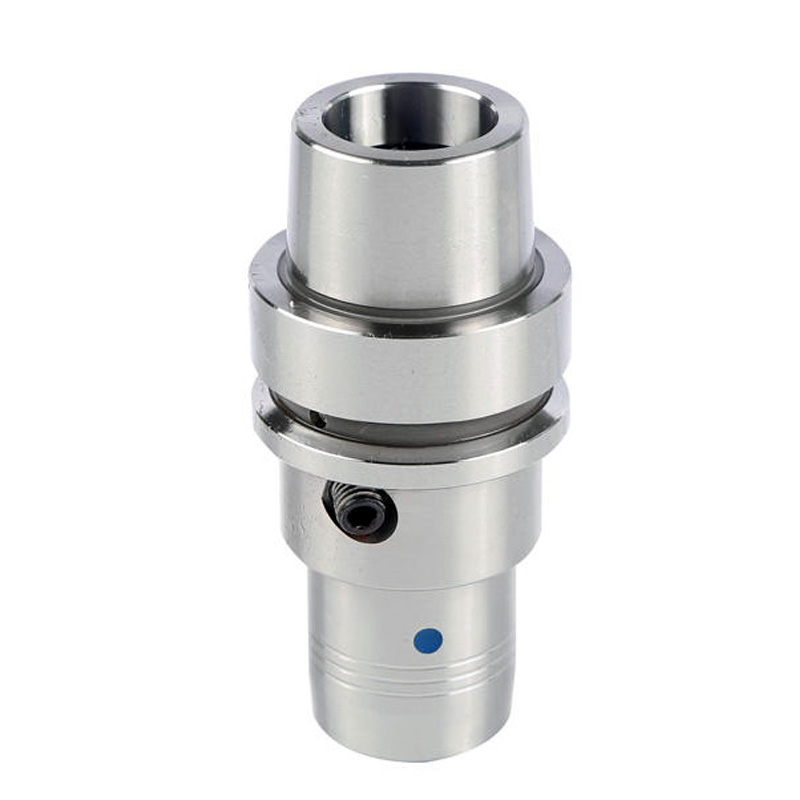

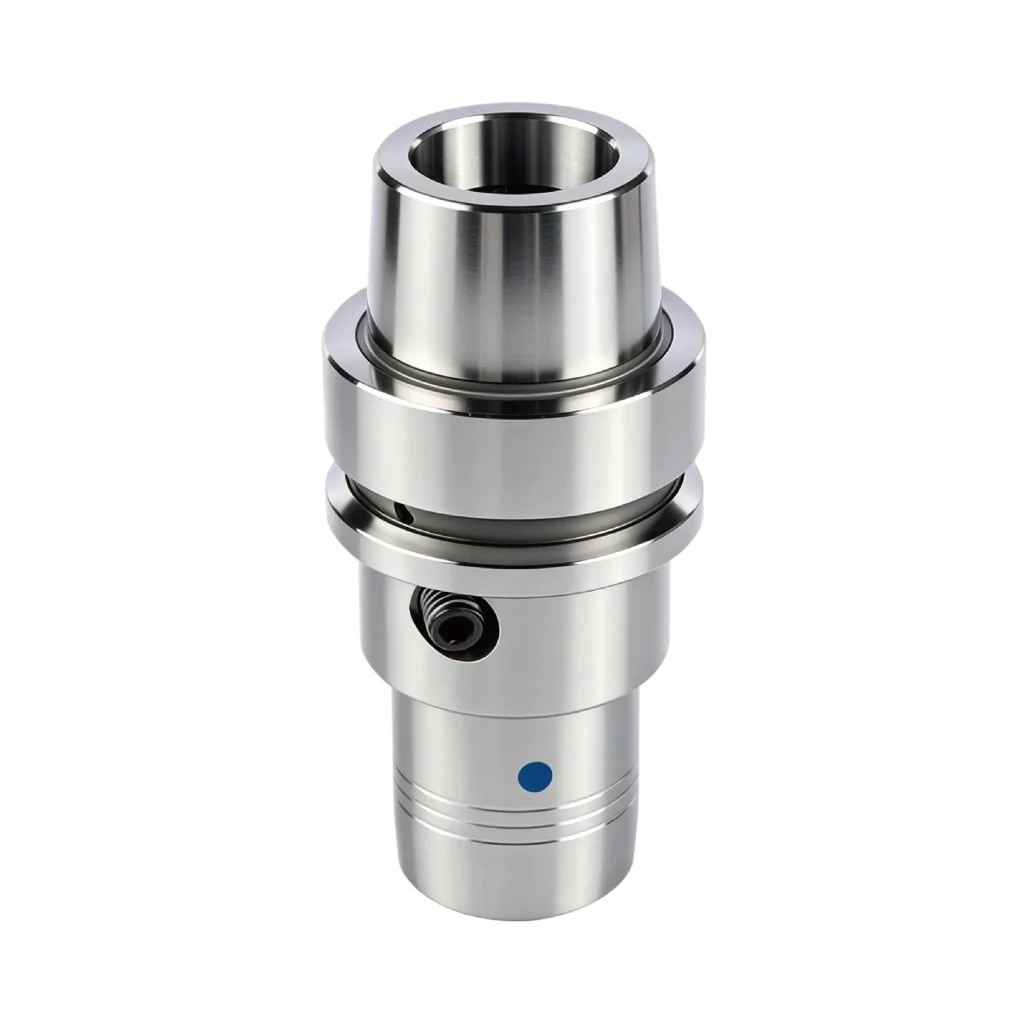

DIN 69883 HSK-E50 Hydraulic Holder
The HSK50E Hydraulic Tool Holder is an essential high-performance tooling solution engineered for high-speed, light-duty CNC machining. Featuring a 1:10 short taper structure, it utilizes an integrated hydraulic system to achieve absolute concentricity and exceptional connection rigidity.
Product Details & Technical Resources

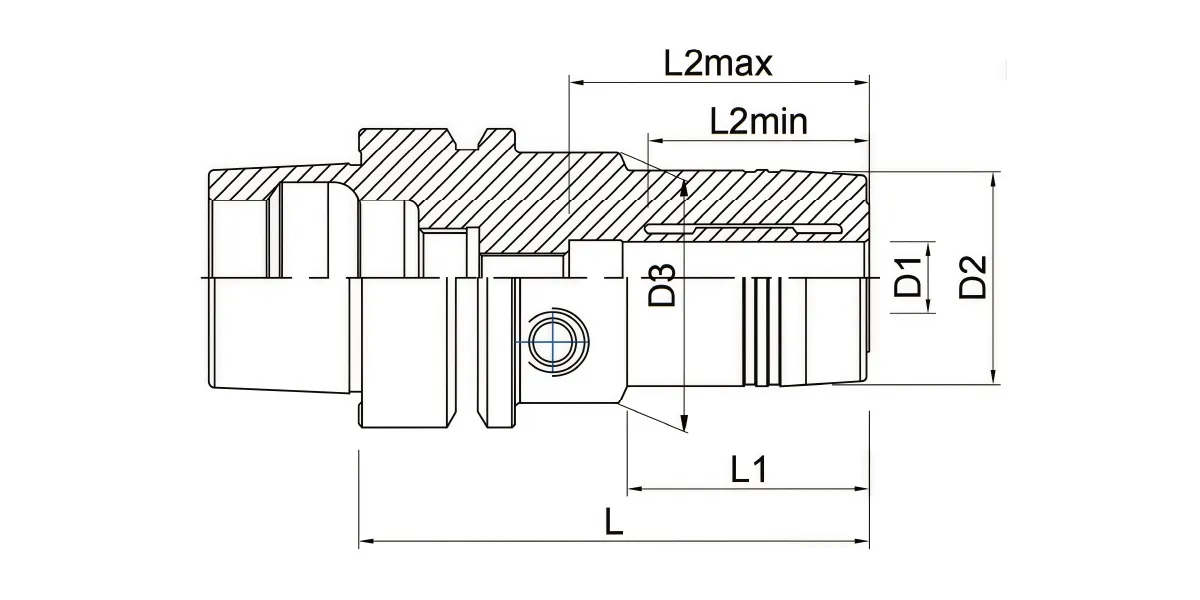

CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.
| HSK-E50 Hydraulic Holder | ||||||||
| 订单号 order No. |
D1 | D2 | D3 | L | L1 | L2min | L2max | M |
| HSK50E-HDC06-70L | 6 | 30 | 42 | 70 | 25.5 | 26 | 38 | M5 |
| HSK50E-HDC08-70L | 8 | 32 | 42 | 70 | 26 | 28 | 38 | M6 |
| HSK50E-HDC10-80L | 10 | 34 | 42 | 80 | 32.6 | 34 | 45 | M8 |
| HSK50E-HDC12-85L | 12 | 36 | 42 | 85 | 40 | 36 | 50 | M8 |
| HSK50E-HDC16-90L | 16 | 40 | 42 | 90 | 43 | 41 | 52 | M8 |
| HSK50E-HDC20-90L | 20 | 42 | 42 | 90 | 64 | 41 | 52 | M8 |
| HSK40E-HDC06-70L | 6 | 30 | 42 | 70 | 25.5 | 26 | 38 | M5 |
| HSK40E-HDC08-70L | 8 | 32 | 42 | 70 | 26 | 28 | 38 | M6 |
| HSK40E-HDC10-75L | 10 | 34 | 42 | 75 | 32.6 | 34 | 45 | M8 |
| HSK40E-HDC12-80L | 12 | 36 | 42 | 80 | 40 | 36 | 50 | M8 |
