Products
Product Details & Technical Resources
CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.

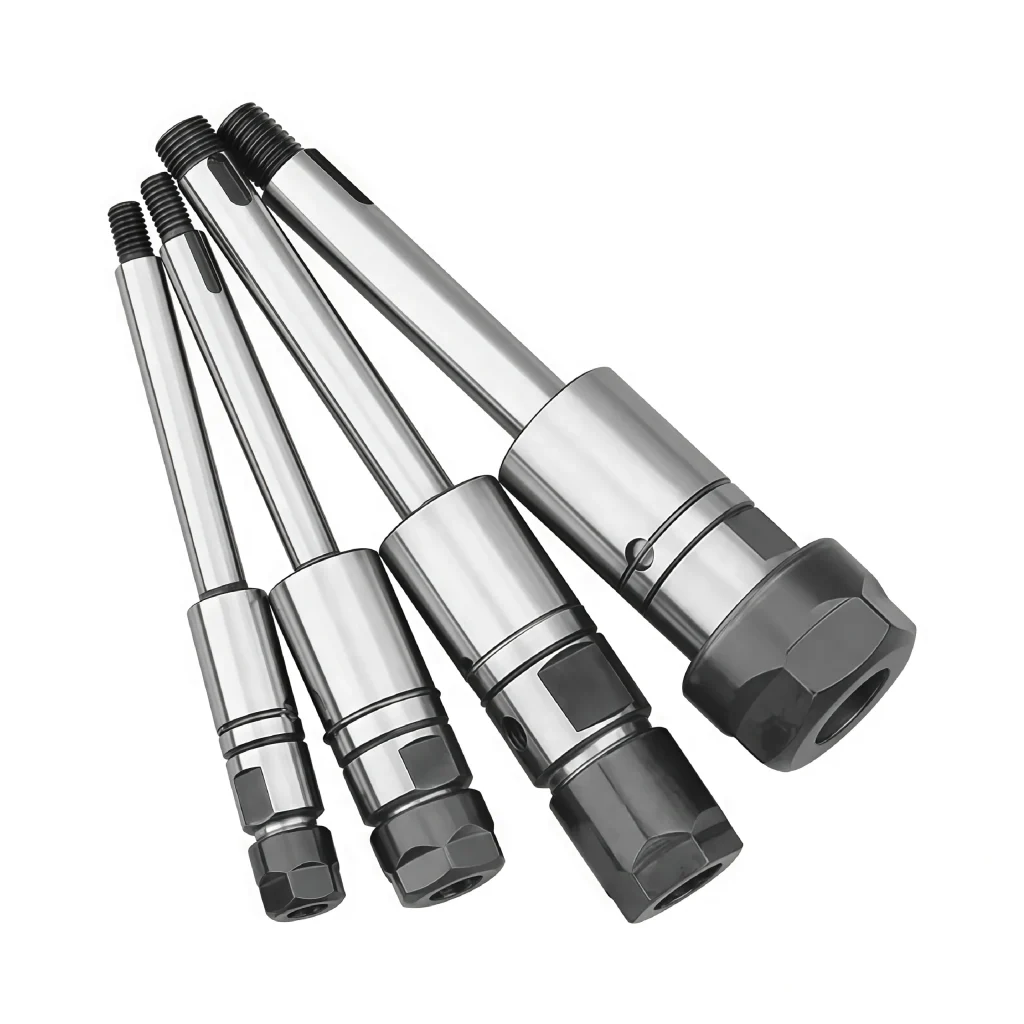

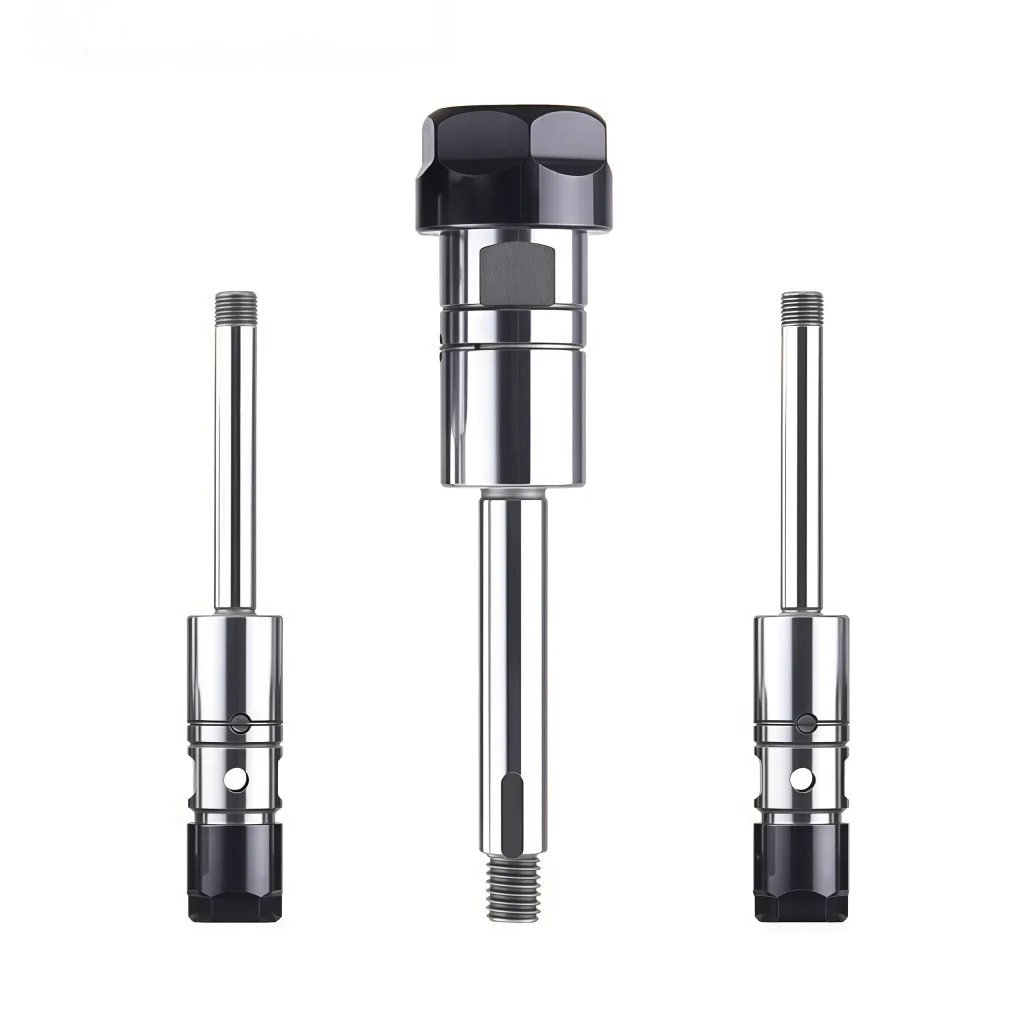

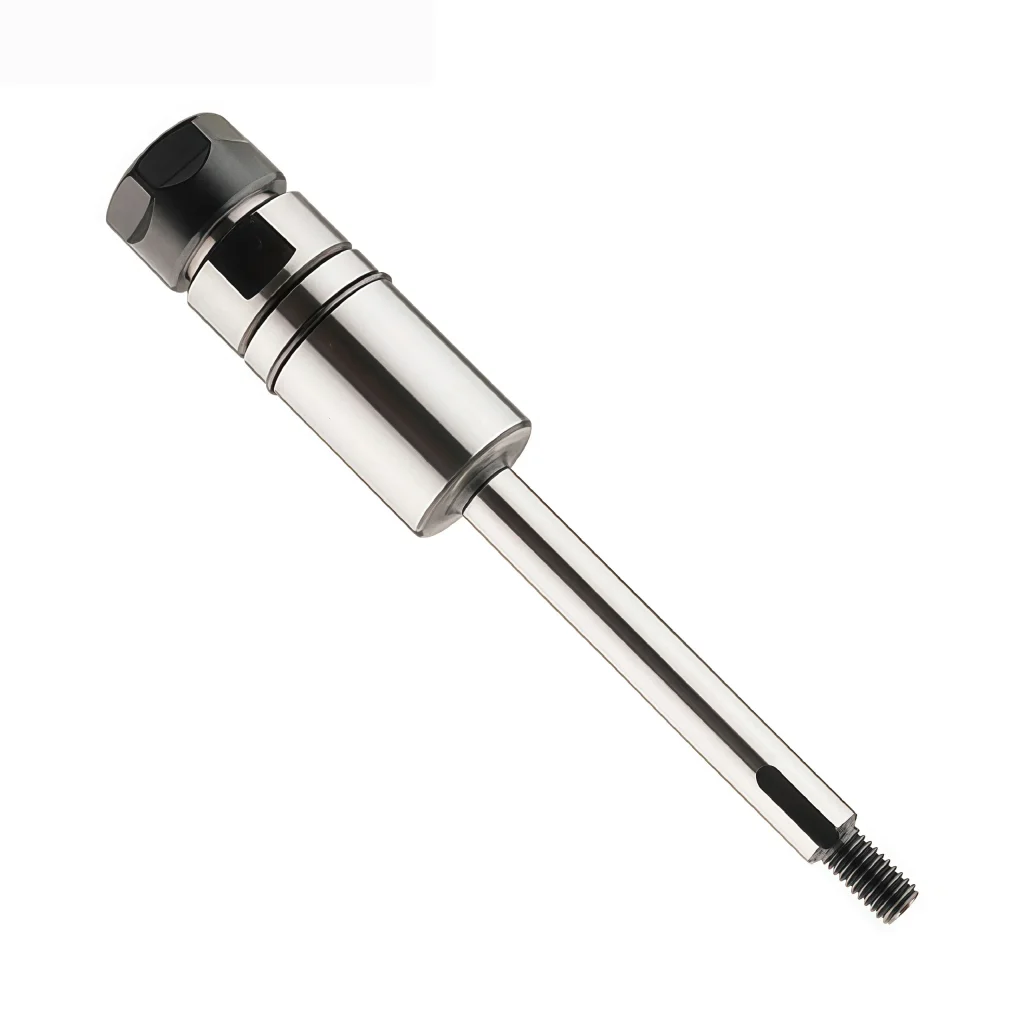

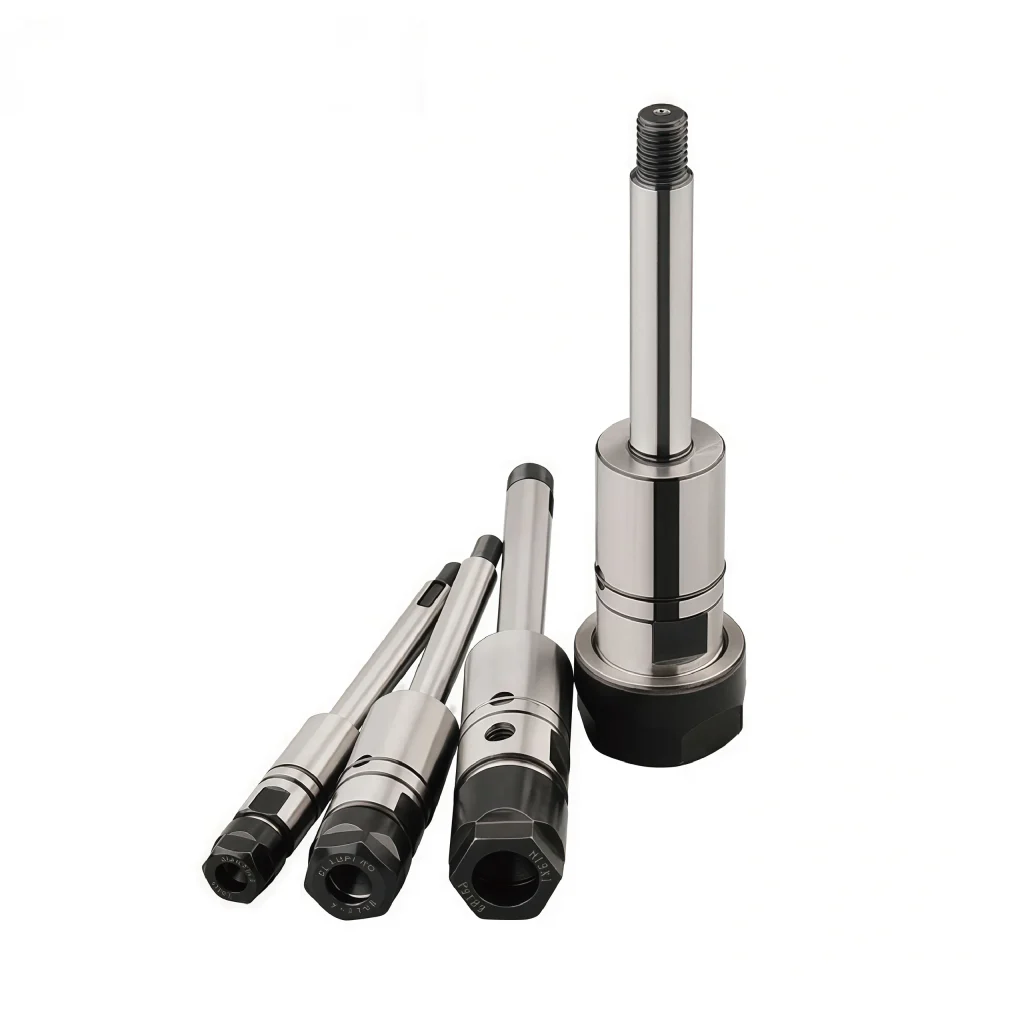

| ER Straight Shank Tapper | ||||||
| 订单号 order No. |
tapping range 攻丝范围 |

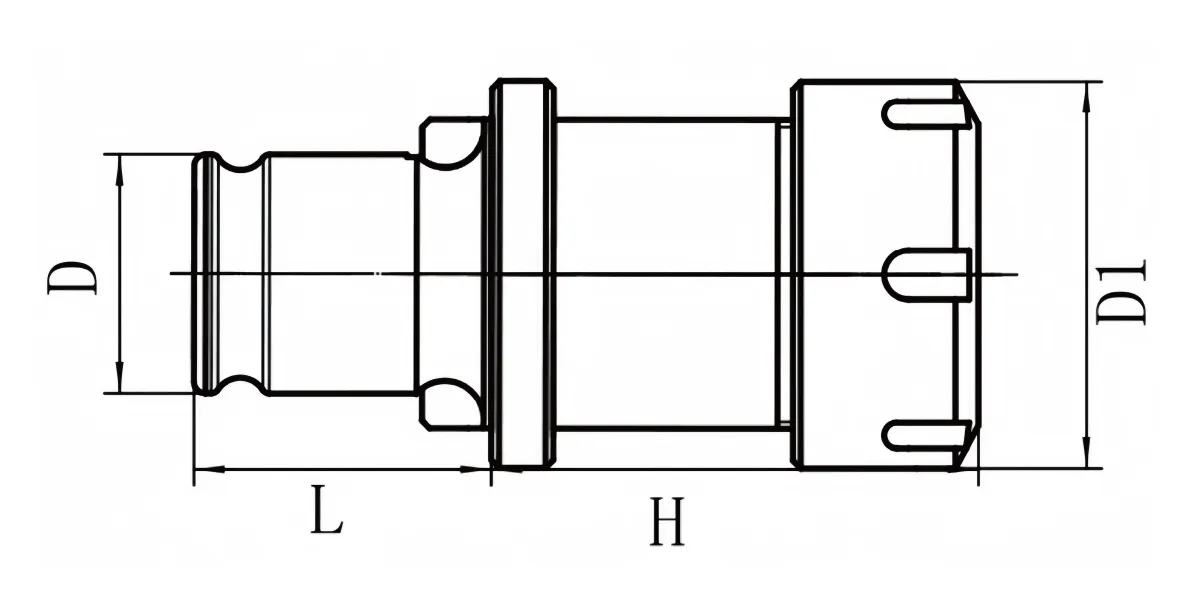

D | D1 | L | H | Collet s 丝攻筒夹 |
| TC312-ER16 | M3-M10 | 19 | 28 | 22 | 29 | ER16 ER16G |
| TC312-ER20 | M3-M16 | 34 | ER20 ER20G |
|||
| TC820-ER25 | M3-M22 | 31 | 42 | 35 | 49 | ER25 ER25G |
| TC820-ER32 | M3-M27 | 50 | 51 | ER32 ER32G |
||
