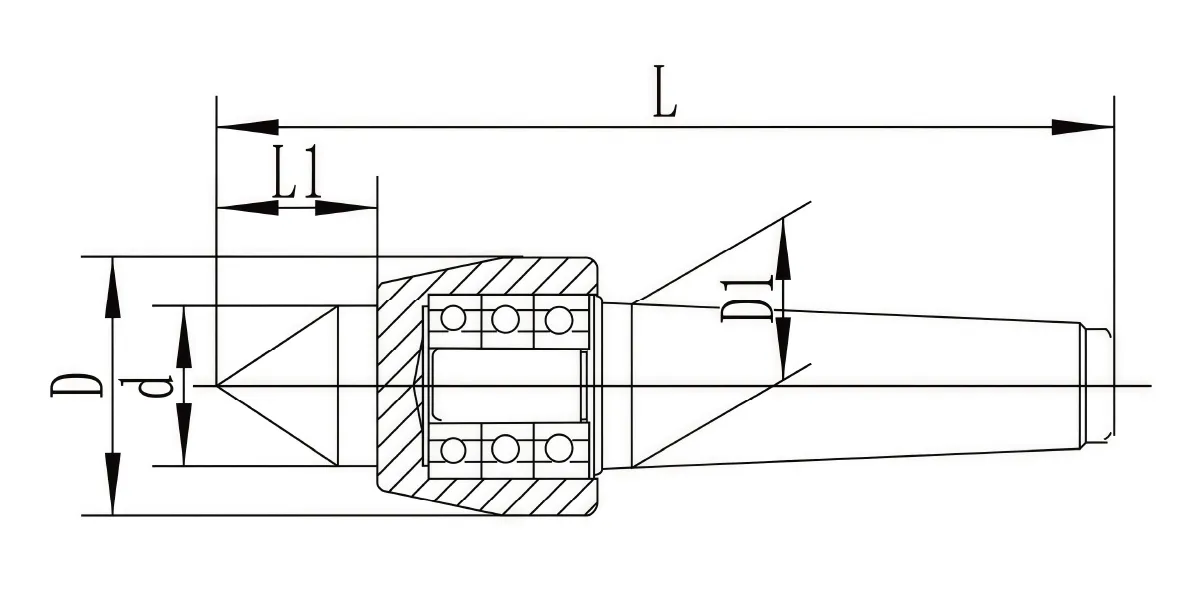

CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.

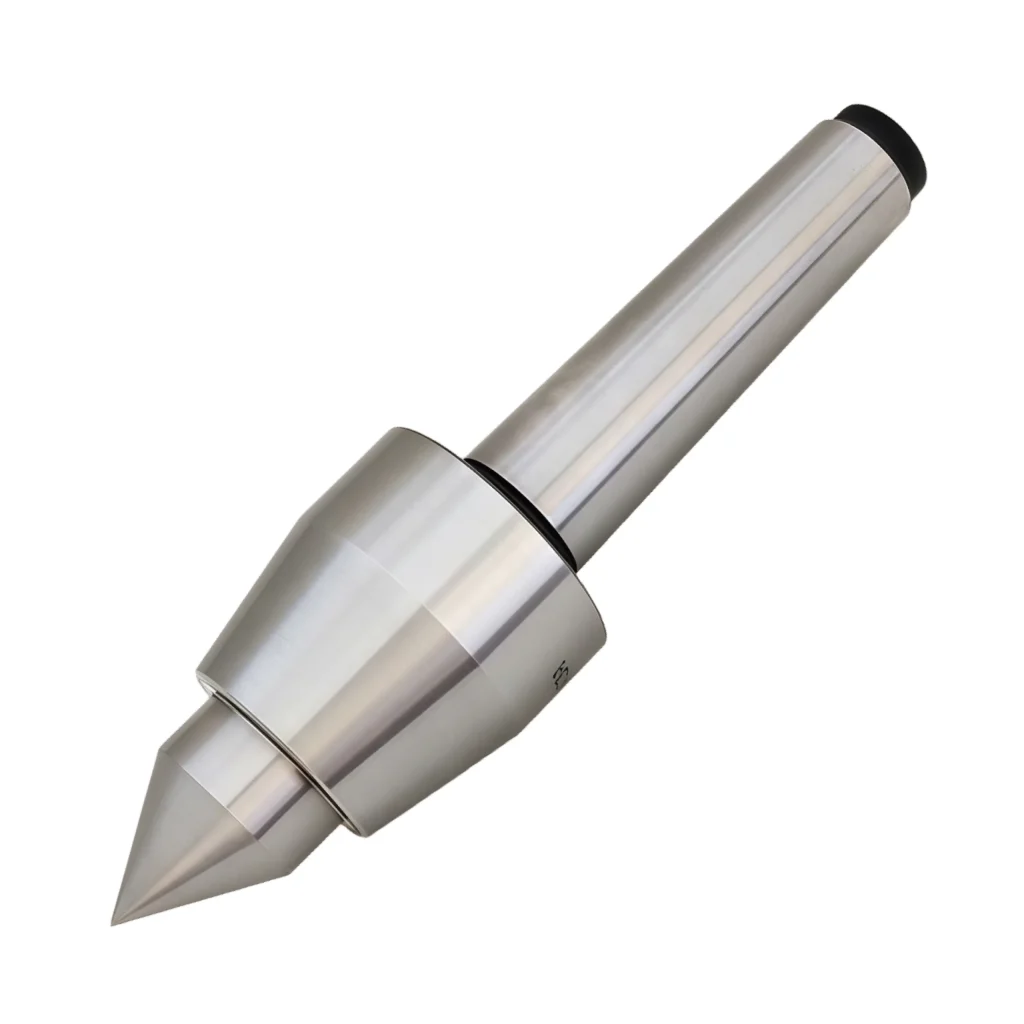

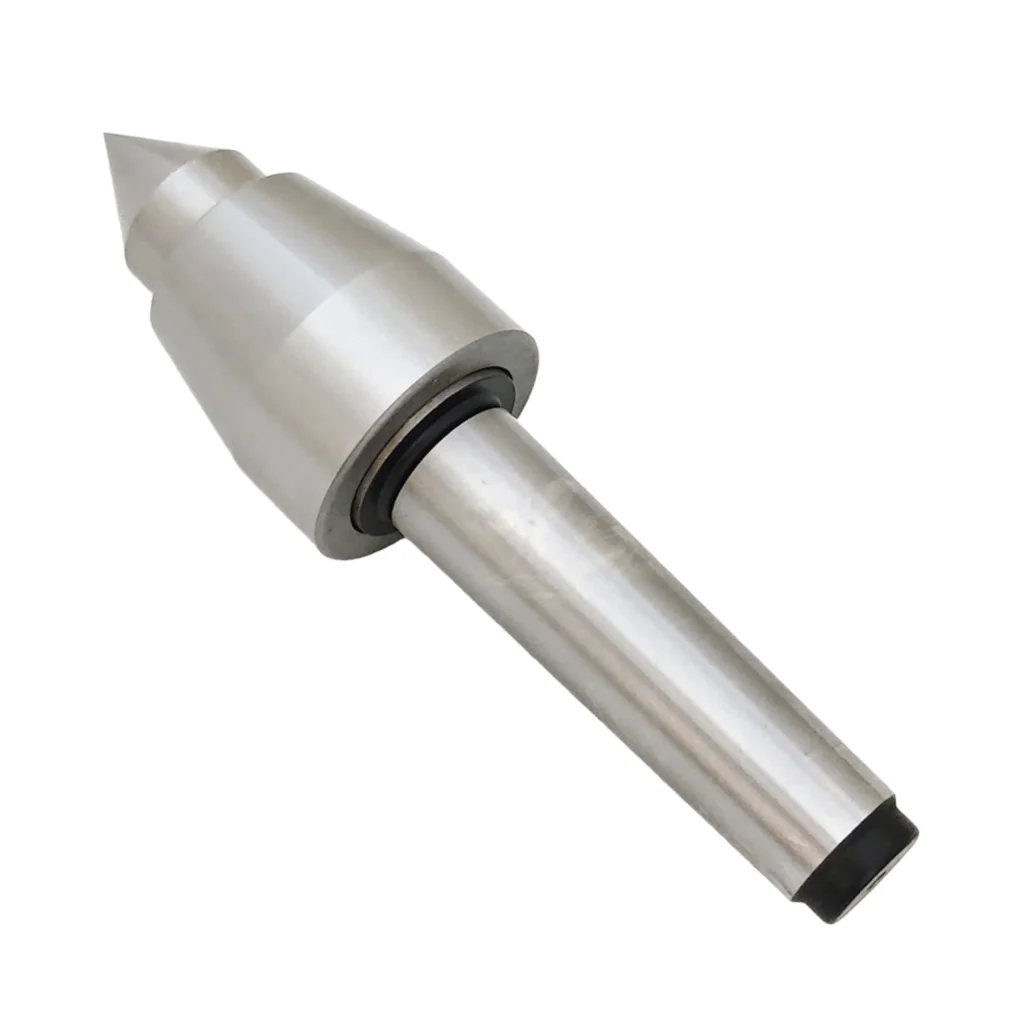

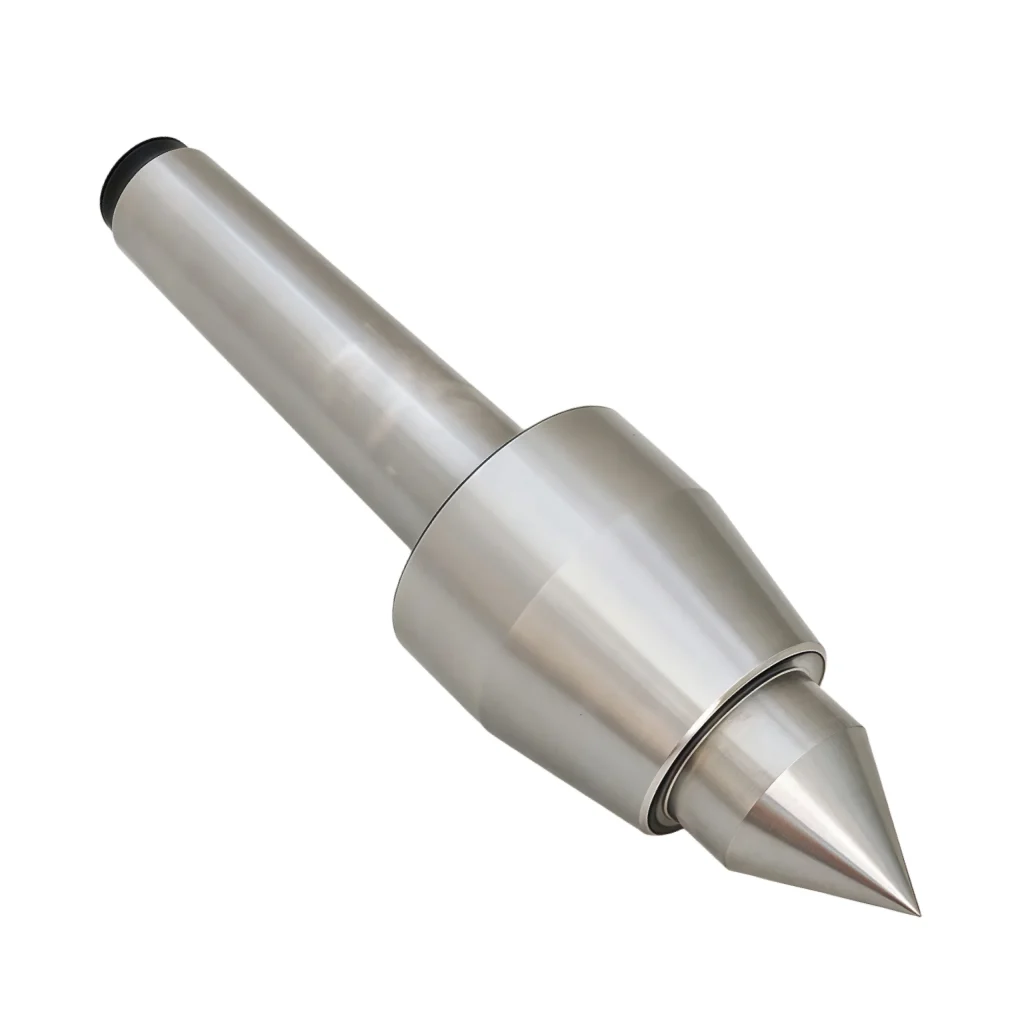

| External Rotating Center A | ||||||||
| 订单号 | L | D | L1 | d | D1 | 径向载荷(kg) | 极限转速 | 精度 |
| Order No. | mm | mm | mm | mm | mm | Max Radial Load | Max.Speed | Accuracy |
| WX-MT1A | 108 | 32 | 21 | 16 | 12.065 | 40 | 4000 | 0.005 |
| WX-MT2A | 132 | 40 | 26 | 22 | 17.780 | 120 | 3500 | 0.005 |
| WX-MT3A | 164 | 45 | 32 | 26 | 23.825 | 250 | 3000 | 0.005 |
| WX-MT4A | 188 | 48 | 34 | 30 | 31.267 | 350 | 2500 | 0.008 |
| WX-MT5A | 248 | 68 | 50 | 45 | 44.399 | 500 | 2000 | 0.008 |
