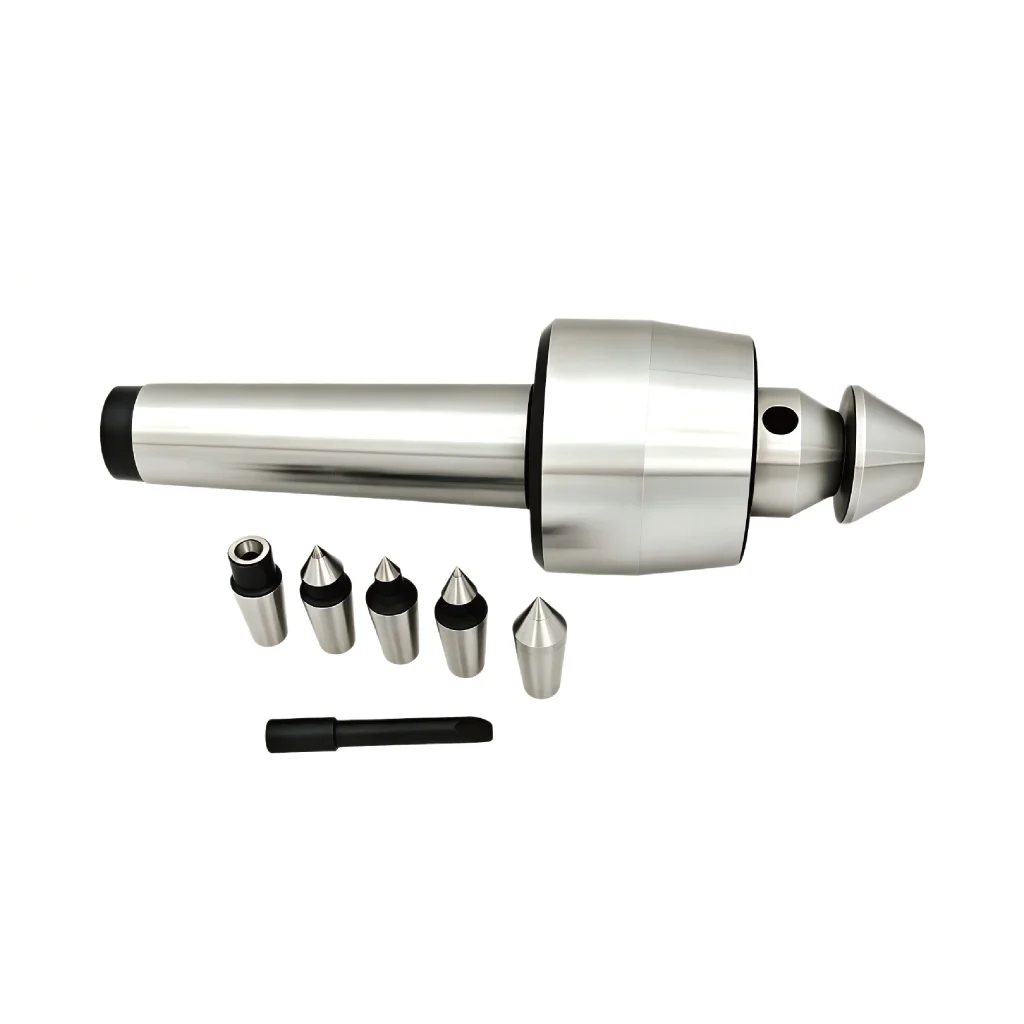

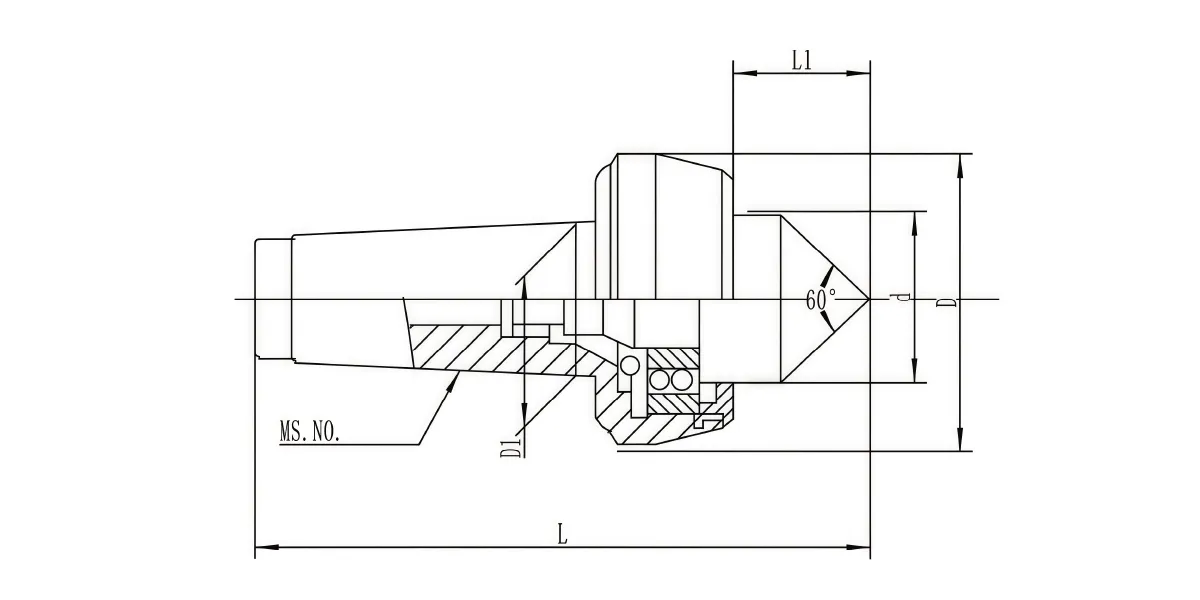

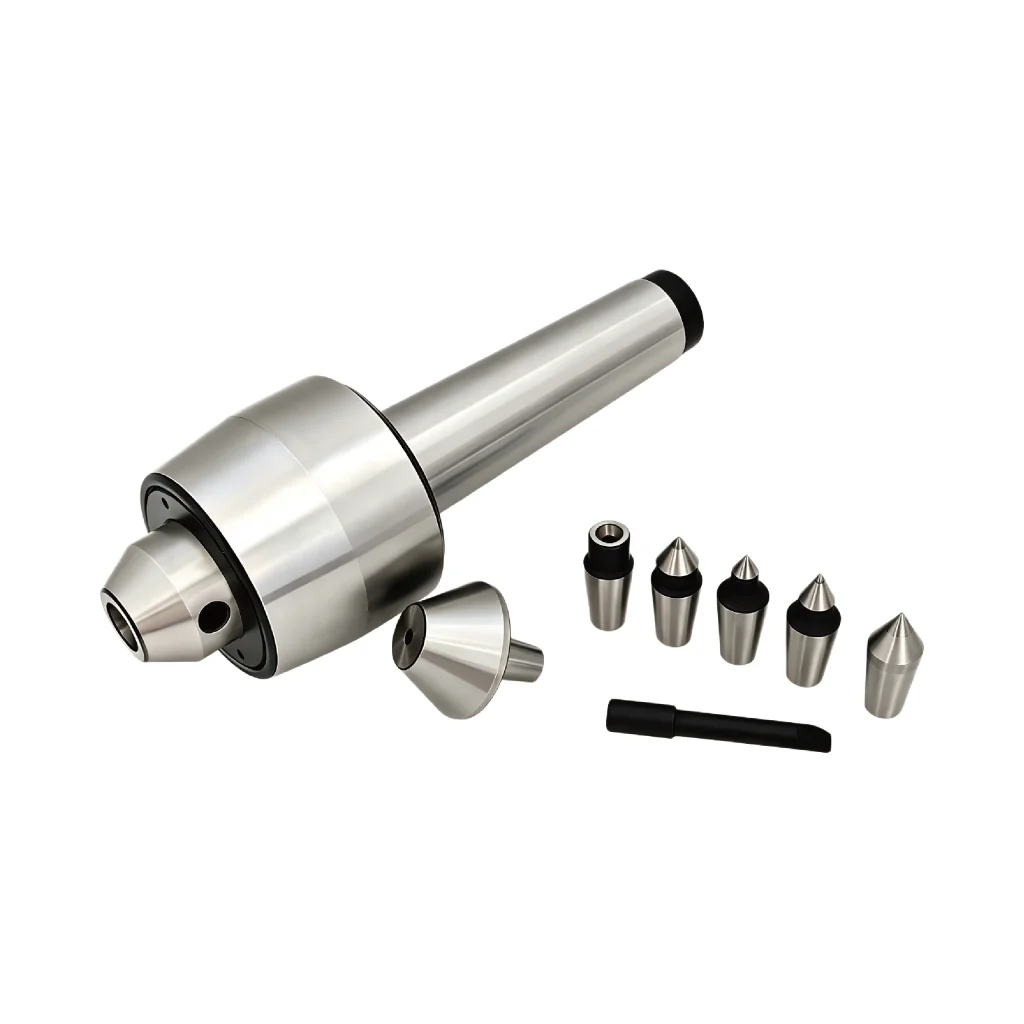

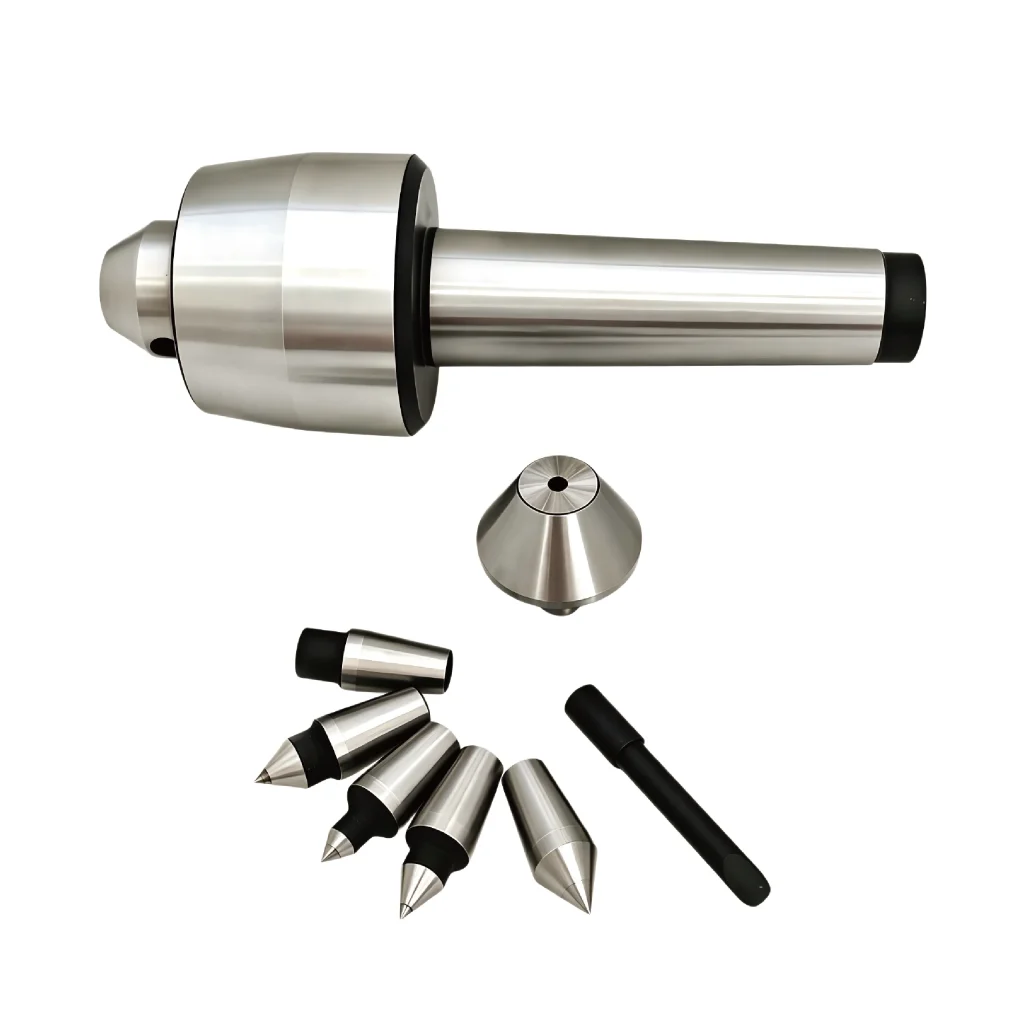

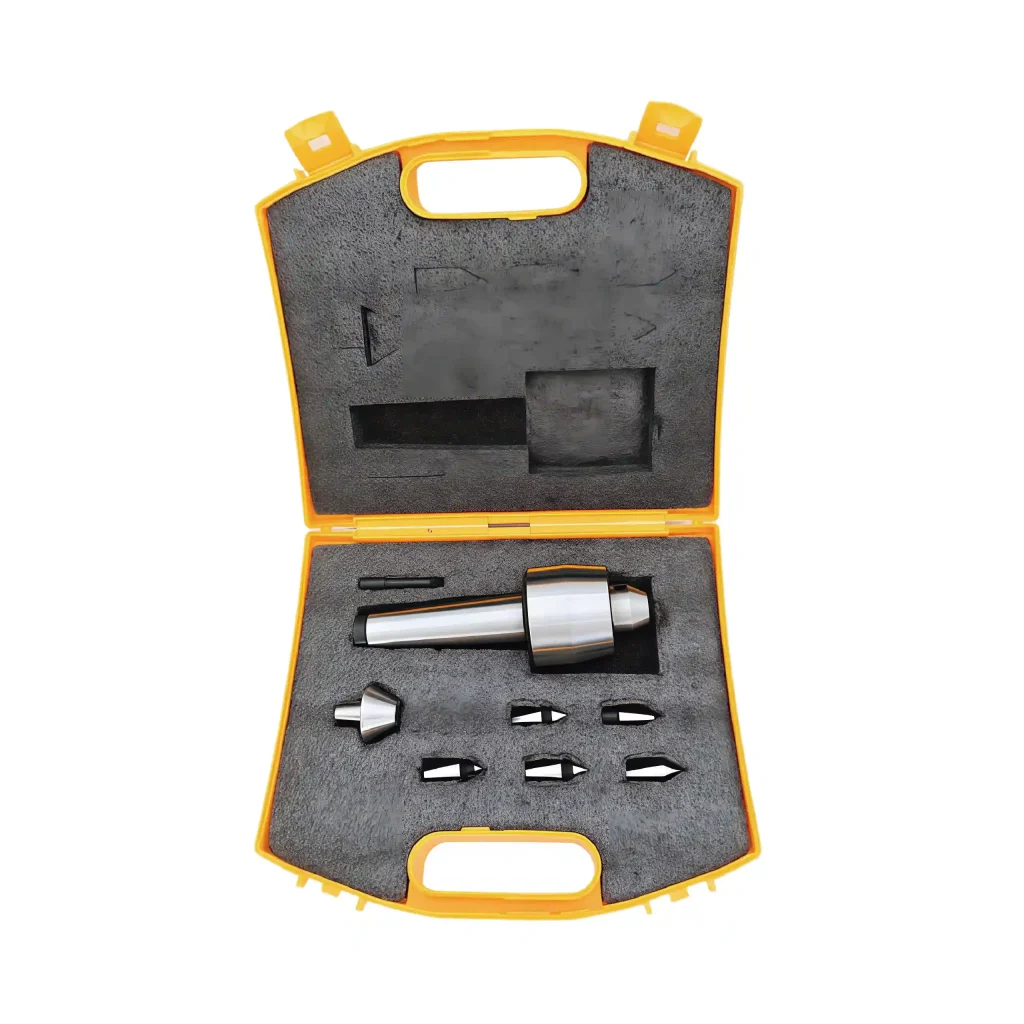

| High Speed Insert Live Center | ||||||||||||||||
| 订单号Order No | MS.NO. | D mm | D1 mm | L1 mm | L mm | |||||||||||
| HD432 | MS2 | 48 | 17.780 | 69 | 127 | |||||||||||
| HD433 | MS3 | 54 | 23.825 | 86 | 153 | |||||||||||
| HD434 | MS4 | 63 | 31.367 | 109 | 182 | |||||||||||
| HD435 | MS5 | 83 | 44.399 | 136 | 217 | |||||||||||

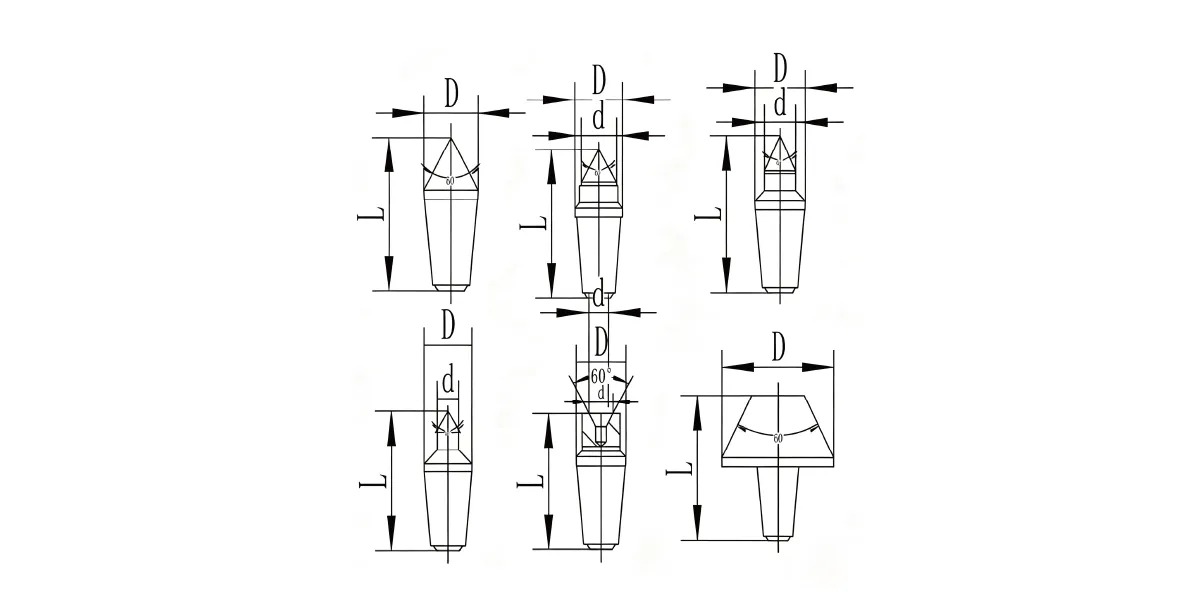

| MS.NO. | A | B | C | D | E | F | ||||||||||
| L | D | L | D | d | L | D | d | L | D | d | L | D | d | L | D | |
| 2 | 26 | 10.2 | 28.5 | 10.2 | 8 | 29 | 10.2 | 6.5 | 27.5 | 10.2 | 5 | 25 | 10.2 | 5.3 | 30 | 28 |
| 3 | 32 | 12.75 | 35 | 12.75 | 10 | 36 | 12.75 | 8 | 34 | 12.75 | 6 | 31 | 12.75 | 6.7 | 37 | 34 |
| 4 | ||||||||||||||||
| 5 | 39 | 15.7 | 44 | 15.7 | 12 | 45 | 15.7 | 10 | 42 | 15.7 | 8 | 43 | 15.7 | 8.5 | 48 | 40 |
