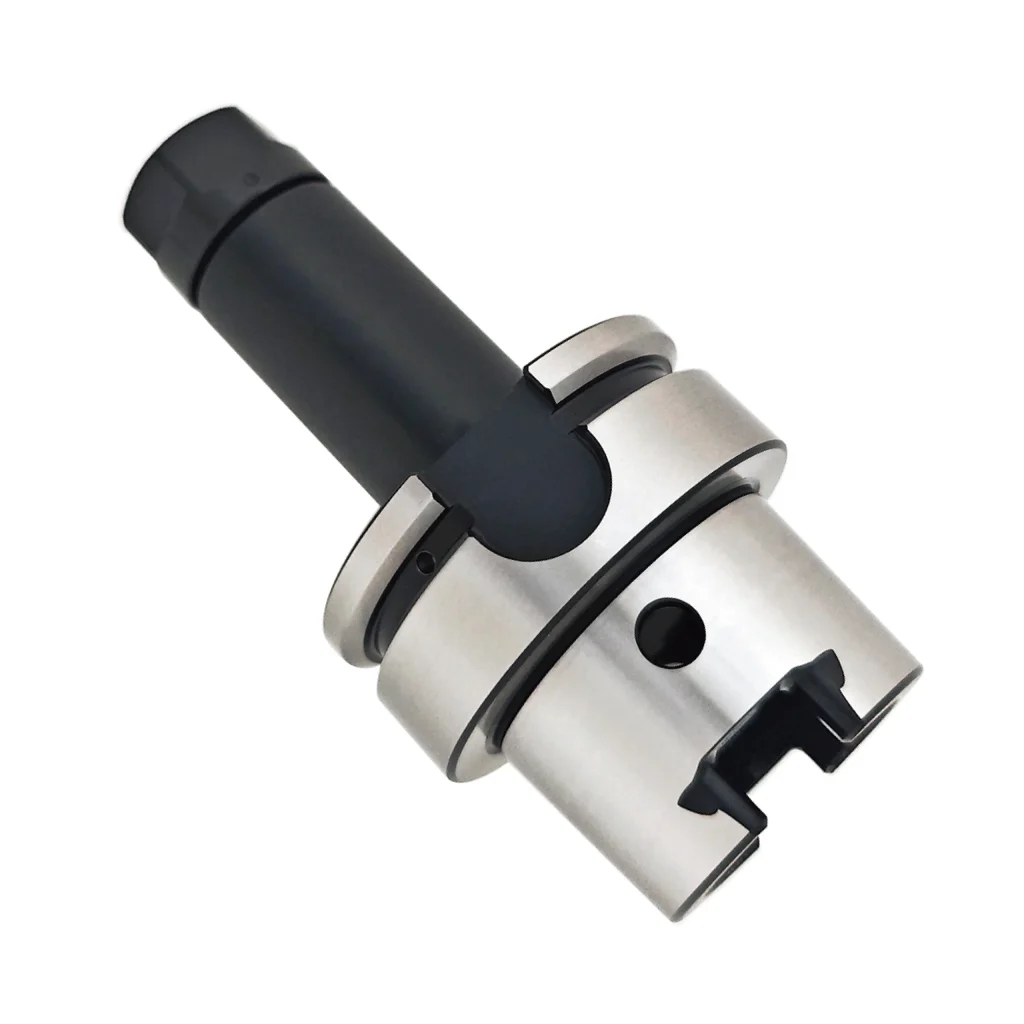

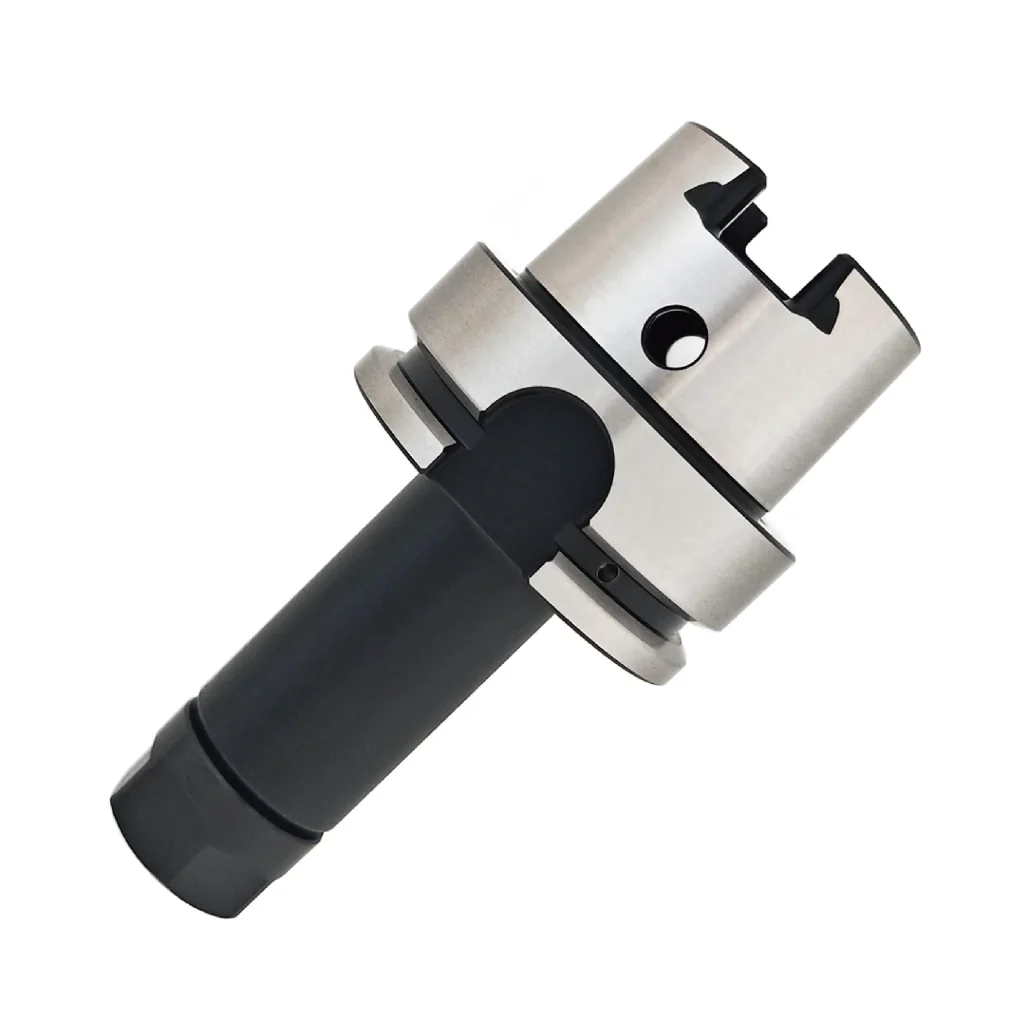

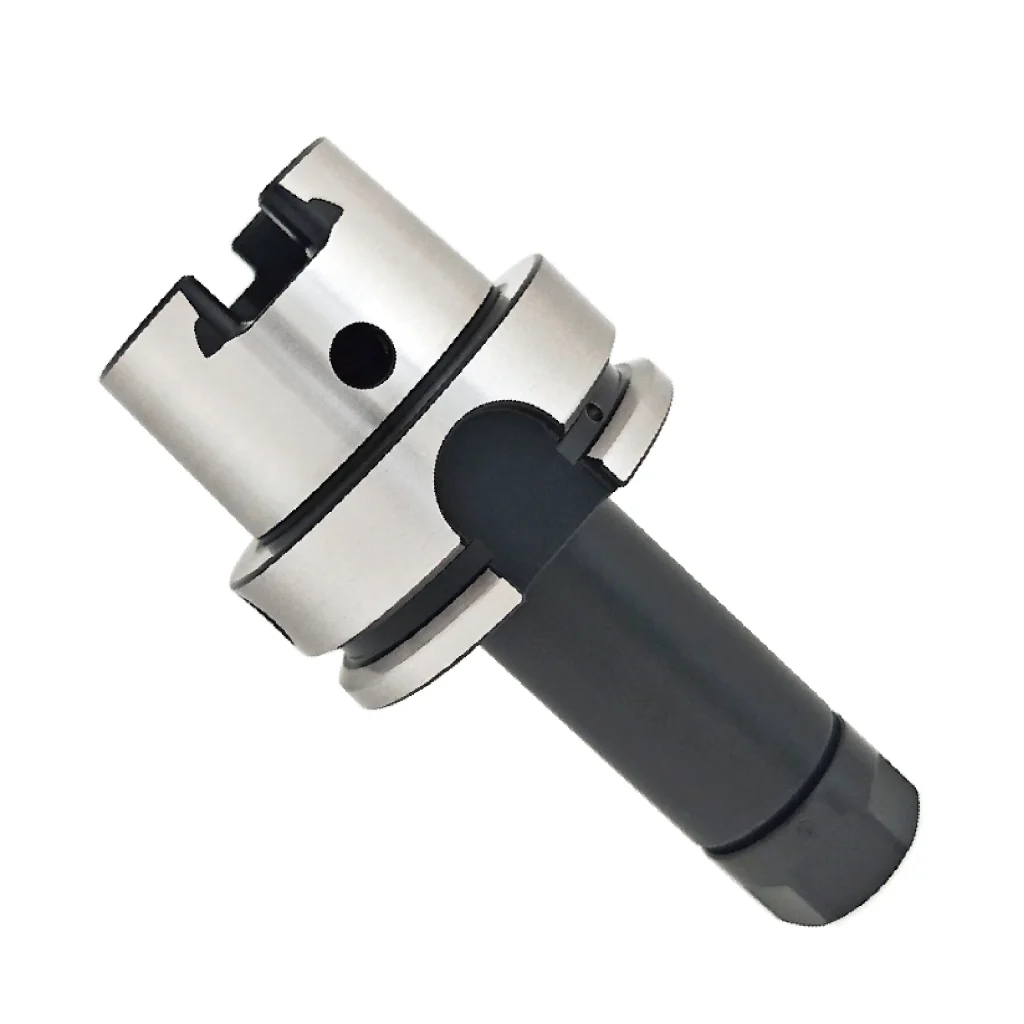

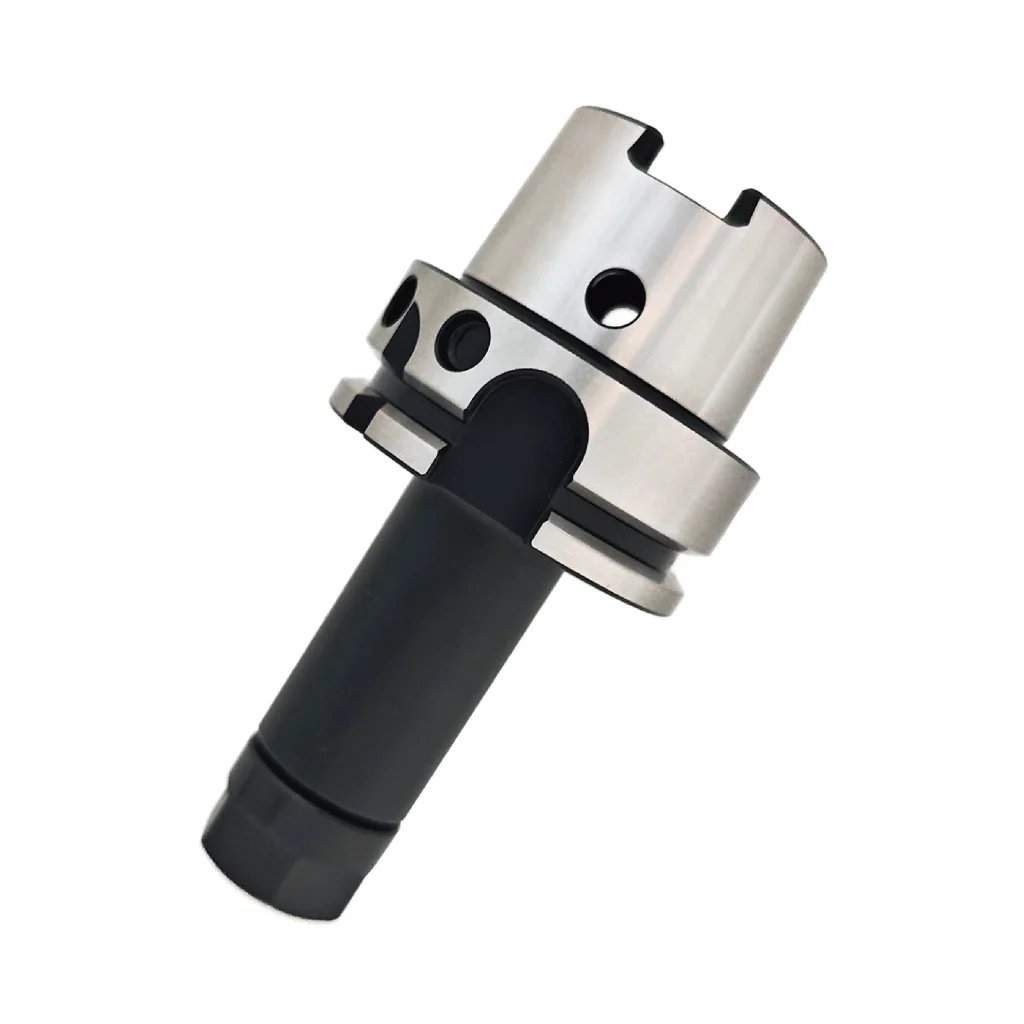

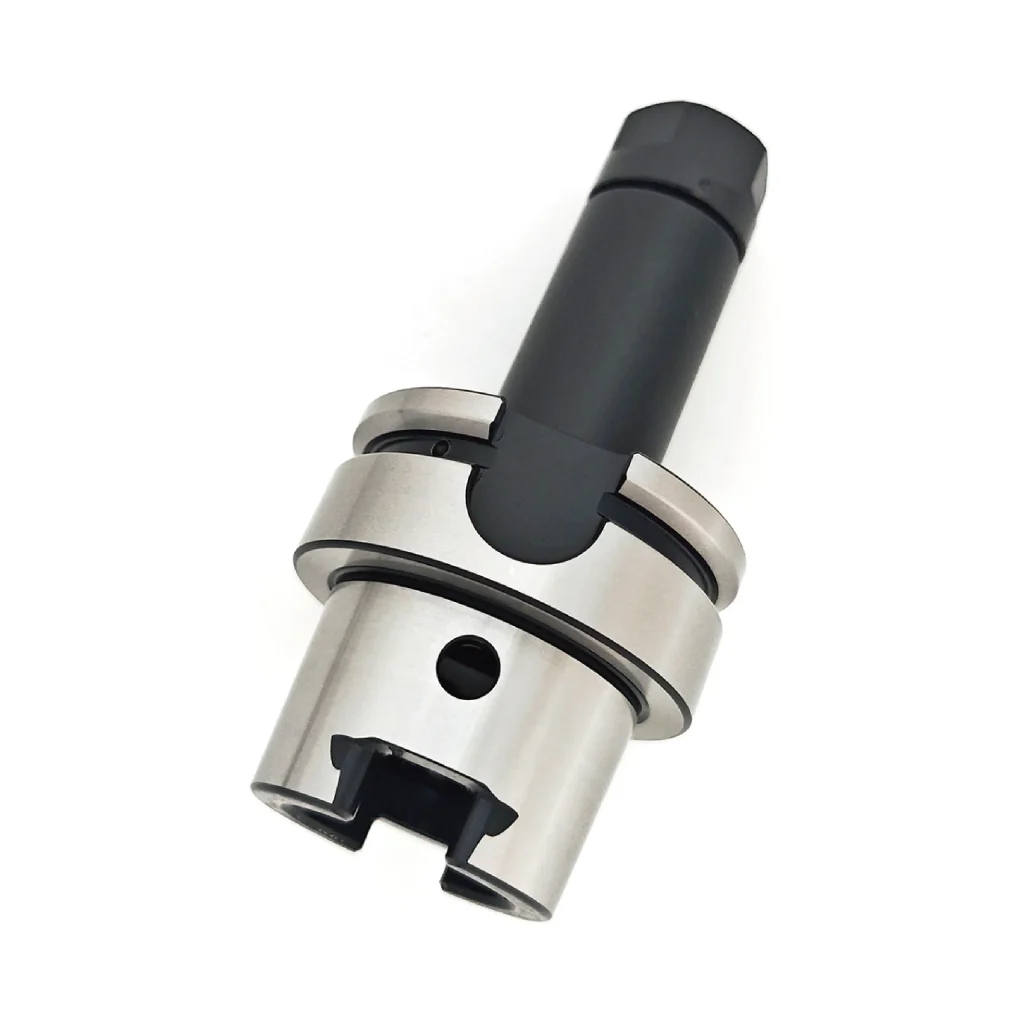

HSK-A-ER collet holder

The HSK-ER Collet Chuck Tool Holder is a high-precision, high-performance tooling solution engineered for modern high-speed CNC machining centers. It perfectly combines the rigid HSK hollow short taper interface with the flexible, secure gripping power of the global standard ER collet system.

Request a Quote

Product Details & Technical Resources

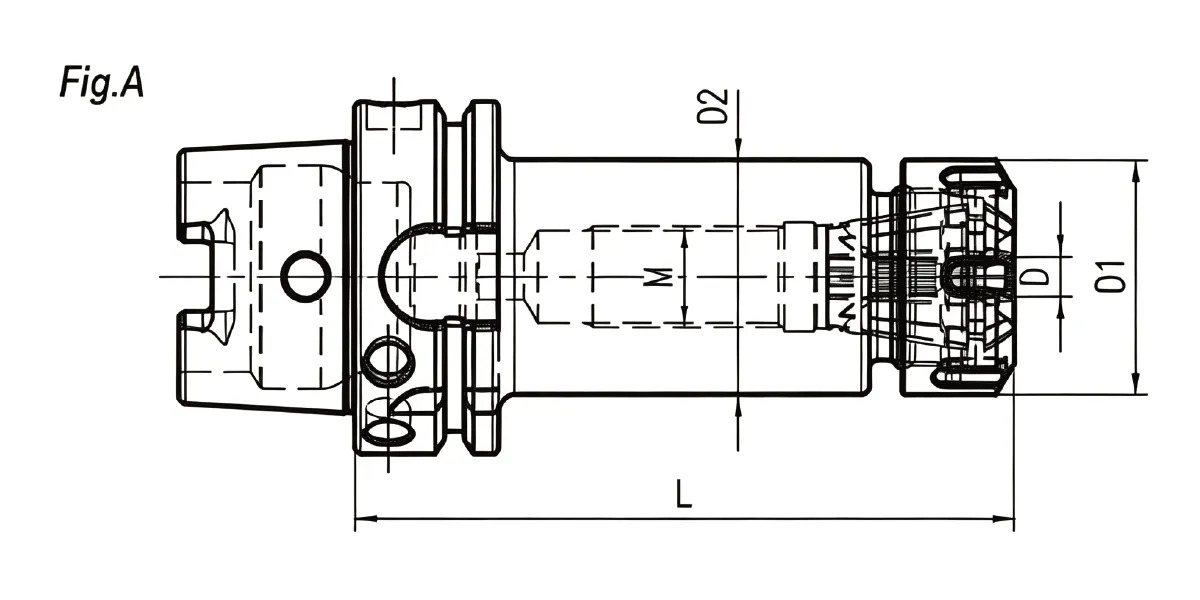

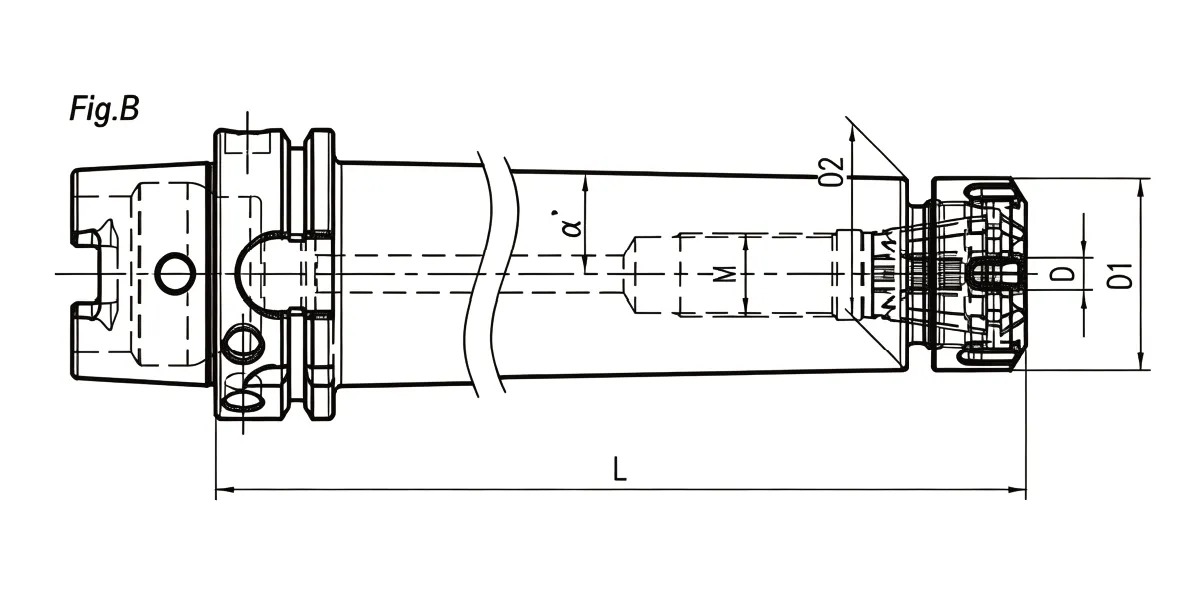

CAD Drawings

Access product dimension drawings and structural references to support selection, installation and project planning.

Technical Specifications

Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.

HSK-A ER Collet Chuck
型号 MODEL	尺寸SIZE (mm)
DIN 69893		D	D1	D2	L	M	α	Fig
HSK63A-ER11-75	HSK-A63	1.0～7	19	19	75	M8×1-LH	-	A
HSK63A-ER11-90	HSK-A63	1.0～7	19	19	90	M8×1-LH	-	A
HSK63A-ER11-120	HSK-A63	1.0～7	19	19	120	M8×1-LH	-	A
HSK63A-ER11-160	HSK-A63	1.0～7	19	19	160	M8×1-LH	-	A
HSK63A-ER11-200	HSK-A63	1.0～7	19	19	200	M8×1-LH	-	A
HSK63A-ER16-80	HSK-A63	1.0～10	28	28	80	7/16-20 UNF-LH	-	A
HSK63A-ER16-90	HSK-A63	1.0～10	28	28	90	7/16-20 UNF-LH	-	A
HSK63A-ER16-100	HSK-A63	1.0～10	28	28	100	7/16-20 UNF-LH	-	A
HSK63A-ER16-120	HSK-A63	1.0～10	28	28	120	7/16-20 UNF-LH	-	A
HSK63A-ER16-160	HSK-A63	1.0～10	28	28	160	7/16-20 UNF-LH	-	A
HSK63A-ER16-200	HSK-A63	1.0～10	28	28	200	7/16-20 UNF-LH	-	A
HSK63A-ER16-250	HSK-A63	1.0～10	28	28	250	7/16-20 UNF-LH	1	B
HSK63A-ER16-300	HSK-A63	1.0～10	28	28	300	7/16-20 UNF-LH	1	B
HSK63A-ER16-350	HSK-A63	1.0～10	28	28	350	7/16-20 UNF-LH	1	B
HSK63A-ER16-400	HSK-A63	1.0～10	28	28	400	7/16-20 UNF-LH	1	B
HSK63A-ER20-80	HSK-A63	1.0～13	34	34	80	M14×1.5-LH	-	A
HSK63A-ER20-90	HSK-A63	1.0～13	34	34	90	M14×1.5-LH	-	A
HSK63A-ER20-100	HSK-A63	1.0～13	34	34	100	M14×1.5-LH	-	A
HSK63A-ER20-120	HSK-A63	1.0～13	34	34	120	M14×1.5-LH	-	A
HSK63A-ER20-160	HSK-A63	1.0～13	34	34	160	M14×1.5-LH	-	A
HSK63A-ER20-200	HSK-A63	1.0～13	34	34	200	M14×1.5-LH	-	A
HSK63A-ER20-250	HSK-A63	1.0～13	34	34	250	M14×1.5-LH	1	B
HSK63A-ER20-300	HSK-A63	1.0～13	34	34	300	M14×1.5-LH	1	B
HSK63A-ER20-350	HSK-A63	1.0～13	34	34	350	M14×1.5-LH	1	B
HSK63A-ER20-400	HSK-A63	1.0～13	34	34	400	M14×1.5-LH	1	B
HSK63A-ER25-80	HSK-A63	1.0～16	42	42	80	-	-	A
HSK63A-ER25-90	HSK-A63	1.0～16	42	42	90	M18×1.5-LH	-	A
HSK63A-ER25-100	HSK-A63	1.0～16	42	42	100	M18×1.5-LH	-	A
HSK63A-ER25-120	HSK-A63	1.0～16	42	42	120	M8×1.5-LH	-	A
HSK63A-ER25-160	HSK-A63	1.0～16	42	42	160	M8×1.5-LH	-	A
HSK63A-ER25-200	HSK-A63	1.0～16	42	42	200	M8×1.5-LH	-	A
HSK63A-ER25-250	HSK-A63	1.0～16	42	42	250	M8×1.5-LH	1	B
HSK63A-ER25-300	HSK-A63	1.0～16	42	42	300	M8×1.5-LH	1	B
HSK63A-ER25-350	HSK-A63	1.0～16	42	42	350	M8×1.5-LH	1	B
HSK63A-ER25-400	HSK-A63	1.0～16	42	42	400	M8×1.5-LH	1	B
HSK63A-ER32-80	HSK-A63	2.0～20	50	50	80	-	-	A
HSK63A-ER32-90	HSK-A63	2.0～20	50	50	90	M22×1.5-LH	-	A
HSK63A-ER32-100	HSK-A63	2.0～20	50	50	100	M22×1.5-LH	-	A
HSK63A-ER32-120	HSK-A63	2.0～20	50	50	120	M22×1.5-LH	-	A
HSK63A-ER32-160	HSK-A63	2.0～20	50	50	160	M22×1.5-LH	-	A
HSK63A-ER32-200	HSK-A63	2.0～20	50	50	200	M22×1.5-LH	-	A
HSK63A-ER32-250	HSK-A63	2.0～20	50	50	250	M22×1.5-LH	-	A
HSK63A-ER32-300	HSK-A63	2.0～20	50	50	300	M22×1.5-LH	-	A
HSK63A-ER32-350	HSK-A63	2.0～20	50	50	350	M22×1.5-LH	-	A
HSK63A-ER32-400	HSK-A63	2.0～20	50	50	400	M22×1.5-LH	-	A
HSK63A-ER40-80	HSK-A63	3.0～26	63	53	80	-	-	A
HSK63A-ER40-90	HSK-A63	3.0～26	63	53	90	-	-	A
HSK63A-ER40-100	HSK-A63	3.0～26	63	53	100	1 1/8-16 UN-LH	-	A
HSK63A-ER40-120	HSK-A63	3.0～26	63	53	120	1 1/8-16 UN-LH	-	A
HSK63A-ER40-160	HSK-A63	3.0～26	63	53	160	1 1/8-16 UN-LH	-	A
HSK63A-ER40-200	HSK-A63	3.0～26	63	53	200	1 1/8-16 UN-LH	-	A
HSK63A-ER40-250	HSK-A63	3.0～26	63	53	250	1 1/8-16 UN-LH	-	A
HSK63A-ER40-300	HSK-A63	3.0～26	63	53	300	1 1/8-16 UN-LH	-	A
HSK63A-ER40-350	HSK-A63	3.0～26	63	53	350	1 1/8-16 UN-LH	-	A
HSK63A-ER40-400	HSK-A63	3.0～26	63	53	400	1 1/8-16 UN-LH	-	A

HSK100A-ER16-90	HSK-A100	1.0～10	28	28	90	7/16-20 UNF-LH	-	A
HSK100A-ER16-100	HSK-A100	1.0～10	28	28	100	7/16-20 UNF-LH	-	A
HSK100A-ER16-120	HSK-A100	1.0～10	28	28	120	7/16-20 UNF-LH	-	A
HSK100A-ER16-160	HSK-A100	1.0～10	28	28	160	7/16-20 UNF-LH	-	A
HSK100A-ER16-200	HSK-A100	1.0～10	28	28	200	7/16-20 UNF-LH	-	A
HSK100A-ER16-250	HSK-A100	1.0～10	28	28	250	7/16-20 UNF-LH	1	B
HSK100A-ER16-300	HSK-A100	1.0～10	28	28	300	7/16-20 UNF-LH	1	B
HSK100A-ER16-350	HSK-A100	1.0～10	28	28	350	7/16-20 UNF-LH	1	B
HSK100A-ER16-400	HSK-A100	1.0～10	28	28	400	7/16-20 UNF-LH	1	B
HSK100A-ER20-90	HSK-A100	1.0～13	34	34	90	M14×1.5-LH	-	A
HSK100A-ER20-100	HSK-A100	1.0～13	34	34	100	M14×1.5-LH	-	A
HSK100A-ER20-120	HSK-A100	1.0～13	34	34	120	M14×1.5-LH	-	A
HSK100A-ER20-160	HSK-A100	1.0～13	34	34	160	M14×1.5-LH	-	A
HSK100A-ER20-200	HSK-A100	1.0～13	34	34	200	M14×1.5-LH	-	A
HSK100A-ER20-250	HSK-A100	1.0～13	34	34	250	M14×1.5-LH	1	B
HSK100A-ER20-300	HSK-A100	1.0～13	34	34	300	M14×1.5-LH	1	B
HSK100A-ER20-350	HSK-A100	1.0～13	34	34	350	M14×1.5-LH	1	B
HSK100A-ER20-400	HSK-A100	1.0～13	34	34	400	M14×1.5-LH	1	B
HSK100A-ER25-90	HSK-A100	1.0～16	42	42	90	M18×1.5-LH	-	A
HSK100A-ER25-100	HSK-A100	1.0～16	42	42	100	M18×1.5-LH	-	A
HSK100A-ER25-120	HSK-A100	1.0～16	42	42	120	M18×1.5-LH	-	A
HSK100A-ER25-160	HSK-A100	1.0～16	42	42	160	M18×1.5-LH	-	A
HSK100A-ER25-200	HSK-A100	1.0～16	42	42	200	M18×1.5-LH	-	A
HSK100A-ER25-250	HSK-A100	1.0～16	42	42	250	M18×1.5-LH	1	B
HSK100A-ER25-300	HSK-A100	1.0～16	42	42	300	M18×1.5-LH	1	B
HSK100A-ER25-350	HSK-A100	1.0～16	42	42	350	M18×1.5-LH	1	B
HSK100A-ER25-400	HSK-A100	1.0～16	42	42	400	M18×1.5-LH	1	B
HSK100A-ER32-100	HSK-A100	2.0～20	50	50	100	M22×1.5-LH	-	A
HSK100A-ER32-120	HSK-A100	2.0～20	50	50	120	M22×1.5-LH	-	A
HSK100A-ER32-160	HSK-A100	2.0～20	50	50	160	M22×1.5-LH	-	A
HSK100A-ER32-200	HSK-A100	2.0～20	50	50	200	M22×1.5-LH	-	A
HSK100A-ER32-250	HSK-A100	2.0～20	50	50	250	M22×1.5-LH	1	B
HSK100A-ER32-300	HSK-A100	2.0～20	50	50	300	M22×1.5-LH	1	B
HSK100A-ER32-350	HSK-A100	2.0～20	50	50	350	M22×1.5-LH	1	B
HSK100A-ER32-400	HSK-A100	2.0～20	50	50	400	M22×1.5-LH	1	B
HSK100A-ER40-100	HSK-A100	3.0～26	63	63	100	-	-	A
HSK100A-ER40-120	HSK-A100	3.0～26	63	63	120	1 1/8-16 UN-LH	-	A
HSK100A-ER40-160	HSK-A100	3.0～26	63	63	160	1 1/8-16 UN-LH	-	A
HSK100A-ER40-200	HSK-A100	3.0～26	63	63	200	1 1/8-16 UN-LH	-	A
HSK100A-ER40-250	HSK-A100	3.0～26	63	63	250	1 1/8-16 UN-LH	1	B
HSK100A-ER40-300	HSK-A100	3.0～26	63	63	300	1 1/8-16 UN-LH	1	B
HSK100A-ER40-350	HSK-A100	3.0～26	63	63	350	1 1/8-16 UN-LH	1	B
HSK100A-ER40-400	HSK-A100	3.0～26	63	63	400	1 1/8-16 UN-LH	1	B
