Power Chucks

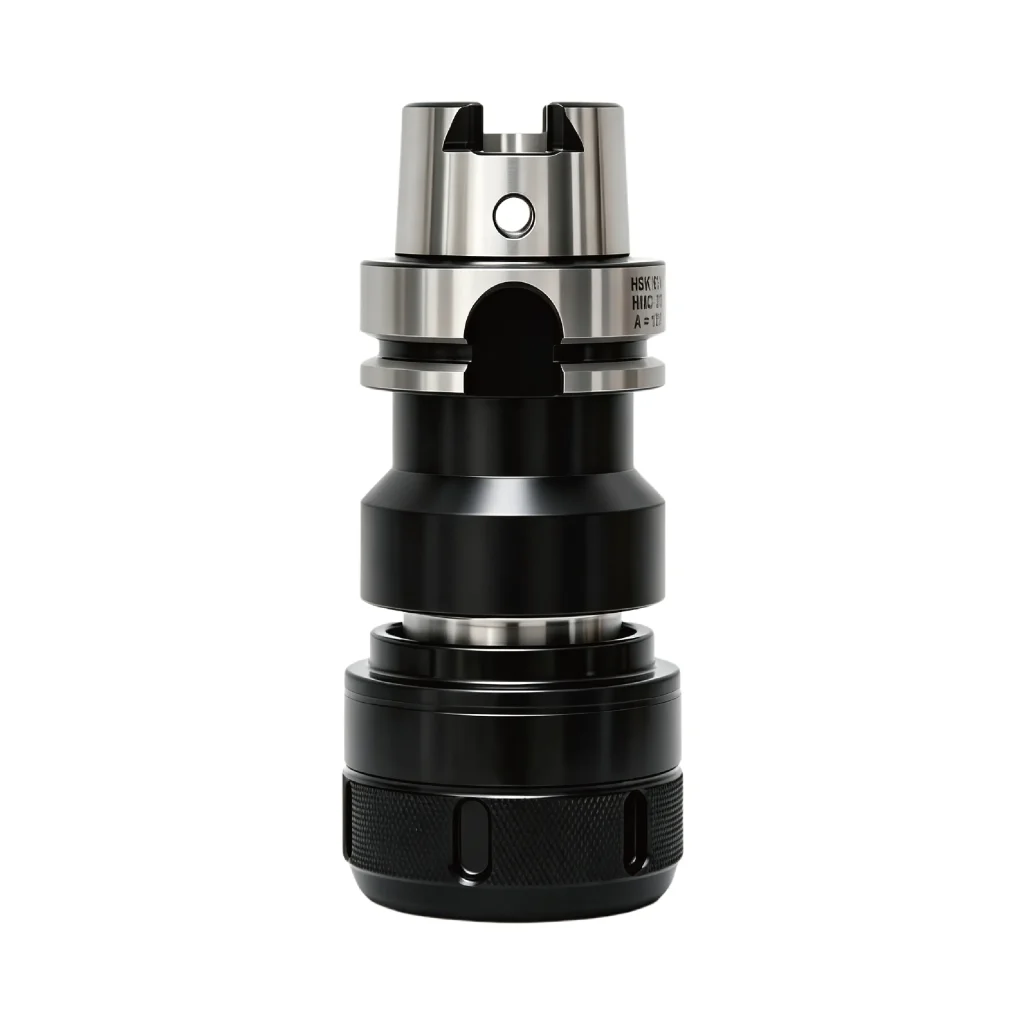

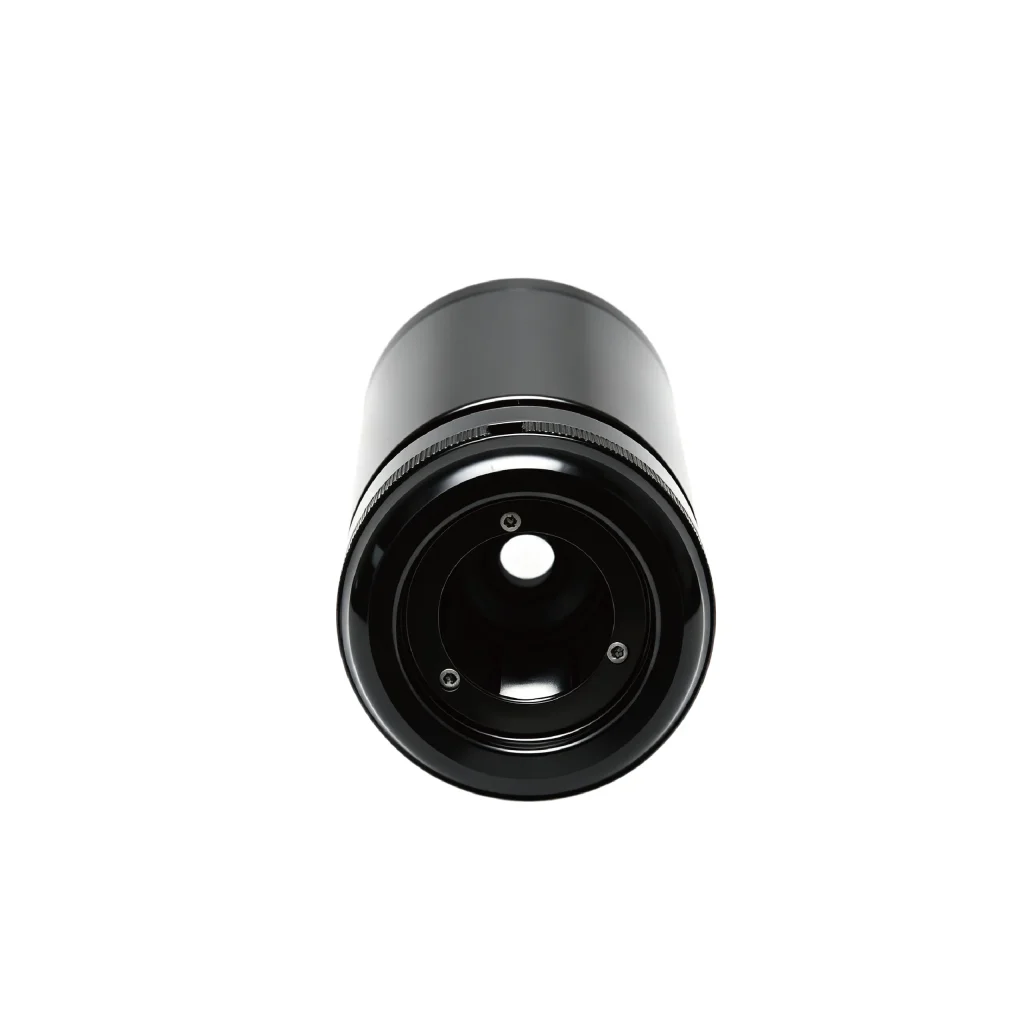

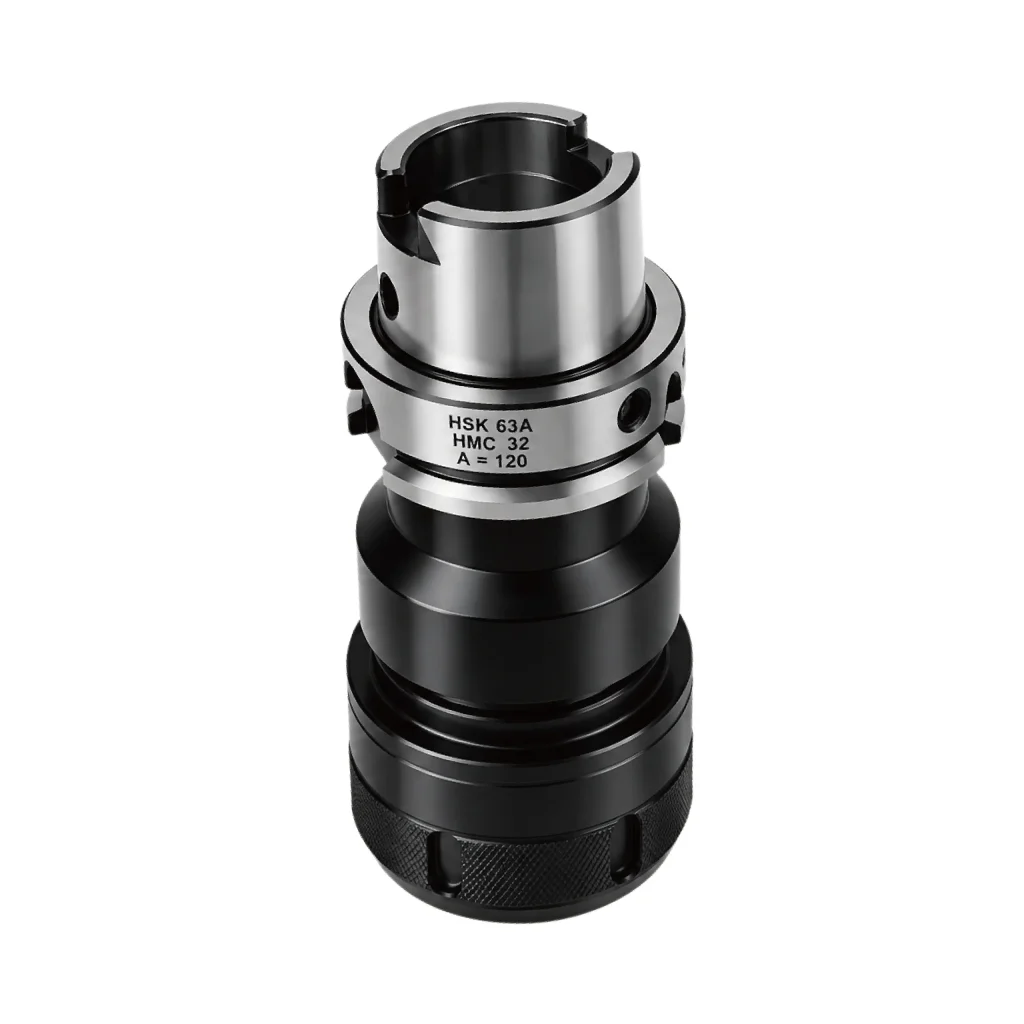

HSK-Cpower milling holder
HSK-C power chuck shank is a tool holding device for CNC machine tools. Built on HSK interface technology, it features high precision and high rigidity, and is suitable for quick tool change systems.
It adopts HSK hollow taper shank structure. It achieves face contact when connected to the spindle, delivering excellent rigidity and accuracy. Equipped with a power chuck, its specially designed clamping mechanism generates large clamping force on the tool to ensure stable and reliable performance during machining.
Application:Suitable for fields demanding high machining accuracy and efficiency, such as aerospace, automobile manufacturing and mold processing.
Product Details & Technical Resources

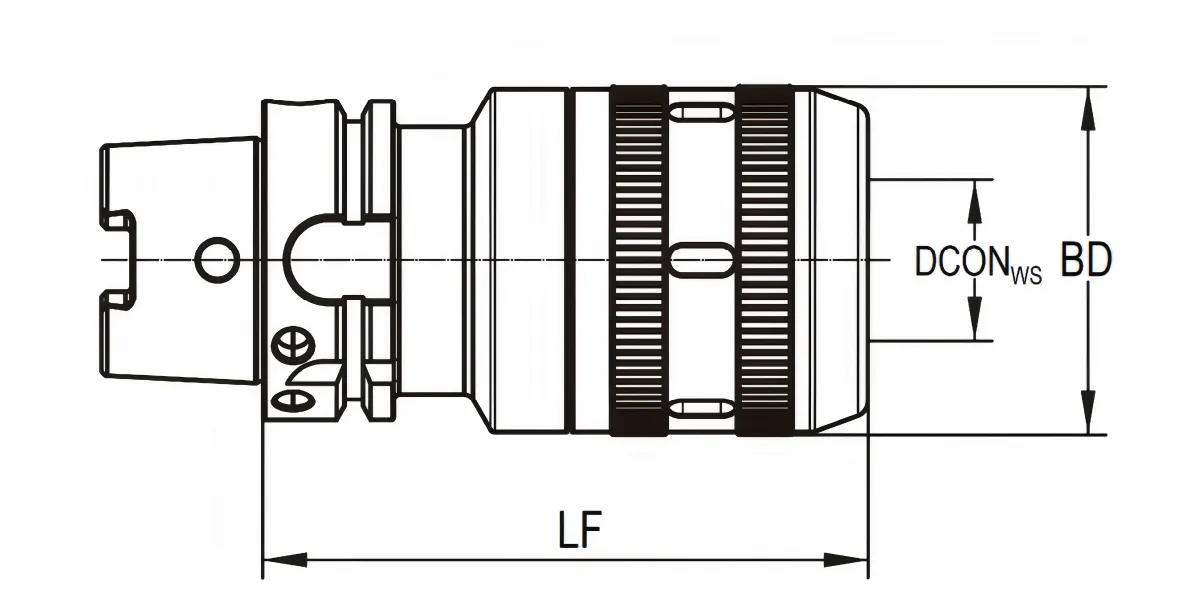

CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.
| HSK Power Milling Chuck | ||||
| 型号 MODEL |
尺寸SIZE (mm) |
|||
| DIN 69893 | DCONWS | BD | LF | |
| HSK63A-C20-105 | HSK-A63 | 20 | 52 | 105 |
| HSK63A-C25-110 | HSK-A63 | 25 | 60 | 110 |
| HSK63A-C32-110 | HSK-A63 | 32 | 69 | 110 |
| HSK63A-C32-115 | HSK-A63 | 32 | 69 | 115 |
| HSK80A-C32-115 | HSK-A80 | 32 | 69 | 115 |
| HSK100A-C20-110 | HSK-A100 | 20 | 52 | 110 |
| HSK100A-C25-110 | HSK-A100 | 25 | 52 | 110 |
| HSK100A-C25-115 | HSK-A100 | 25 | 60 | 115 |
| HSK100A-C32-120 | HSK-A100 | 32 | 69 | 120 |
| HSK100A-C32-135 | HSK-A100 | 32 | 69 | 135 |
| HSK100A-C42-125 | HSK-A100 | 42 | 86 | 125 |
