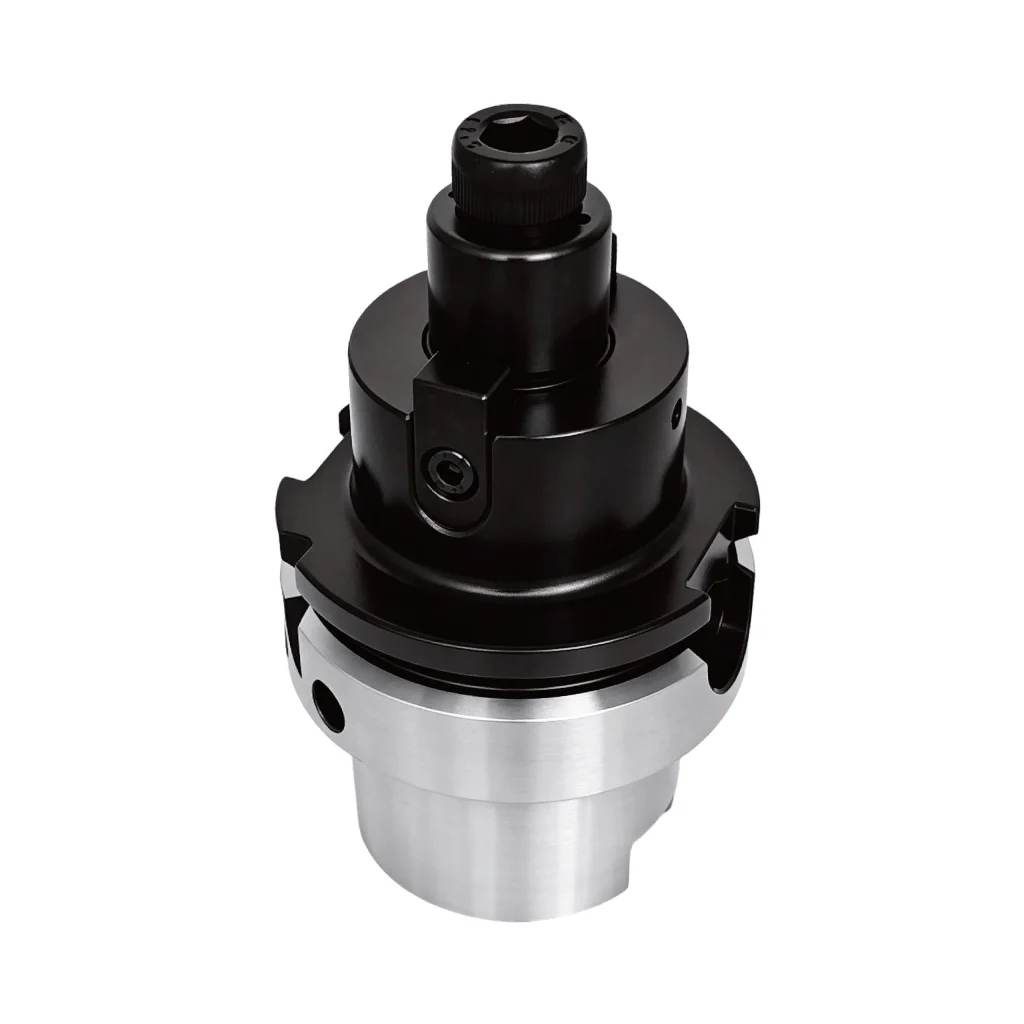

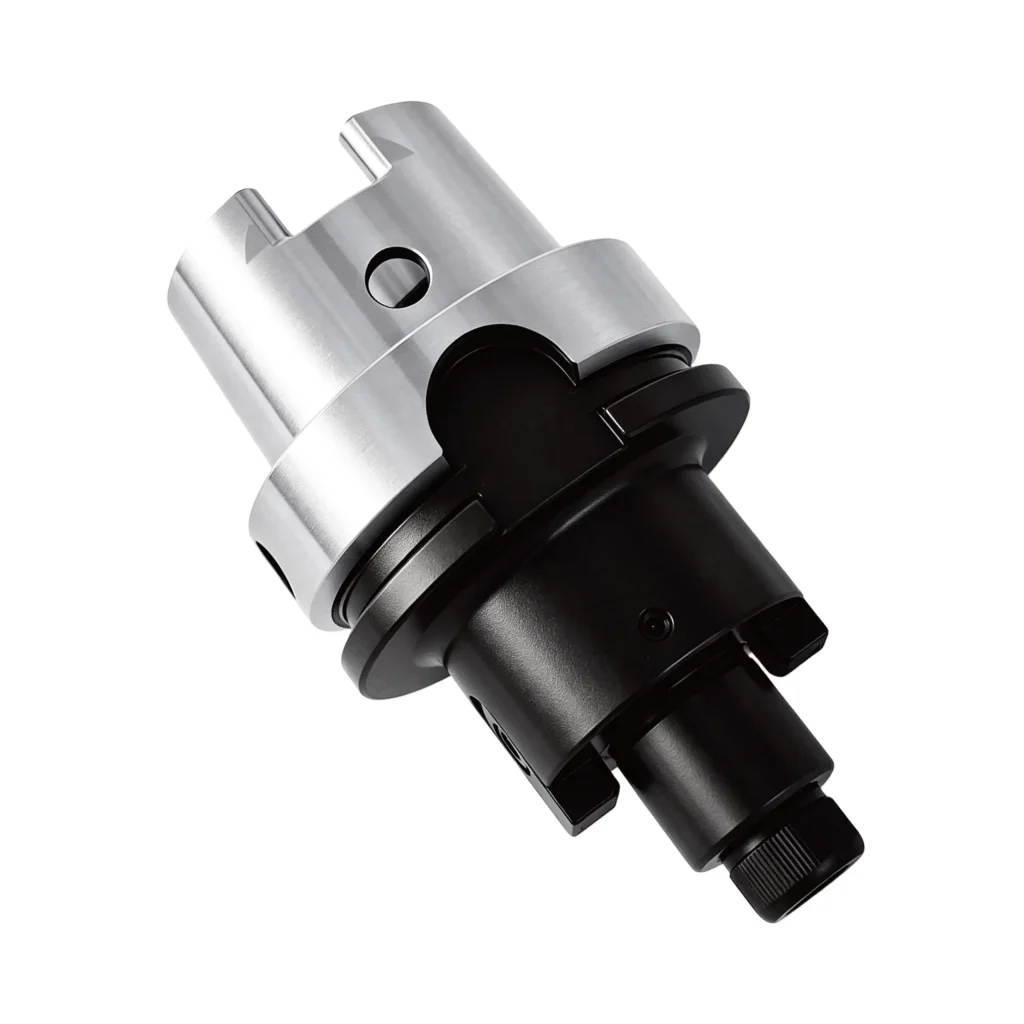

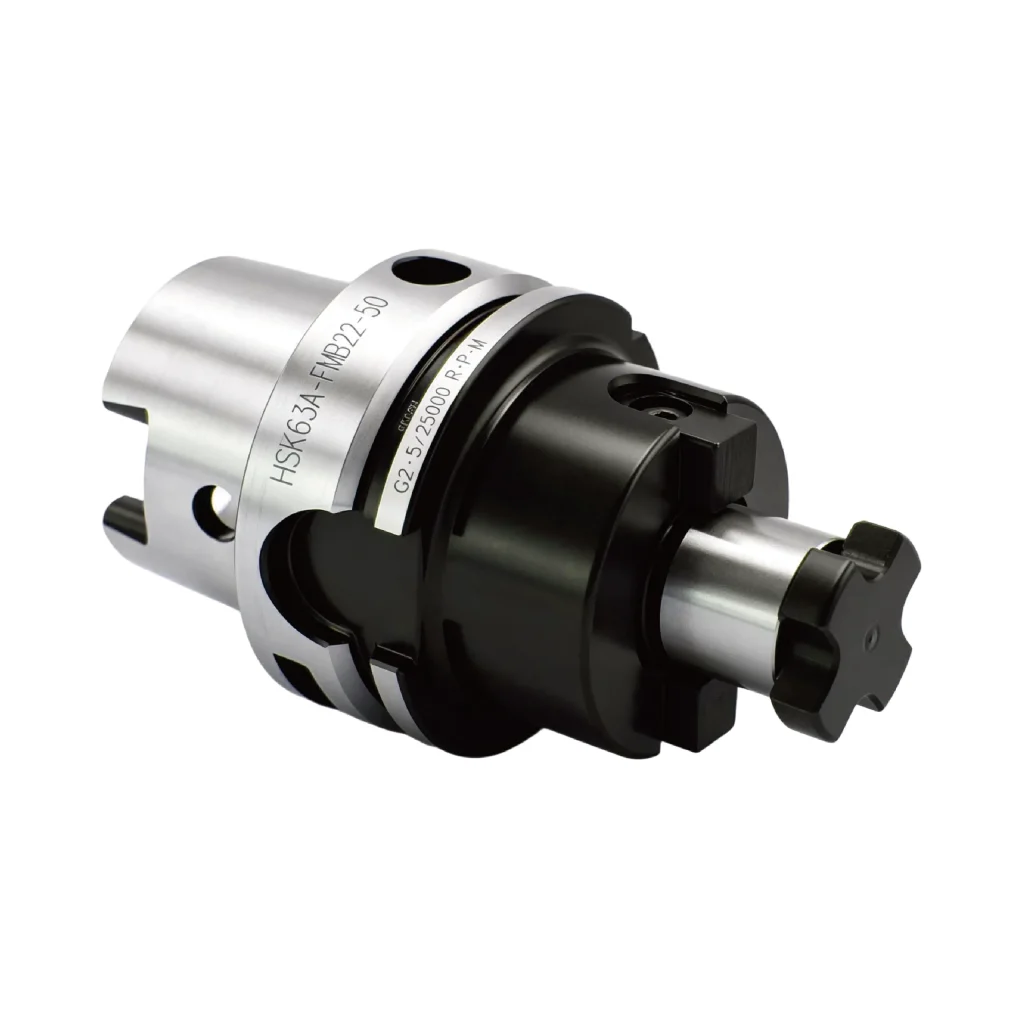

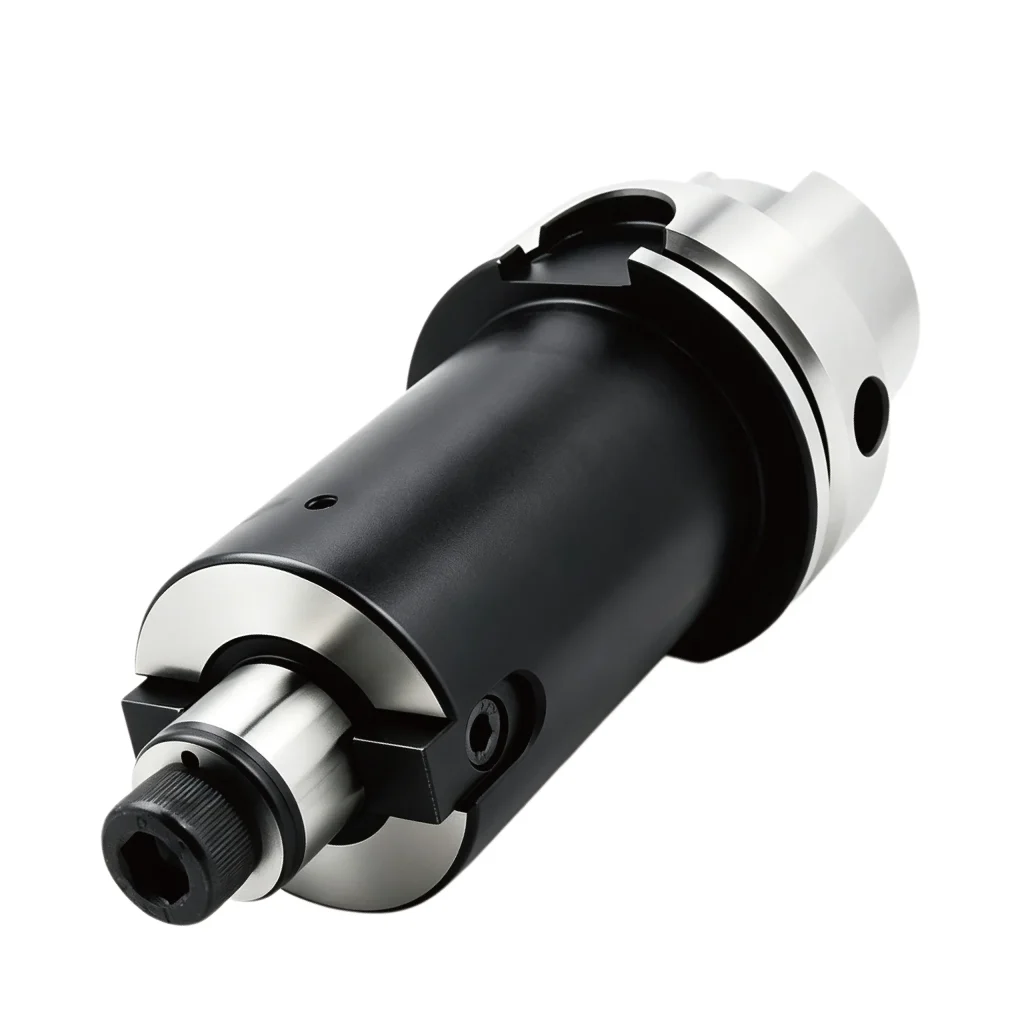

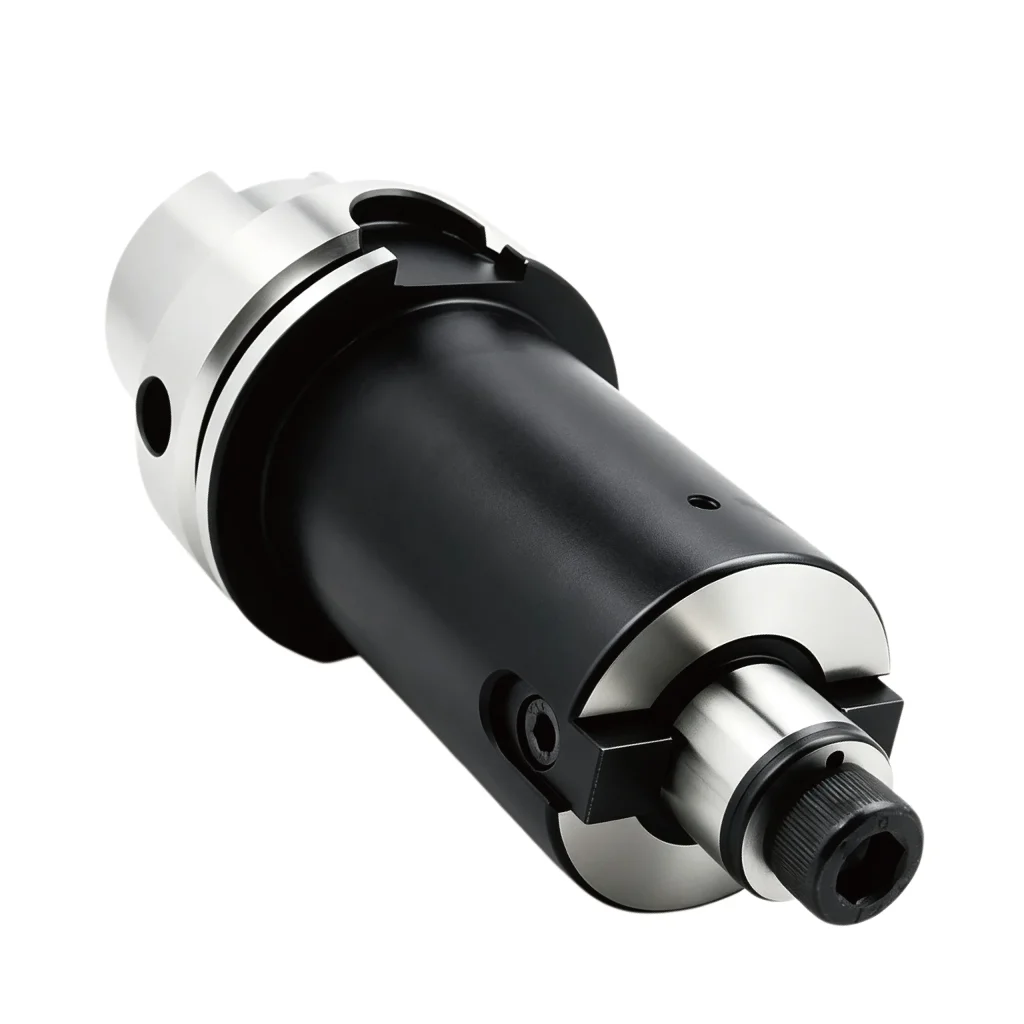

HSK-FMB Face Mill Arbor

Request a Quote

Product Details & Technical Resources

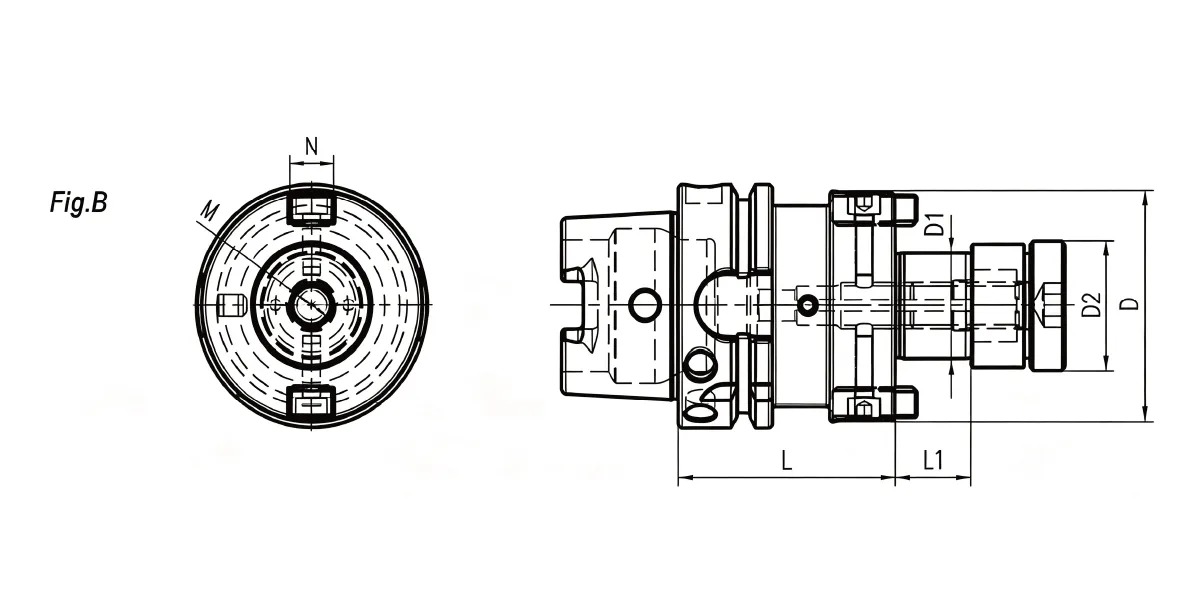

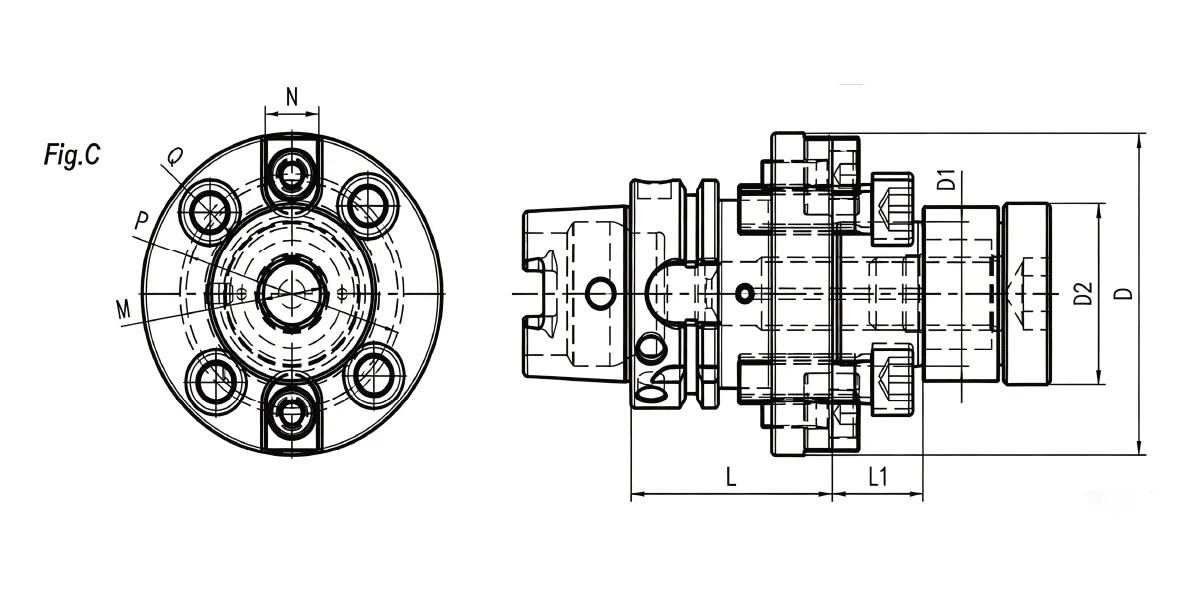

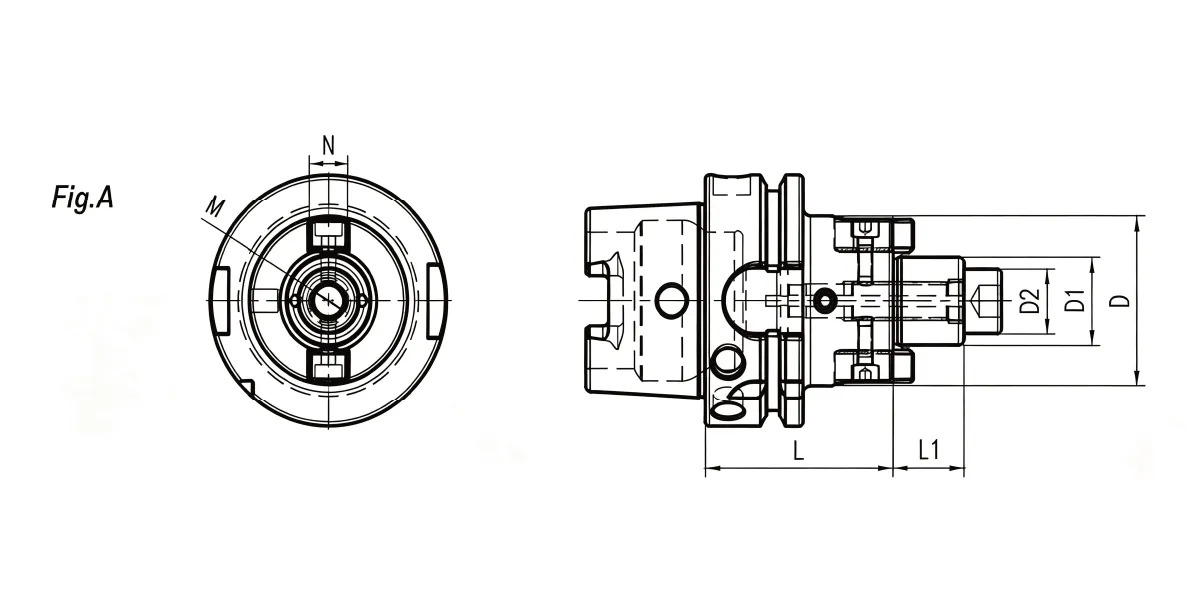

CAD Drawings

Access product dimension drawings and structural references to support selection, installation and project planning.

Technical Specifications

eview key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.

HSK Face Mill Arbor
型号 MODEL	尺寸SIZE (mm)
DIN 69893		D	D1	D2	L	L1	P	M	Q	N	Fig
HSK63A-FMB16-50	HSK-A63	38	16	13	50	17	-	M8×1.25	-	8	A
HSK63A-FMB16-100	HSK-A63	38	16	13	100	17	-	M8×1.25	-	8	A
HSK63A-FMB22-50	HSK-A63	48	22	16	50	19	-	M10×1.5	-	10	A
HSK63A-FMB22-100	HSK-A63	48	22	16	100	19	-	M10×1.5	-	10	A
HSK63A-FMB22-120	HSK-A63	48	22	16	120	19	-	M10×1.5	-	10	A
HSK63A-FMB22-150	HSK-A63	48	22	16	150	19	-	M10×1.5	-	10	A
HSK63A-FMB22-200	HSK-A63	48	22	16	200	19	-	M10×1.5	-	10	A
HSK63A-FMB27-60	HSK-A63	60	27	33	60	21	-	M12×1.75	-	12	B
HSK63A-FMB27-100	HSK-A63	60	27	33	100	21	-	M12×1.75	-	12	B
HSK63A-FMB27-120	HSK-A63	60	27	33	120	21	-	M12×1.75	-	12	B
HSK63A-FMB32-60	HSK-A63	78	32	40	60	24	-	M16×2	-	14	B
HSK63A-FMB32-100	HSK-A63	78	32	40	100	24	-	M16×2	-	14	B
HSK63A-FMB32-120	HSK-A63	78	32	40	120	24	-	M16×2	-	14	B
HSK63A-FMB40-60	HSK-A63	89	40	50	60	27	66.7	M20×2.5	M12×1.75	16	C
HSK63A-FMB40-120	HSK-A63	89	40	50	120	27	66.7	M20×2.5	M12×1.75	16	C

HSK100A-FMB22-50	HSK-A100	48	22	16	50	19	-	M10×1.5	-	10	A
HSK100A-FMB22-100	HSK-A100	48	22	16	100	19	-	M10×1.5	-	10	A
HSK100A-FMB22-120	HSK-A100	48	22	16	120	19	-	M10×1.5	-	10	A
HSK100A-FMB22-160	HSK-A100	48	22	16	160	19	-	M10×1.5	-	10	A
HSK100A-FMB22-200	HSK-A100	48	22	16	200	19	-	M10×1.5	-	10	A
HSK100A-FMB27-50	HSK-A100	60	27	33	50	21	-	M12×1.75	-	12	B
HSK100A-FMB27-60	HSK-A100	60	27	33	60	21	-	M12×1.75	-	12	B
HSK100A-FMB27-100	HSK-A100	60	27	33	100	21	-	M12×1.75	-	12	B
HSK100A-FMB27-120	HSK-A100	60	27	33	120	21	-	M12×1.75	-	12	B
HSK100A-FMB27-160	HSK-A100	60	27	33	160	21	-	M12×1.75	-	12	B
HSK100A-FMB27-200	HSK-A100	60	27	33	200	21	-	M12×1.75	-	12	B
HSK100A-FMB32-50	HSK-A100	78	32	40	50	24	-	M16×2	-	14	B
HSK100A-FMB32-60	HSK-A100	78	32	40	60	24	-	M16×2	-	14	B
HSK100A-FMB32-100	HSK-A100	78	32	40	100	24	-	M16×2	-	14	B
HSK100A-FMB32-120	HSK-A100	78	32	40	120	24	-	M16×2	-	14	B
HSK100A-FMB32-160	HSK-A100	78	32	40	160	24	-	M16×2	-	14	B
HSK100A-FMB40-60	HSK-A100	89	40	50	60	27	66.7	M20×2.5	M12×1.75	16	C
HSK100A-FMB40-100	HSK-A100	89	40	50	100	27	66.7	M20×2.5	M12×1.75	16	C
HSK100A-FMB40-120	HSK-A100	89	40	50	120	27	66.7	M20×2.5	M12×1.75	16	C
HSK100A-FMB40-160	HSK-A100	89	40	50	160	27	66.7	M20×2.5	M12×1.75	16	C
HSK100A-FMB60-70	HSK-A100	129	60	-	70	40	101.6	M30×3.5	M16×2	25.4	C
HSK100A-FMB60-100	HSK-A100	129	60	-	100	40	101.6	M30×3.5	M16×2	25.4	C
HSK100A-FMB22-160B	HSK-A100	48	22	16	60	160	19	50	M10×1.5	10	A
HSK100A-FMB22-200B	HSK-A100	48	22	16	60	200	19	50	M10×1.5	10	A
HSK100A-FMB27-160B	HSK-A100	60	27	33	75	160	21	50	M12×1.75	12	B
HSK100A-FMB27-200B	HSK-A100	60	27	33	75	200	21	50	M12×1.75	12	B
