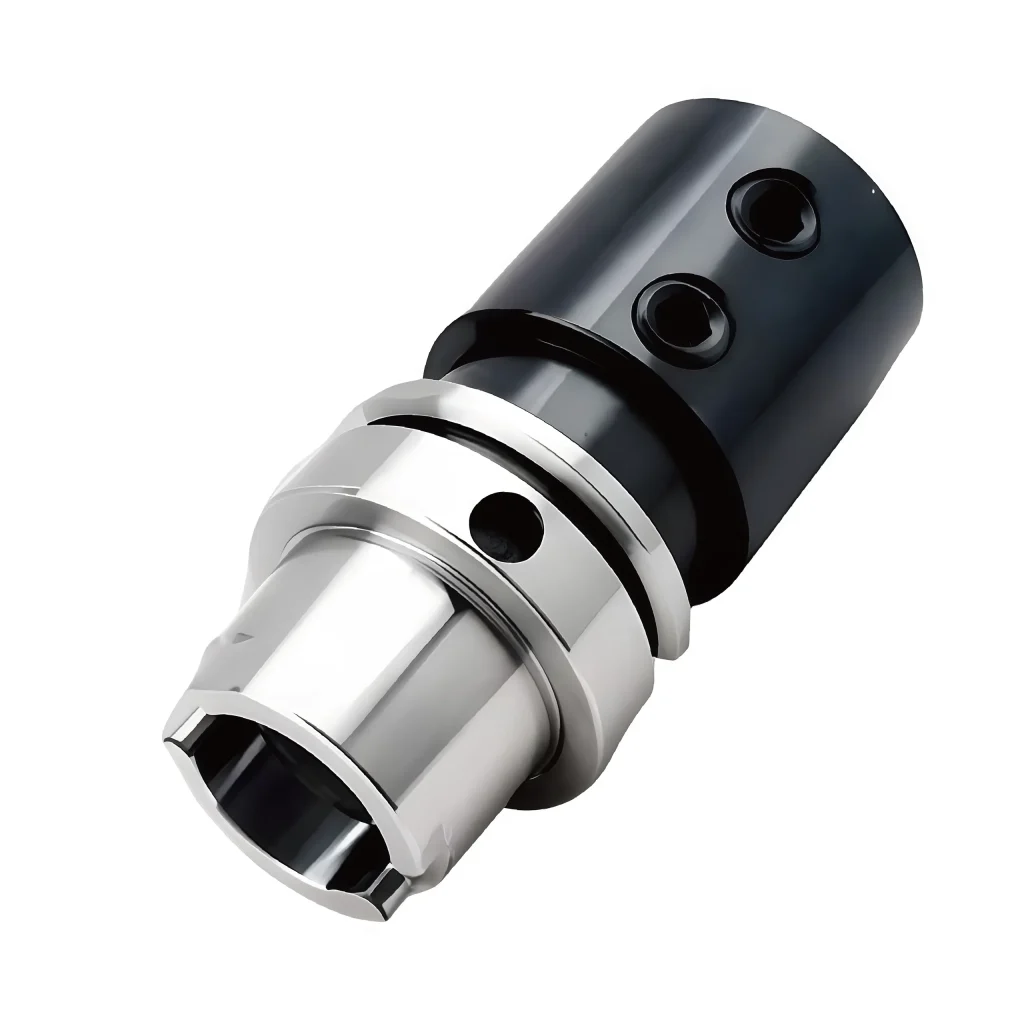

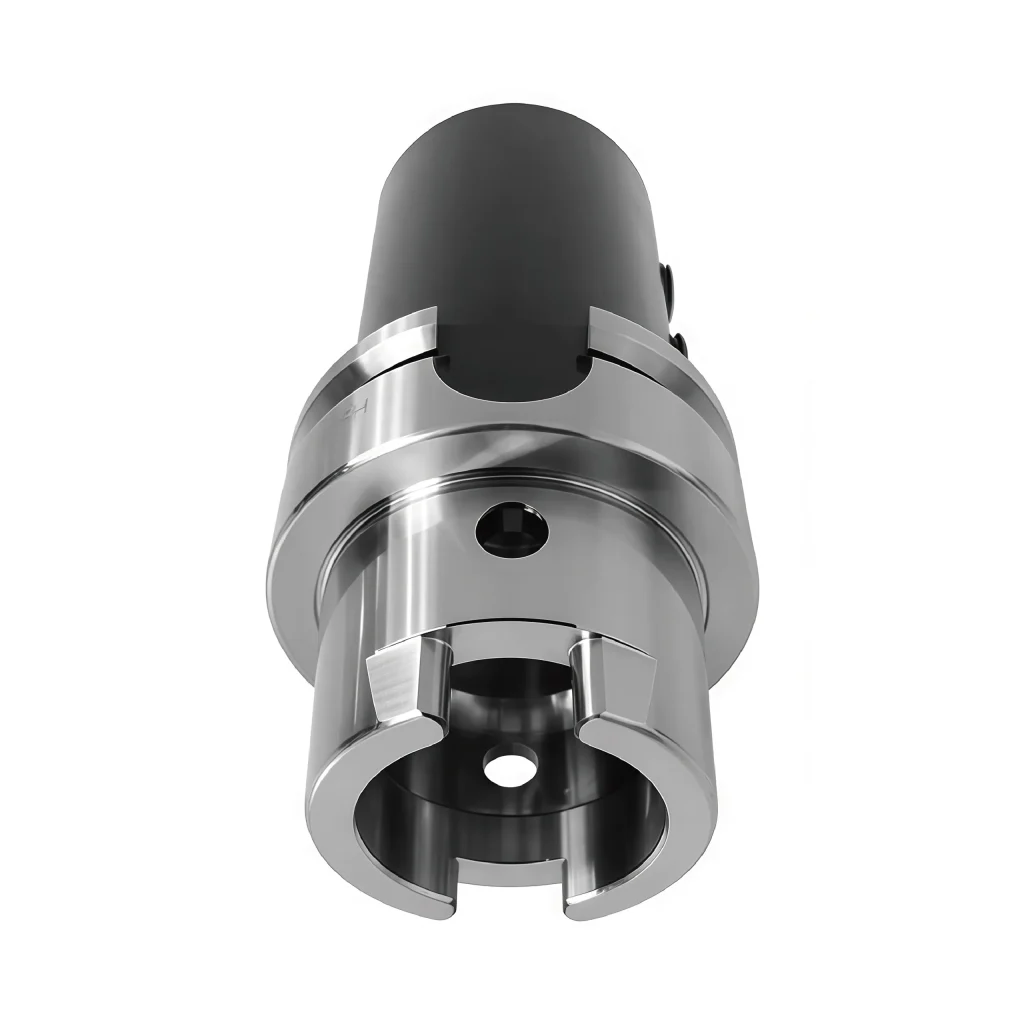

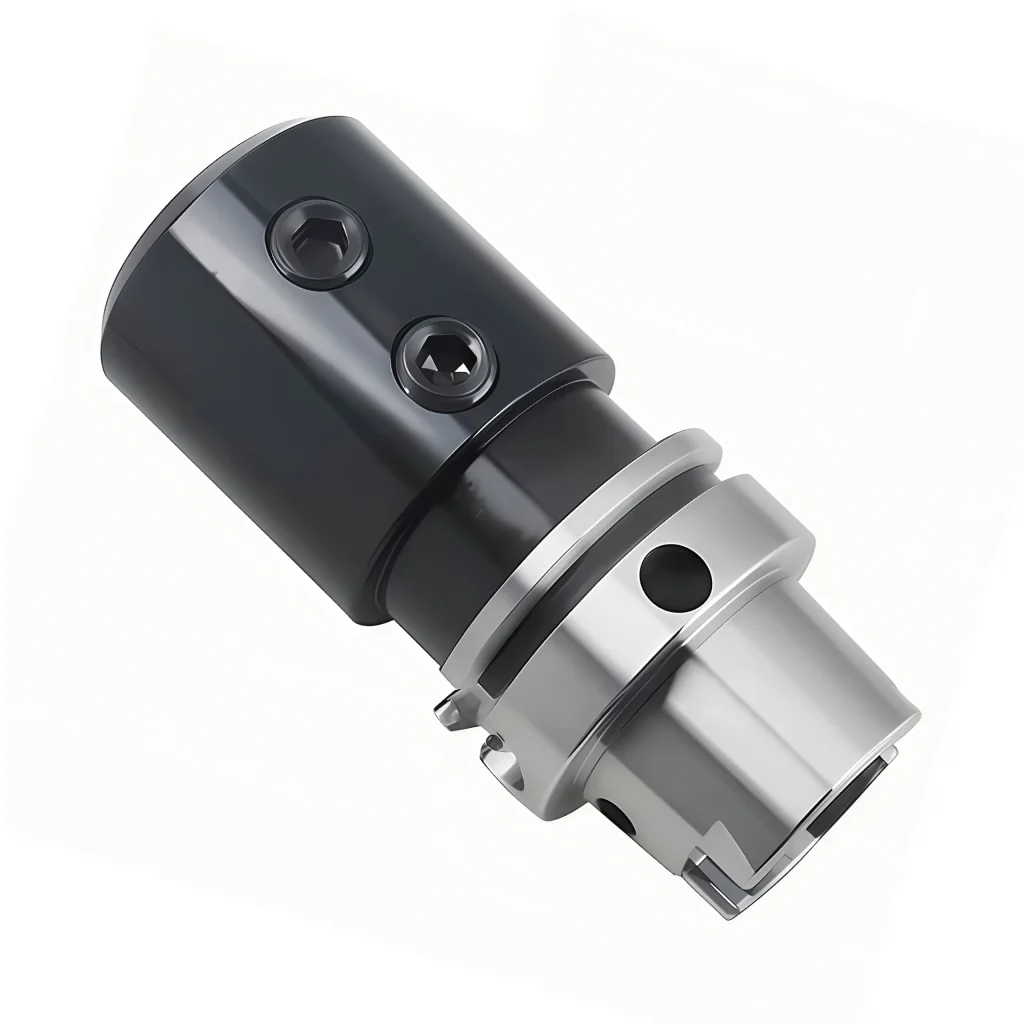

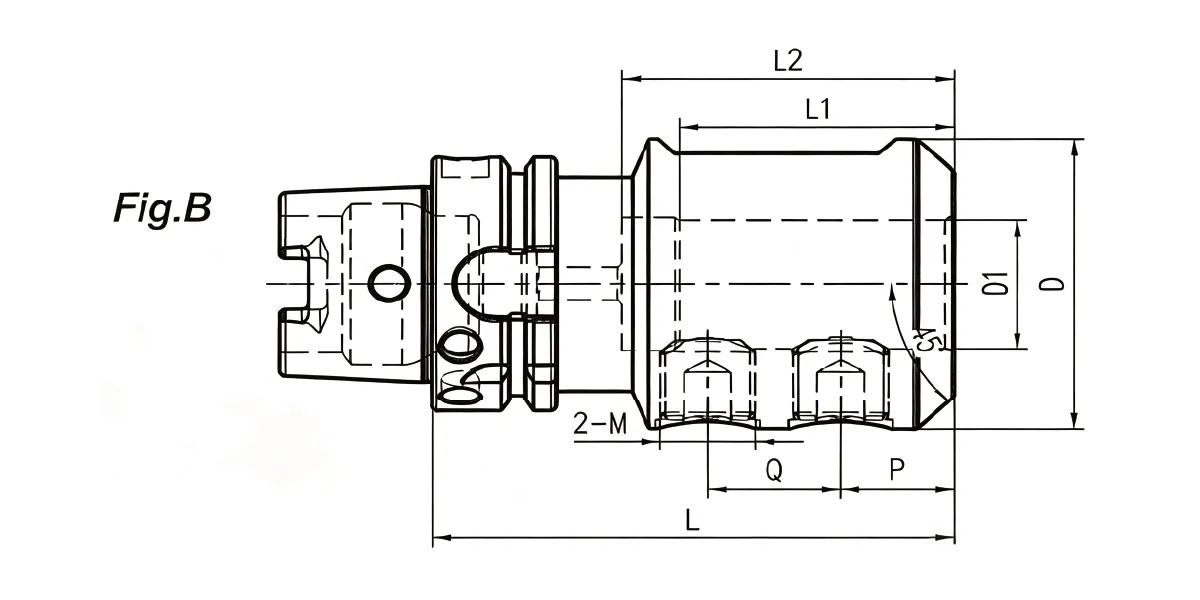

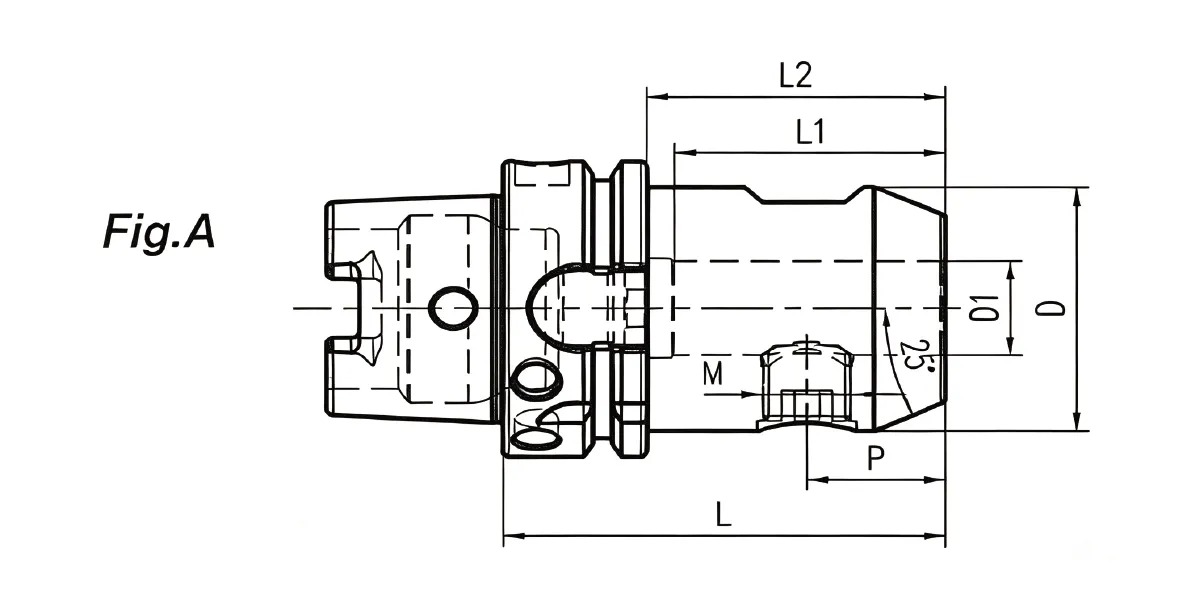

CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.
| HSK Side Lock Holder | |||||||||
| 型号 MODEL |
尺寸SIZE (mm) |
||||||||
| DIN 69893 | D | D1 | L | L1 | M | P | Q | Fig | |
| HSK63A-SLN12-80 | HSK-A63 | 42 | 16 | 80 | 44 | M12×1.75 | 22.5 | - | A |
| HSK63A-SLN12-160 | HSK-A63 | 42 | 16 | 160 | 44 | M12×1.75 | 22.5 | - | A |
| HSK63A-SLN14-80 | HSK-A63 | 44 | 22 | 80 | 44 | M12×1.75 | 22.5 | - | A |
| HSK63A-SLN14-160 | HSK-A63 | 44 | 22 | 160 | 44 | M12×1.75 | 22.5 | - | A |
| HSK63A-SLN16-80 | HSK-A63 | 48 | 22 | 80 | 47 | M14×2 | 24 | - | A |
| HSK63A-SLN16-120 | HSK-A63 | 48 | 22 | 120 | 47 | M14×2 | 24 | - | A |
| HSK63A-SLN16-160 | HSK-A63 | 48 | 22 | 160 | 47 | M14×2 | 24 | - | A |
| HSK63A-SLN16-200 | HSK-A63 | 48 | 27 | 200 | 47 | M14×2 | 24 | - | A |
| HSK63A-SLN20-80 | HSK-A63 | 52 | 27 | 80 | 49 | M16×2 | 25 | - | A |
| HSK63A-SLN20-120 | HSK-A63 | 52 | 27 | 120 | 49 | M16×2 | 25 | - | A |
| HSK63A-SLN20-160 | HSK-A63 | 52 | 32 | 160 | 49 | M16×2 | 25 | - | A |
| HSK63A-SLN20-200 | HSK-A63 | 52 | 32 | 200 | 49 | M16×2 | 25 | - | A |
| HSK63A-SLN25-110 | HSK-A63 | 65 | 32 | 110 | 54 | M18×2 | 24 | 25 | B |
| HSK63A-SLN25-160 | HSK-A63 | 65 | 40 | 160 | 54 | M18×2 | 24 | 25 | B |
| HSK63A-SLN25-200 | HSK-A63 | 65 | 40 | 200 | 54 | M18×2 | 24 | 25 | B |
| HSK63A-SLN32-110 | HSK-A63 | 72 | 32 | 110 | 58 | M20×2 | 24 | 28 | B |
| HSK63A-SLN32-160 | HSK-A63 | 72 | 32 | 160 | 58 | M20×2 | 24 | 28 | B |
| HSK63A-SLN32-200 | HSK-A63 | 72 | 40 | 200 | 58 | M20×2 | 24 | 28 | B |
| HSK Side Lock Holder | ||||||||||
| 型号 MODEL |
尺寸SIZE (mm) |
|||||||||
| DIN 69893 | D | D1 | L | L1 | L2 | M | P | Q | Fig | |
| HSK100A-SLN16-100 | HSK-A100 | 48 | 16 | 100 | 47 | 52 | M14×2 | 24 | - | A |
| HSK100A-SLN16-120 | HSK-A100 | 48 | 16 | 120 | 47 | 52 | M14×2 | 24 | - | A |
| HSK100A-SLN16-160 | HSK-A100 | 48 | 16 | 160 | 47 | 52 | M14×2 | 24 | - | A |
| HSK100A-SLN16-200 | HSK-A100 | 48 | 16 | 200 | 47 | 52 | M14×2 | 24 | - | A |
| HSK100A-SLN20-100 | HSK-A100 | 52 | 20 | 100 | 49 | 54 | M16×2 | 25 | - | A |
| HSK100A-SLN20-120 | HSK-A100 | 52 | 20 | 120 | 49 | 54 | M16×2 | 25 | - | A |
| HSK100A-SLN20-160 | HSK-A100 | 52 | 20 | 160 | 49 | 54 | M16×2 | 25 | - | A |
| HSK100A-SLN20-200 | HSK-A100 | 52 | 20 | 200 | 49 | 54 | M16×2 | 25 | - | A |
| HSK100A-SLN25-100 | HSK-A100 | 65 | 25 | 100 | 54 | 66 | M18×2 | 24 | 25 | B |
| HSK100A-SLN25-120 | HSK-A100 | 65 | 25 | 120 | 54 | 66 | M18×2 | 24 | 25 | B |
| HSK100A-SLN25-160 | HSK-A100 | 65 | 25 | 160 | 54 | 66 | M18×2 | 24 | 25 | B |
| HSK100A-SLN25-200 | HSK-A100 | 65 | 25 | 200 | 54 | 66 | M18×2 | 24 | 25 | B |
| HSK100A-SLN32-100 | HSK-A100 | 72 | 32 | 100 | 58 | 66 | M20×2 | 24 | 28 | B |
| HSK100A-SLN32-120 | HSK-A100 | 72 | 32 | 120 | 58 | 70 | M20×2 | 24 | 28 | B |
| HSK100A-SLN32-160 | HSK-A100 | 72 | 32 | 160 | 58 | 70 | M20×2 | 24 | 28 | B |
| HSK100A-SLN32-200 | HSK-A100 | 72 | 32 | 200 | 58 | 70 | M20×2 | 24 | 28 | B |
| HSK100A-SLN40-120 | HSK-A100 | 80 | 40 | 120 | 68 | 80 | M20×2 | 30 | 32 | B |
| HSK100A-SLN40-160 | HSK-A100 | 80 | 40 | 160 | 68 | 80 | M20×2 | 30 | 32 | B |
| HSK100A-SLN40-200 | HSK-A100 | 80 | 40 | 200 | 68 | 80 | M20×2 | 30 | 32 | B |
