WF Tapping Chucks with Length Compensation

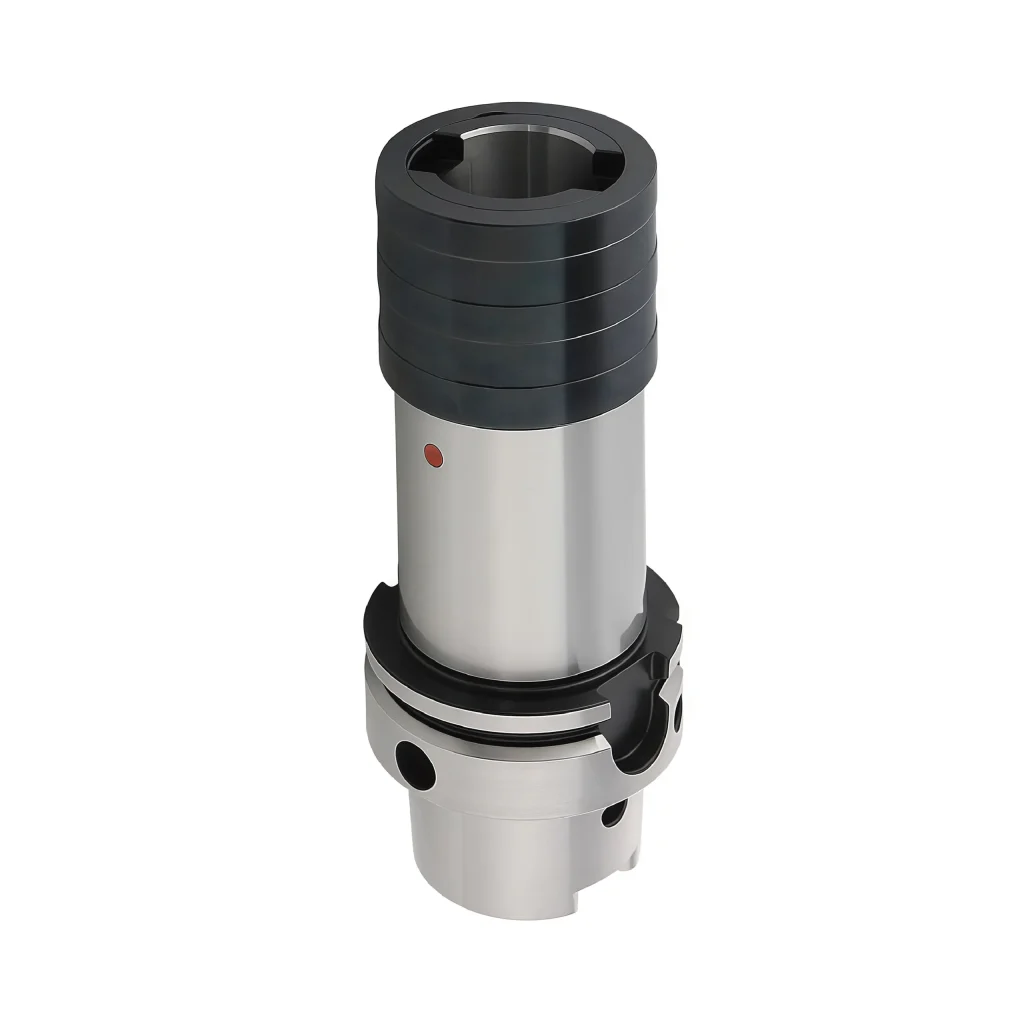

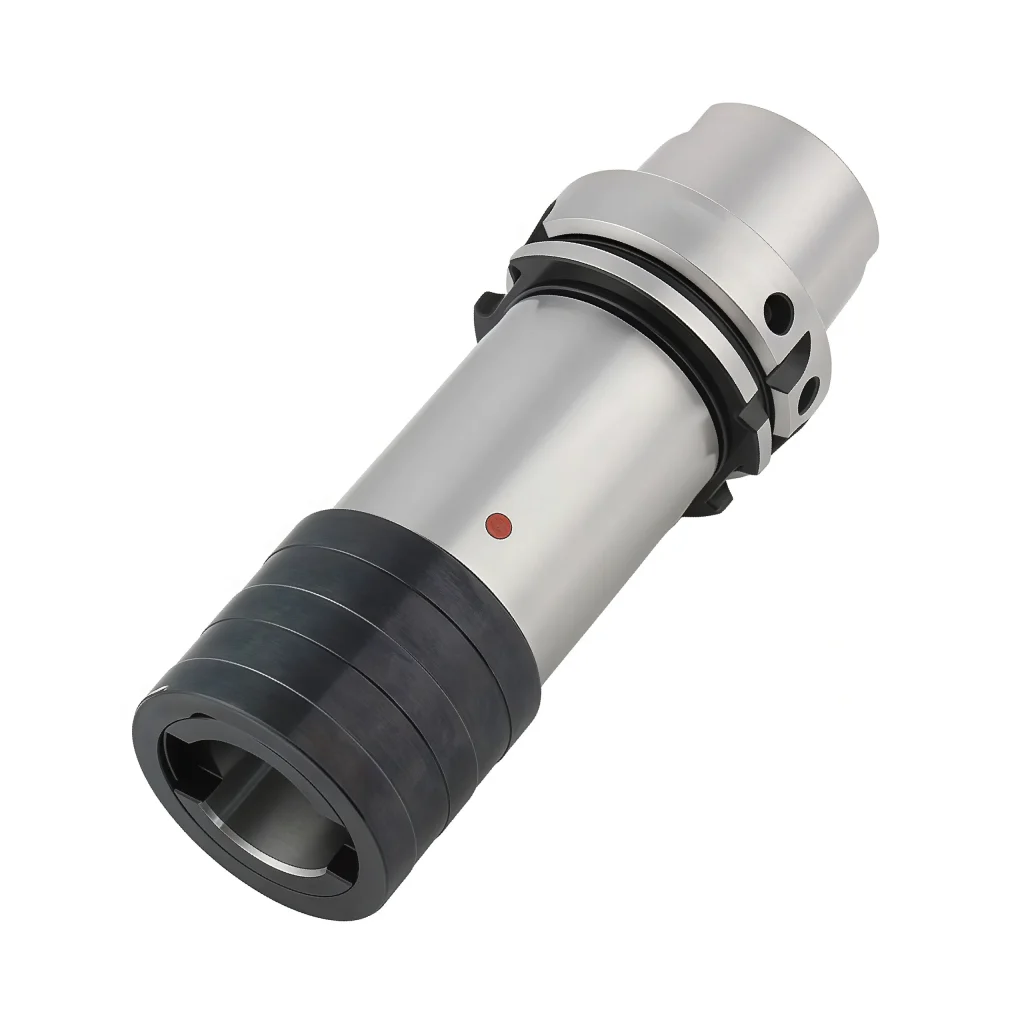

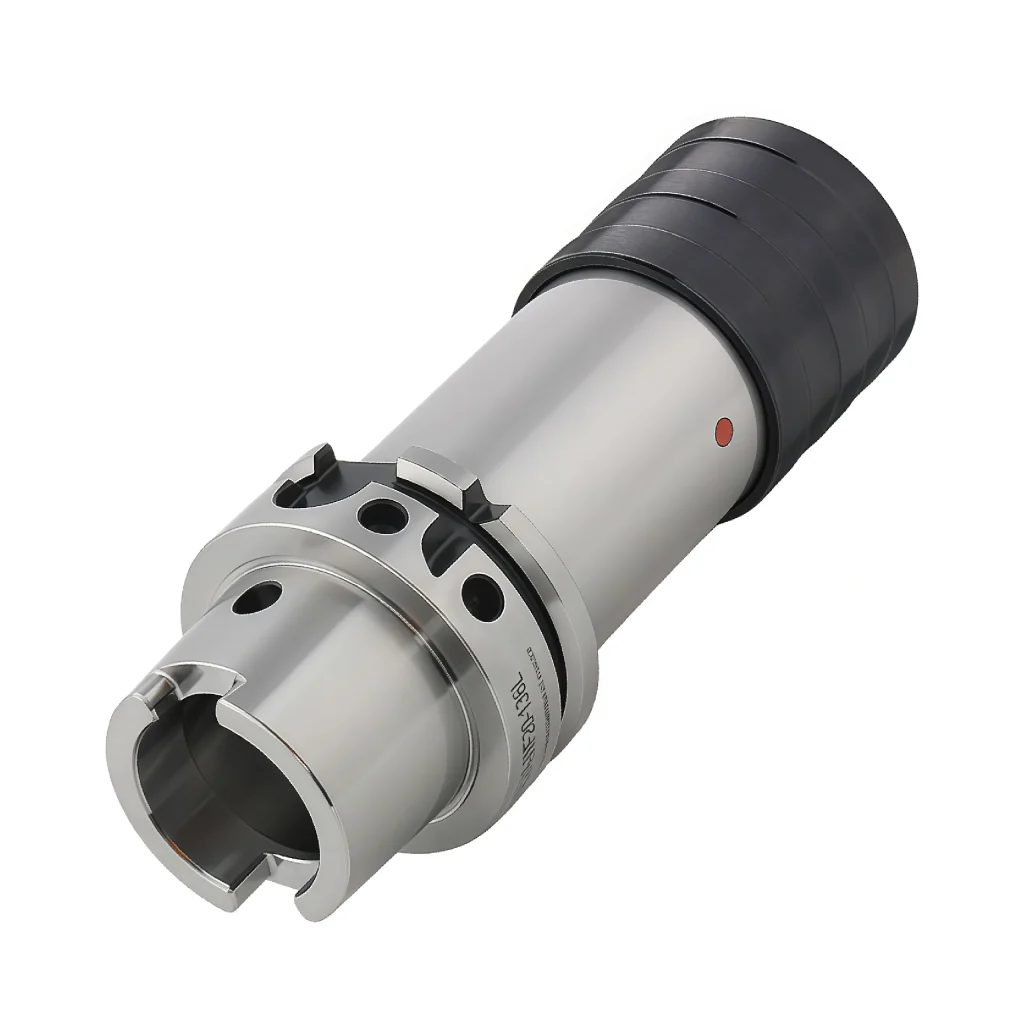

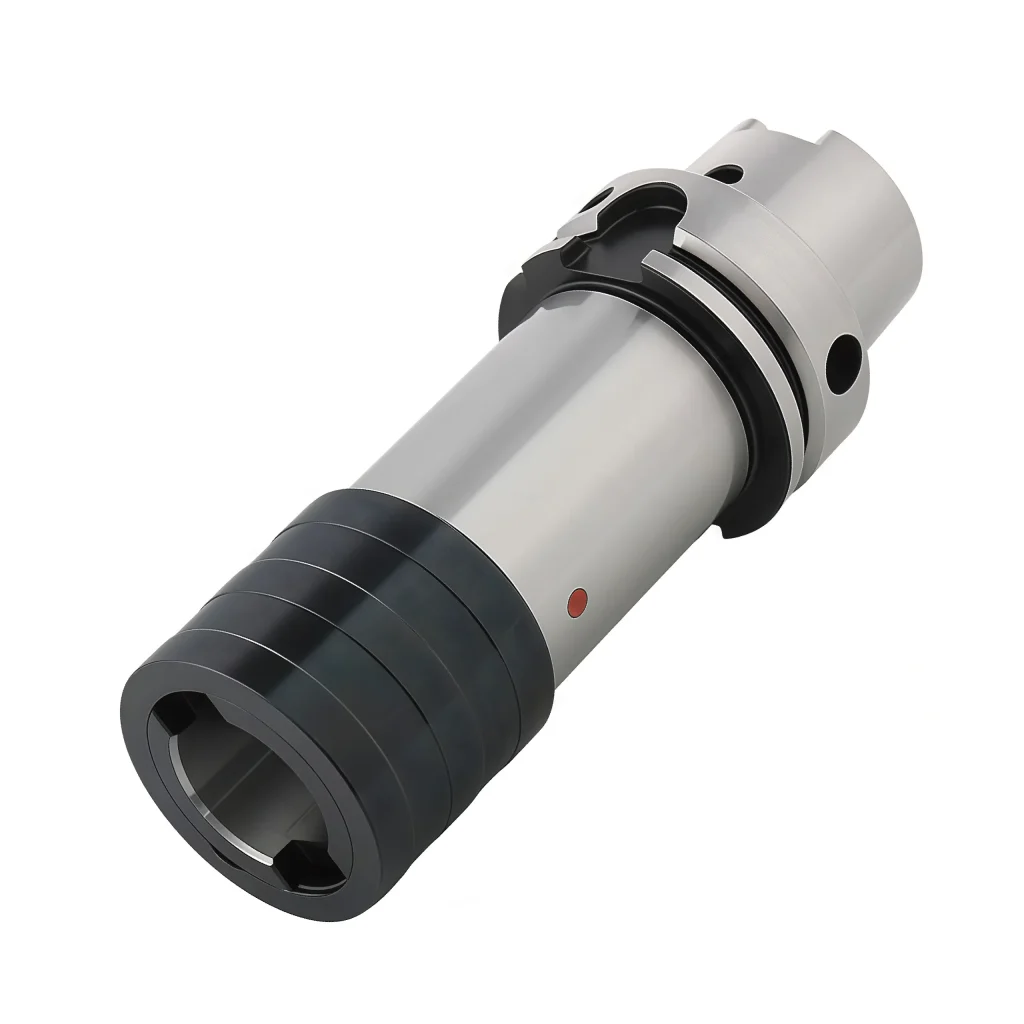

HSK-WF Tapping Chucks with Length Compensation
Product Details & Technical Resources

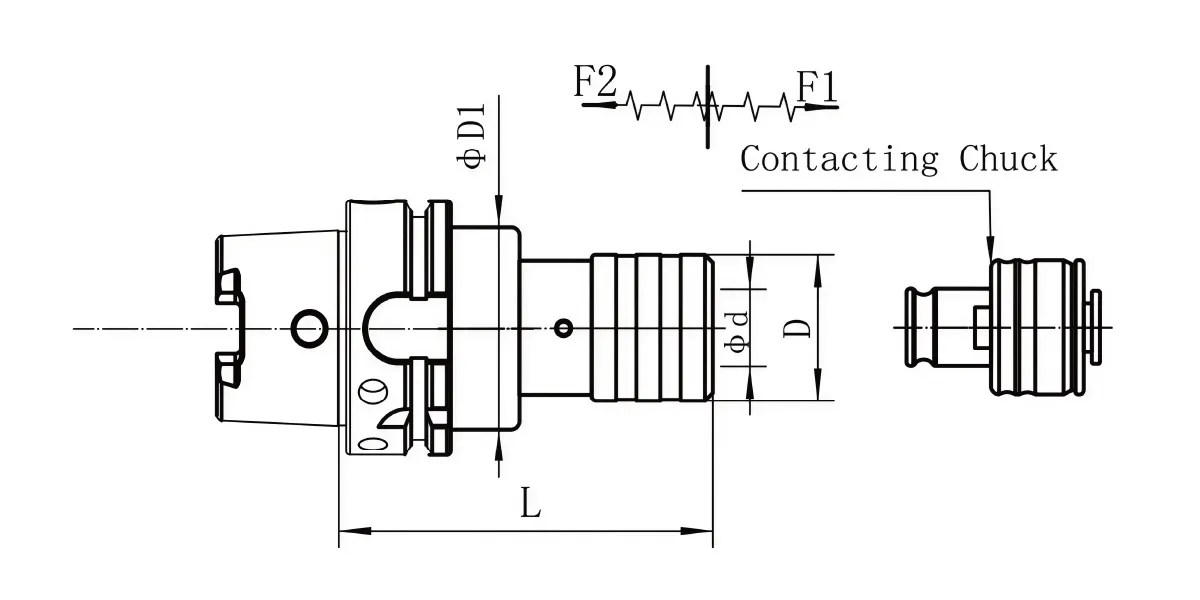

CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.
| HSK-WF Tapping Chucks with Length Compensation | ||||||||
| 订单号 order No. |
Range 攻丝范围 |
∅d | ∅D | ∅D1 | L | Lenght Comp 伸缩长度 | Collet s 攻丝筒夹 | |
| Comp 压缩F2 | Tens | |||||||
| 伸长F1 | ||||||||
| HSK50A-WF12 | M3-M12 | 19 | 36 | 40 | 94 | 8 | 5 | TC312 |
| HSK50A-WF20 | M8-M20 | 31 | 53 | 135 | 14 | 10 | TC820 | |
| HSK63A-WF12 | M3-M12 | 19 | 36 | 50 | 94 | 8 | 5 | TC312 |
| HSK63A-WF20 | M8-M20 | 31 | 53 | 135 | 14 | 10 | TC820 | |
| HSK63A-WF33 | M14-M33 | 48 | 78 | 205 | 20 | 14 | TC1433 | |
| HSK100A-WF12 | M3-M12 | 19 | 36 | 85 | 110 | 8 | 5 | TC312 |
| HSK100A-WF20 | M8-M20 | 31 | 53 | 145 | 14 | 10 | TC820 | |
| HSK100A-WF33 | M14-M33 | 48 | 78 | 210 | 20 | 1 | TC1433 | |
