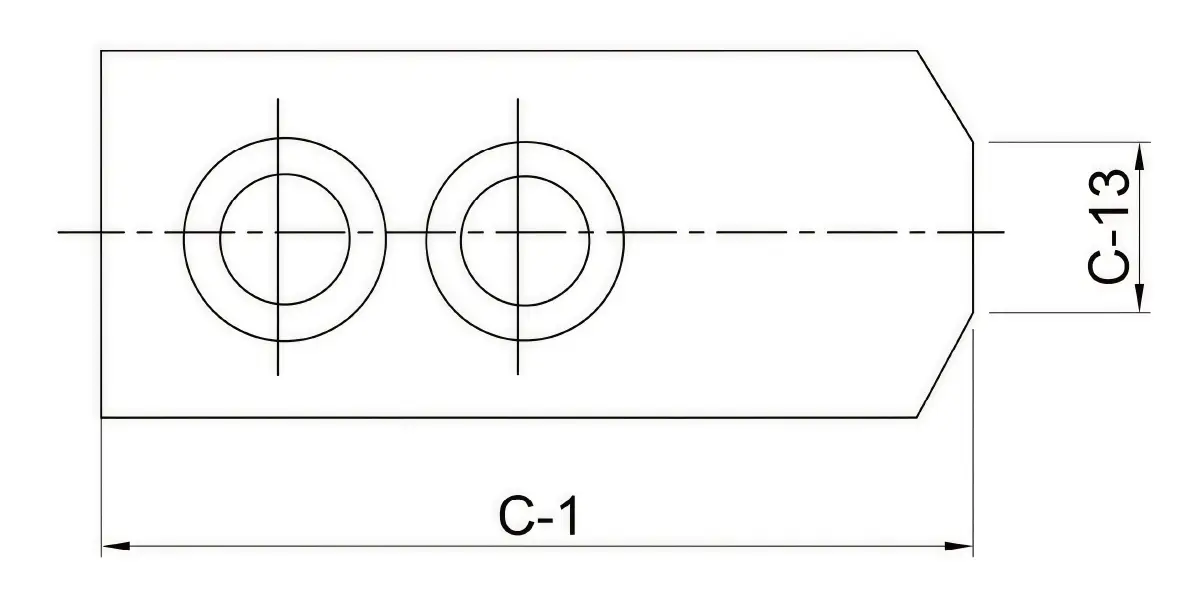

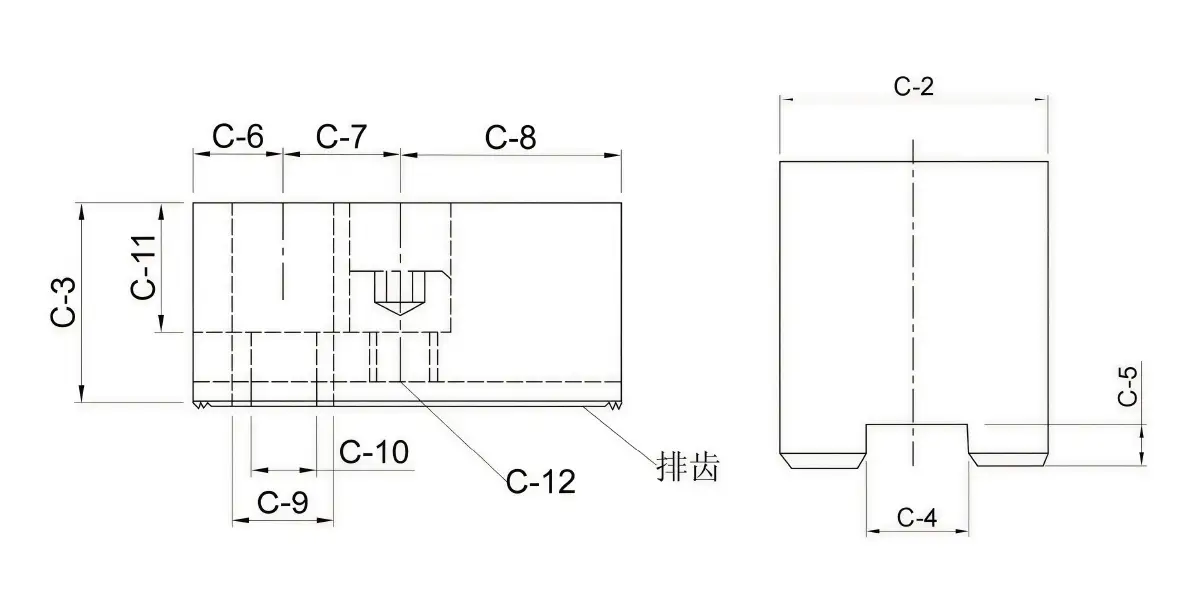

CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.

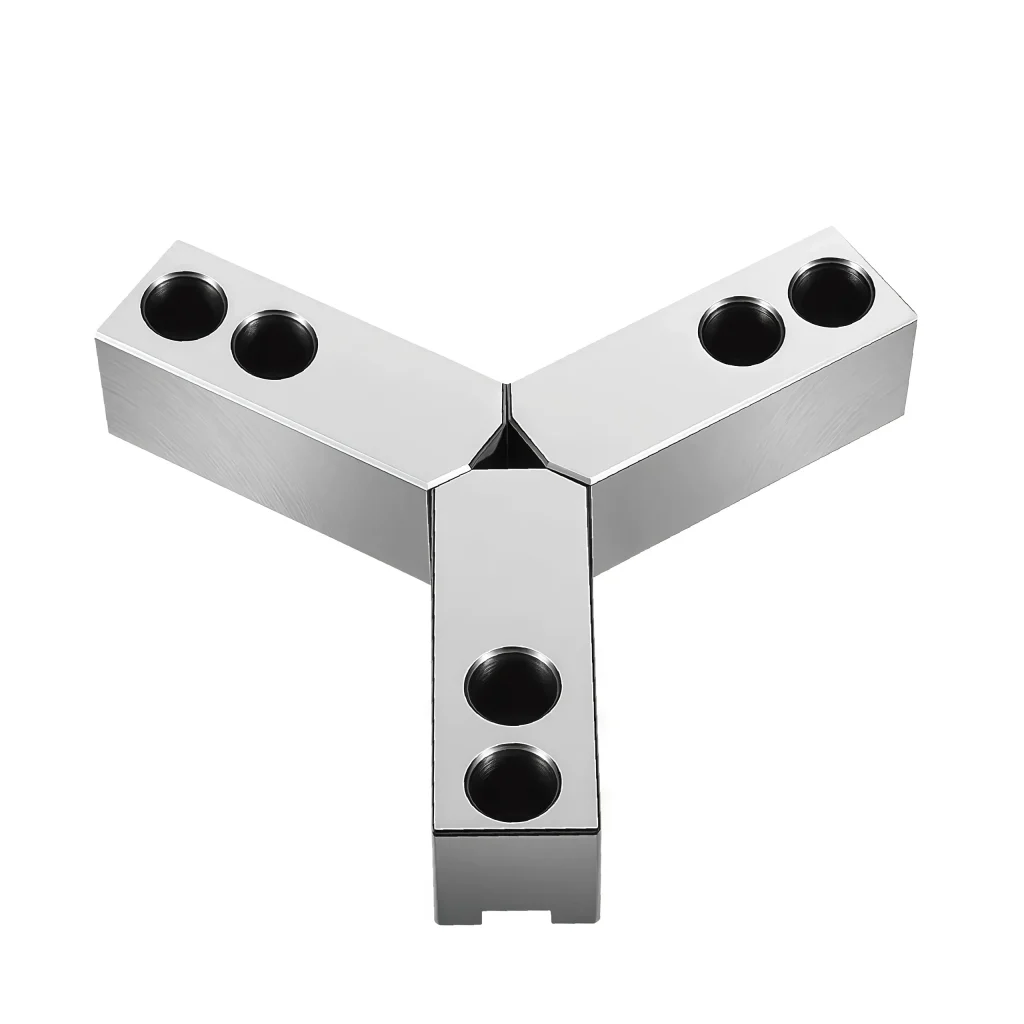

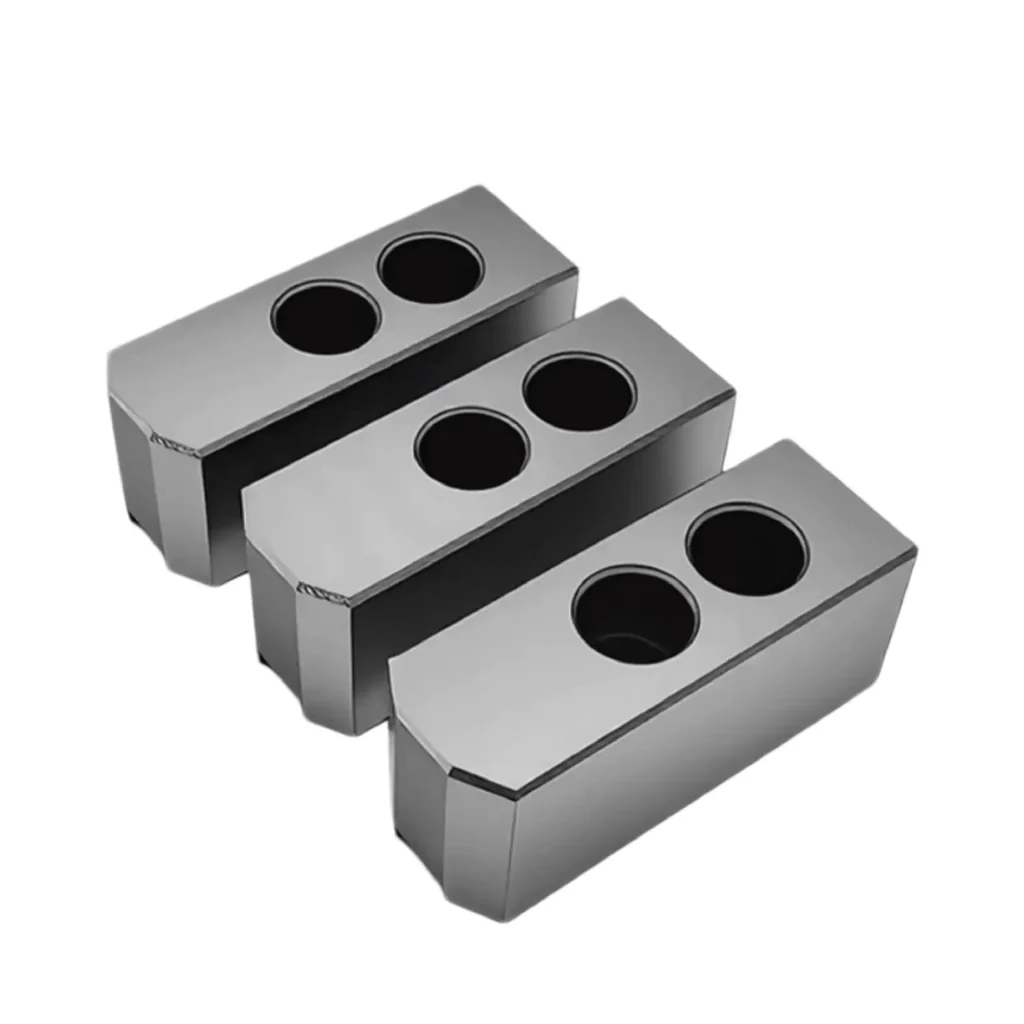

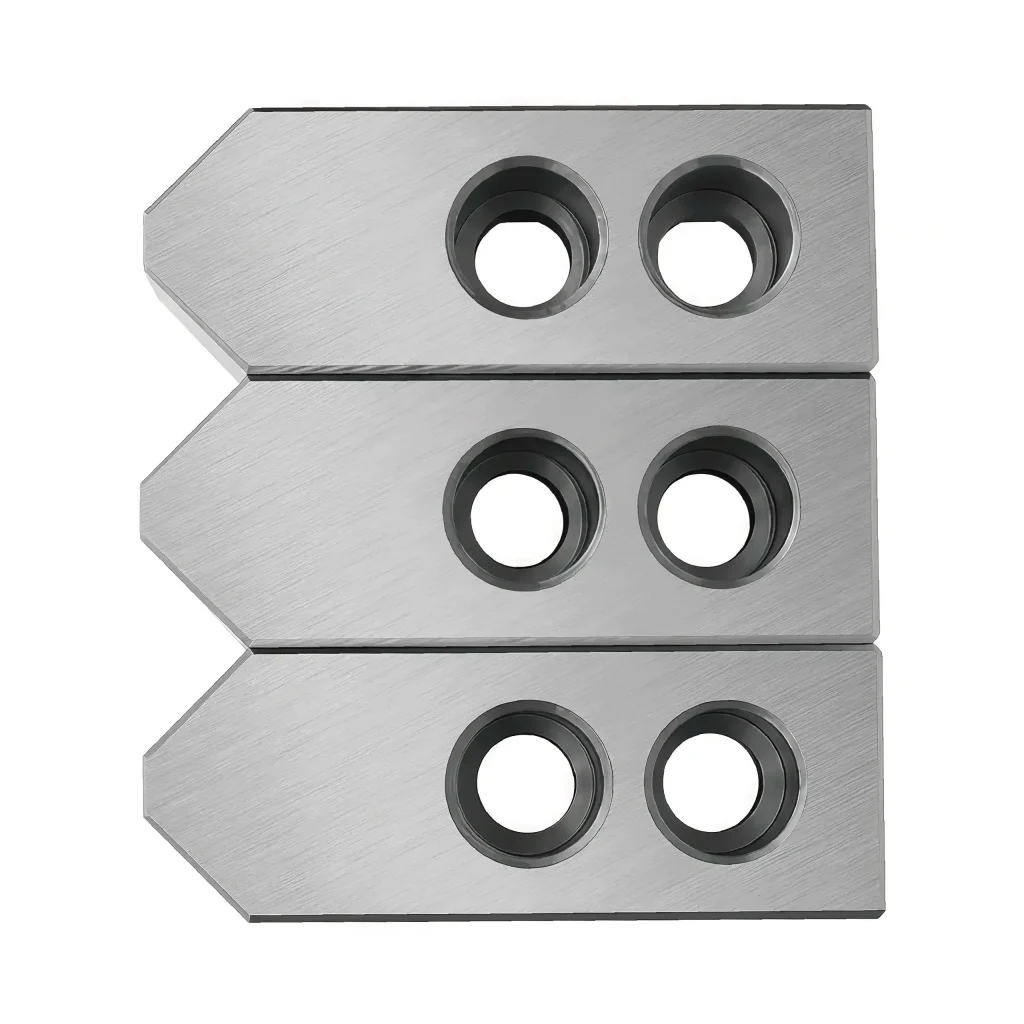

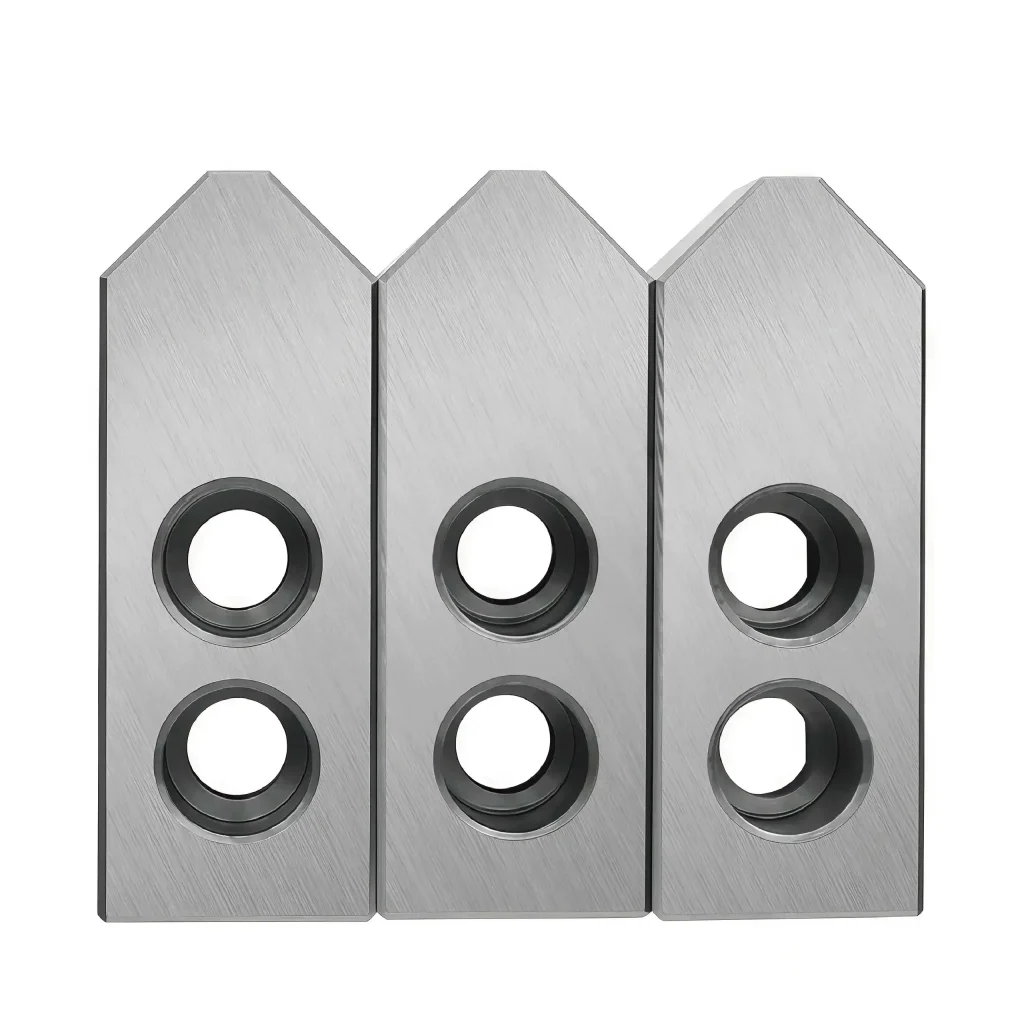

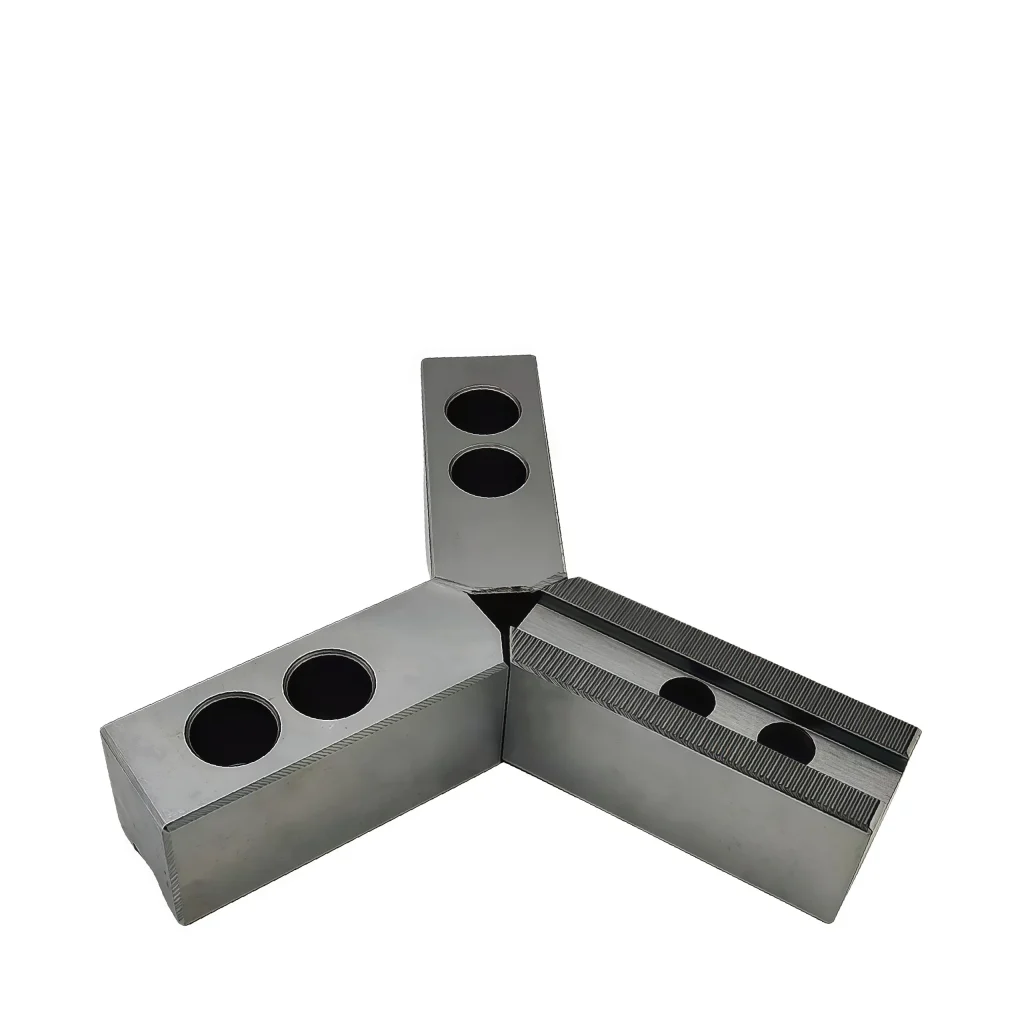

| Hydraulic Soft Jaws | |||||||||||||||
| 订 单 号 Order No. |
C-1 (mm) |
C-2 (mm) |
C-3 ( mm) |
C-4 ( mm) |
C-5 (mm) |
C-6 (mm) |
C-7 (mm) |
C-8 (mm) |
C-9 (mm) |
C-10 (mm) |
C-11 ( mm) |
C-12 (mm) |
C-13 ( mm) |
锯齿状节距 (mm) |
三爪重量 (kg) |
| JSRO4 | 49.5 | 23 | 23 | 10 | 5 | 9 | 14 | 26.5 | 13.5 | 9 | 14 | M8 | 3 | 1.5×60° | 0.45 |
| JSR05 | 54 | 25 | 30 | 10 | 5 | 9 | 14 | 31 | 13.5 | 9 | 21 | M8 | 5 | 1.5×60° | 0.70 |
| JSRO6 | 73 | 31 | 36 | 12 | 5 | 15 | 20 | 31 | 17 | 11 | 23 | M10 | 14 | 1.5×60° | 1.50 |
| JSRO8 | 95 | 35 | 37 | 14 | 5 | 25 | 25 | 46 | 19 | 13 | 22 | M12 | 16 | 1.5×60° | 2.40 |
| JSR10 | 110 | 40 | 42 | 16 | 5 | 30 | 30 | 50 | 19 | 13 | 27 | M12 | 18 | 1.5×60° | 3.70 |
| JSR12 | 130 | 50 | 50 | 21 | 5 | 39 | 30 | 61 | 25 | 17 | 30 | M14 | 23 | 1.5×60° | 6.20 |
| JSR12-1 | 130 | 50 | 50 | 18 | 5 | 39 | 30 | 61 | 23 | 15 | 30 | M16 | 23 | 1.5×60° | 6.25 |
| JSR15 | 165 | 62 | 62 | 22 | 8 | 37 | 43 | 85 | 32 | 21 | 38 | M20 | 一 | 1.5×60° | 12.80 |
| JSR15-1 | 165 | 62 | 62 | 25.5 | 5 | 37 | 43 | 85 | 32 | 21 | 38 | M20 | 一 | 1.5×60° | 12.80 |
| JSR24-1 | 180 | 65 | 70 | 25 | 9 | 40 | 60 | 80 | 32 | 21 | 45 | M20 | 一 | 3.0×60° | 16.00 |
