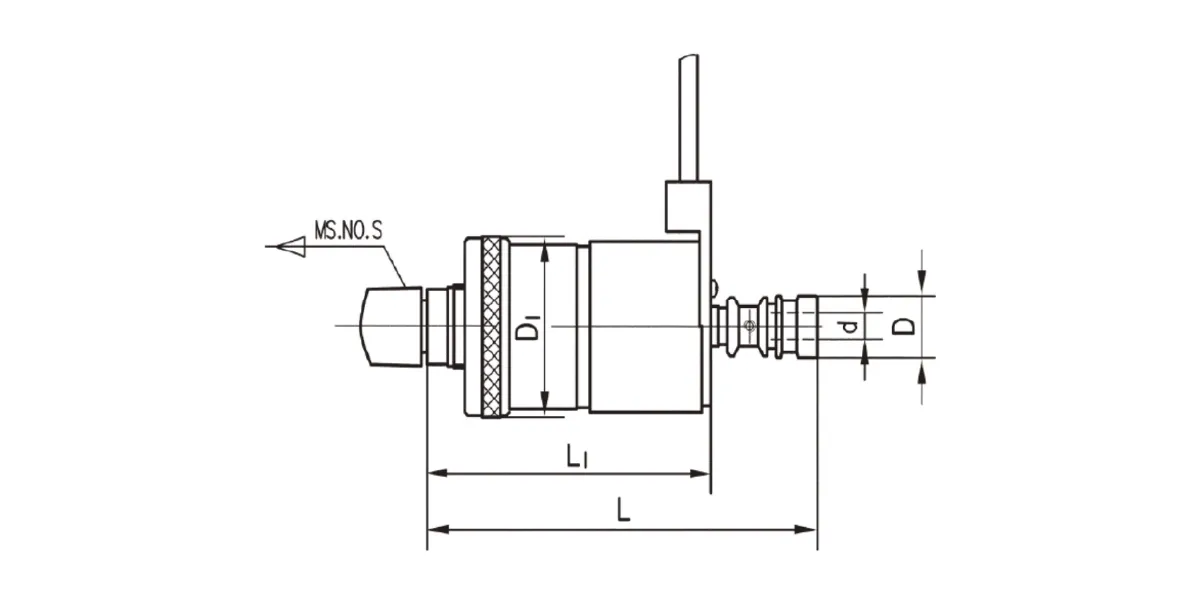

CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.

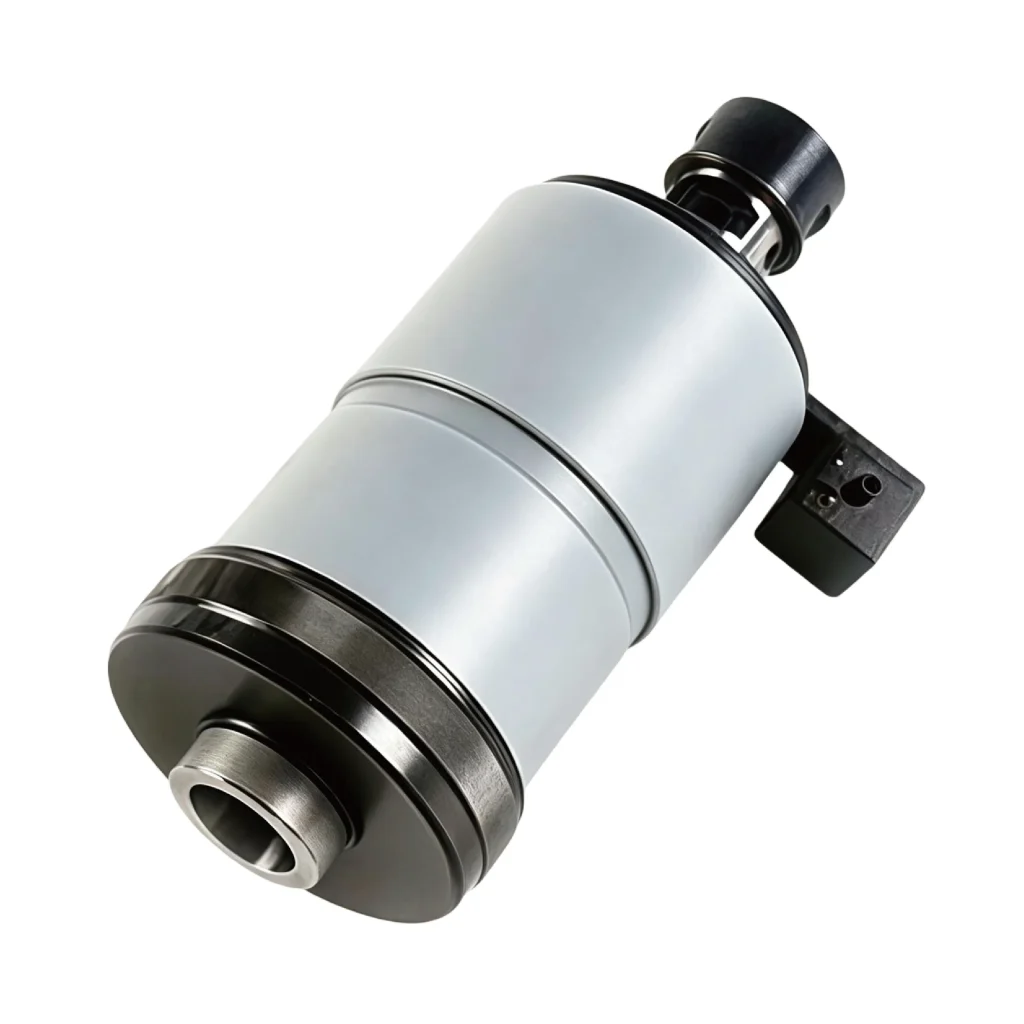

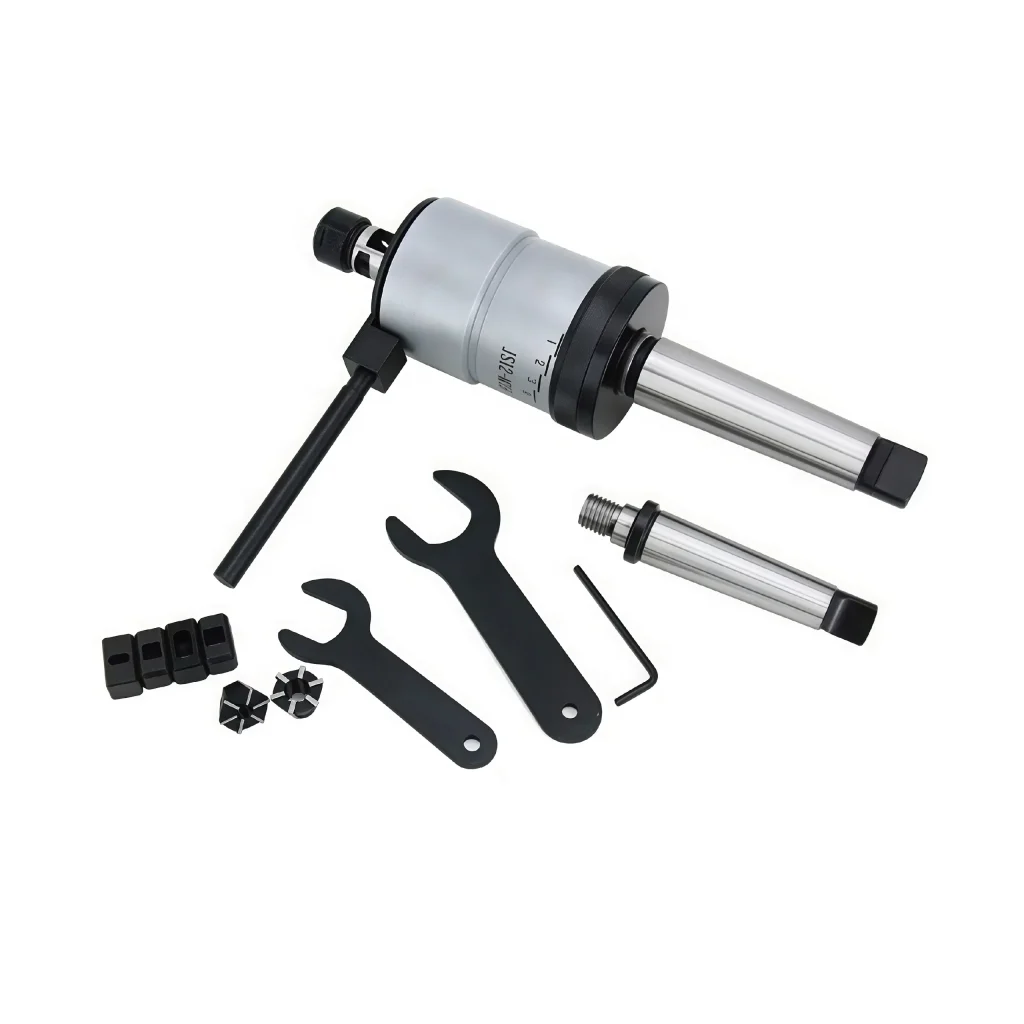

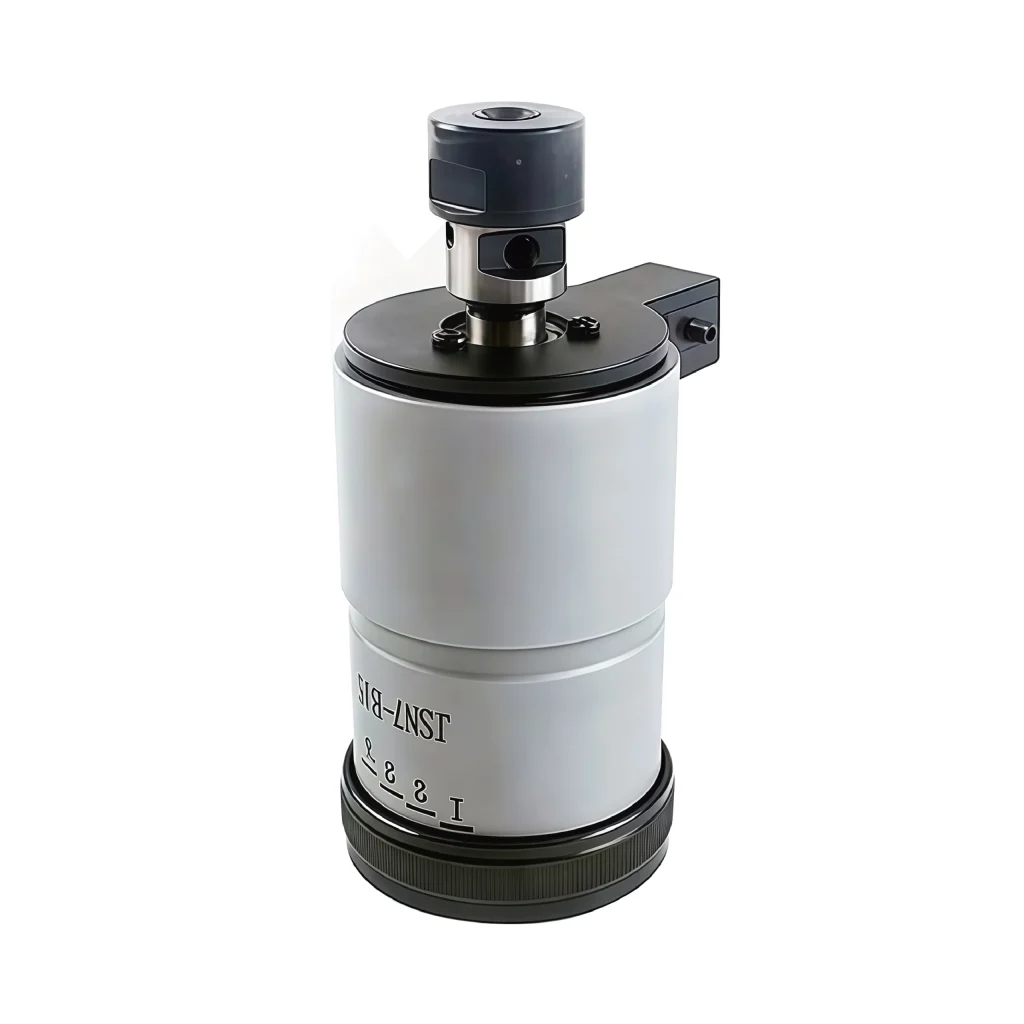

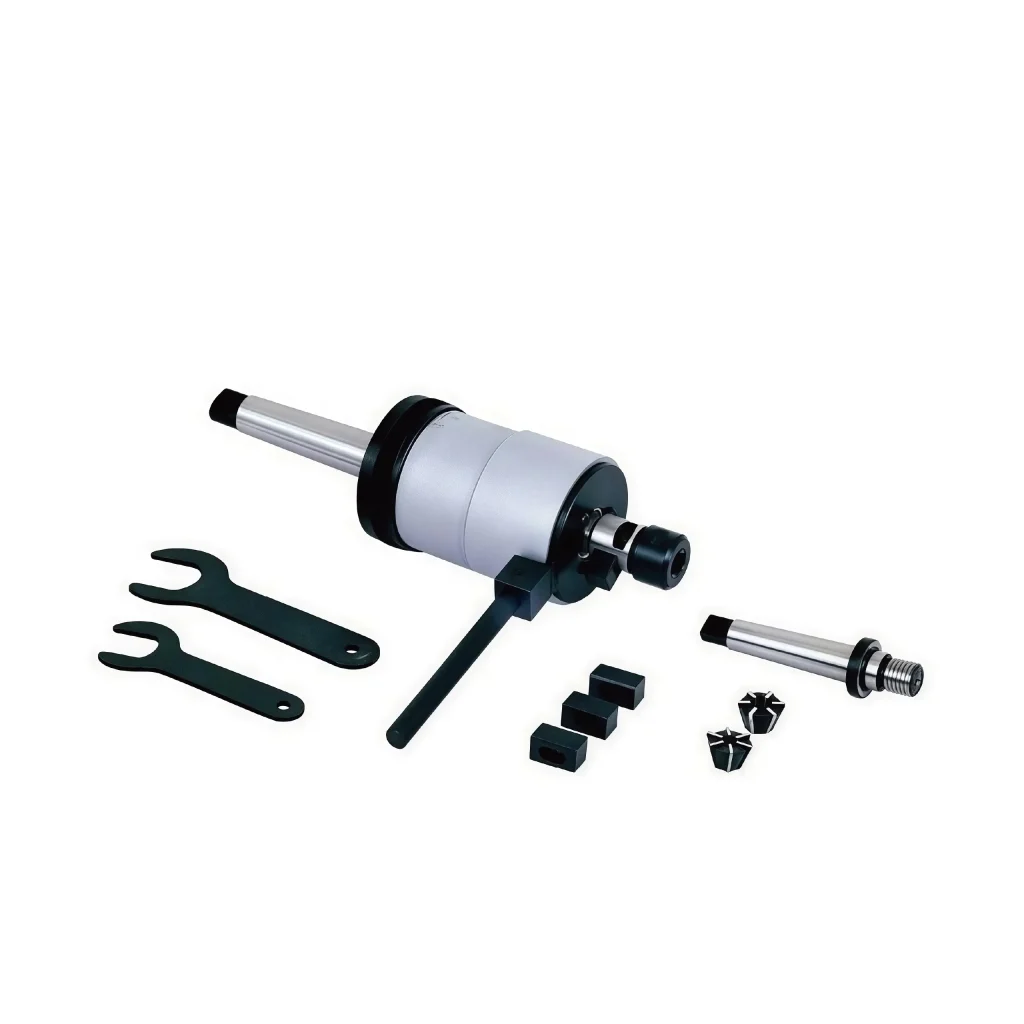

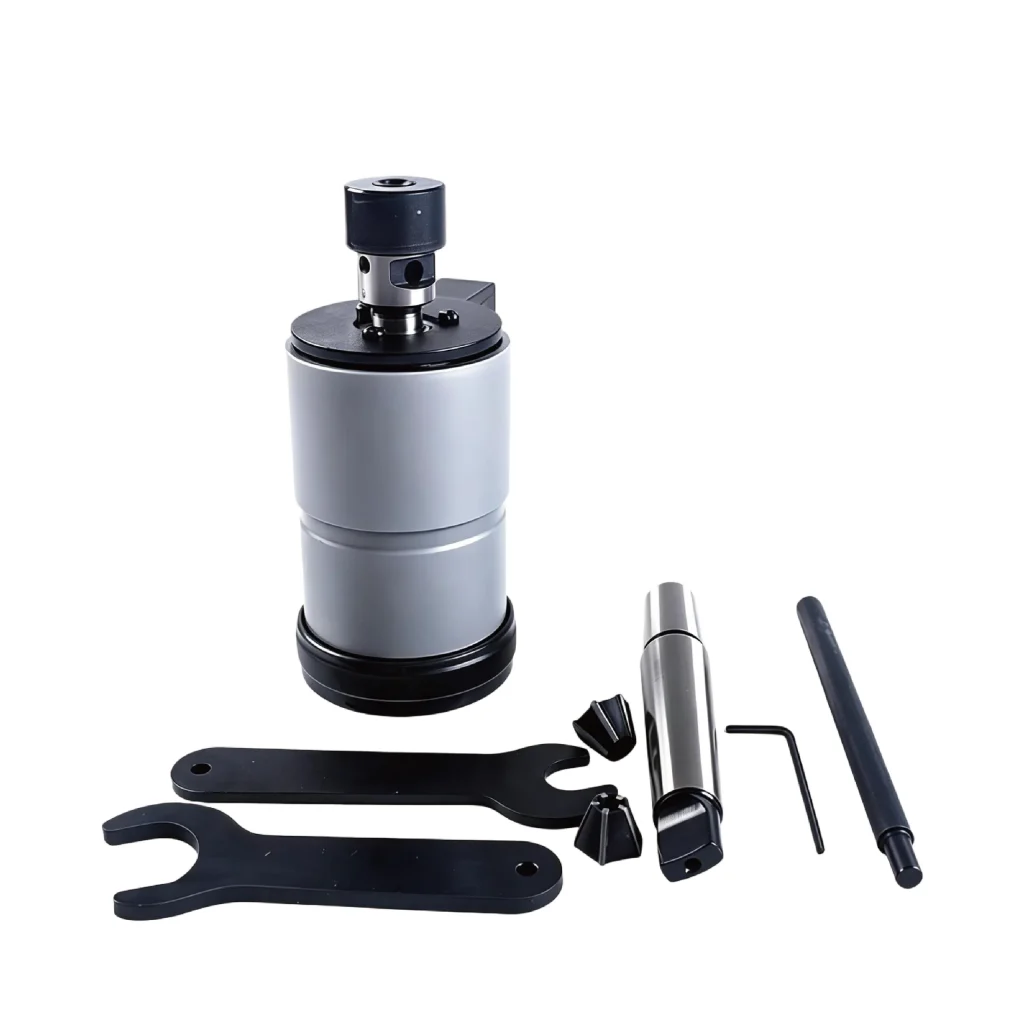

| J46 Reversible Chuck | |||||||
| 订单号 order No. |
Range 攻丝范围 |
d | D | D1 | L | L1 | 莫氏柄 MS.NO.S |
| J467 | M2-M7 | 2.5-6.5 | 23 | 55 | 135 | 95 | MS2-JT33 MS3-JT33 |
| J4612 | M5-M12 | 3.5-10 | 28 | 75 | 164 | 114.5 | MS3-M16 MS4-M16 |
| J4620 | M8-M20 | 6.0-14 | 38 | 90.5 | 205 | 135 | MS3-M20 MS4-M20 |
