JIS B 6339 BBT40 Hydraulic Holder

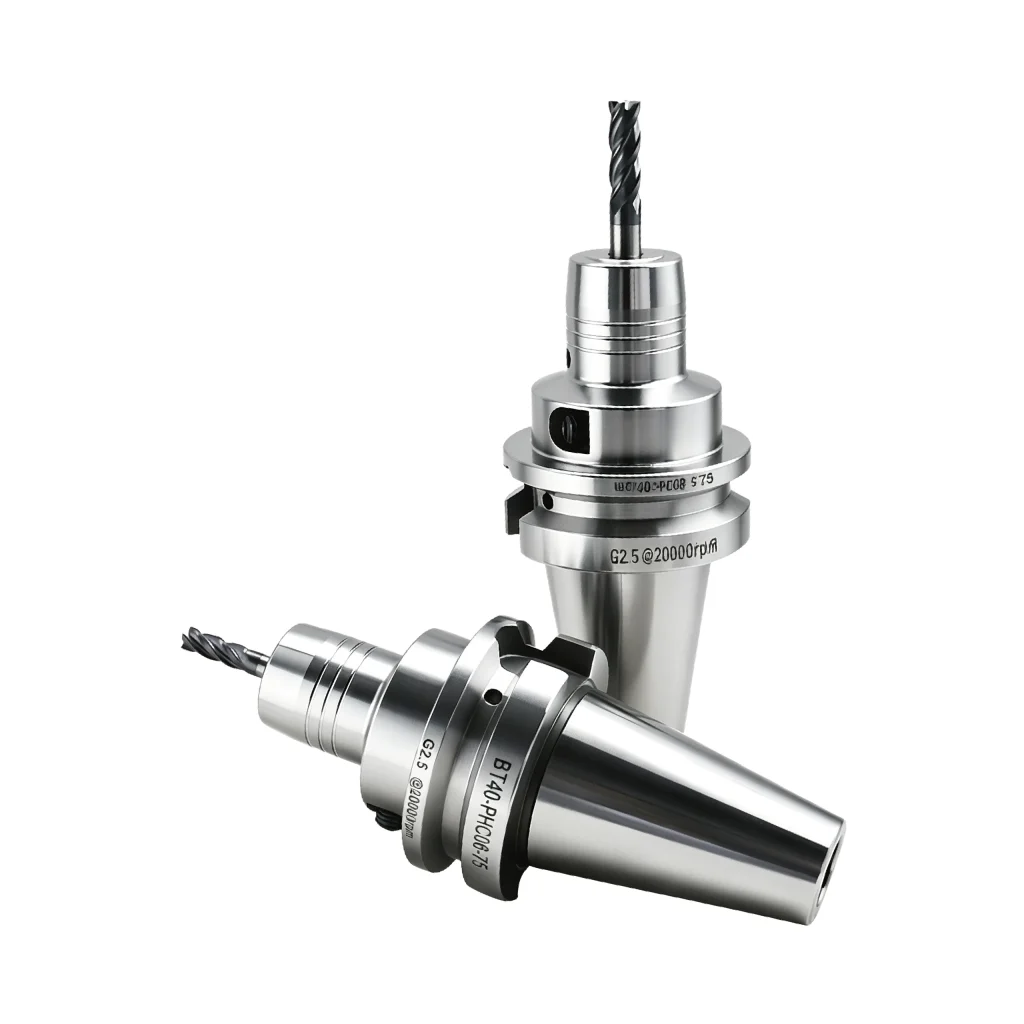

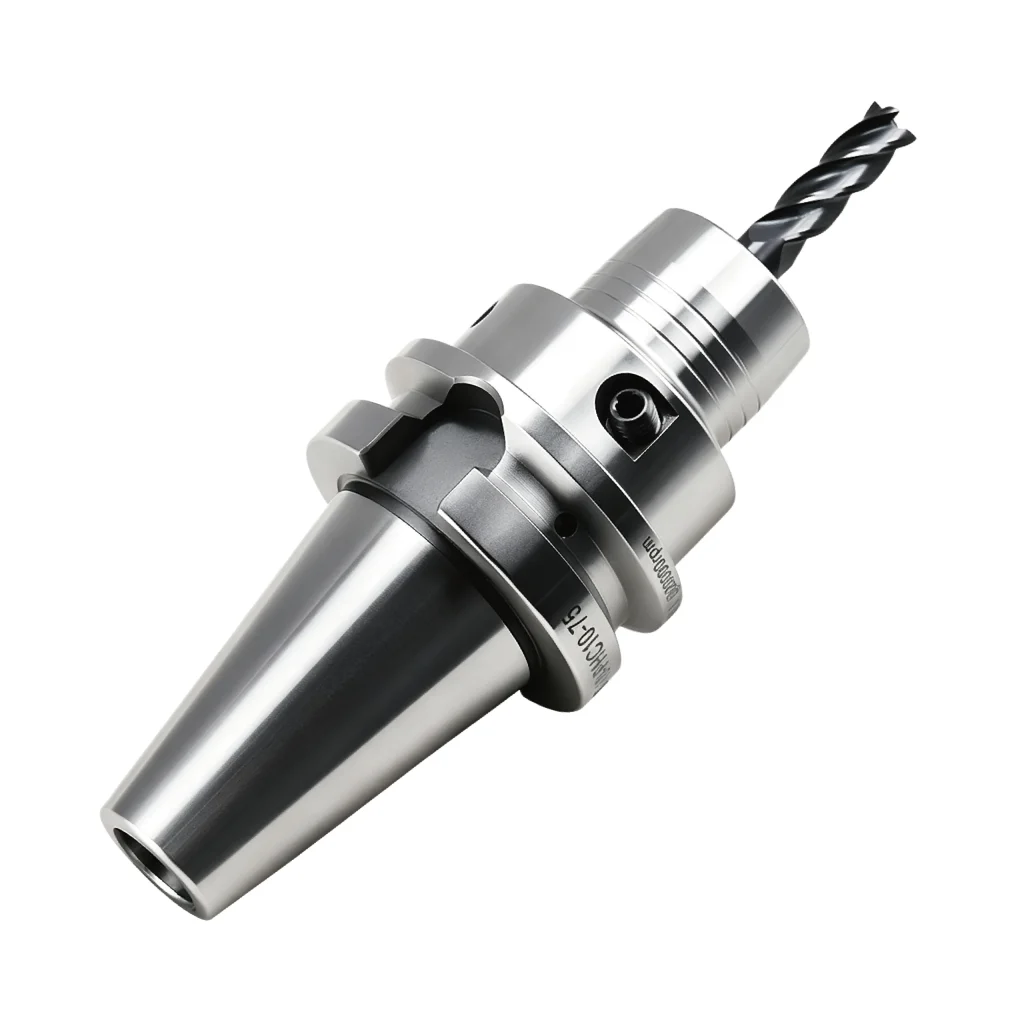

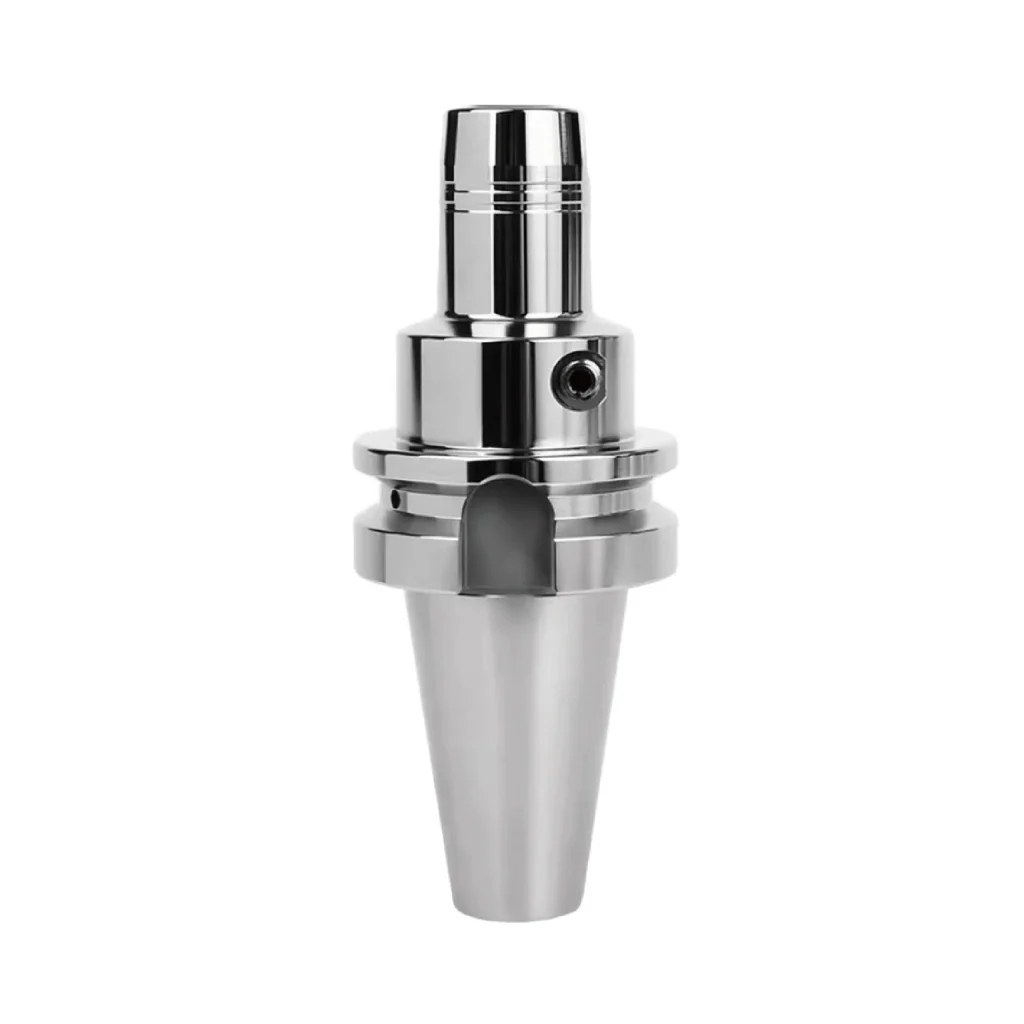

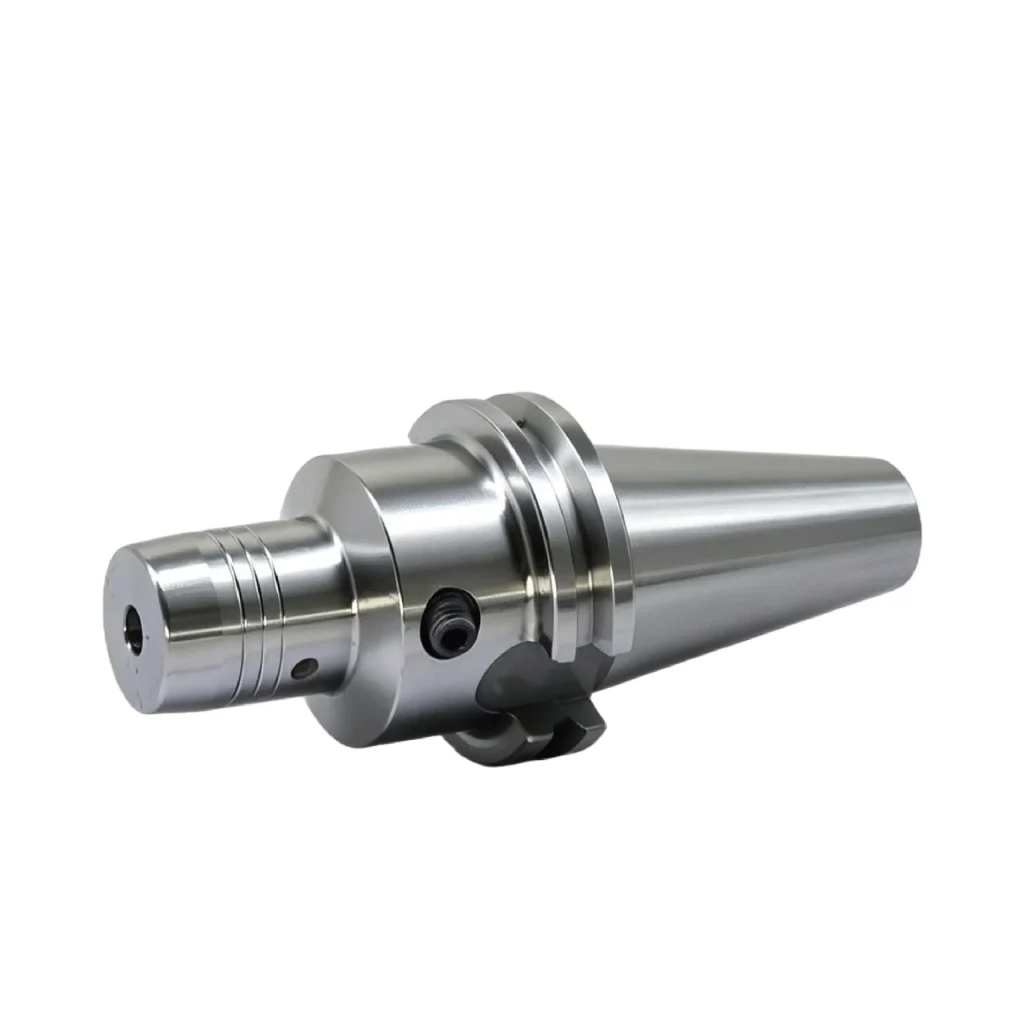

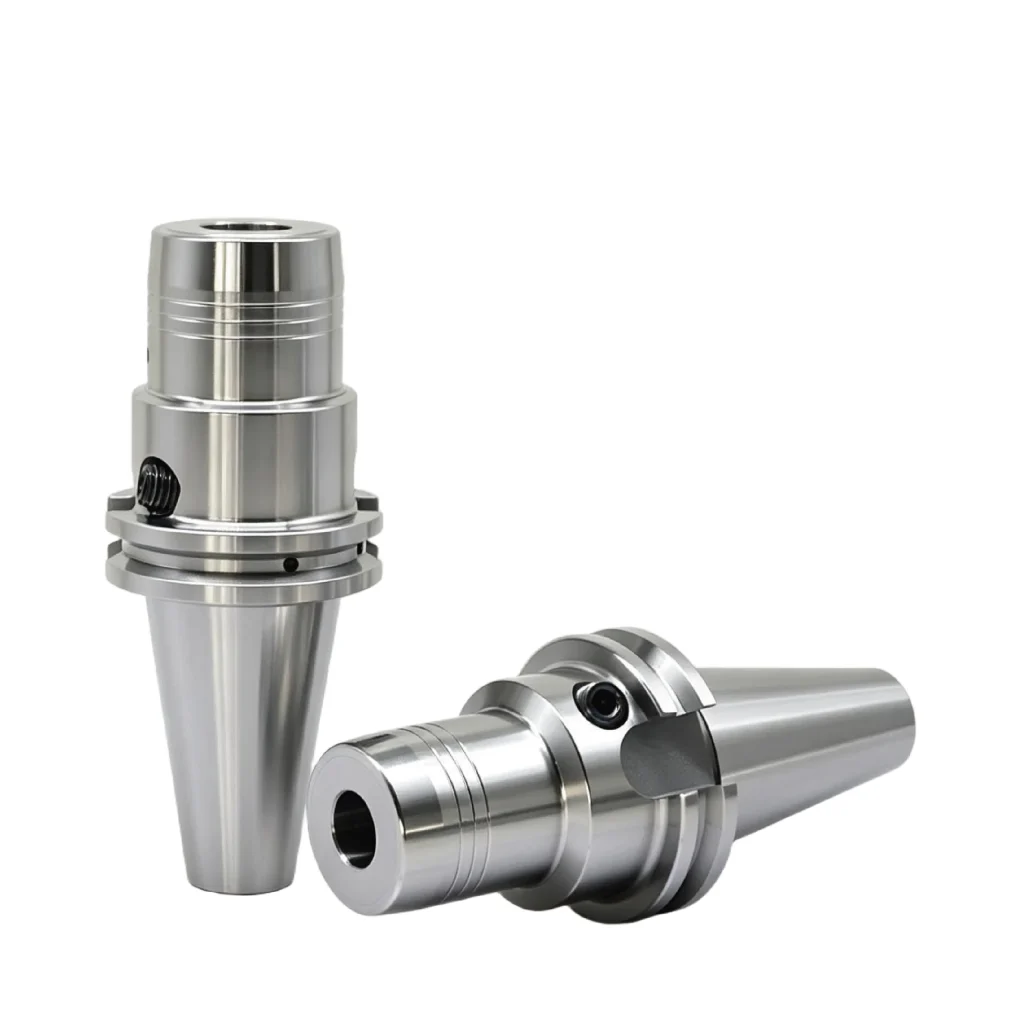

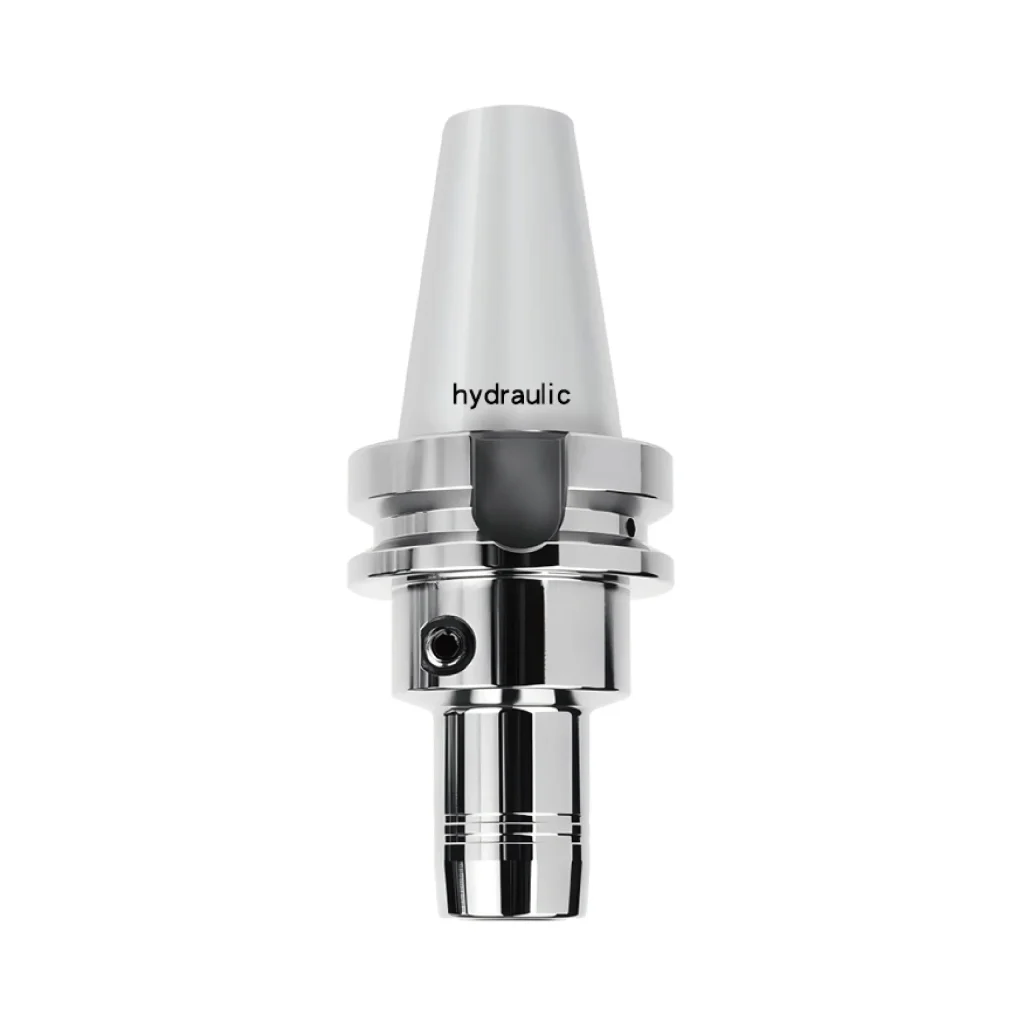

The BBT40 hydraulic tool holder features dual-contact positioning for superior rigidity and stability. With runout accuracy within 3 μm and repeatability up to 1.5 μm, it ensures excellent machining accuracy and surface finish, making it ideal for automotive, aerospace, medical, and mold manufacturing.
Product Details & Technical Resources
CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.
| BBT40 Hydraulic Holder | ||||||||
| 订单号 order No. |
D1 | D2 | D3 | L | L1 | L2min | L2max | M |
| BBT30-HDC03-60L | 3 | 21 | 45 | 60 | 29 | 23 | 84 | - |
| BBT30-HDC04-60L | 4 | 21 | 45 | 60 | 29 | 23 | 84 | - |
| BBT30-HDC06-75L | 6 | 30 | 46 | 75 | 24 | 28 | 50 | M5 |
| BBT30-HDC08-75L | 8 | 32 | 46 | 75 | 24 | 28 | 50 | M6 |
| BBT30-HDC10-75L | 10 | 34 | 46 | 75 | 24 | 34 | 50 | M8 |
| BBT30-HDC12-75L | 12 | 36 | 46 | 75 | 25 | 36 | 50 | M8 |
| BBT30-HDC14-90L | 14 | 38 | 46 | 90 | 40 | 41 | 52 | M8 |
| BBT30-HDC16-90L | 16 | 40 | 46 | 90 | 33 | 41 | 52 | M8 |
| BBT30-HDC18-90L | 18 | 42 | 46 | 90 | 41 | 41 | 52 | M8 |
| BBT30-HDC20-90L | 20 | 46 | 46 | 90 | - | 41 | 52 | M8 |
| BBT40-HDCO4-90L | 4 | 28 | 46 | 90 | 38 | 24 | 42 | - |
| BBT40-HDC06-90L | 6 | 30 | 46 | 90 | 38 | 28 | 44 | M5 |
| BBT40-HDC08-90L | 8 | 32 | 48 | 90 | 38 | 28 | 44 | M6 |
| BBT40-HDC10-90L | 10 | 36 | 52 | 90 | 40 | 37 | 51 | M8 |
| BBT40-HDC12-90L | 12 | 38 | 54 | 90 | 40 | 37 | 51 | M8 |
| BBT40-HDC14-90L | 14 | 40 | 56 | 90 | 40 | 41 | 52 | M12 |
| BBT40-HDC16-90L | 16 | 42 | 58 | 90 | 40 | 41 | 52 | M12 |
| BBT40-HDC18-90L | 18 | 43 | 59 | 90 | 40 | 41 | 52 | M12 |
| BBT40-HDC20-90L | 20 | 46 | 60 | 90 | 40 | 41 | 53 | M12 |
| BBT40-HDC25-105L. | 25 | 52 | 62 | 105 | 55 | 49 | 65 | M12 |
| BBT40-HDC32-105L | 32 | 63 | - | 105 | - | 52 | 65 | M12 |
| BBT40-HDC06-140L | 6 | 22 | 26.5 | 140 | 90 | 25 | 37 | M5 |
| BBT40-HDC08-140L | 8 | 24 | 28.7 | 140 | 90 | 25 | 37 | M6 |
| BBT40-HDC10-140L | 10 | 25 | 29.7 | 140 | 90 | 31 | 42.5 | M8 |
| BBT40-HDC12-140L | 12 | 28 | 32.7 | 140 | 90.5 | 34 | 47.5 | M8 |
| BBT40-HDC20-140L | 20 | 40 | 44.7 | 140 | 91 | 39 | 53 | M12 |
