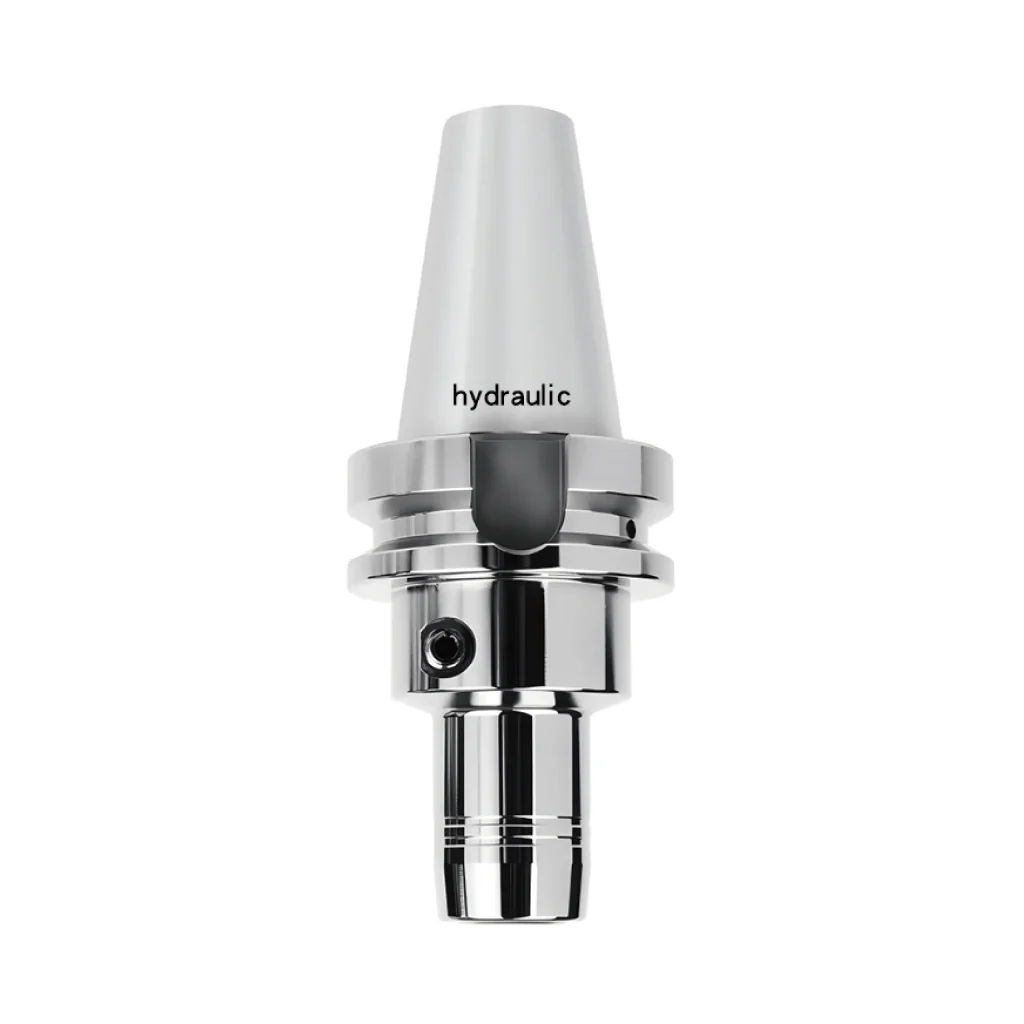

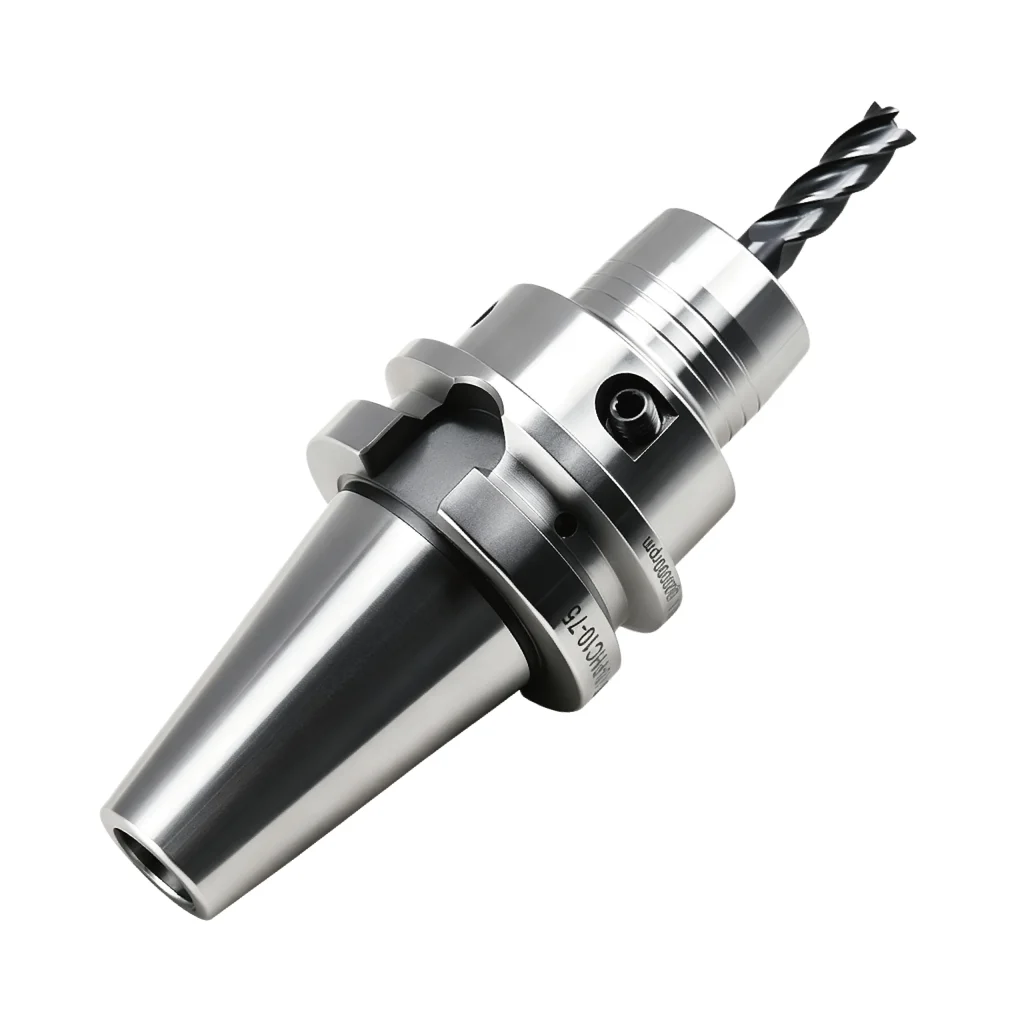

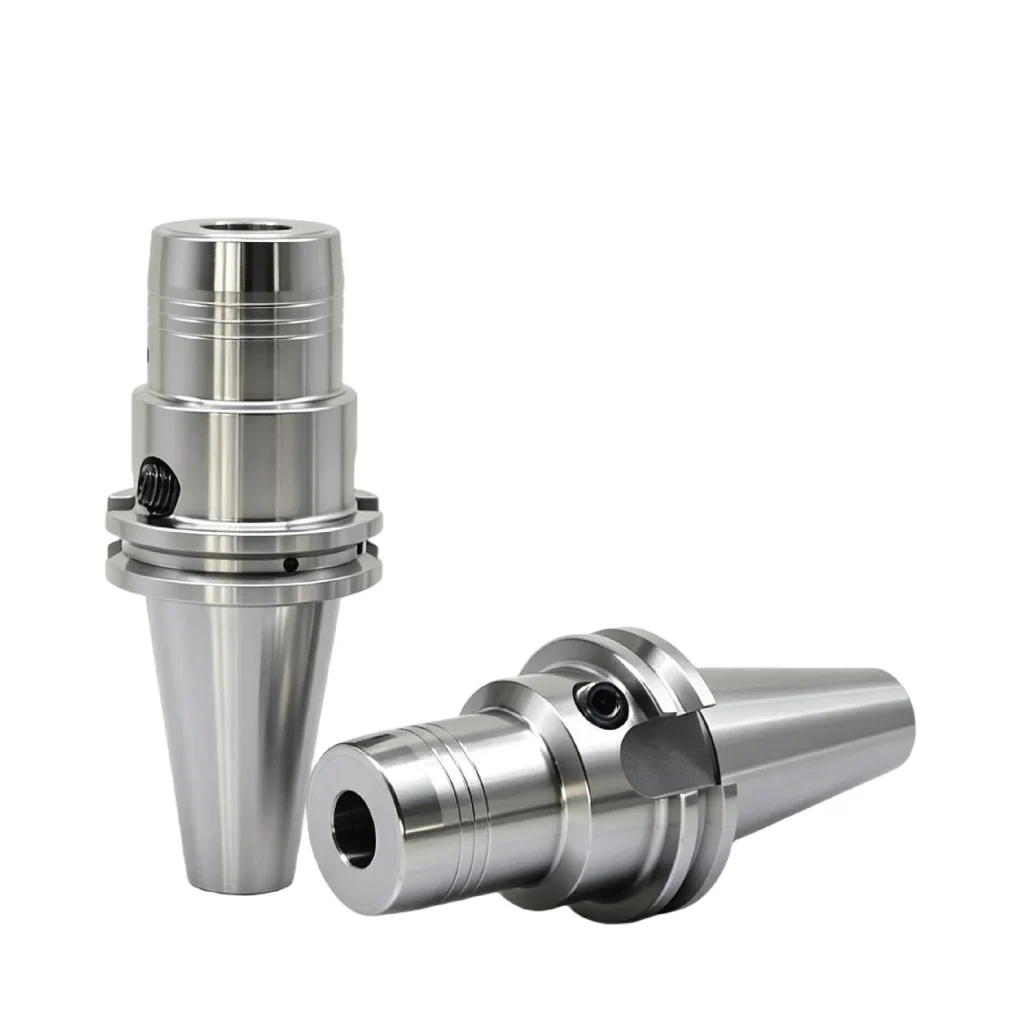

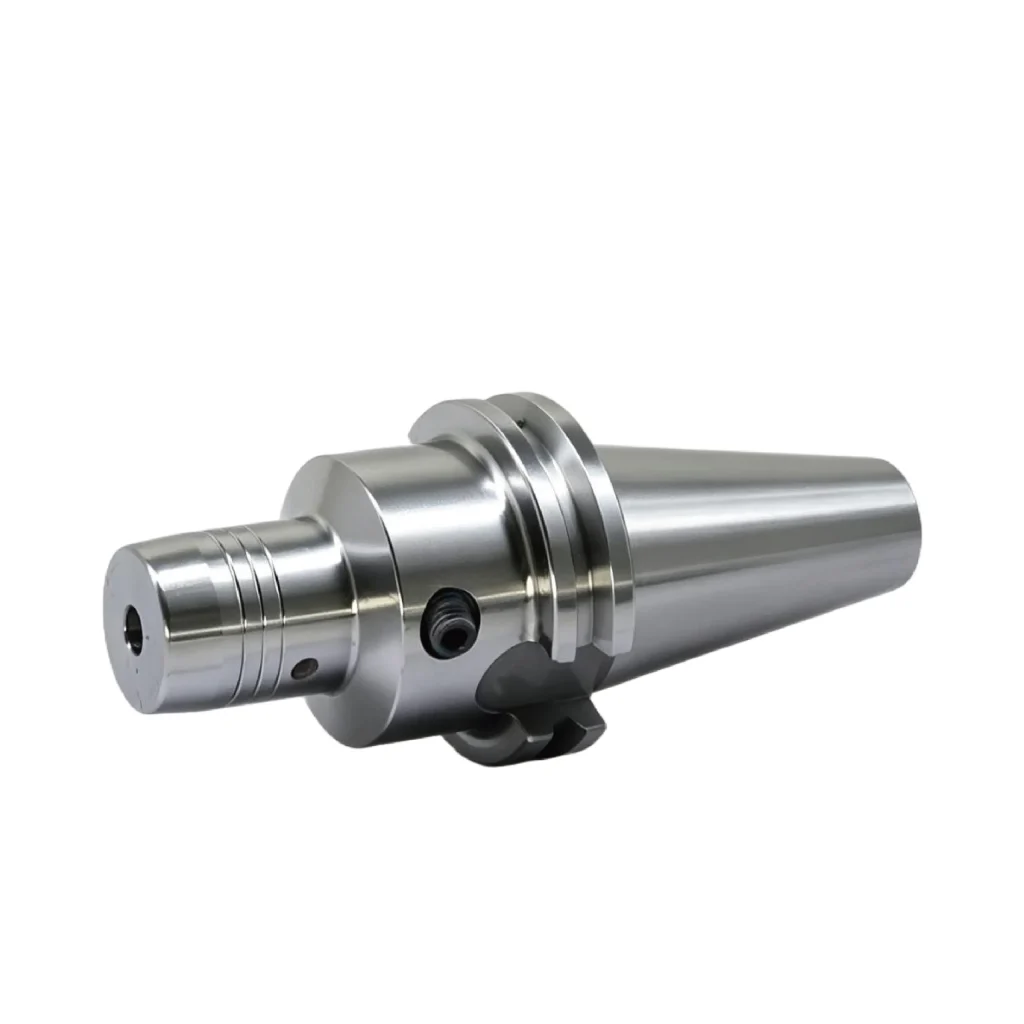

JIS B 6339 BBT50 Hydraulic Holder
The BBT50 Hydraulic Tool Holder is engineered for high-precision and high-speed machining. Based on the BIG-PLUS system, it features a simultaneous dual-face contact (taper and flange face) with the spindle, delivering exceptional rigidity and superior vibration damping.
Product Details & Technical Resources

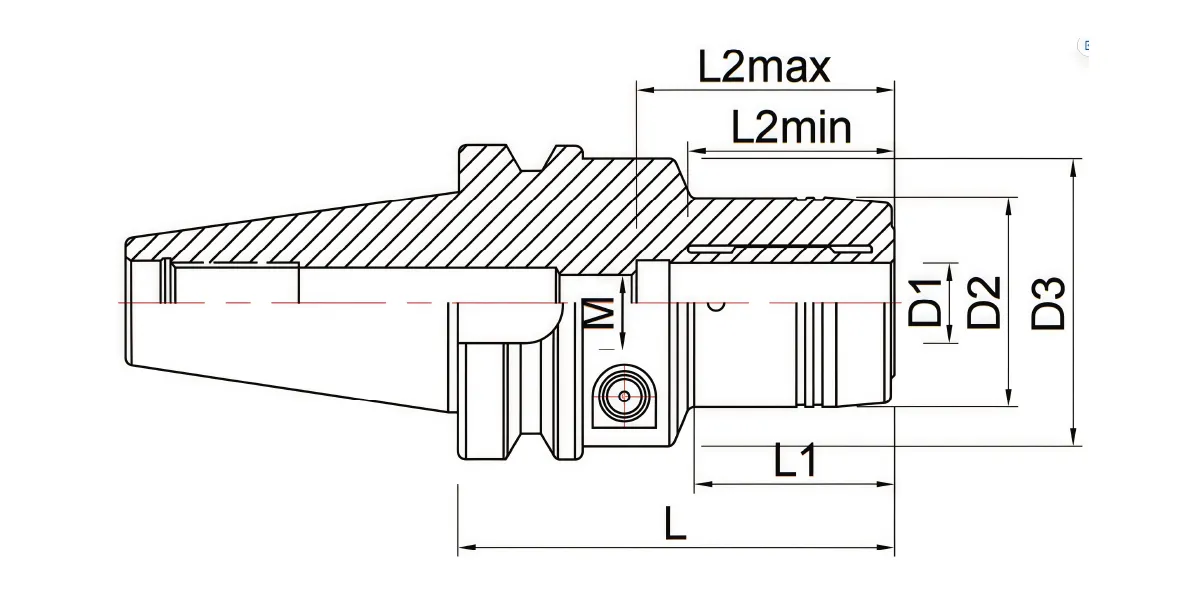

CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.
| BT50 Hydraulic Holder | ||||||||
| 订单号 order No. |
D1 | D2 | D3 | L | L1 | L2min | L2max | M |
| BBT50-HDC06-105L | 6 | 30 | 46 | 105 | 38 | 28 | 44 | M5 |
| BBT50-HDC08-105L | 8 | 32 | 48 | 105 | 38 | 28 | 44 | M6 |
| BBT50-HDC10-105L | 10 | 36 | 52 | 105 | 40 | 37 | 51 | M8 |
| BBT50-HDC12-105L | 12 | 38 | 54 | 105 | 40 | 37 | 51 | M8 |
| BBT50-HDC14-105L | 14 | 40 | 56 | 105 | 40 | 41 | 52 | M12 |
| BBT50-HDC16-105L | 16 | 42 | 58 | 105 | 40 | 41 | 52 | M12 |
| BBT50-HDC18-105L | 18 | 43 | 59 | 105 | 39 | 40 | 51 | M12 |
| BBT50-HDC20-105L | 20 | 46 | 60 | 105 | 40 | 41 | 53 | M12 |
| BBT50-HDC25-120L | 25 | 52 | 62 | 120 | 55 | 49 | 65 | M12 |
| BBT50-HDC32-120L | 32 | 63 | 72 | 120 | 56 | 52 | 65 | M12 |
| BBT50-HDC06-150L | 6 | 30 | 46 | 150 | 38 | 28 | 44 | M5 |
| BBT50-HDC08-150L | 8 | 32 | 48 | 150 | 38 | 28 | 44 | M6 |
| BBT50-HDC10-150L | 10 | 36 | 52 | 150 | 40 | 37 | 51 | M8 |
| BBT50-HDC12-150L | 12 | 38 | 54 | 150 | 40 | 37 | 51 | M8 |
| BBT50-HDC14-150L | 14 | 40 | 56 | 150 | 40 | 41 | 52 | M12 |
| BBT50-HDC16-150L | 16 | 42 | 58 | 150 | 40 | 41 | 52 | M12 |
| BBT50-HDC18-150L | 18 | 43 | 59 | 150 | 39 | 40 | 51 | M12 |
| BBT50-HDC20-150L | 20 | 46 | 60 | 150 | 40 | 41 | 53 | M12 |
| BBT50-HDC25-150L | 25 | 52 | 62 | 150 | 55 | 49 | 65 | M12 |
| BBT50-HDC32-150L | 32 | 63 | 72 | 150 | 56 | 52 | 65 | M12 |
