JIS B 6339 BT50 Hydraulic Holder

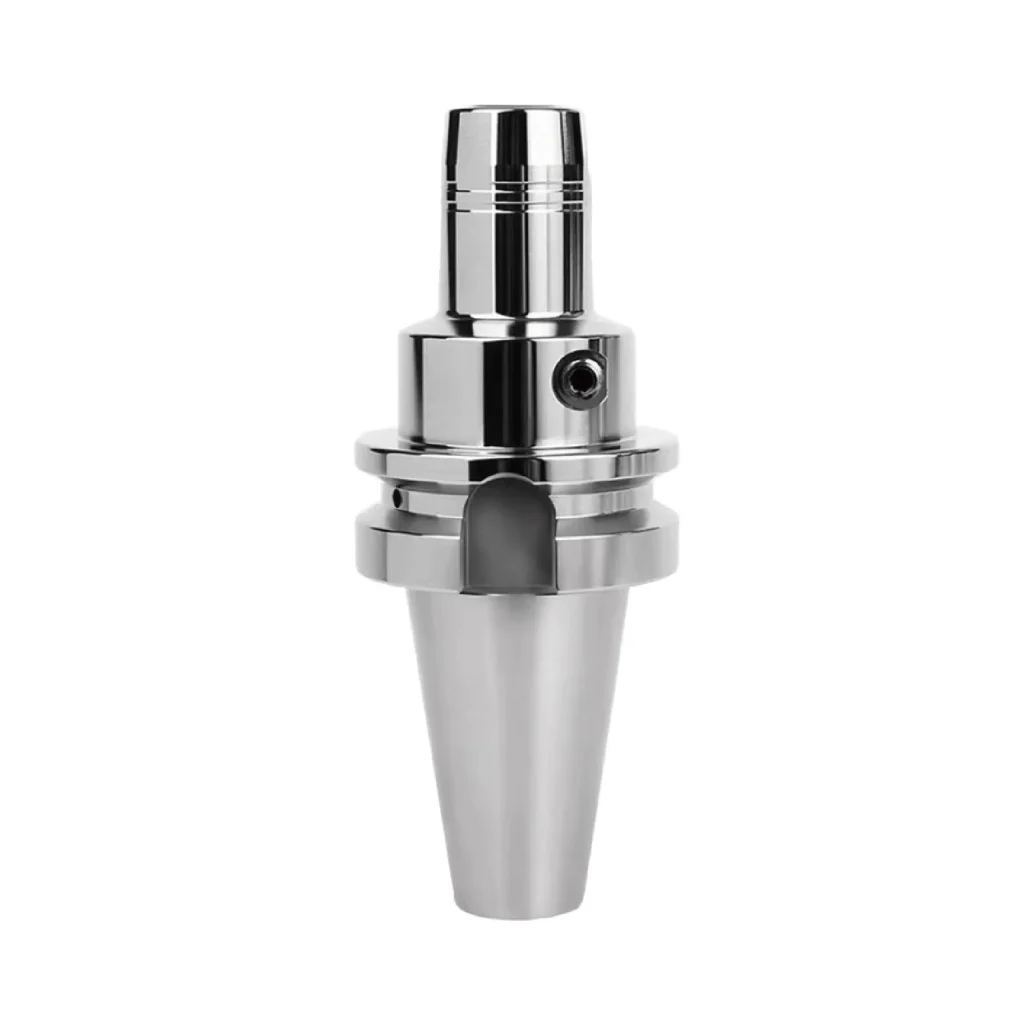

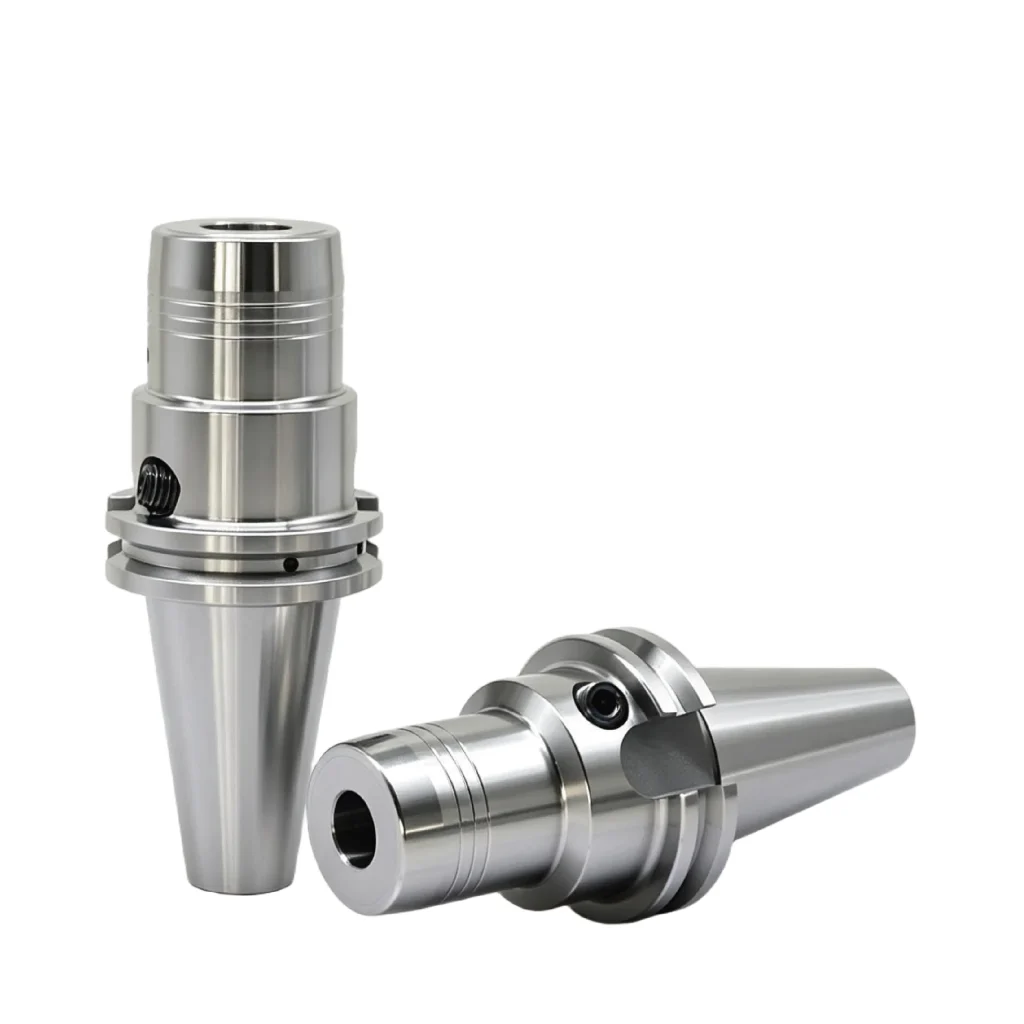

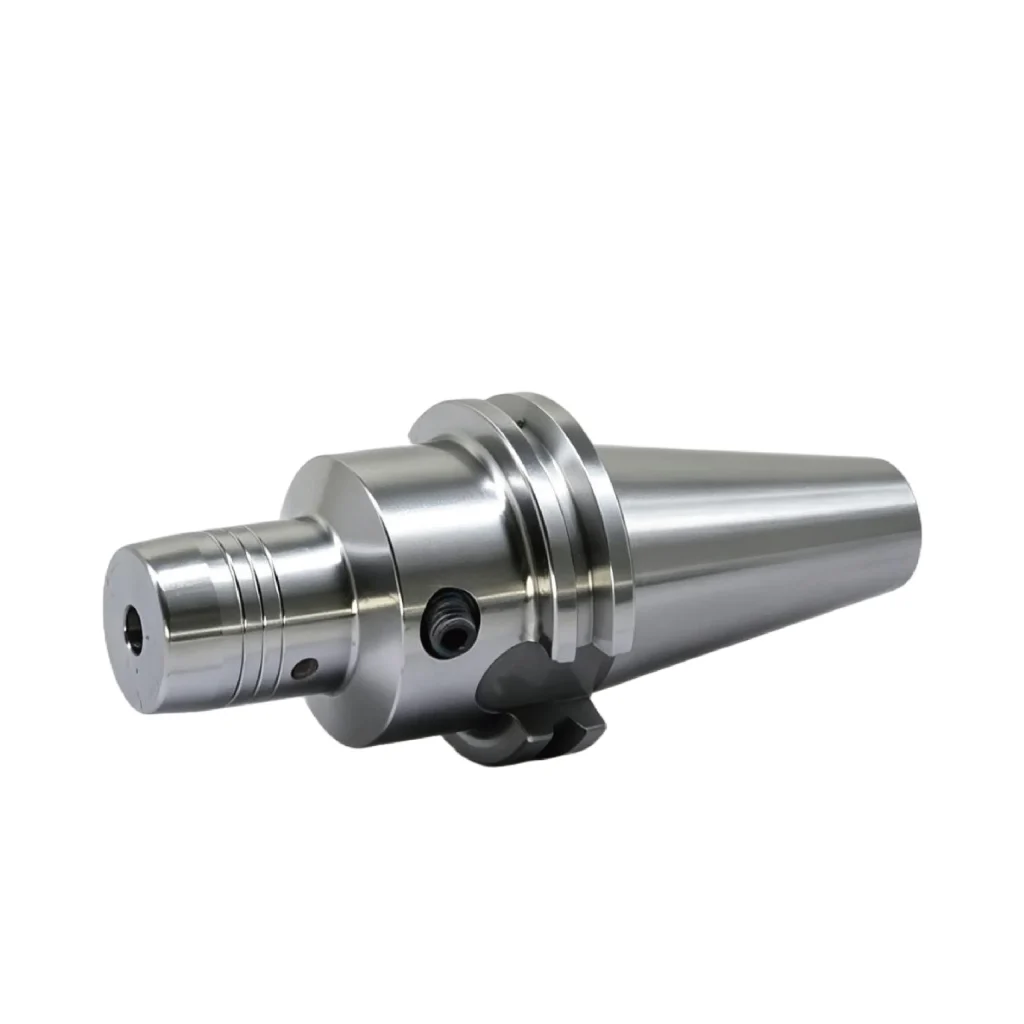

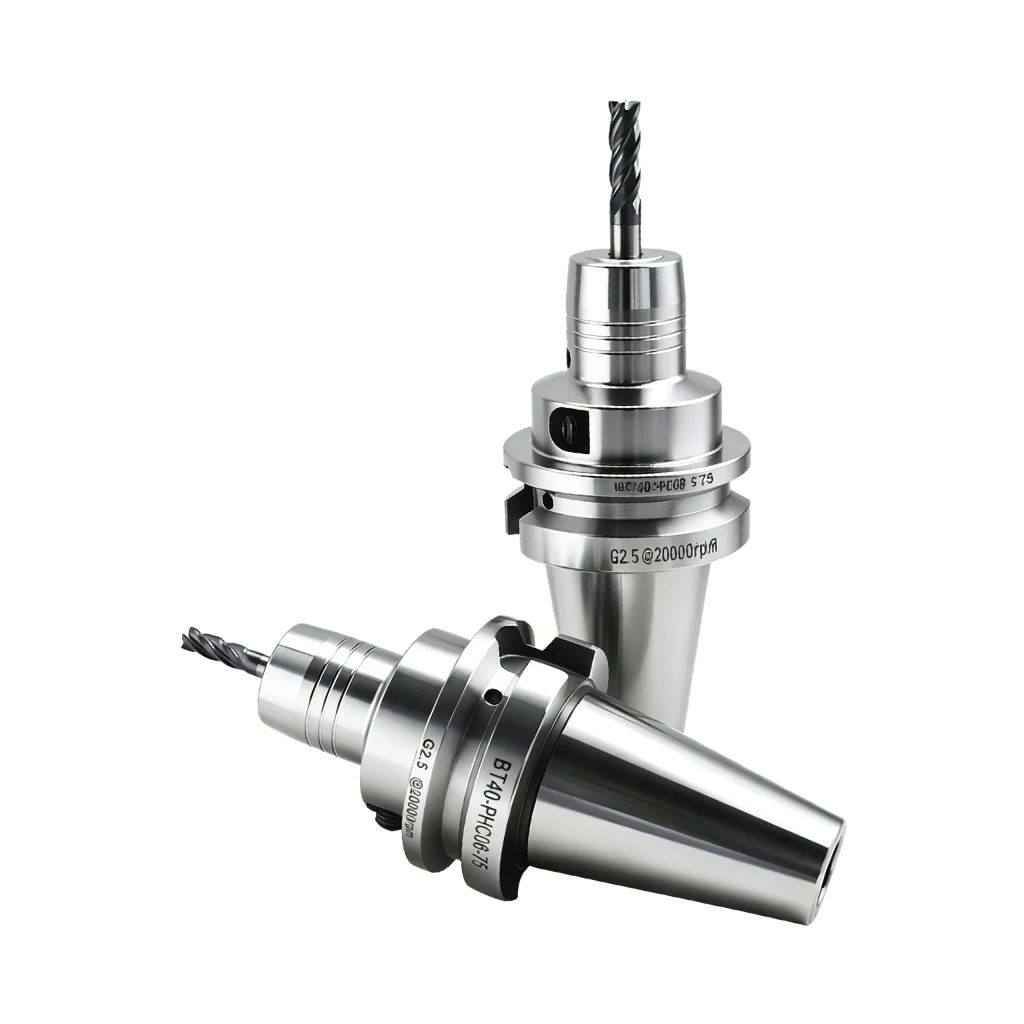

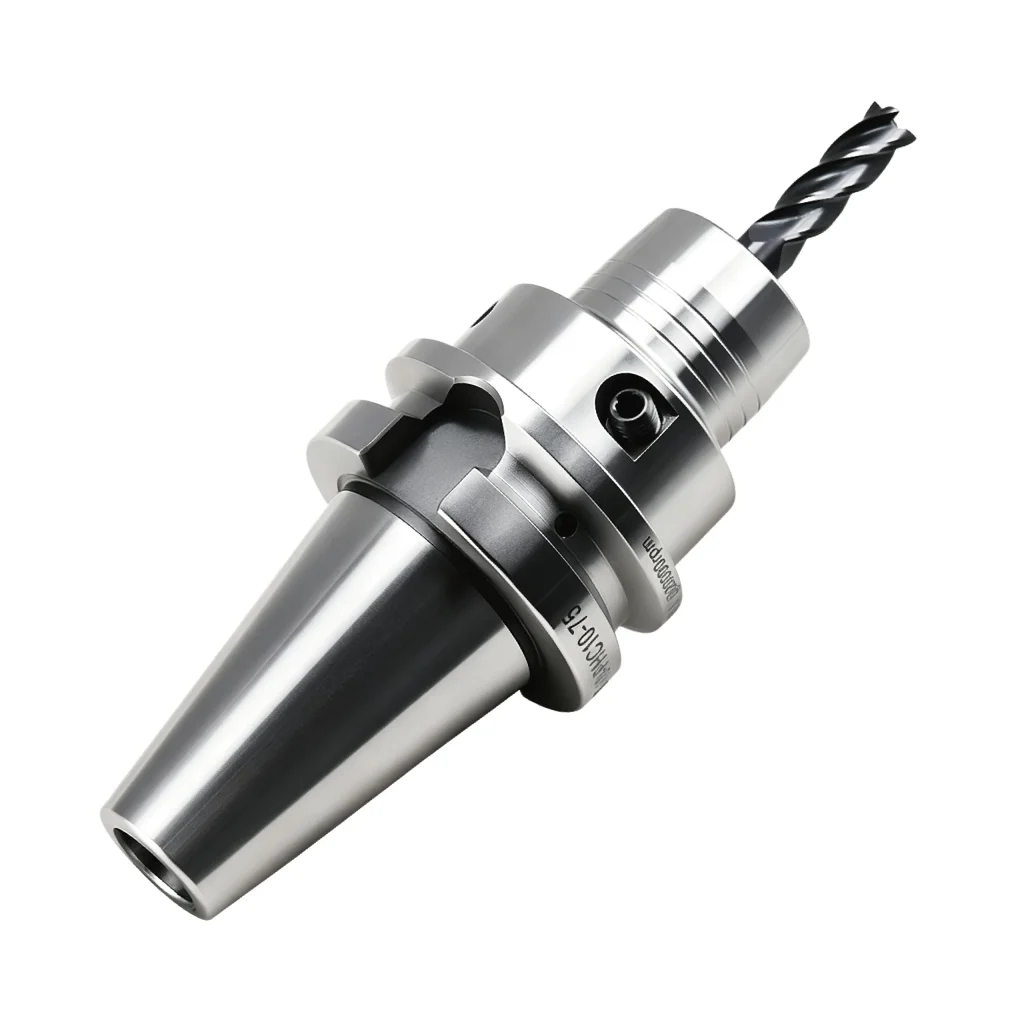

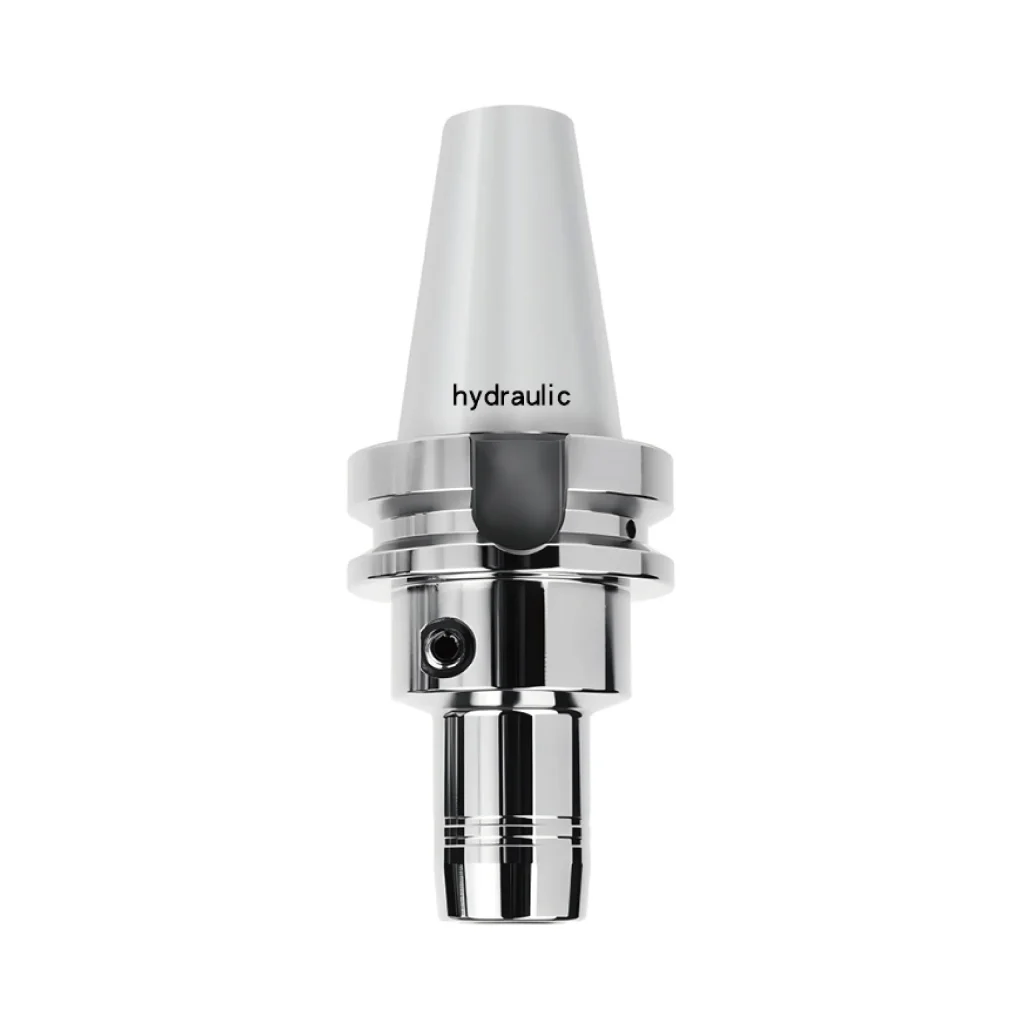

The BT50 hydraulic tool holder features a 7:24 taper, high rigidity, and strong clamping force. With runout accuracy within 3 μm and balancing up to G2.5 at 12,000 rpm, it is ideal for heavy-duty and precision machining of large molds, machinery parts, and aerospace components.
Product Details & Technical Resources
CAD Drawings

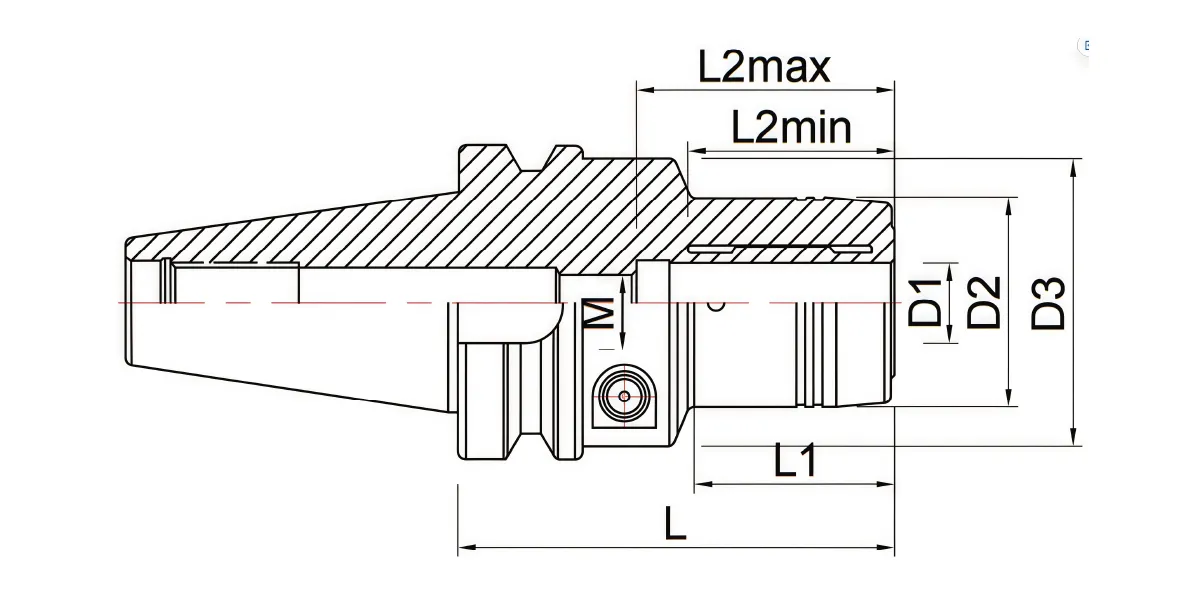

Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.
| BT50 Hydraulic Holder | ||||||||
| 订单号 order No. |
D1 | D2 | D3 | L | L1 | L2min | L2max | M |
| BT50-HDC06-105L | 6 | 30 | 46 | 105 | 38 | 28 | 44 | M5 |
| BT50-HDC08-105L | 8 | 32 | 48 | 105 | 38 | 28 | 44 | M6 |
| BT50-HDC10-105L | 10 | 36 | 52 | 105 | 40 | 37 | 51 | M8 |
| BT50-HDC12-105L | 12 | 38 | 54 | 105 | 40 | 37 | 51 | M8 |
| BT50-HDC14-105L | 14 | 40 | 56 | 105 | 40 | 41 | 52 | M12 |
| BT50-HDC16-105L | 16 | 42 | 58 | 105 | 40 | 41 | 52 | M12 |
| BT50-HDC18-105L | 18 | 43 | 59 | 105 | 39 | 40 | 51 | M12 |
| BT50-HDC20-105L | 20 | 46 | 60 | 105 | 40 | 41 | 53 | M12 |
| BT50-HDC25-120L | 25 | 52 | 62 | 120 | 55 | 49 | 65 | M12 |
| BT50-HDC32-120L | 32 | 63 | 72 | 120 | 56 | 52 | 65 | M12 |
| BT50-HDC06-150L | 6 | 30 | 46 | 150 | 38 | 28 | 44 | M5 |
| BT50-HDC08-150L | 8 | 32 | 48 | 150 | 38 | 28 | 44 | M6 |
| BT50-HDC10-150L | 10 | 36 | 52 | 150 | 40 | 37 | 51 | M8 |
| BT50-HDC12-150L | 12 | 38 | 54 | 150 | 40 | 37 | 51 | M8 |
| BT50-HDC14-150L | 14 | 40 | 56 | 150 | 40 | 41 | 52 | M12 |
| BT50-HDC16-150L | 16 | 42 | 58 | 150 | 40 | 41 | 52 | M12 |
| BT50-HDC18-150L | 18 | 43 | 59 | 150 | 39 | 40 | 51 | M12 |
| BT50-HDC20-150L | 20 | 46 | 60 | 150 | 40 | 41 | 53 | M12 |
| BT50-HDC25-150L | 25 | 52 | 62 | 150 | 55 | 49 | 65 | M12 |
| BT50-HDC32-150L | 32 | 63 | 72 | 150 | 56 | 52 | 65 | M12 |
