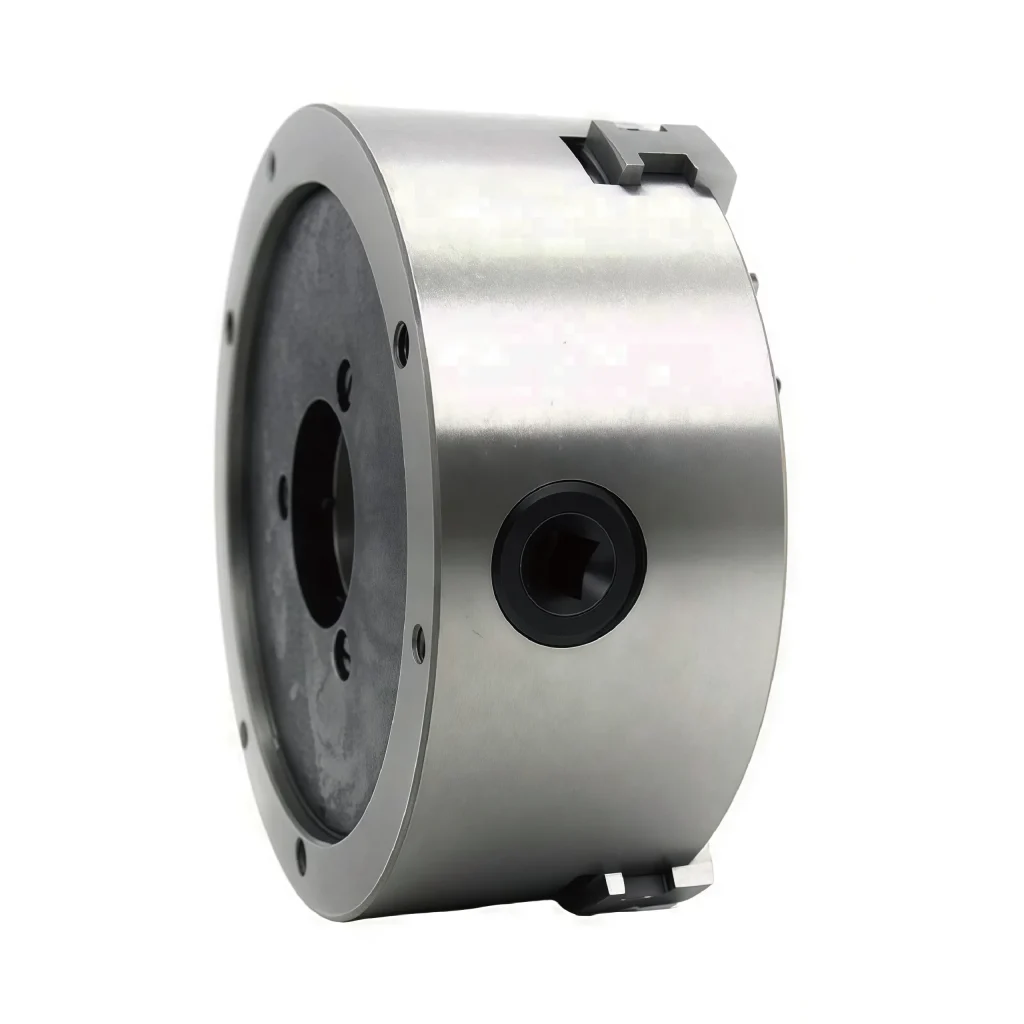

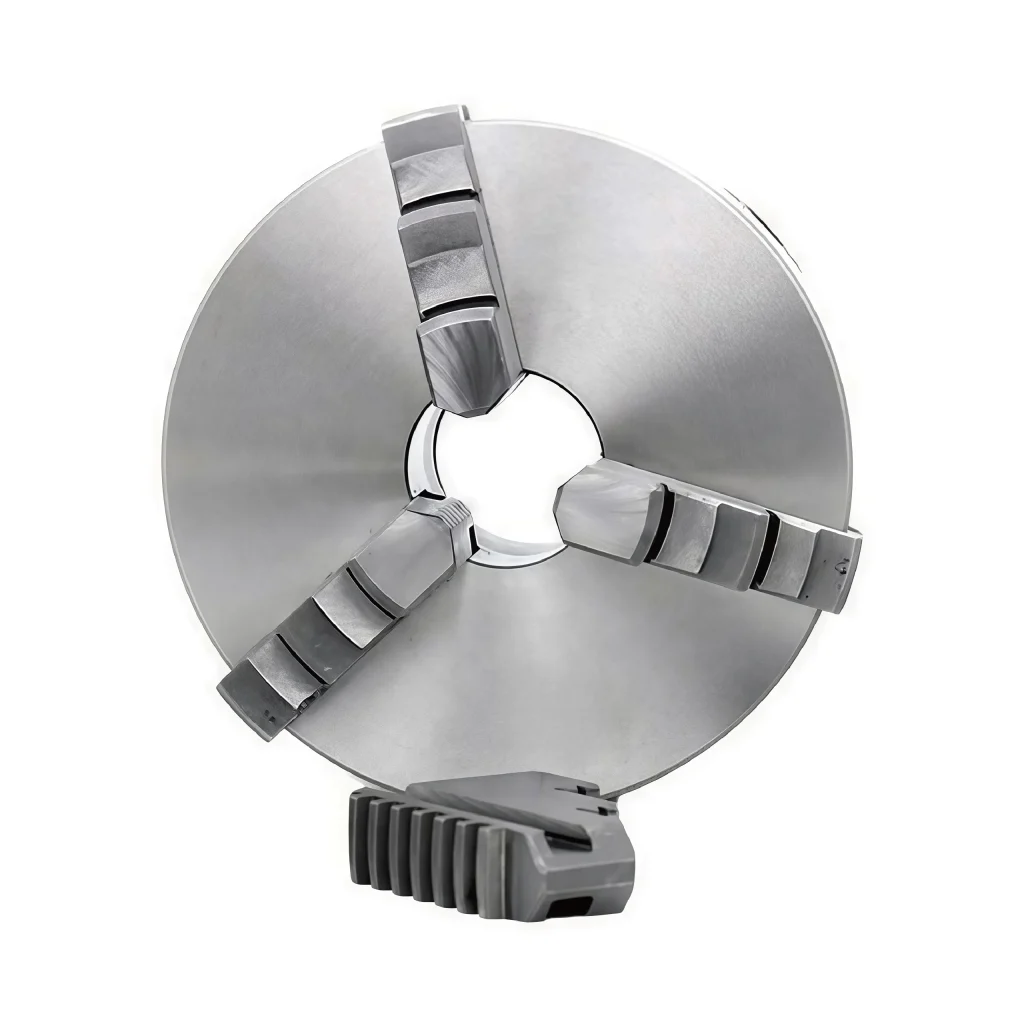

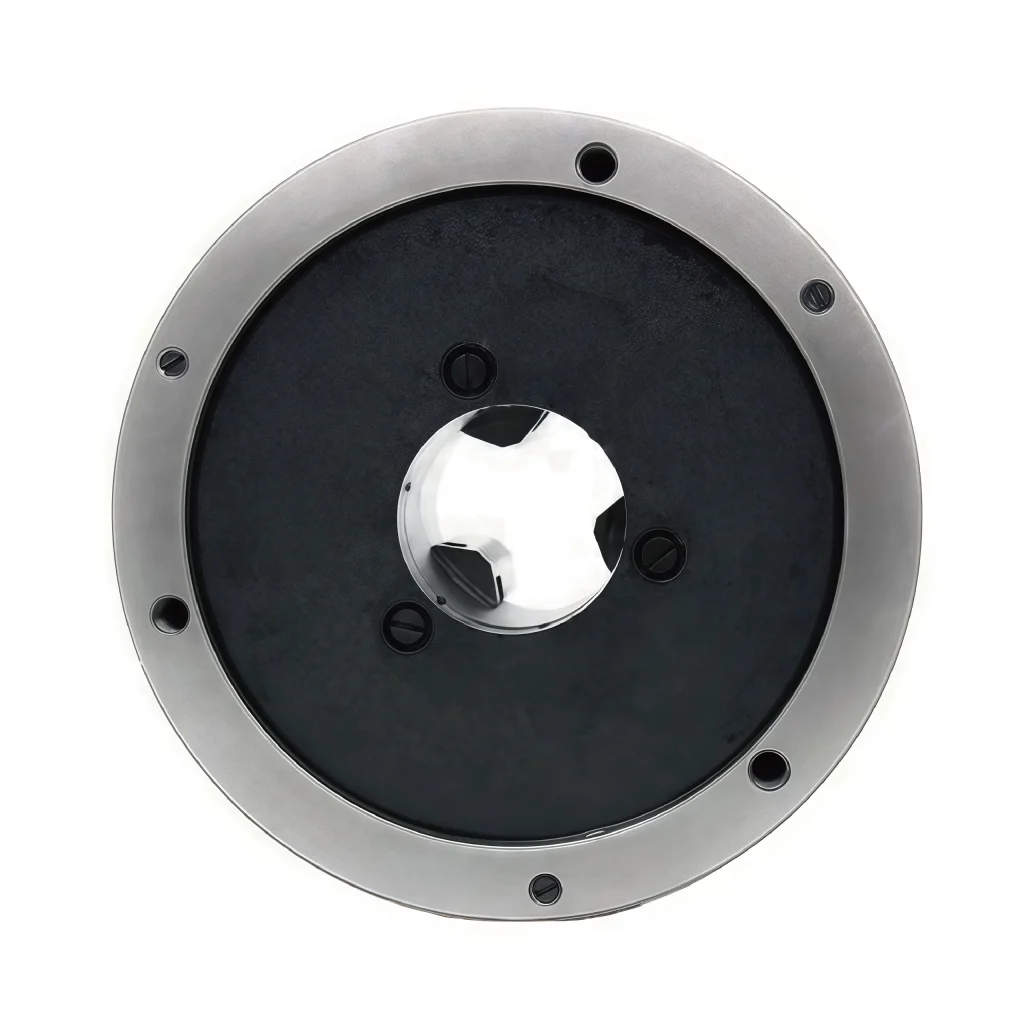

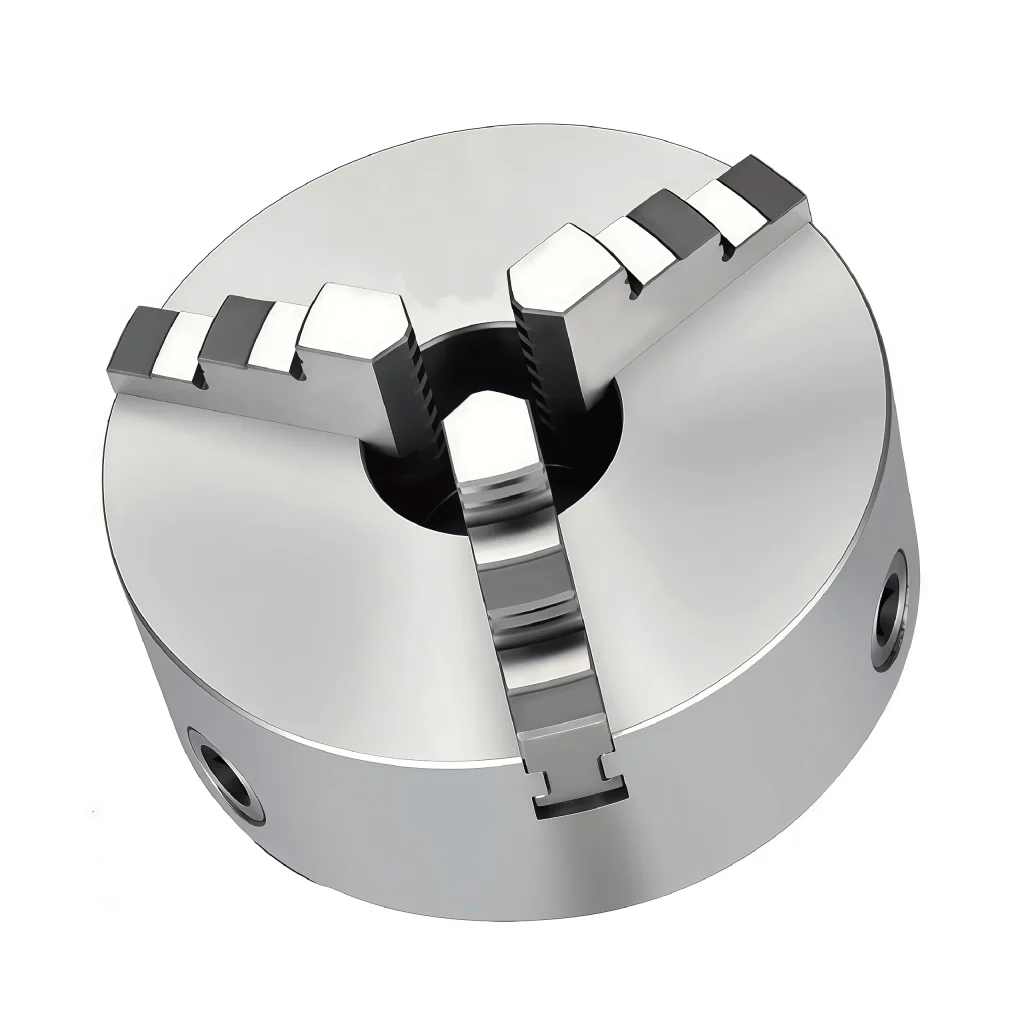

K11 3-Jaw Self-centering Chucks

Request a Quote

Product Details & Technical Resources

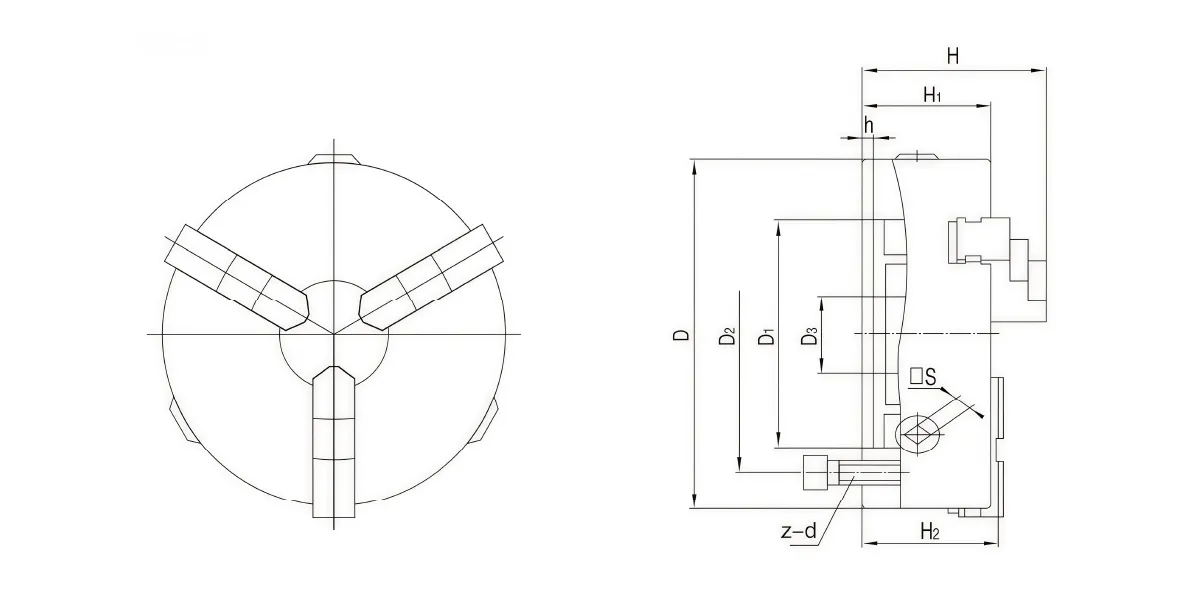

CAD Drawings

Access product dimension drawings and structural references to support selection, installation and project planning.

Technical Specifications

Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.

K11 3-Jaw Self-centering Chucks
订单号 Order No.	D1	D2	D3	H	H₁	H₂	h	S	Z-d	最大输入扭矩Nm Max input torque	极限转速 r/min Max.speed			净重kg Net WT
											k11	k11 (QT)	K11(G)
80	55	66	16	66	50	—	3.5	8	3-M6	40	4000	5000	6600	1.9
100	72	84	22	74.5	55	—	3.5	8	3-M8	60	3500	4500	6000	3.2
125	95	108	30	84	58	—	4	10	3-M8	100	3000	3800	4900	5
130	100	115	30	86	60	—	3.5	10	3-M8	100	3000	3800	4900	5.6
160	130	142	40	95	65	—	5	10	3-M8	160	2500	3000	3800	8.8
160A	130	142	40	109	65	71	5	10	3-M8	160	2500	3000	3800	8.3
165	130	145	40	96.5	66.5	—	4.5	12	3-M8	250	2000	2500	3000	9.5
190	155	172	55	105	75	—	5	12	3-M10	250	2000	2500	3000	13.8
200	165	180	65	109	75	—	5	12	3-M10	250	2000	2500	3000	15.5
200C	165	180	65	122	75	78	5	12	3-M10	250	2000	2500	3000	14.1
200A	165	180	65	122	75	80	5	12	3-M10	250	2000	2500	3000	14.1
240	195	215	70	120	80	—	8	12	3-M12	320	1600	2000	2400	24
240C	195	215	70	130	80	84	8	12	3-M12	320	1600	2000	2400	20
250	206	226	80	120	80	—	5	12	3-M12	320	1600	2000	2400	25.7
250C	206	226	80	130	80	84	5	12	3-M12	320	1600	2000	2400	23
250A	206	226	80	136	80	86	5	12	3-M12	320	1600	2000	2400	23
315	260	285	100	147	90	—	6	14	3-M16	400	1200	1500	1900	47
315A	260	285	100	153	90	95	6	14	3-M16	400	1200	1500	1900	41
320	270	290	100	152.5	95	—	11	13	3-M16	400	1200	1500	1900	47.5
320C	270	290	100	153.5	95	101.5	11	13	3-M16	400	1200	1500	1900	42
325	272	296	100	153.5	96	—	12	13	3-M16	400	1200	1500	1900	49
325C	272	296	100	154.5	96	102.5	12	13	3-M16	400	1200	1500	1900	44
325A	272	296	100	169.5	96	105.5	12	13	3-M16	400	1200	1500	1900	46
380	325	350	135	155.7	98	—	6	14	3-M16	500	1000	1200	1500	65
380C	325	350	135	156.5	98	104.5	6	14	3-M16	500	1000	1200	1500	60
380A	325	350	135	171.5	98	107.5	6	14	3-M16	500	1000	1200	1500	62
400	340	368	138	158	100	—	6	17	3-M16	500	1000	1200	1500	74
400D	340	368	138	172	100	108	6	17	3-M16	500	1000	1200	1500	71
500	440	465	210	184	115	—	6	17	6-M16	630	800	1000	1200	124
500D	440	465	210	202	115	126	6	17	6-M16	630	800	1000	1200	117.6
500A	440	465	210	202	115	126	6	17	6-M16	630	800	1000	1200	119
630	560	595	270	214	133.5	—	7	19	6-M16	800	600	800	1000	217
630D	560	595	270	218	133.5	142	7	19	6-M16	800	600	800	1000	208
630E	560	595	270	220.5	133.5	142	7	19	6-M16	800	600	800	1000	215
800D	710	760	385	250	161	170	8.5	21	6-M20	1000	500	600	800	250
800E	710	760	385	250	161	170	8.5	21	6-M20	1000	500	600	800	256
1000E	905	950	460	310	198	216	9	24	6-M24	1200	400	500	600	745.6
1250E	1060	1150	550	341	228	237	11	24	6-M30	1300	320	400	500	—
1600E	1340	1468	680	484	323	332	17	27	6-M36	1400	250	320	400	—
2000E	1258	1446	650	296.5	437.5	294.5	14	24	12-M24	—	—	—	—	4570
