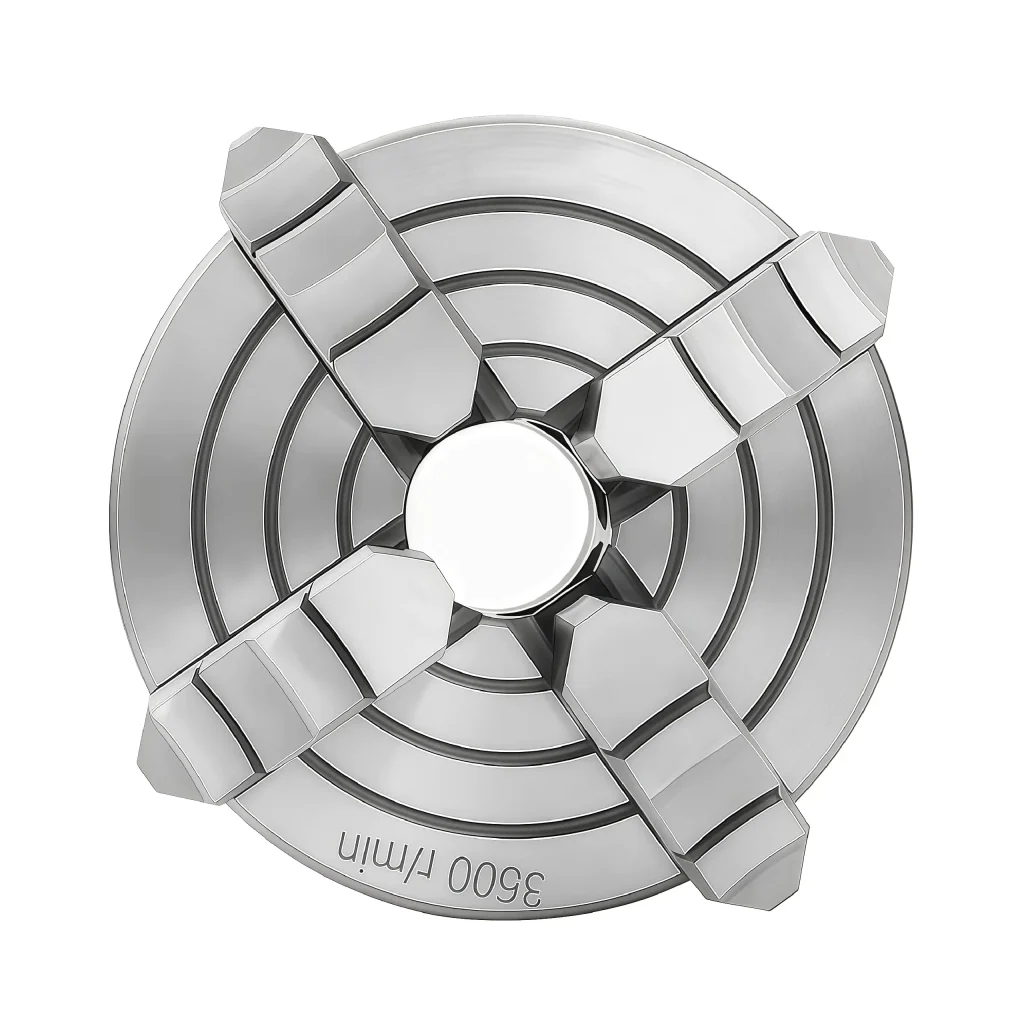

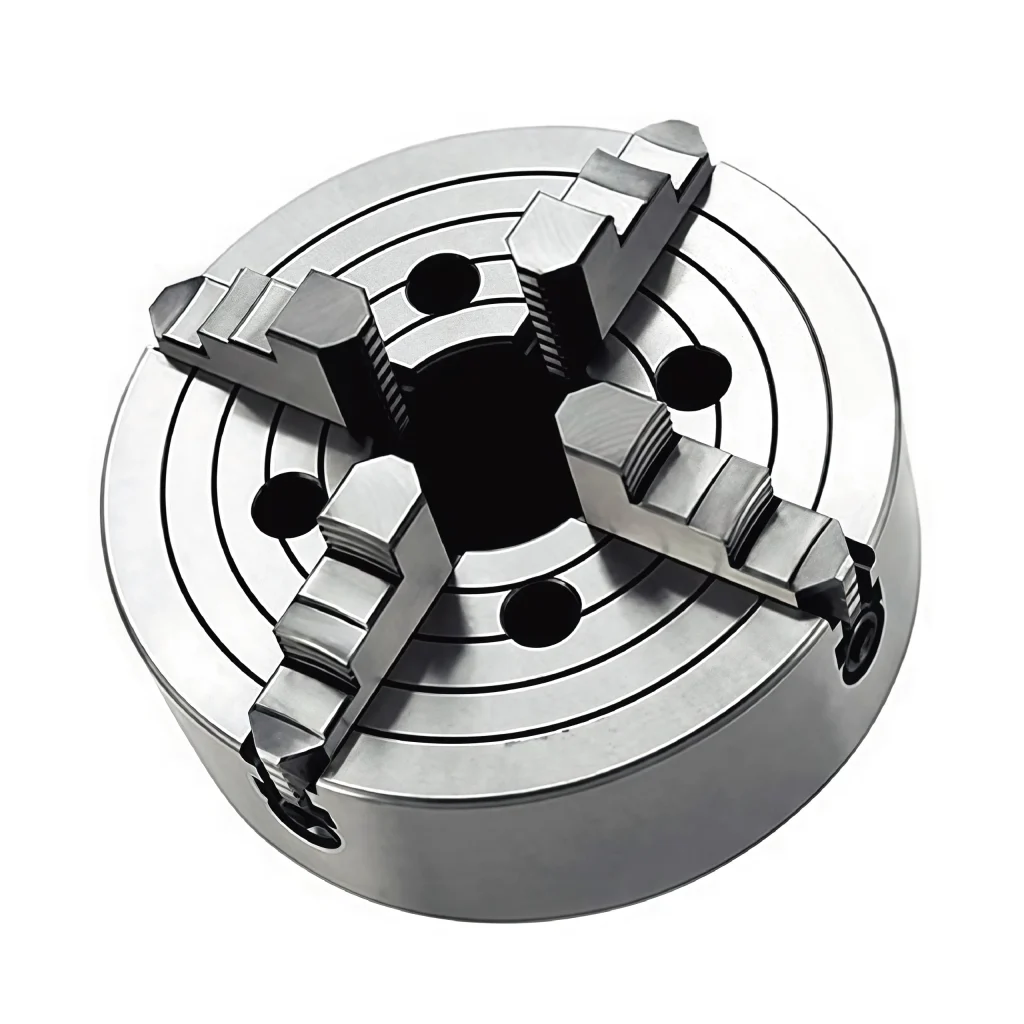

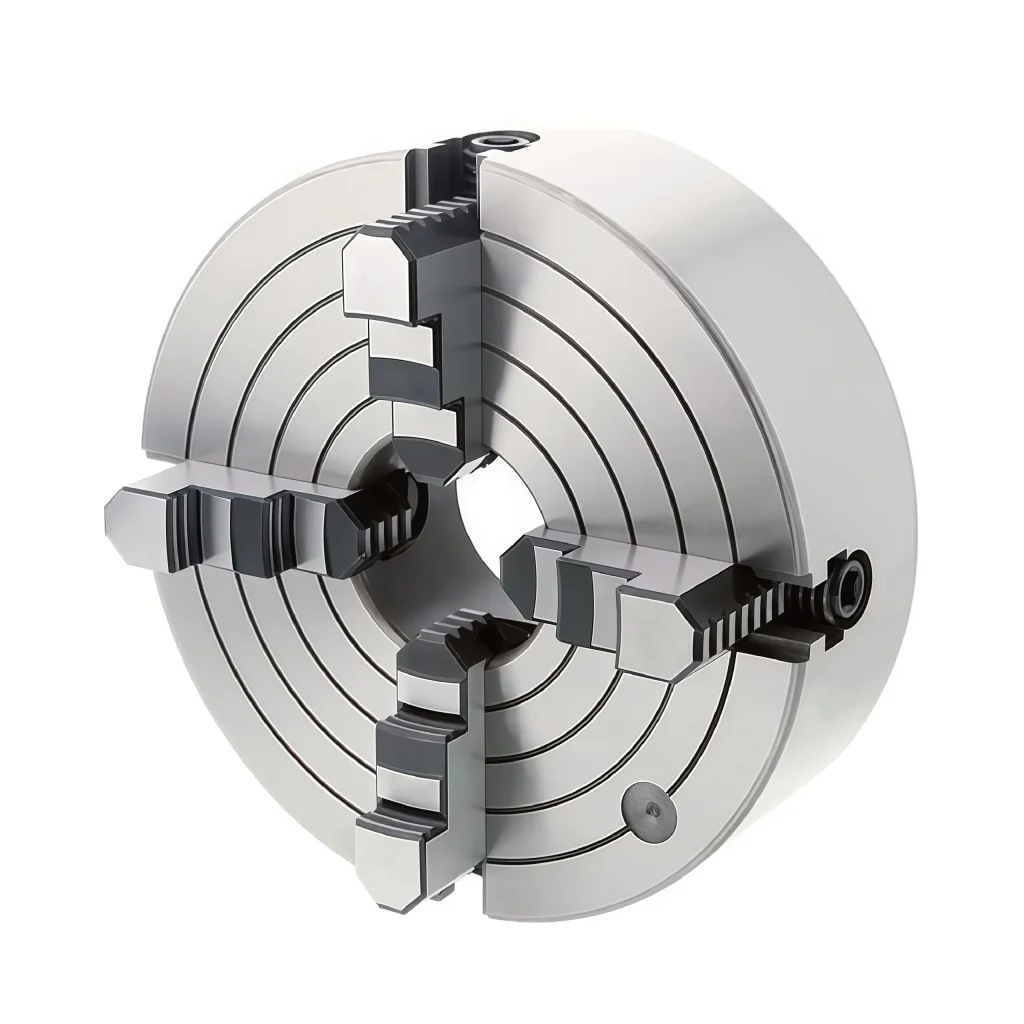

K72 4-Jaw Independent Chuck

K72 4-Jaw Independent Chuck

Request a Quote

Product Details & Technical Resources

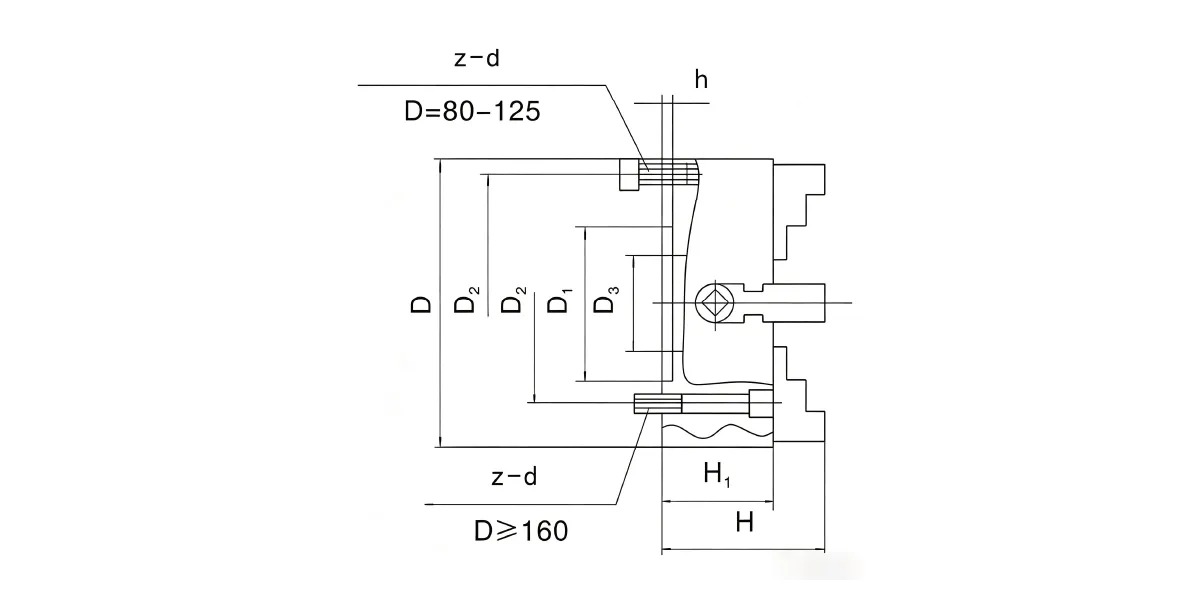

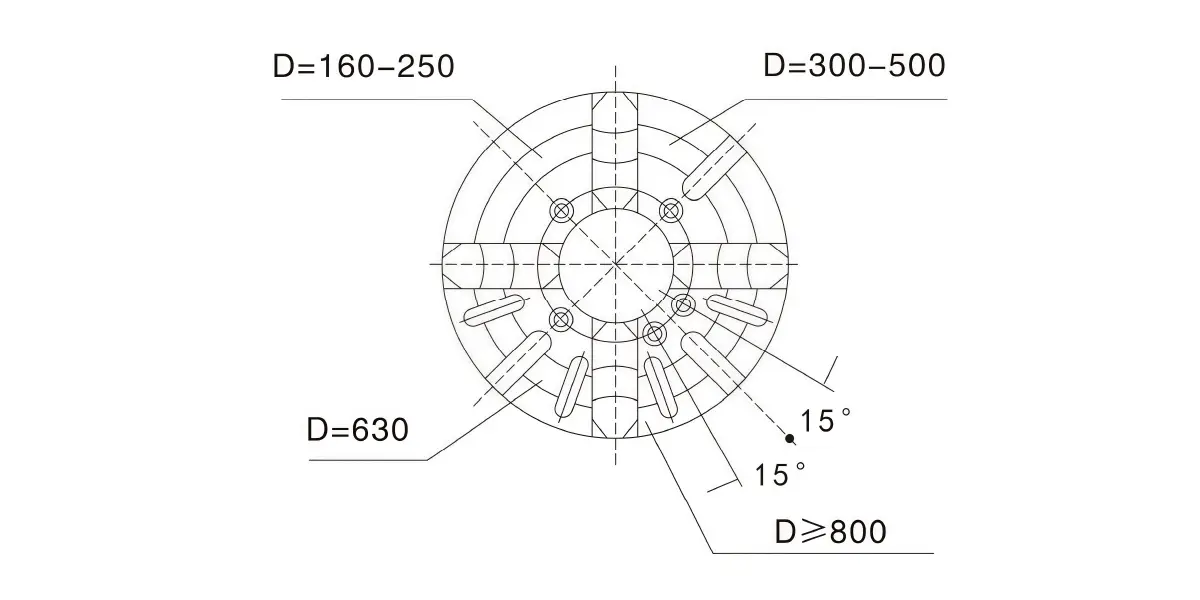

CAD Drawings

Access product dimension drawings and structural references to support selection, installation and project planning.

Technical Specifications

Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.

K72 4-Jaw Independent Chuck
订单号 Order No.	D1	D2	D3	H	H1	h	Z-d	最大输入扭矩Nm Max.input torque	极限转速r/minMax.speed		净重 kg Net WT.
订单号 Order No.	D1	D2	D3	H	H1	h	Z-d	最大输入扭矩Nm Max.input torque	K72	K72(G)	净重 kg Net WT.
50	15	一	M14×1	54	40	4	一	一	一	一	一
80	55	66	22	56	42	3.5	4-M6	25	4000	4000	一
100	72	84	25	54	74	3.5	4-M8	30	3500	3500	3
125	95	108	30	78	56	4.5	4-M8	50	3000	3000	5
160	65	95	45	93	65	5	4-M10	70	2500	2500	9
200	80	112	56	107	75	6	4-M10	100	2000	2000	15
250	110	130	75	120	80	6	4-M12	150	1600	1600	23
300	152	130	75	134	90	6	4-M12	180	1200	1200	39
320	140	165	95	134	90	6	4-M16	200	1200	1200	40
350	130	168	95	134	90	6	4-M16	250	1200	1200	53
400	160	185	125	143	95	8	4-M16	280	1000	1000	55
450	180	205	140	147	100	8	4-M16	300	900	900	71
500	200	236	160	161	106	8	4-M20	350	800	800	102
630	220	258	180	180	118	10	4-M20	400	600	600	159
800	250	300	210	202	132	12	8-M20	500	500	500	255
1000	320	370	260	230	150	15	8-M20	600	400	400	418
1250	400	500	305	256	165	15	8-M20	700	300	300	一
1400	400	500	305	246	155	15	8-M20	800	260	260	一
1600	420	520	320	266	175	20	8-M24	900	200	200	一
2000	450	560	350	290	190	20	8-M30	1000	150	150	一
