Products
Product Details & Technical Resources

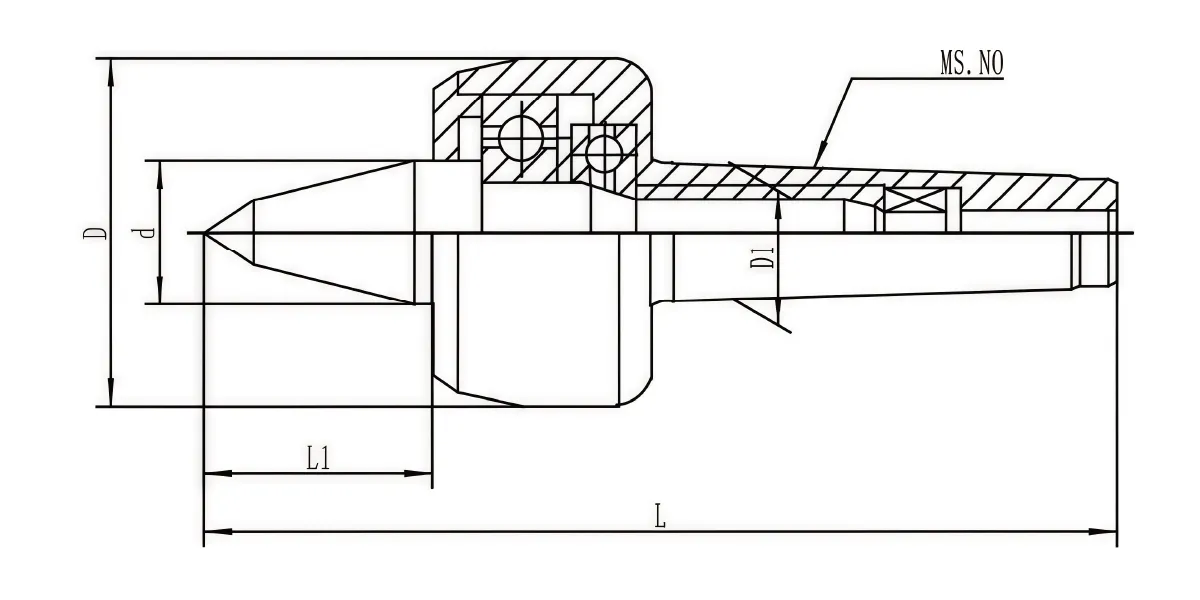

CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.

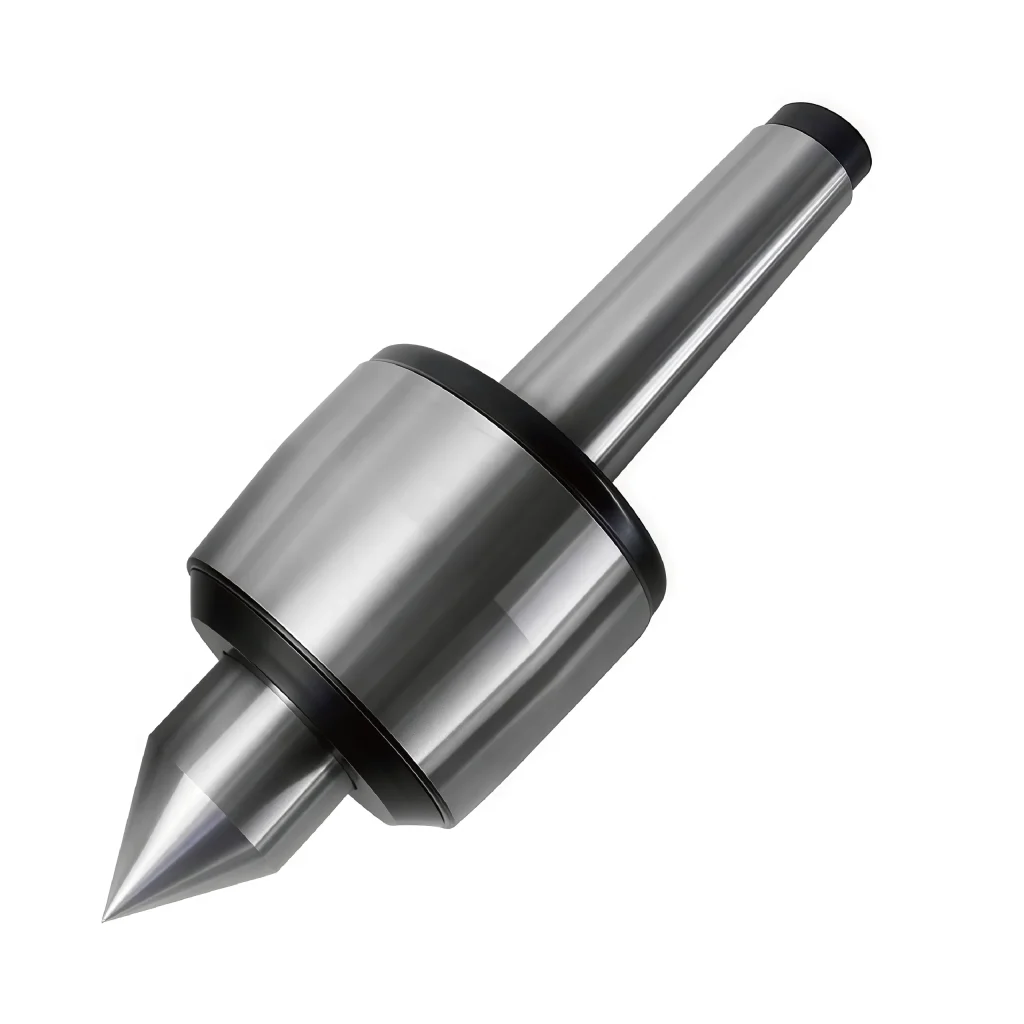

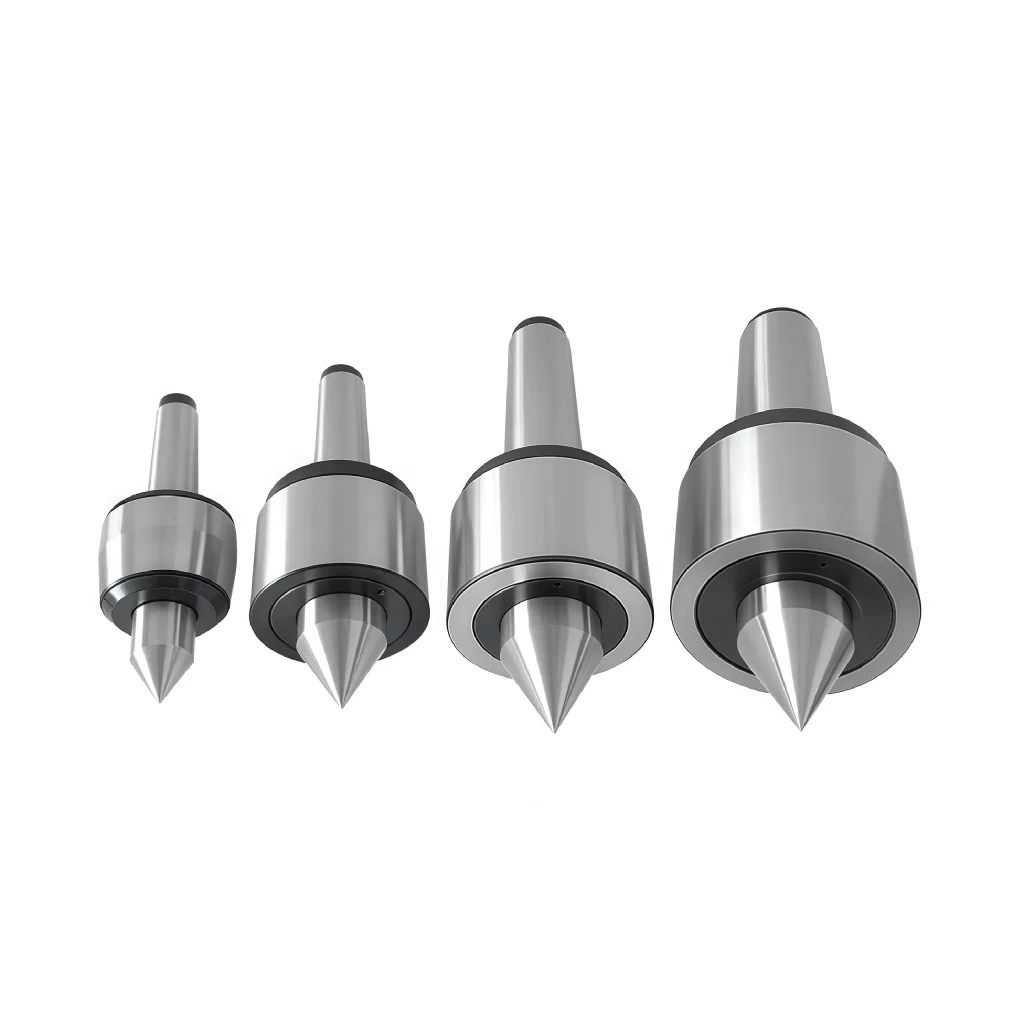

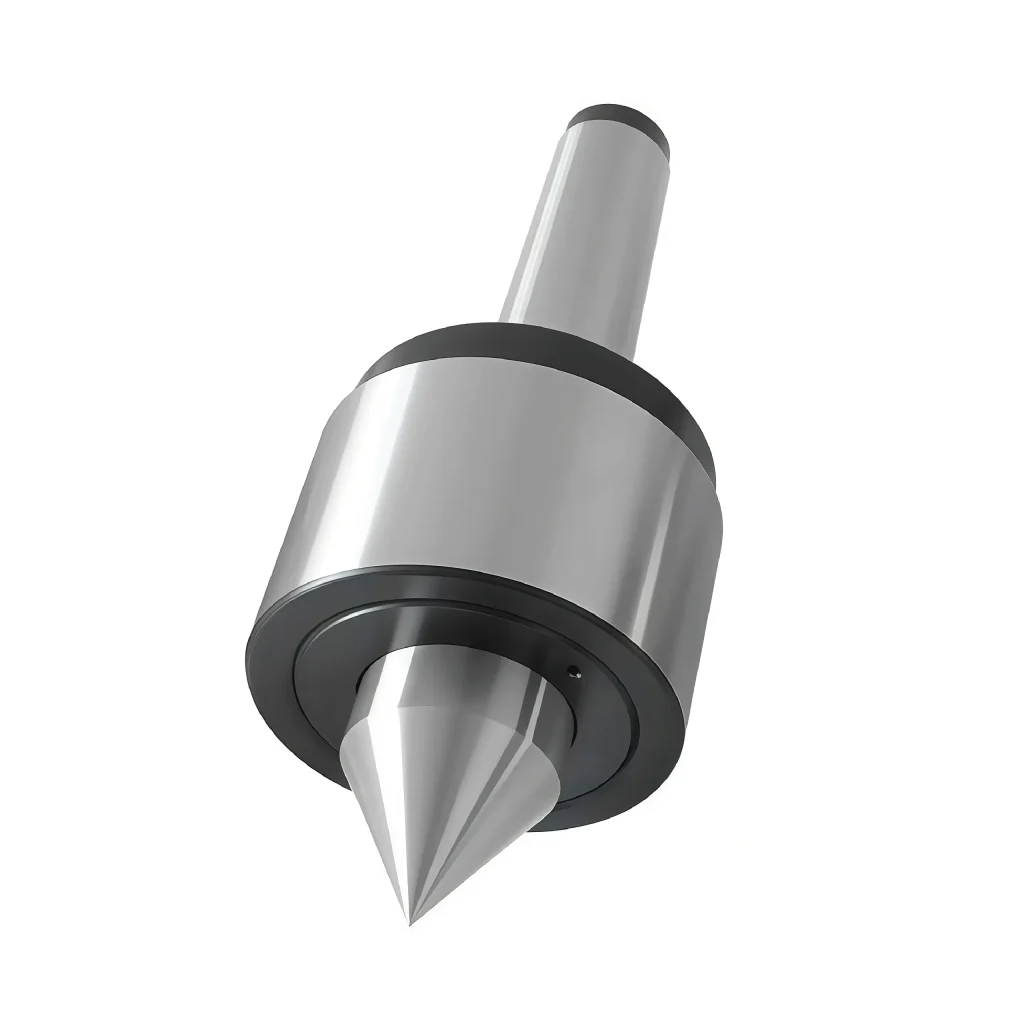

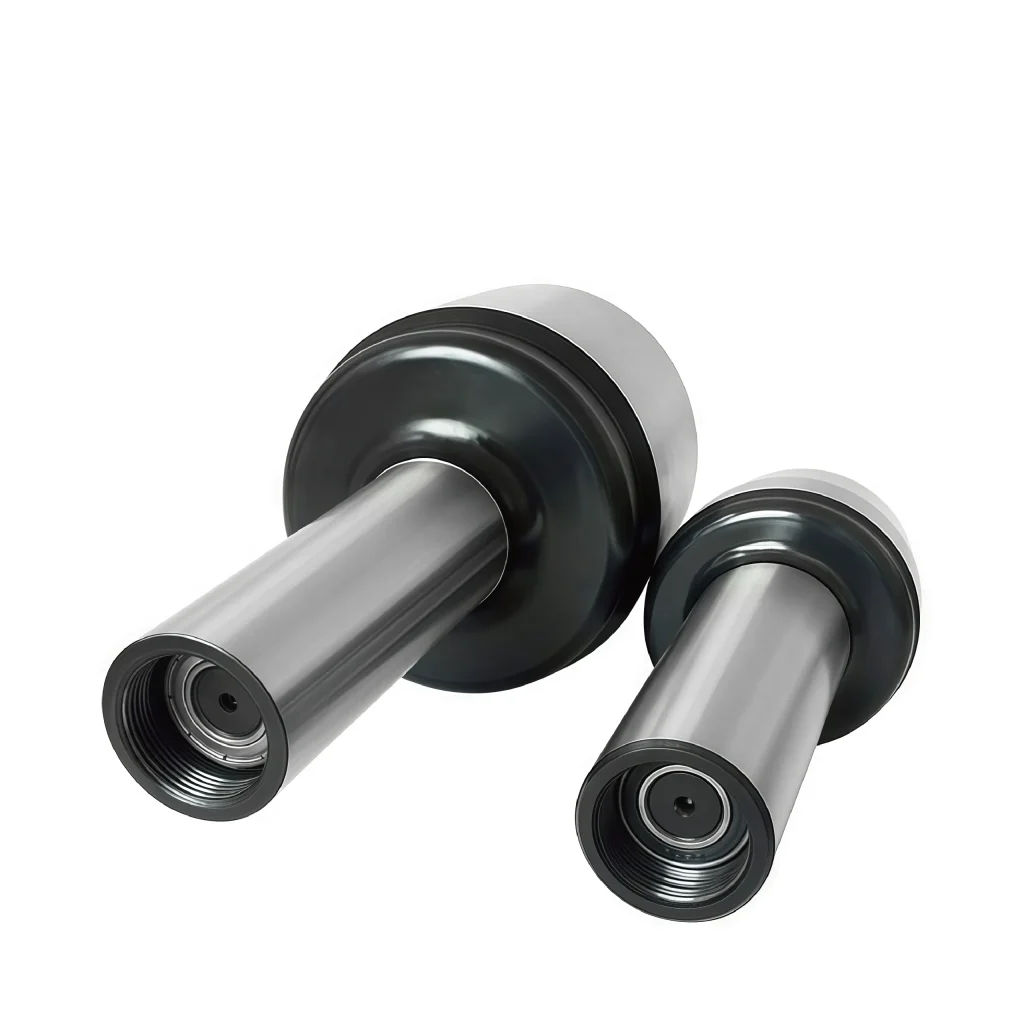

| Live Center 604H | |||||||||
| 订单号 Order No. |
MS. NO. |
L mm |
D mm |
L1 mm |
d mm |
D1 mm |
最大载荷(N) Max Load |
极限转速(rpm) Max Speed |
精度(mm) Accuracy |
| 604H/101 | MS1 | 114 | 36 | 17 | 15 | 12.065 | 100 | 7000 | 0.010 |
| 604H/102 | MS2 | 129 | 45 | 24 | 20 | 17.780 | 200 | 7000 | 0.005 |
| 604H/104 | MS3 | 1515 | 50 | 27.5 | 22 | 23.825 | 400 | 6300 | 0.005 |
| 604H/106 | MS3 | 160.5 | 60 | 31 | 25 | 23.825 | 500 | 5000 | 0.005 |
| 604H/108 | MS4 | 205 | 70 | 41 | 32 | 31.267 | 800 | 3800 | 0.005 |
| 604H/110 | MS5 | 258.5 | 90 | 50.5 | 40 | 44.399 | 2000 | 3000 | 0.005 |
| 604H/114 | MS6 | 334 | 105 | 57.5 | 50 | 63.348 | 3500 | 2600 | 0.010 |
| 604H/116 | MS6 | 378 | 140 | 67 | 60 | 63.348 | 4500 | 1500 | 0.010 |
| 604H/116E | ME80 | 392 | 140 | 68 | 60 | 80 | 7500 | 1500 | 0.015 |
