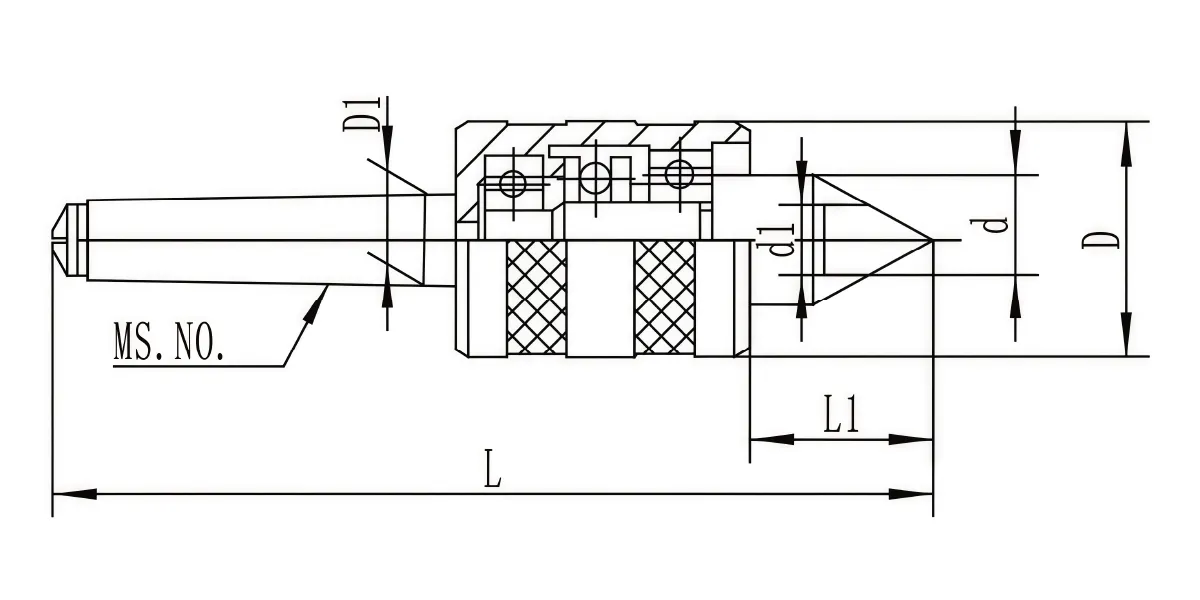

CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.

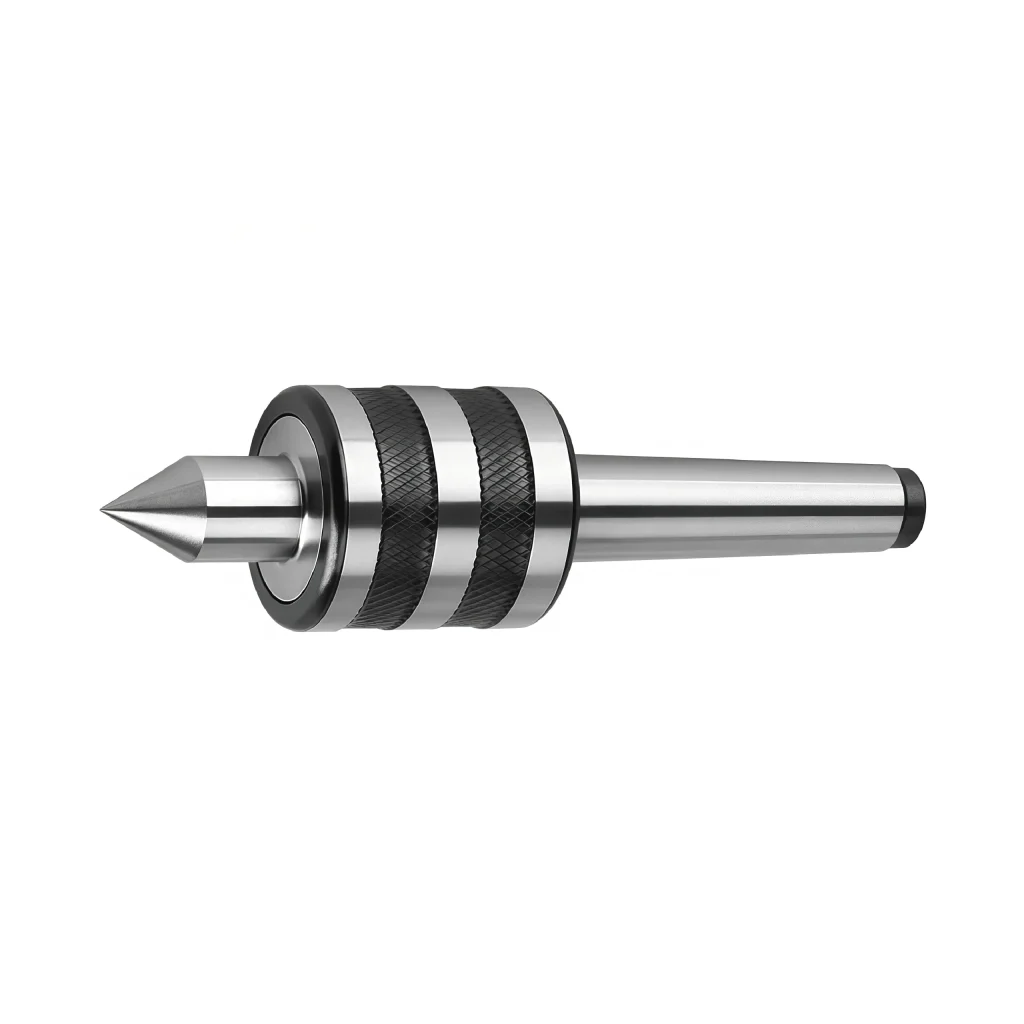

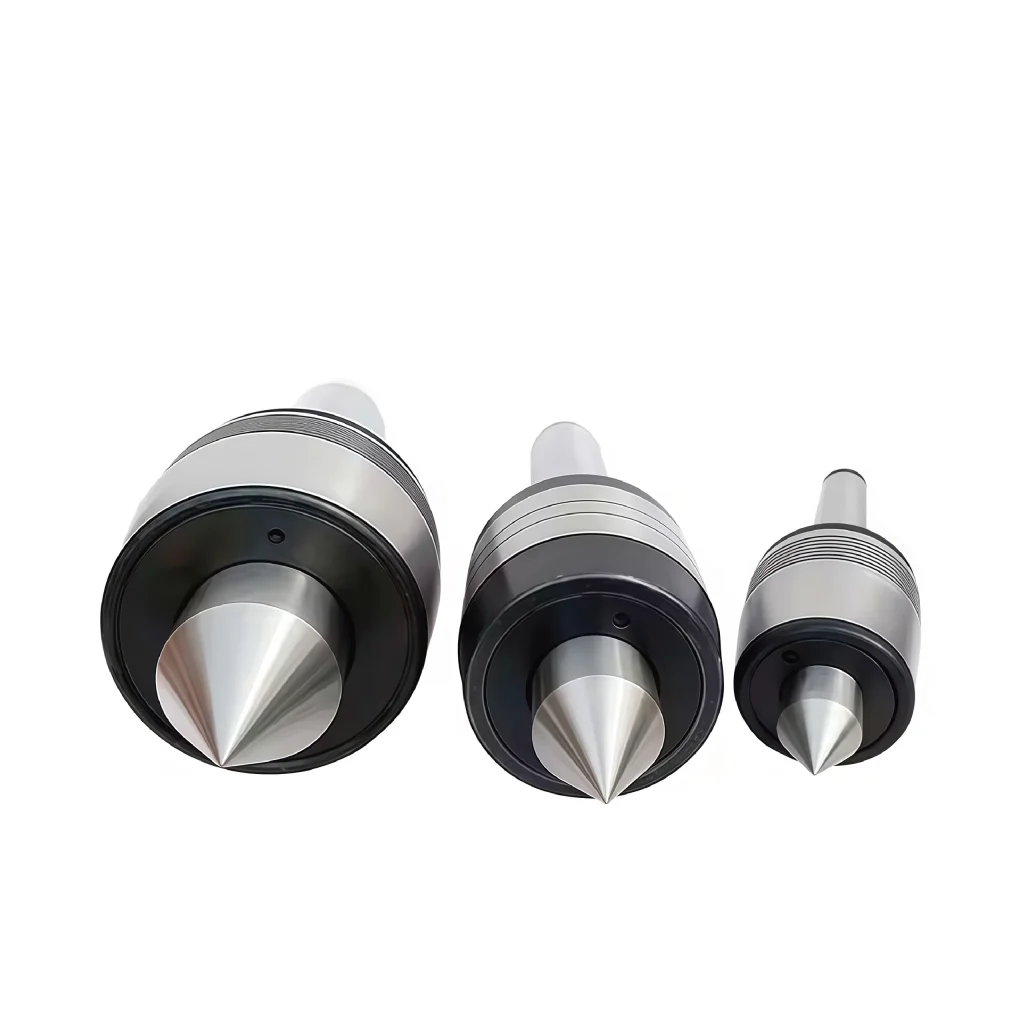

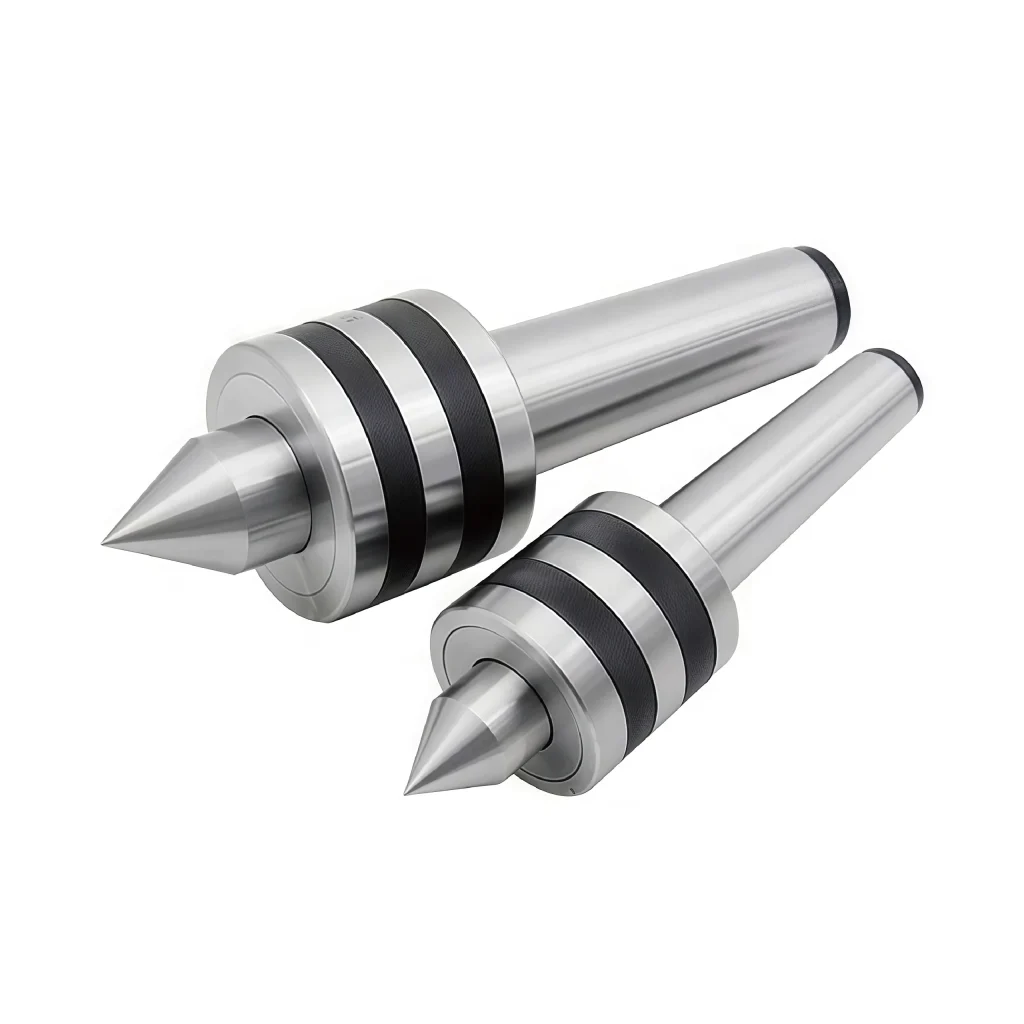

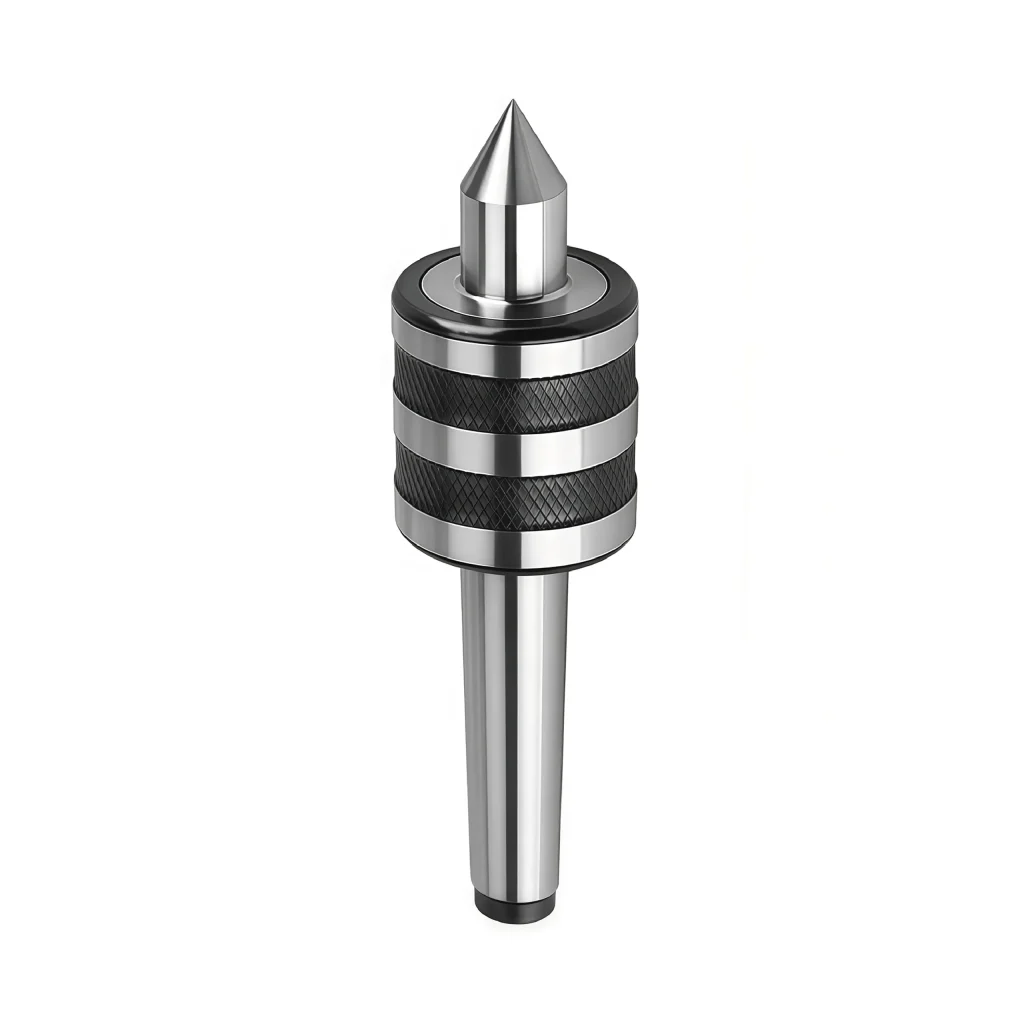

| Medium Duty Live Center | ||||||||||
| 订单号 Order No. |
MS. NO. |
L mm |
L1 mm |
D mm |
D1 mm |
d mm |
径向载荷(N) Max Radial Load |
极限转速（rpm） Max Speed |
重量 Wt（kg） |
精度(mm) Accuracy |
| D411 | MS1 | 115 | 20 | 34 | 12.065 | 18 | 900 | 5000 | 0.29 | 0.01 |
| D412 | MS2 | 145 | 26 | 45 | 17.780 | 25 | 1500 | 5000 | 0.7 | 0.01 |
| D413 | MS3 | 170 | 30 | 52 | 23.825 | 28 | 2000 | 4200 | 0.93 | 0.01 |
| D414 | MS4 | 205.7 | 34.7 | 60 | 31.267 | 32 | 3200 | 3200 | 1.7 | 0.01 |
| D415 | MS5 | 254 | 45 | 77 | 44.399 | 45 | 6300 | 2400 | 3.39 | 0.015 |
| D416 | MS6 | 362 | 68.5 | 125 | 63.348 | 75 | 10000 | 1600 | 12 | 0.015 |
| D411L | MS1 | 125 | 30 | 34 | 12.065 | 18 | 900 | 5000 | 0.31 | 0.01 |
| D412L | MS2 | 155 | 36 | 45 | 17.780 | 25 | 1500 | 5000 | 0.74 | 0.01 |
| D413L | MS3 | 183 | 43 | 52 | 23.825 | 28 | 2000 | 4200 | 0.99 | 0.01 |
| D414L | MS4 | 222 | 51 | 60 | 31.267 | 32 | 3200 | 3200 | 1.8 | 0.01 |
| D415L | MS5 | 272 | 63 | 77 | 44.399 | 45 | 6300 | 2400 | 3.62 | 0.015 |
| D416L | MS6 | 382 | 88.5 | 125 | 63.348 | 75 | 10000 | 1600 | 12.69 | 0.015 |
