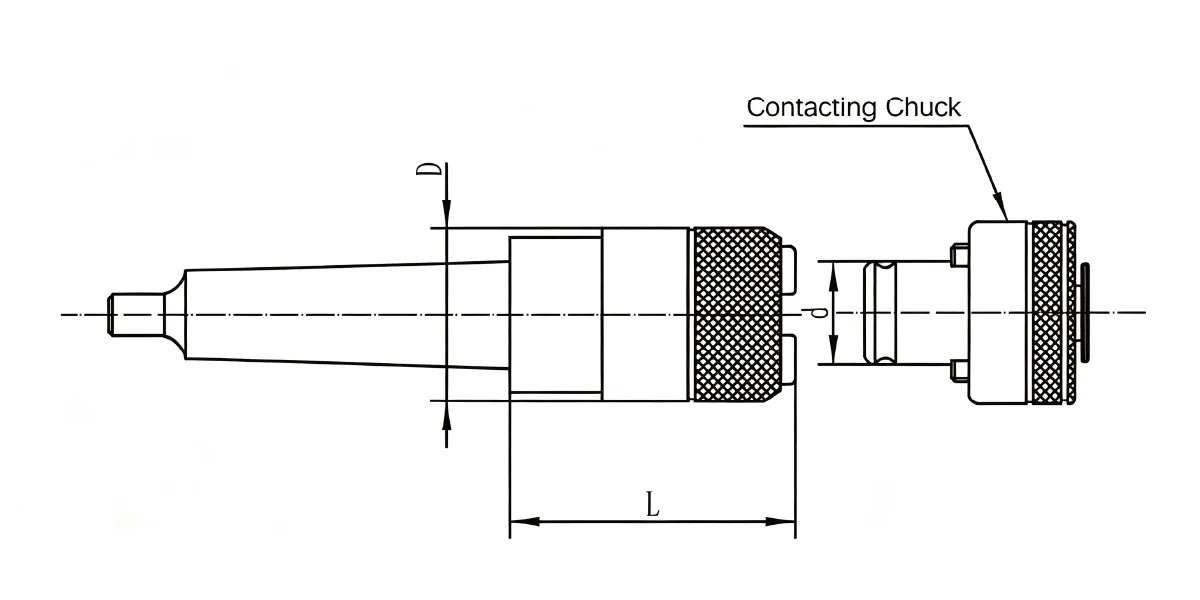

CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.

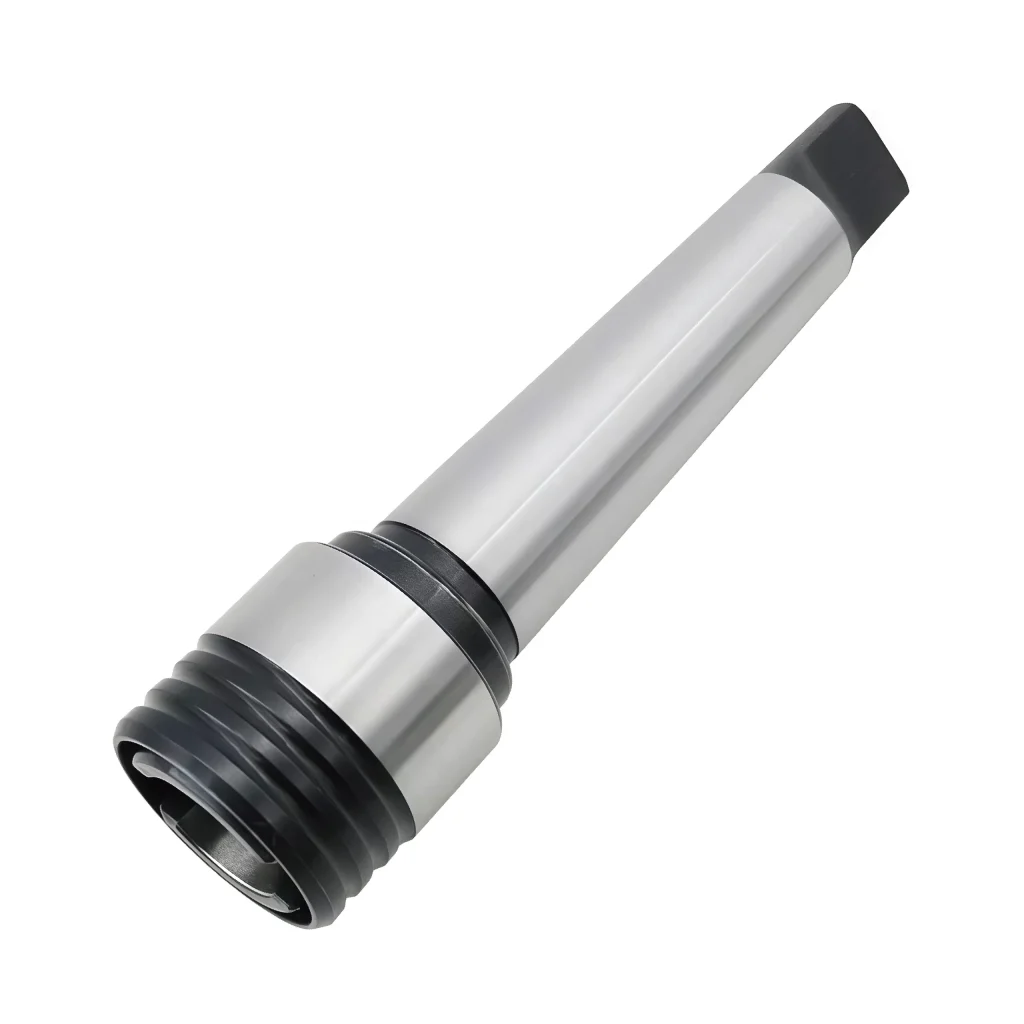

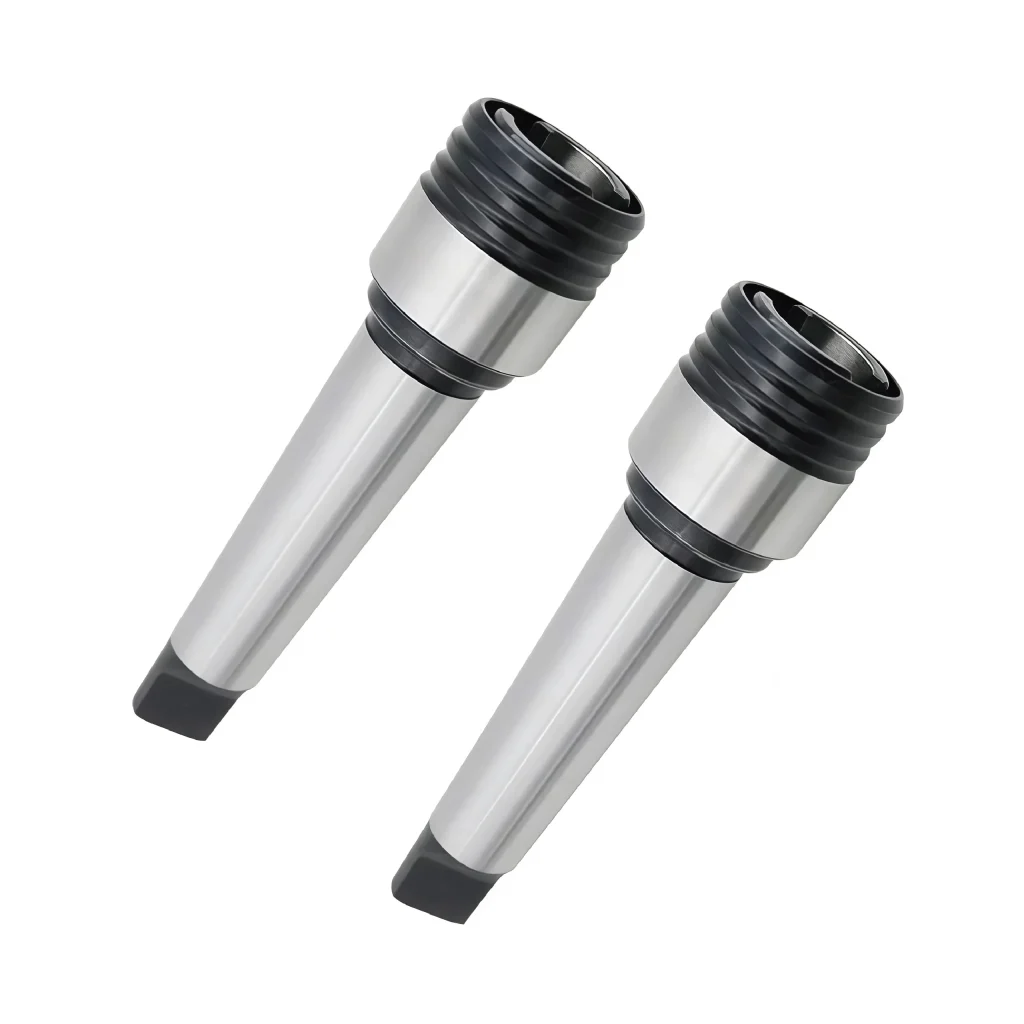

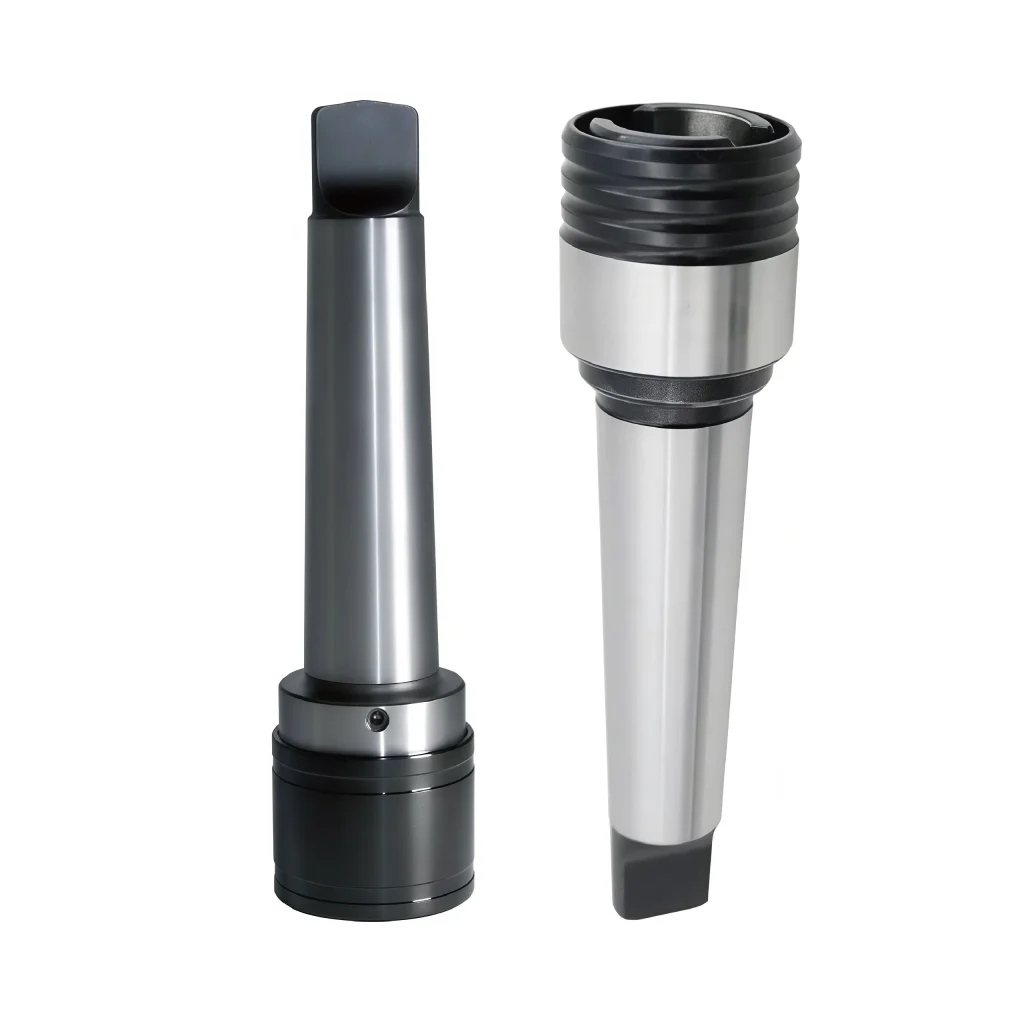

| MT Rigid Tapping Holder | |||||
| 订单号 order No. |
tapping range 攻丝范围 |
D | d | L | Collet s 适用筒夹 |
| MT2-GT12 | M3-M12 | 34 | 19 | 65 | TC312 |
| MT3-GT12 | |||||
| MT4-GT12 | |||||
| MT4-TC820 | M5-M27 | 50 | 31 | 82 | TC820 |
| MT5-TC820 | |||||
