WF Tapping Chucks with Length Compensation

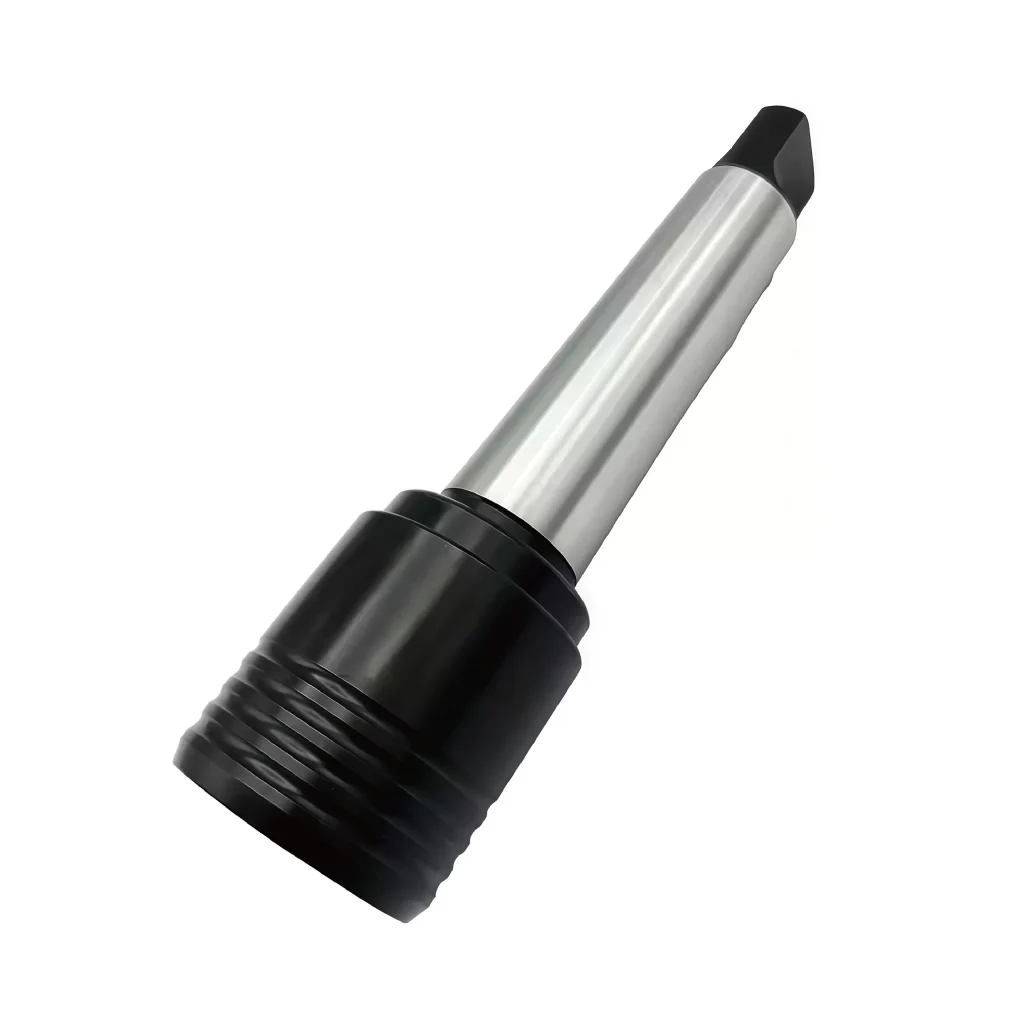

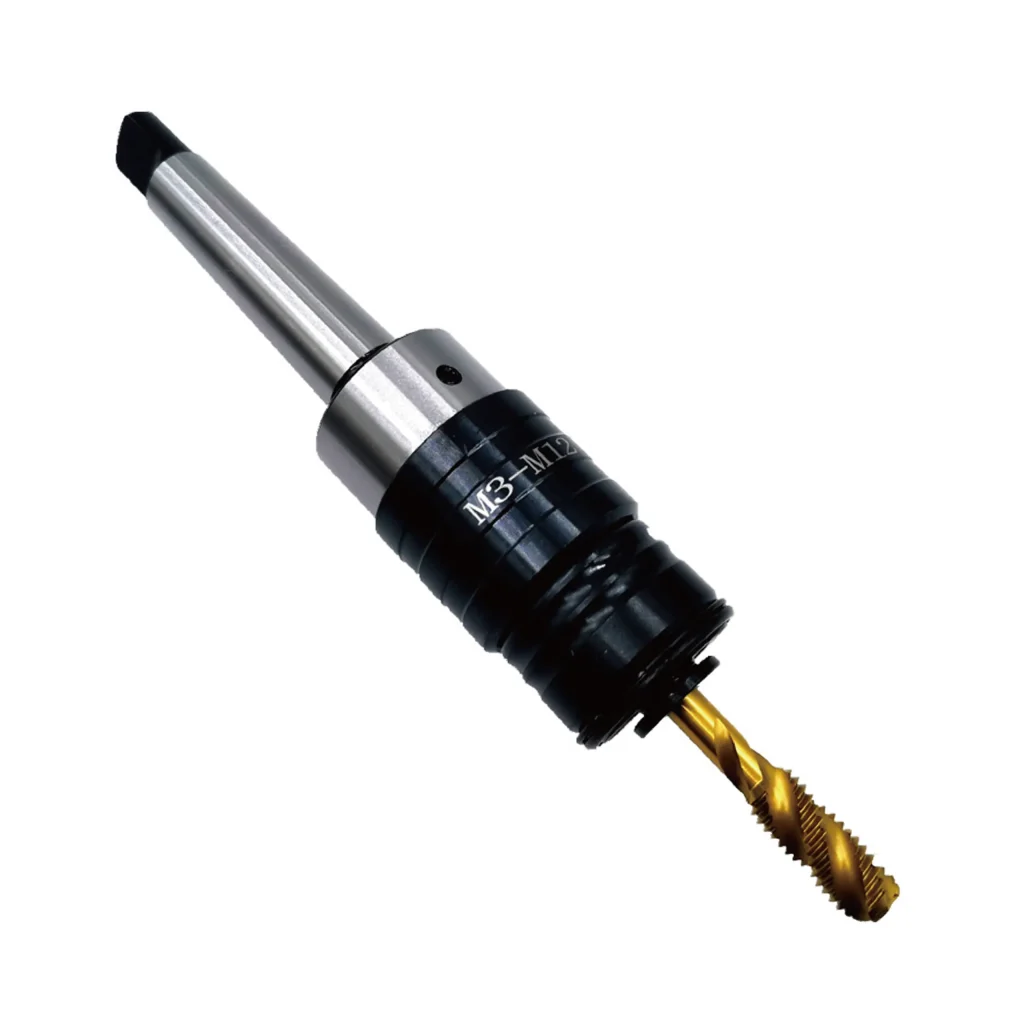

MT WF QUICK CHANGE TELESCOPING TAPING HOLDER
Product Details & Technical Resources

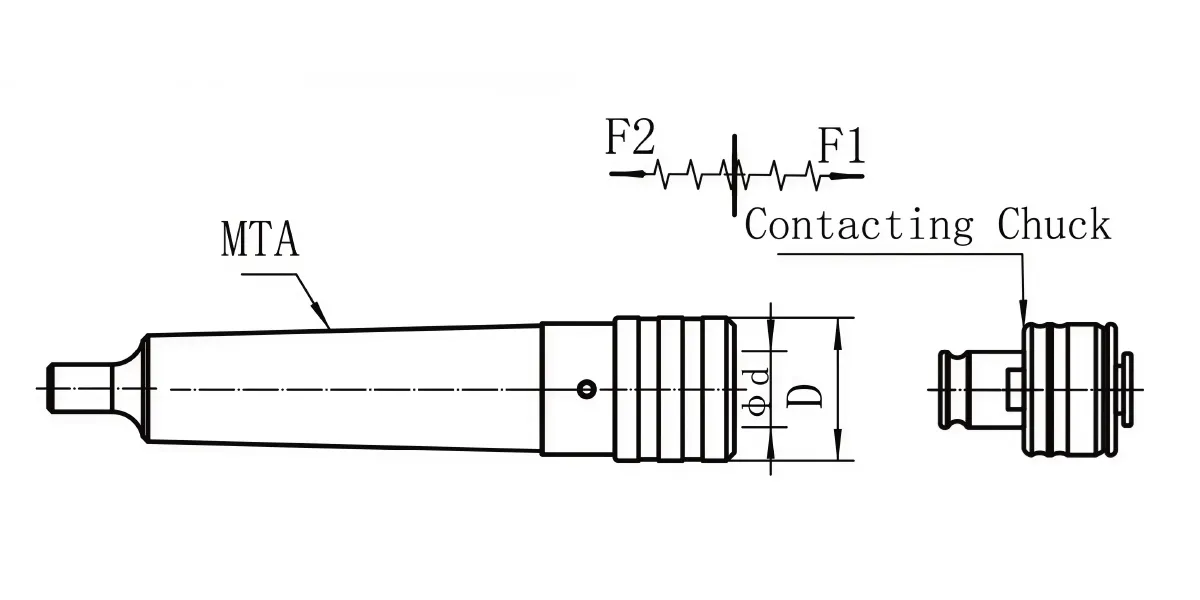

CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.
| MT WF QUICK CHANGE TELESCOPING TAPING HOLDER | |||||||
| 订单号 order No. |
攻丝范围 Range |
ød | øD | L | 伸缩长度 Lenght Comp |
攻丝筒夹 Collet s |
|
| 压缩F2 Comp |
伸长F1 Tens |
||||||
| MT2-WF12 | M3-M12 | 19 | 36 | 49 | 8 | 5 | TC312 |
| MT3-WF12 | M3-M12 | 19 | 36 | 49 | 8 | 5 | TC312 |
| MT3-WF20 | M8-M20 | 31 | 53 | 69 | 14 | 10 | TC820 |
| MT4-WF12 | M3-M12 | 19 | 36 | 49 | 8 | 5 | TC312 |
| MT4-WF20 | M8-M20 | 31 | 53 | 69 | 14 | 10 | TC820 |
| MT4-WF33 | M14-M33 | 48 | 78 | 111 | 20 | 14 | TC1433 |
| MT5-WF20 | M8-M20 | 31 | 53 | 69 | 14 | 10 | TC820 |
| MT5-WF33 | M14-M33 | 48 | 78 | 111 | 20 | 14 | TC1433 |
