Product Details & Technical Resources

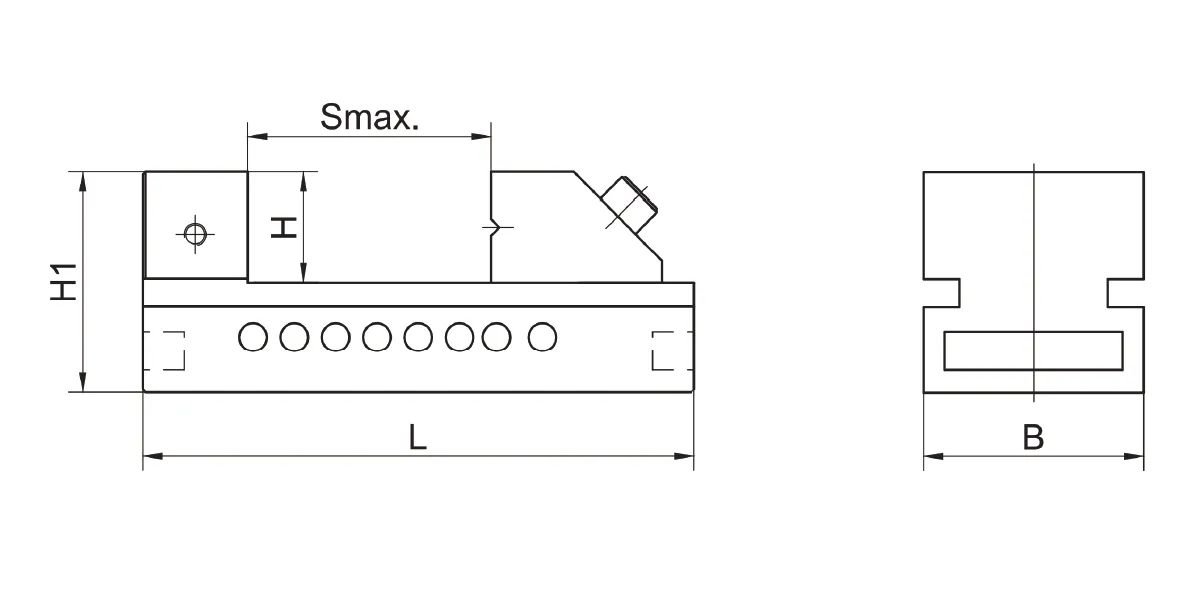

CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.

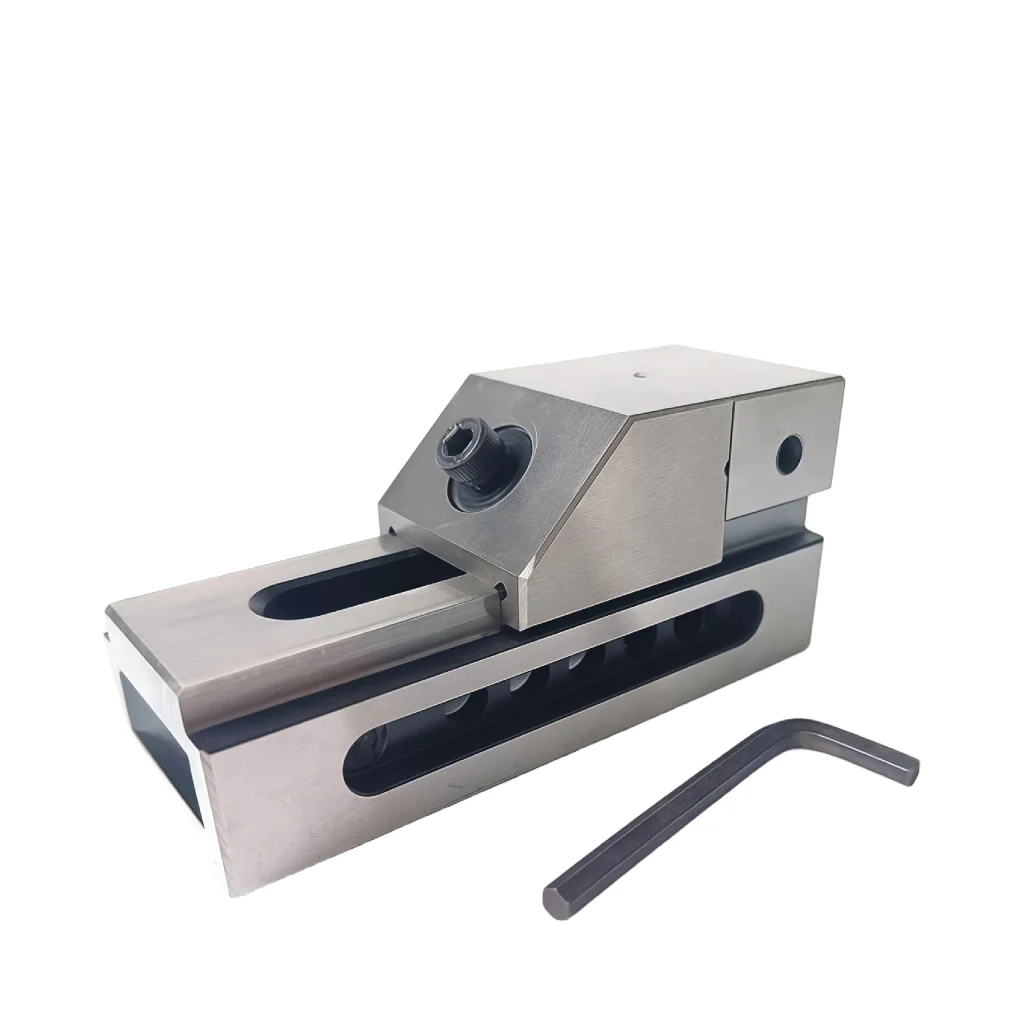

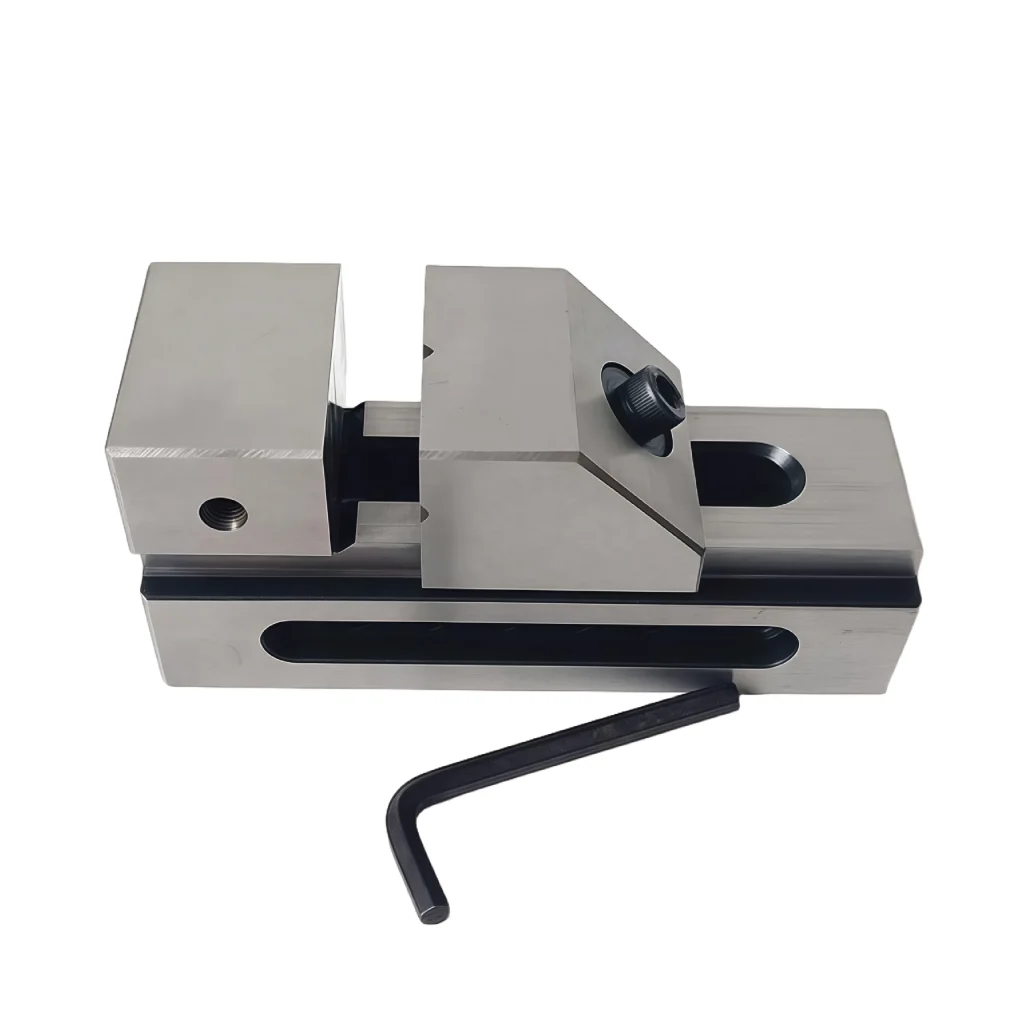

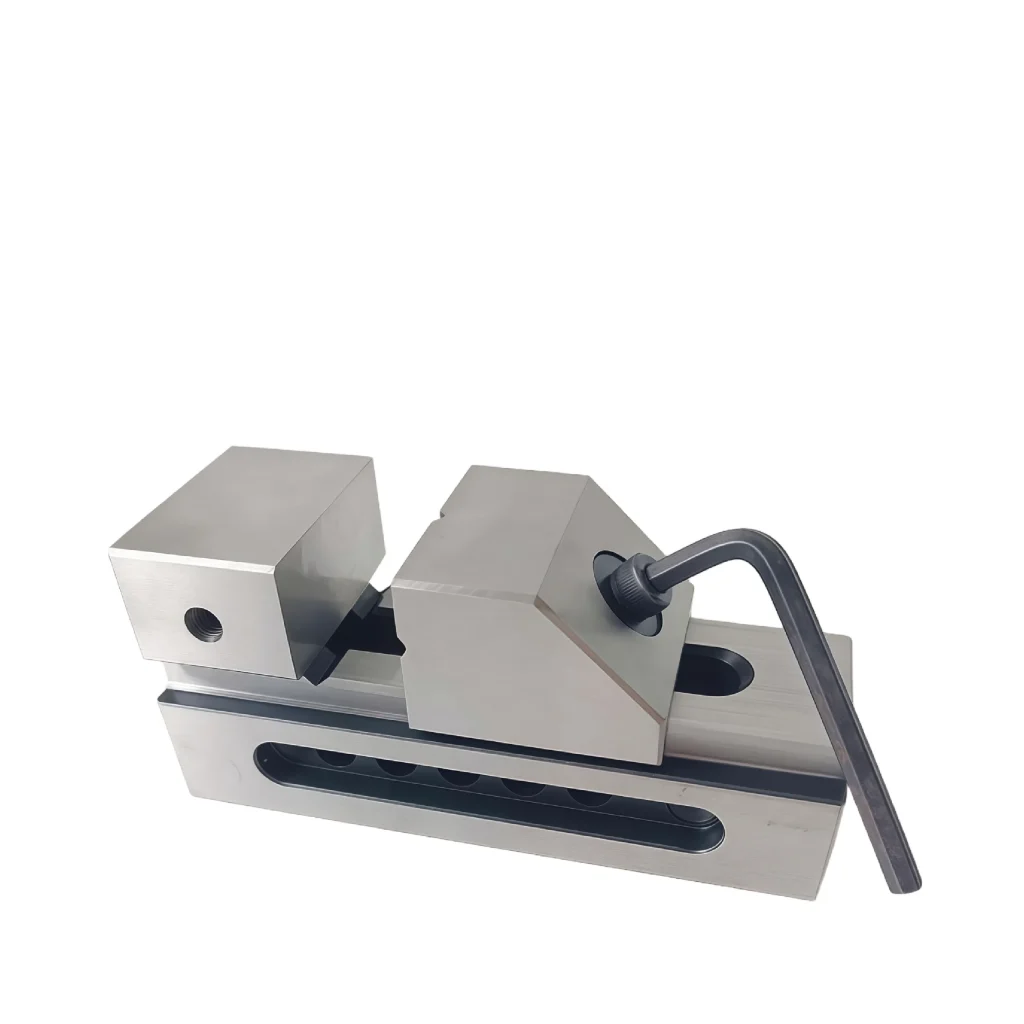

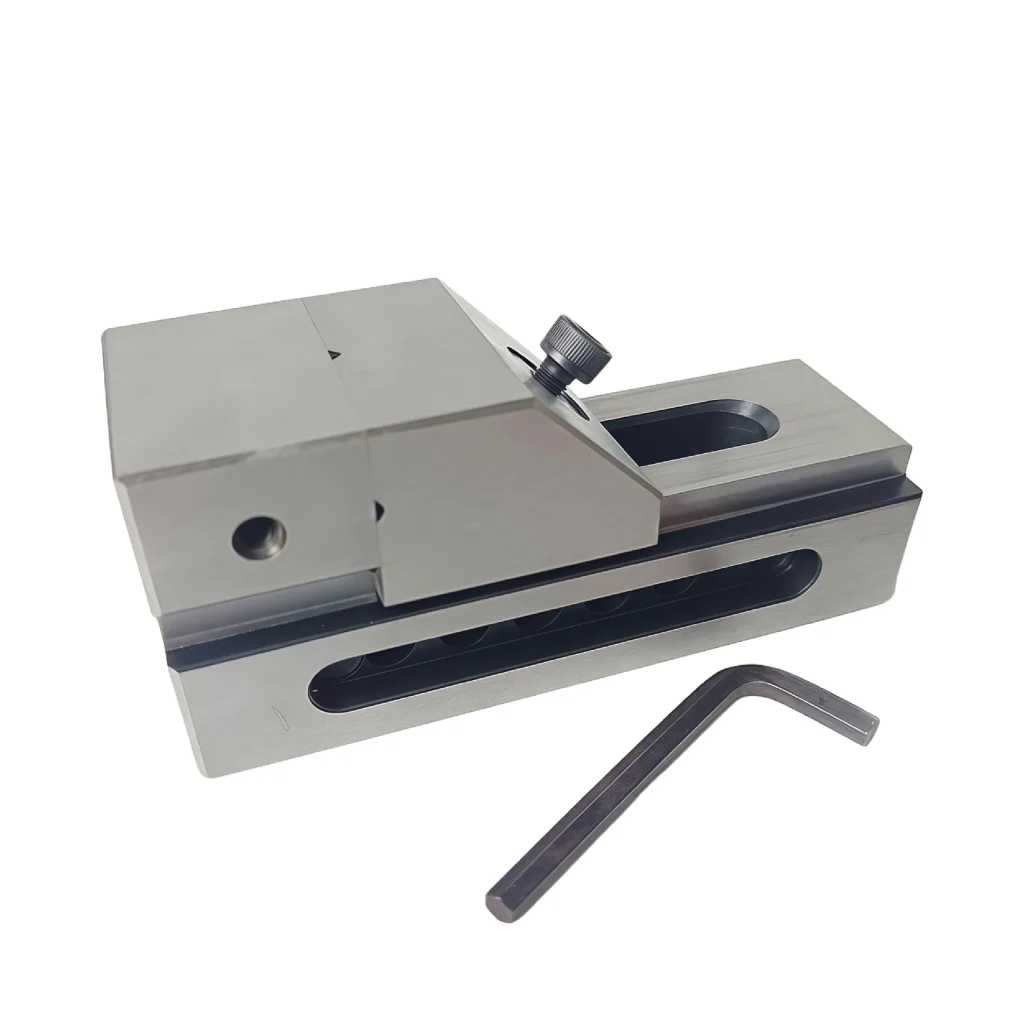

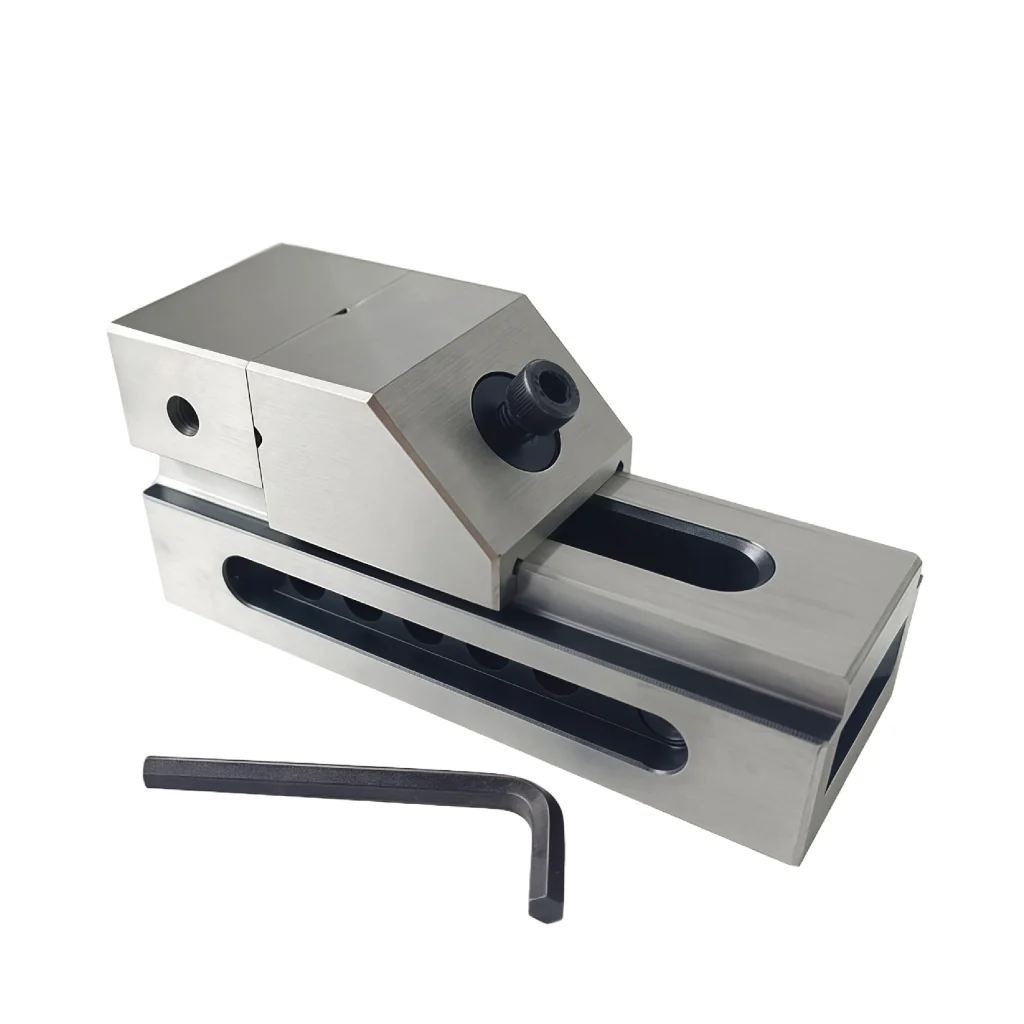

| QKG Toolmaker Vise | |||||||||
| 订单号 Order No. |
钳口宽A JAW HEIGHT |
钳口高B JAW HEIGHT |
开口度C JAW OPEN |
钳体长D BASE LENGTH |
整钳长E VISE LENGTH |
钳体高F BASE HEIGHT |
钳体款G BASE WIDTH |
重量KG VISE WEIGHT |
夹紧力KN CLAMPNG FORCE |
| QKG100-2 | 100 | 30 | 100 | 270 | 320 | 35 | 75 | 7 | 16 |
| QKG125-2 | 125 | 40 | 150 | 345 | 402 | 40 | 95 | 13 | 25 |
| QKG150A-2 | 150 | 50 | 200 | 420 | 500 | 50 | 125 | 26 | 30 |
| QKG150B-2 | 300 | 520 | 600 | 29 | |||||
| QKG175A-2 | 175 | 60 | 200 | 455 | 530 | 58 | 145 | 37 | 30 |
| QKG175B-2 | 300 | 555 | 630 | 42 | |||||
| QKG175C-2 | 400 | 655 | 730 | 47 | |||||
| QKG175D-2 | 500 | 755 | 830 | 52 | |||||
| QKG200A-2 | 200 | 65 | 200 | 495 | 580 | 70 | 175 | 64 | 40 |
| QKG200B-2 | 300 | 595 | 680 | 69 | |||||
| QKG200C-2 | 400 | 695 | 780 | 74 | |||||
| QKG200D-2 | 500 | 795 | 880 | 79 | |||||
| QKG200E-2 | 600 | 895 | 980 | 84 | |||||
| QKG300A-2 | 300 | 80 | 200 | 535 | 630 | 78 | 195 | 95 | 40 |
| QKG300B-2 | 300 | 635 | 730 | 105 | |||||
| QKG300C-2 | 400 | 735 | 830 | 115 | |||||
| QKG300D-2 | 500 | 835 | 930 | 125 | |||||
| QKG300E-2 | 600 | 935 | 1030 | 135 | |||||
| QKG300F-2 | 700 | 1035 | 1130 | 145 | |||||
| QKG300G-2 | 800 | 1135 | 1230 | 155 | |||||
