SK ER milling chuck arbors

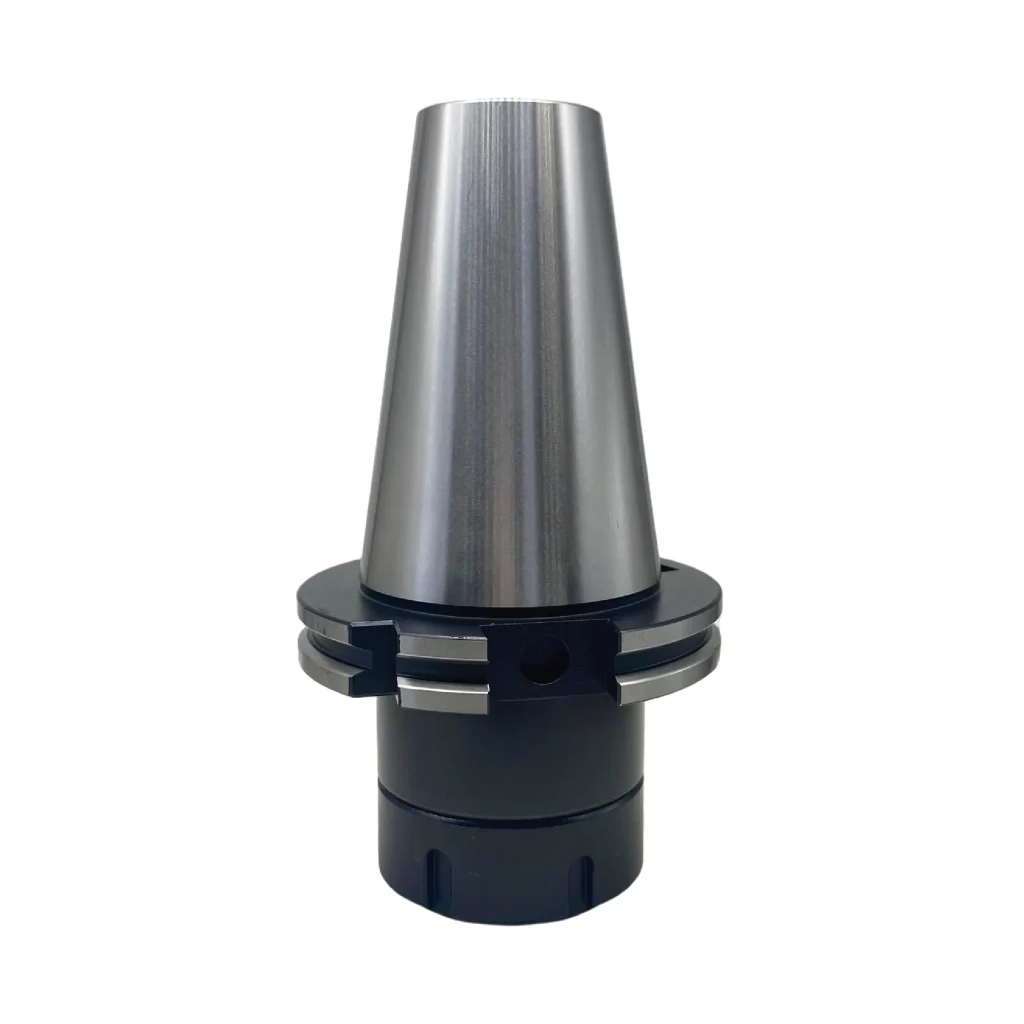

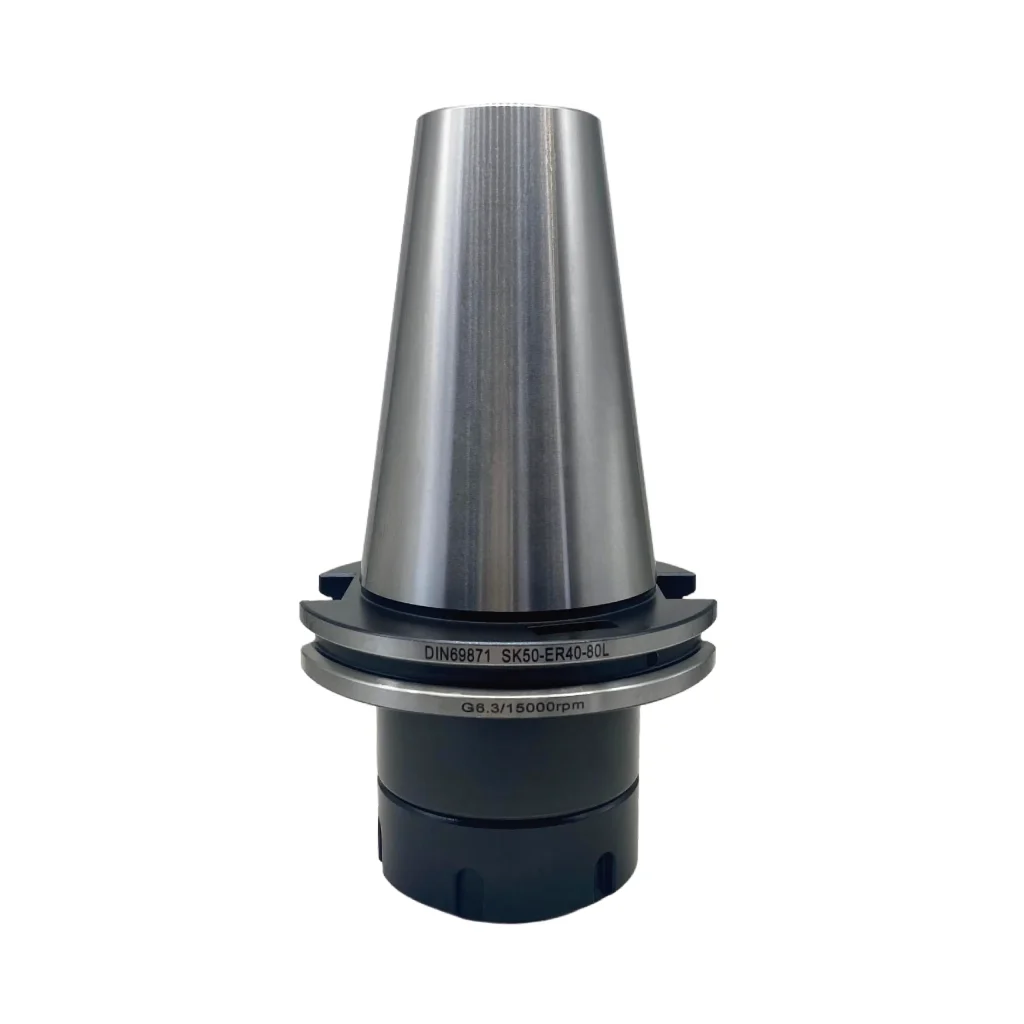

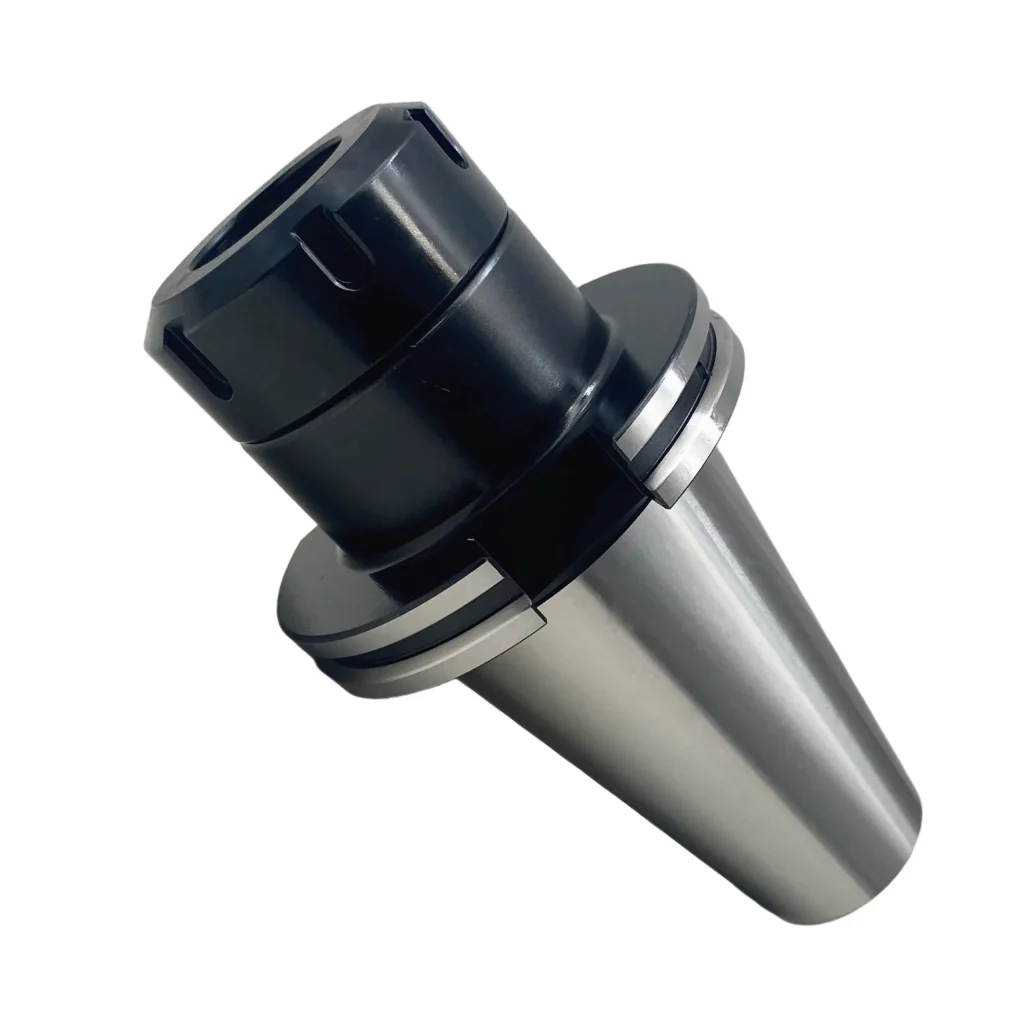

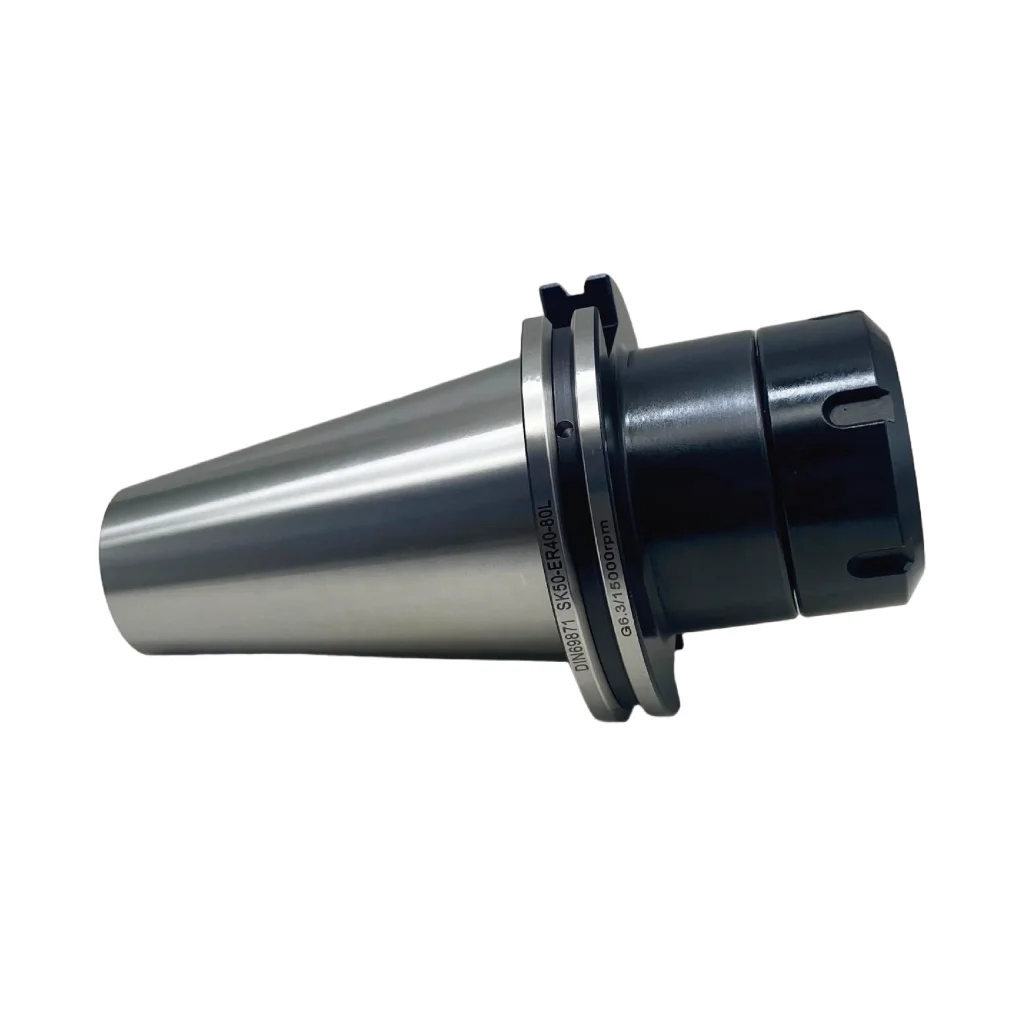

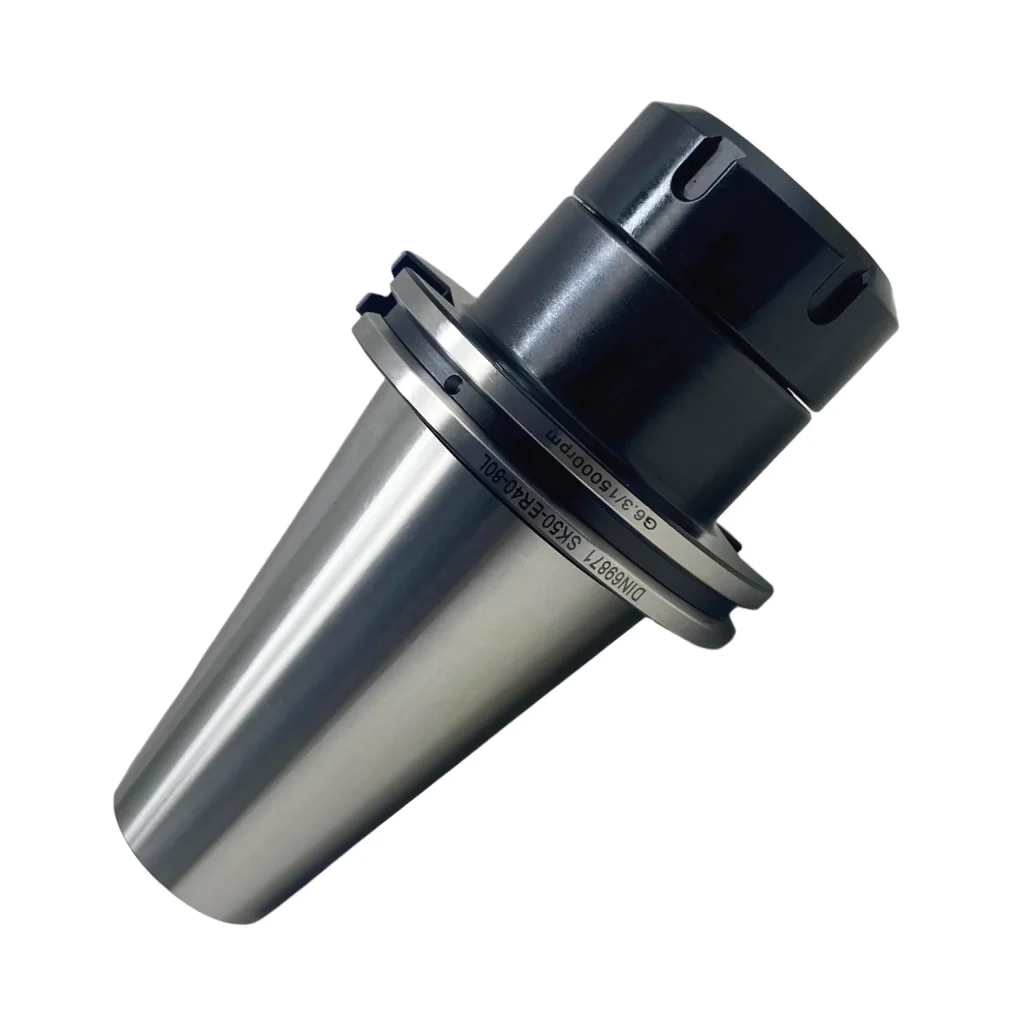

The DIN69871 Milling Chuck is a widely adopted, high-performance tooling solution compliant with international DIN69871 interface standards. Engineered for CNC milling machines, it delivers exceptional precision, rigid tool holding, and great production flexibility.
Product Details & Technical Resources

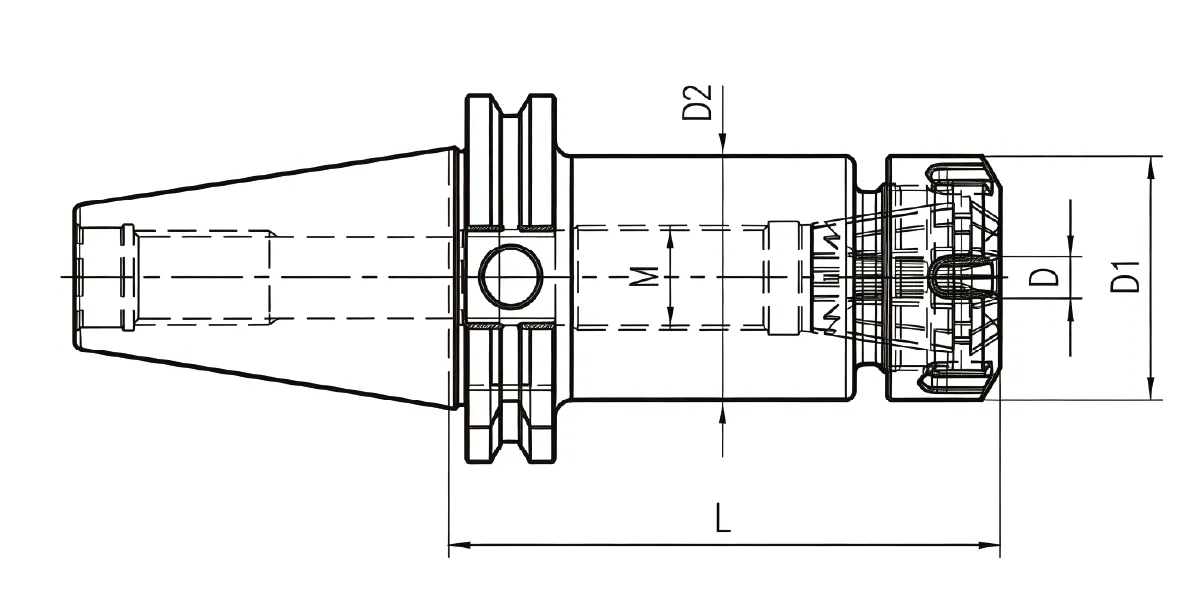

CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.
| DIN 69871 SK-ER Collet Chuck | ||||||
| 型号 MODEL |
尺寸SIZE (mm) |
|||||
| DIN 69871-A | D | D1 | D2 | L | M | |
| SK40-ER11-70 | 40 | 1.0～7 | 19 | 19 | M8×1-LH | 70 |
| SK40-ER11-100 | 40 | 1.0～7 | 19 | 19 | M8×1-LH | 100 |
| SK40-ER11-120 | 40 | 1.0～7 | 19 | 19 | M8×1-LH | 120 |
| SK40-ER16-70 | 40 | 1.0～10 | 28 | 28 | 7/16-20 UNF-LH | 70 |
| SK40-ER16-100 | 40 | 1.0～10 | 28 | 28 | 7/16-20 UNF-LH | 100 |
| SK40-ER16-120 | 40 | 1.0～10 | 28 | 28 | 7/16-20 UNF-LH | 120 |
| SK40-ER16-160 | 40 | 1.0～10 | 28 | 28 | 7/16-20 UNF-LH | 160 |
| SK40-ER20-70 | 40 | 1.0～13 | 34 | 34 | M14×1.5-LH | 70 |
| SK40-ER20-80 | 40 | 1.0～13 | 34 | 34 | M14×1.5-LH | 80 |
| SK40-ER20-100 | 40 | 1.0～13 | 34 | 34 | M14×1.5-LH | 100 |
| SK40-ER20-120 | 40 | 1.0～13 | 34 | 34 | M14×1.5-LH | 120 |
| SK40-ER20-160 | 40 | 1.0～13 | 34 | 34 | M14×1.5-LH | 160 |
| SK40-ER25-70 | 40 | 2.0～16 | 42 | 42 | M18×1.5-LH | 70 |
| SK40-ER25-80 | 40 | 2.0～16 | 42 | 42 | M18×1.5-LH | 80 |
| SK40-ER25-100 | 40 | 2.0～16 | 42 | 42 | M18×1.5-LH | 100 |
| SK40-ER25-120 | 40 | 2.0～16 | 42 | 42 | M18×1.5-LH | 120 |
| SK40-ER25-160 | 40 | 2.0～16 | 42 | 42 | M18×1.5-LH | 160 |
| SK40-ER32-60 | 40 | 2.0～16 | 50 | 50 | M22×1.5-LH | 60 |
| SK40-ER32-70 | 40 | 2.0～20 | 50 | 50 | M22×1.5-LH | 70 |
| SK40-ER32-100 | 40 | 2.0～20 | 50 | 50 | M22×1.5-LH | 100 |
| SK40-ER32-120 | 40 | 2.0～20 | 50 | 50 | M22×1.5-LH | 120 |
| SK40-ER32-160 | 40 | 2.0～20 | 50 | 50 | M22×1.5-LH | 160 |
| SK40-ER40-70 | 40 | 3.0～26 | 63 | 63 | 1 1/8-16 UN-LH | 70 |
| SK40-ER40-80 | 40 | 3.0～26 | 63 | 63 | 1 1/8-16 UN-LH | 80 |
| SK40-ER40-100 | 40 | 3.0～26 | 63 | 63 | 1 1/8-16 UN-LH | 100 |
| SK40-ER40-160 | 40 | 3.0～26 | 63 | 63 | 1 1/8-16 UN-LH | 160 |
| SK50-ER11-70 | 50 | 1.0～7 | 19 | 19 | M8×1-LH | 70 |
| SK50-ER11-100 | 50 | 1.0～7 | 19 | 19 | M8×1-LH | 100 |
| SK50-ER11-120 | 50 | 1.0～7 | 19 | 19 | M8×1-LH | 120 |
| SK50-ER16-60 | 50 | 1.0～10 | 28 | 28 | 7/16-20 UNF-LH | 60 |
| SK50-ER16-70 | 50 | 1.0～10 | 28 | 28 | 7/16-20 UNF-LH | 70 |
| SK50-ER16-100 | 50 | 1.0～10 | 28 | 28 | 7/16-20 UNF-LH | 100 |
| SK50-ER16-120 | 50 | 1.0～10 | 28 | 28 | 7/16-20 UNF-LH | 120 |
| SK50-ER16-160 | 50 | 1.0～10 | 28 | 28 | 7/16-20 UNF-LH | 160 |
| SK50-ER20-70 | 50 | 1.0～13 | 34 | 34 | M14×1.5-LH | 70 |
| SK50-ER20-100 | 50 | 1.0～13 | 34 | 34 | M14×1.5-LH | 100 |
| SK50-ER20-120 | 50 | 1.0～13 | 34 | 34 | M14×1.5-LH | 120 |
| SK50-ER20-160 | 50 | 1.0～13 | 34 | 34 | M14×1.5-LH | 160 |
| SK50-ER25-70 | 50 | 2.0～16 | 42 | 42 | M18×1.5-LH | 70 |
| SK50-ER25-100 | 50 | 2.0～16 | 42 | 42 | M18×1.5-LH | 100 |
| SK50-ER25-120 | 50 | 2.0～16 | 42 | 42 | M18×1.5-LH | 120 |
| SK50-ER25-160 | 50 | 2.0～16 | 42 | 42 | M18×1.5-LH | 160 |
| SK50-ER32-70 | 50 | 2.0～20 | 50 | 50 | M22×1.5-LH | 70 |
| SK50-ER32-90 | 50 | 2.0～20 | 50 | 50 | M22×1.5-LH | 90 |
| SK50-ER32-100 | 50 | 2.0～20 | 50 | 50 | M22×1.5-LH | 100 |
| SK50-ER32-120 | 50 | 2.0～20 | 50 | 50 | M22×1.5-LH | 120 |
| SK50-ER32-160 | 50 | 2.0～20 | 50 | 50 | M22×1.5-LH | 160 |
| SK50-ER40-70 | 50 | 3.0～26 | 63 | 63 | 1 1/8-16 UN-LH | 70 |
| SK50-ER40-100 | 50 | 3.0～26 | 63 | 63 | 1 1/8-16 UN-LH | 100 |
| SK50-ER40-160 | 50 | 3.0～26 | 63 | 63 | 1 1/8-16 UN-LH | 160 |
