CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.

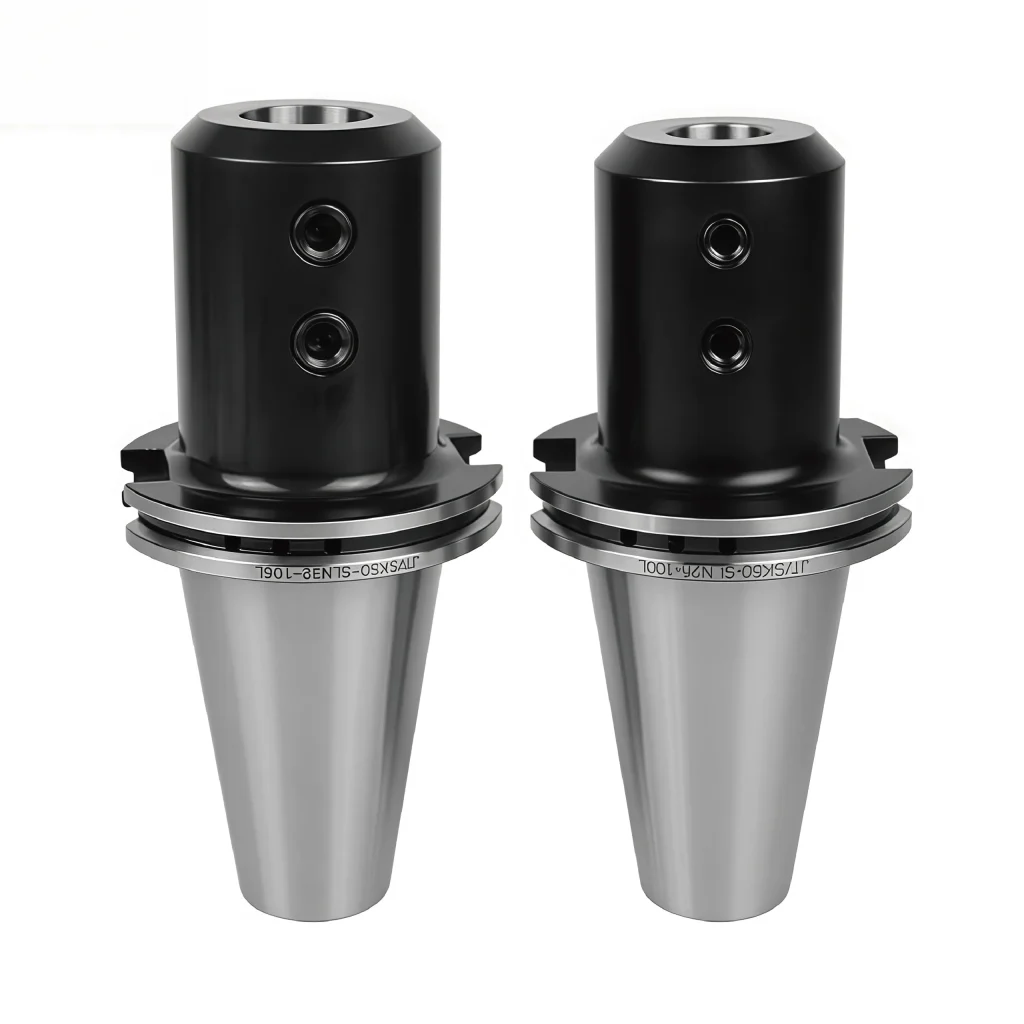

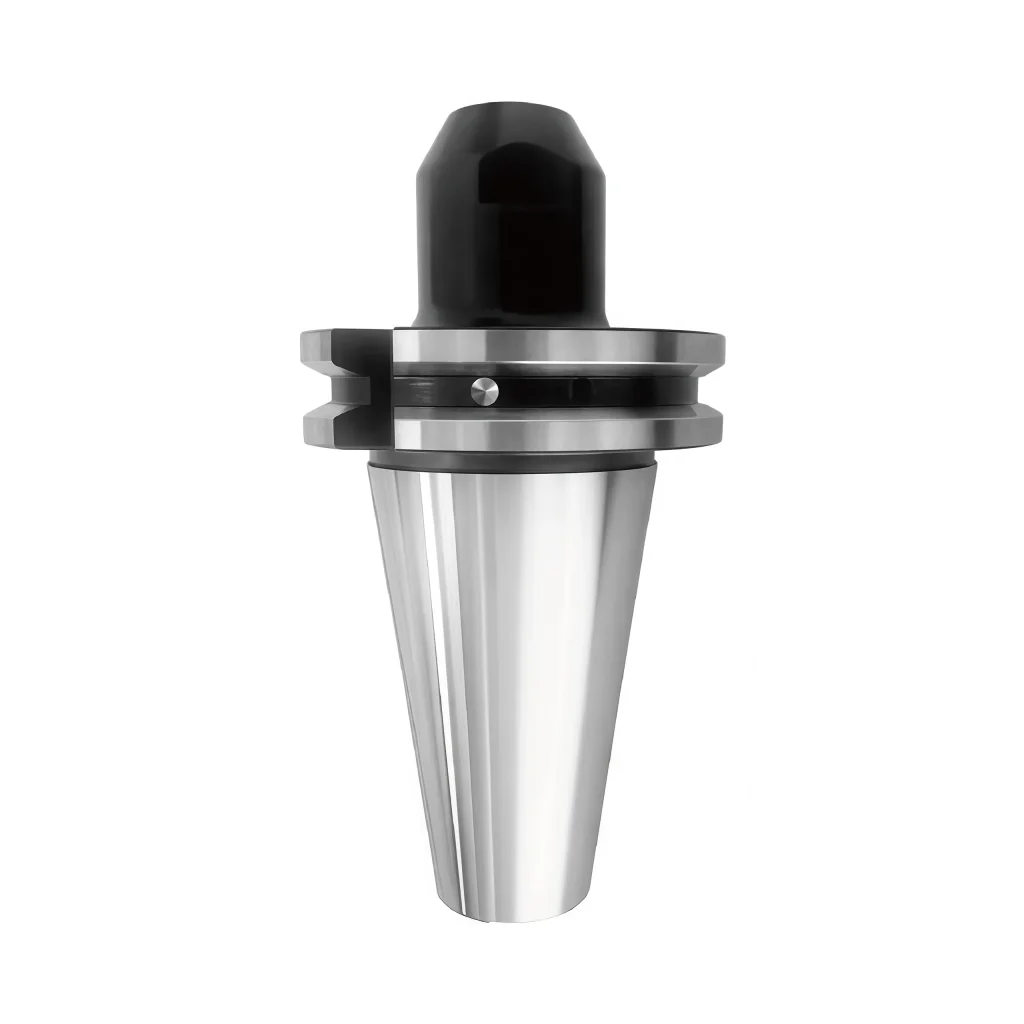

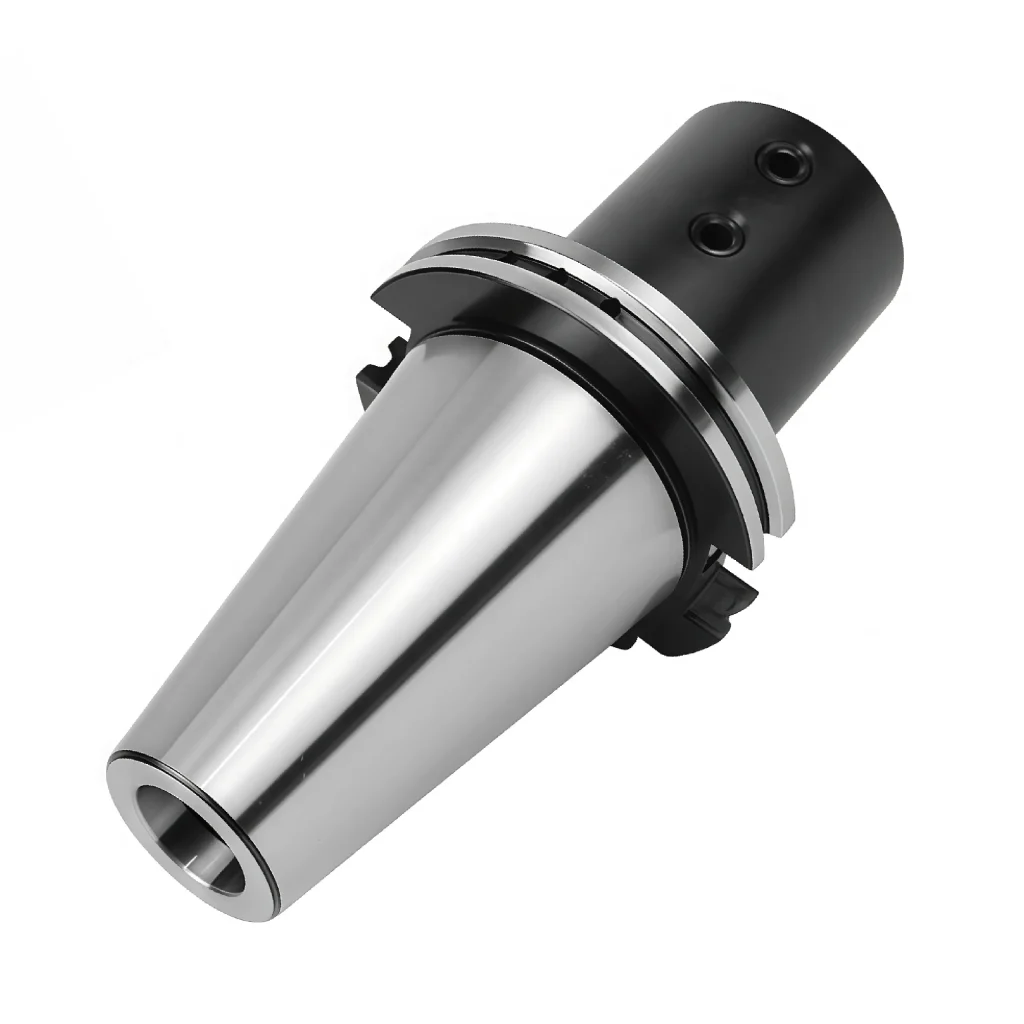

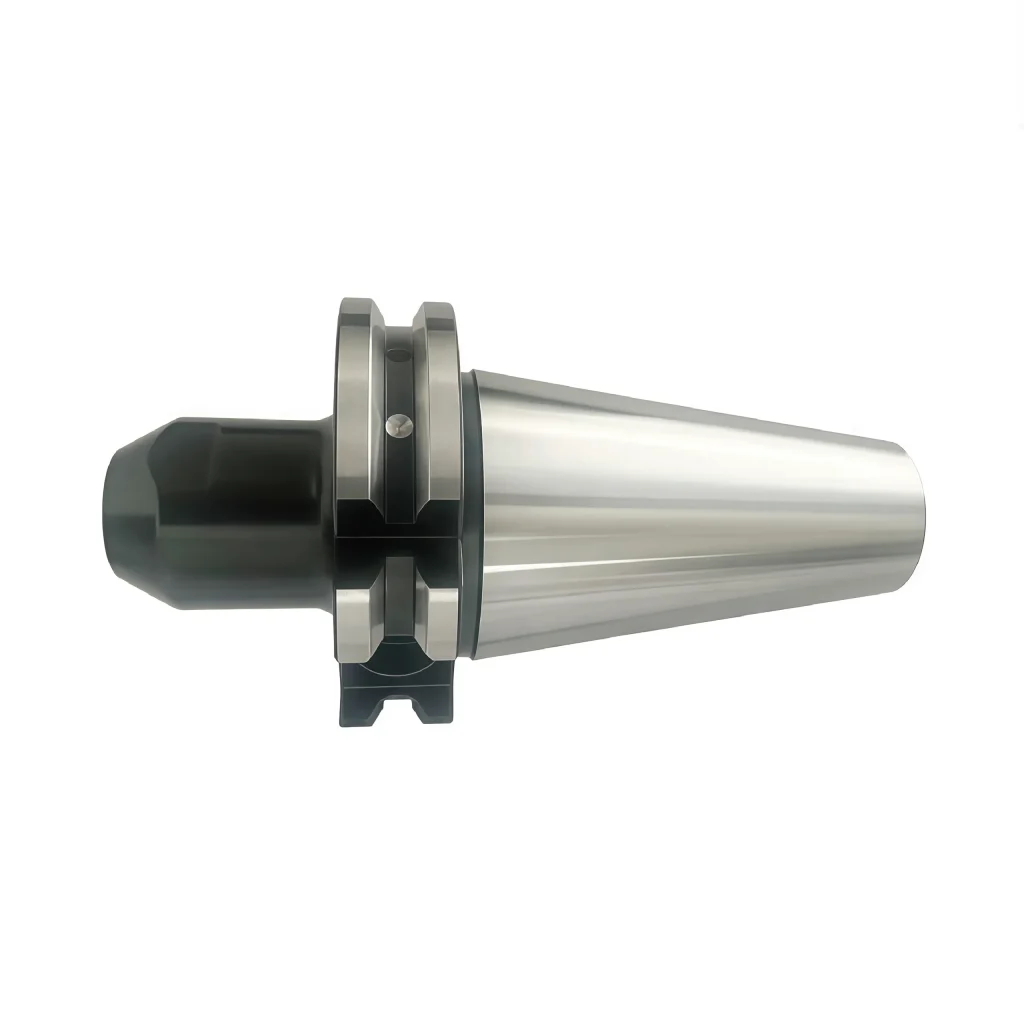

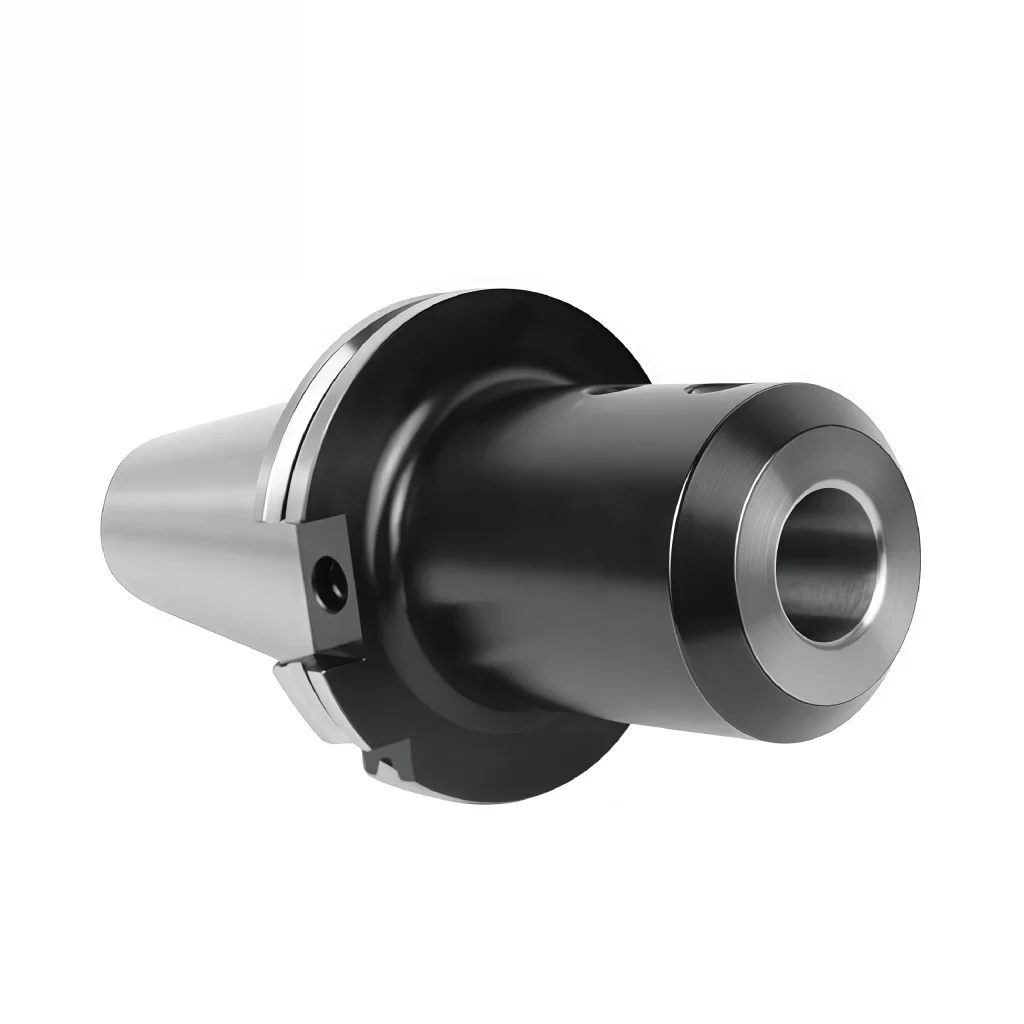

| SK Side Lock Holder | ||||||||||
| 型号 MODEL |
尺寸SIZE (mm) |
|||||||||

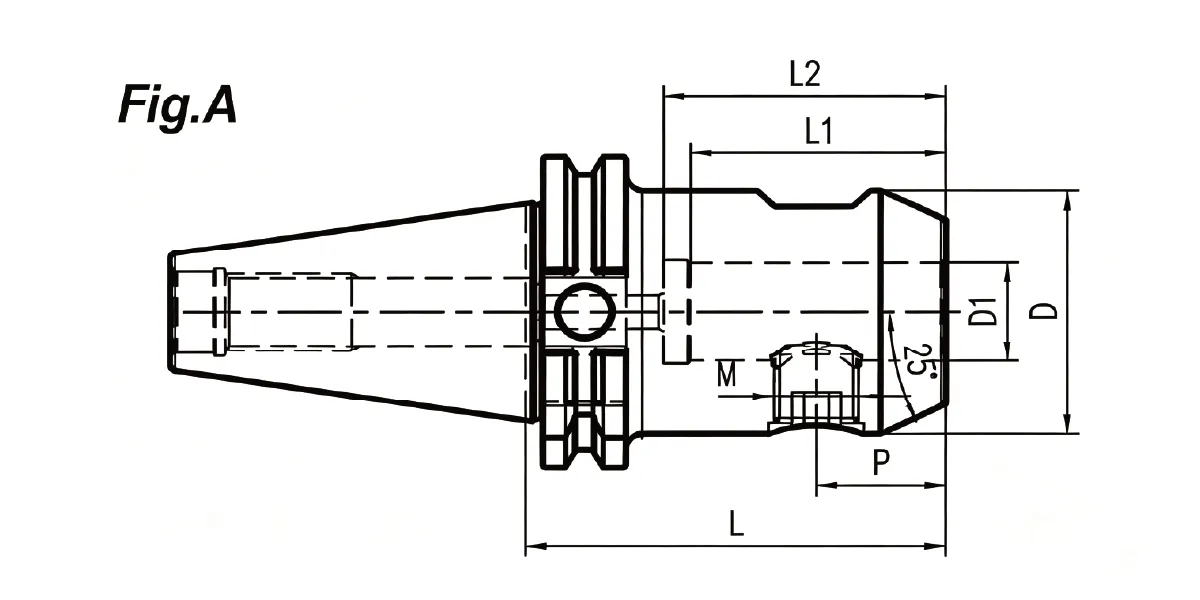

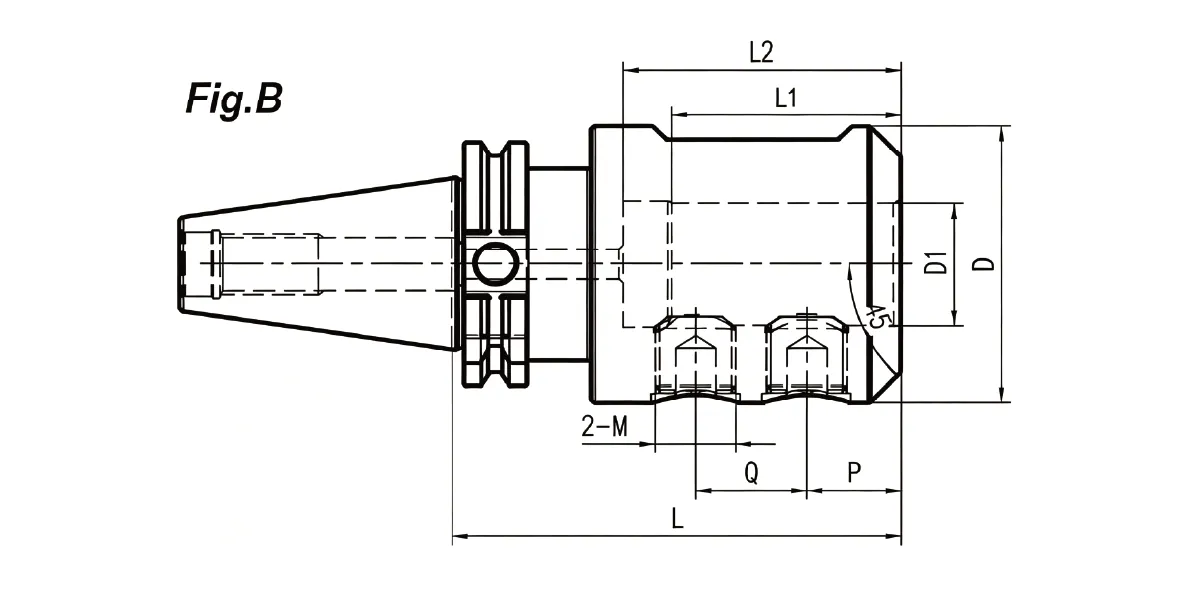

| DIN 69871 SK | D | D1 | L | L1 | L2 | M | P | Q | Fig | |
| SK40-SLN12-63 | 40 | 42 | 12 | 63 | 44 | 49 | M12×1.75 | 22.5 | - | A |
| SK40-SLN12-100 | 40 | 42 | 12 | 100 | 44 | 49 | M12×1.75 | 22.5 | - | A |
| SK40-SLN16-63 | 40 | 48 | 16 | 63 | 47 | 52 | M14×2 | 24 | - | A |
| SK40-SLN16-100 | 40 | 48 | 16 | 100 | 47 | 52 | M14×2 | 24 | - | A |
| SK40-SLN20-63 | 40 | 52 | 20 | 63 | 49 | 54 | M16×2 | 25 | - | A |
| SK40-SLN20-100 | 40 | 52 | 20 | 100 | 49 | 54 | M16×2 | 25 | - | A |
| SK40-SLN20-160 | 40 | 52 | 20 | 160 | 49 | 54 | M16×2 | 25 | - | A |
| SK40-SLN25-100 | 40 | 65 | 25 | 100 | 54 | 66 | M18×2 | 24 | 25 | B |
| SK40-SLN25-160 | 40 | 65 | 25 | 160 | 54 | 66 | M18×2 | 24 | 25 | B |
| SK40-SLN25-200 | 40 | 65 | 25 | 200 | 54 | 66 | M18×2 | 24 | 25 | B |
| SK40-SLN32-100 | 40 | 72 | 32 | 100 | 58 | 70 | M18×2 | 24 | 28 | B |
| SK40-SLN32-160 | 40 | 72 | 32 | 160 | 58 | 70 | M20×2 | 24 | 28 | B |
| SK40-SLN32-200 | 40 | 72 | 32 | 200 | 58 | 70 | M20×2 | 24 | 28 | B |
| SK50-SLN16-63 | 50 | 48 | 16 | 63 | 47 | 52 | M14×2 | 24 | - | A |
| SK50-SLN16-100 | 50 | 48 | 16 | 100 | 47 | 52 | M14×2 | 24 | - | A |
| SK50-SLN20-63 | 50 | 52 | 20 | 63 | 49 | 54 | M16×2 | 25 | - | A |
| SK50-SLN20-100 | 50 | 52 | 20 | 100 | 49 | 54 | M16×2 | 25 | - | A |
| SK50-SLN20-160 | 50 | 52 | 20 | 160 | 49 | 54 | M16×2 | 25 | - | A |
| SK50-SLN25-80 | 50 | 65 | 25 | 80 | 54 | 66 | M18×2 | 24 | 25 | B |
| SK50-SLN25-120 | 50 | 65 | 25 | 120 | 54 | 66 | M18×2 | 24 | 25 | B |
| SK50-SLN25-160 | 50 | 65 | 25 | 160 | 54 | 66 | M18×2 | 24 | 25 | B |
| SK50-SLN32-100 | 50 | 72 | 32 | 100 | 58 | 70 | M20×2 | 24 | 28 | B |
| SK50-SLN32-160 | 50 | 72 | 32 | 160 | 58 | 70 | M20×2 | 24 | 28 | B |
| SK50-SLN32-200 | 50 | 72 | 32 | 200 | 58 | 70 | M20×2 | 24 | 28 | B |
| SK50-SLN40-100 | 50 | 80 | 40 | 100 | 68 | 80 | M20×2 | 30 | 32 | B |
| SK50-SLN40-110 | 50 | 80 | 40 | 110 | 68 | 80 | M20×2 | 30 | 32 | B |
| SK50-SLN40-160 | 50 | 80 | 40 | 160 | 68 | 80 | M20×2 | 30 | 32 | B |
| SK50-SLN40-200 | 50 | 80 | 40 | 200 | 68 | 80 | M20×2 | 30 | 32 | B |
