Products
Product Details & Technical Resources

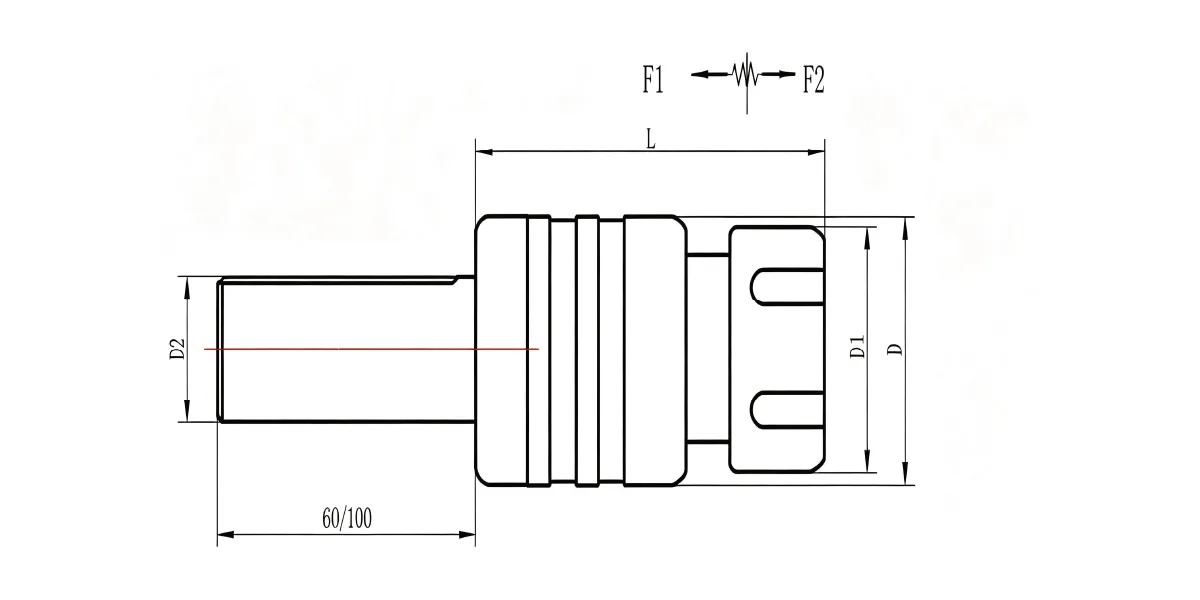

CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.

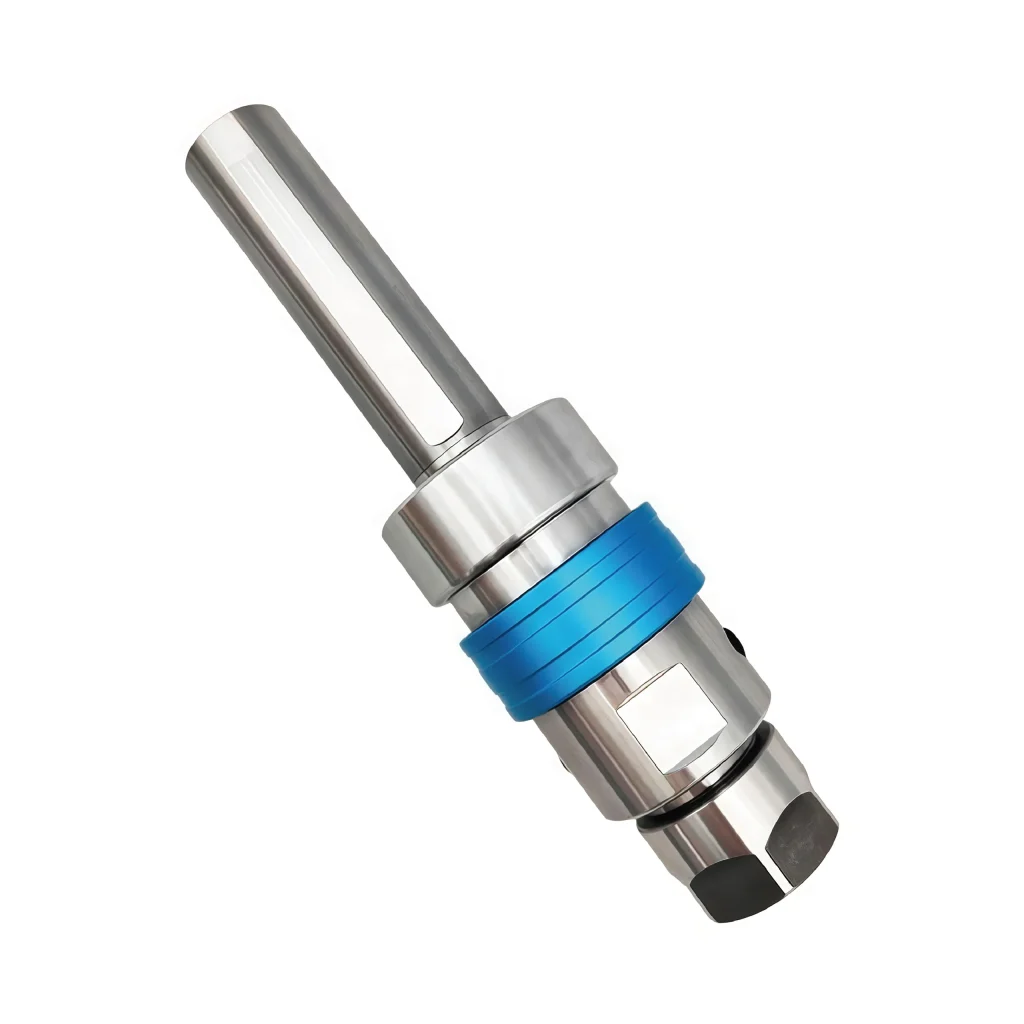

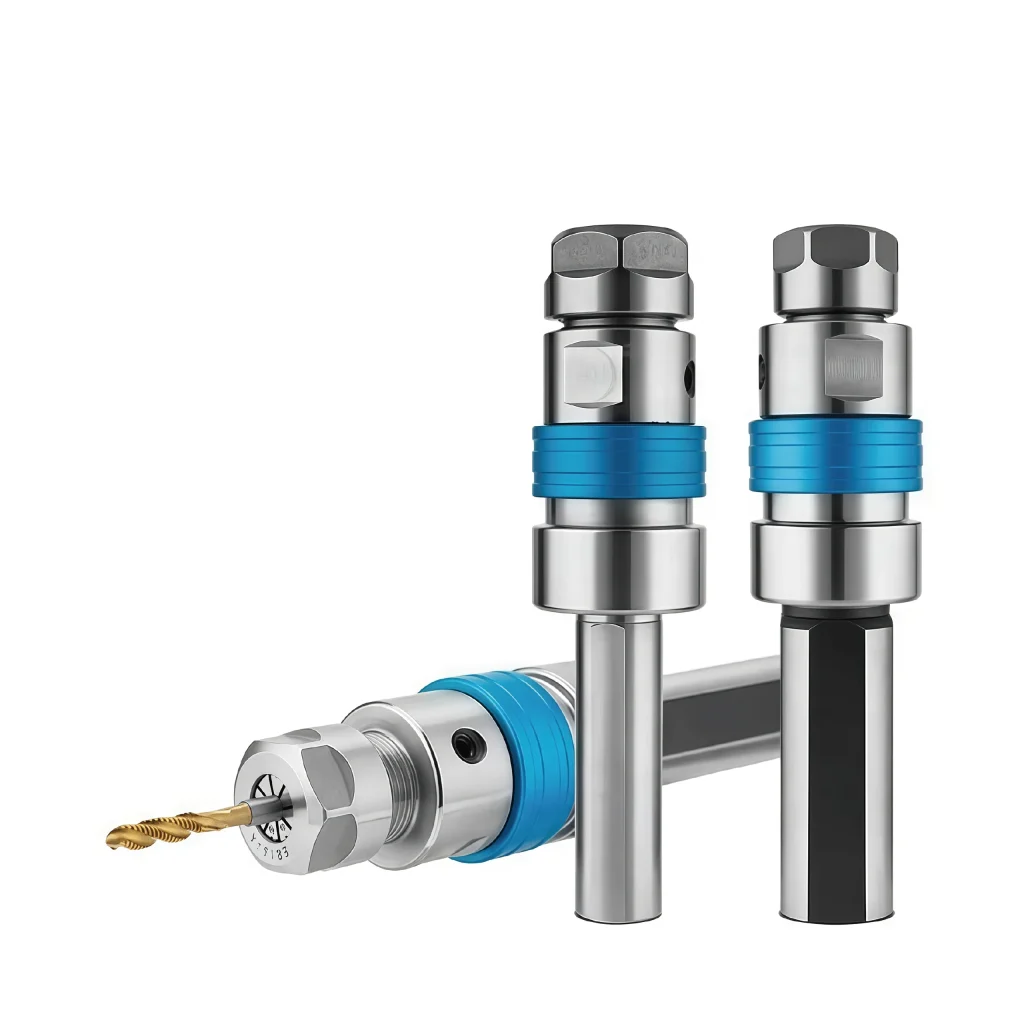

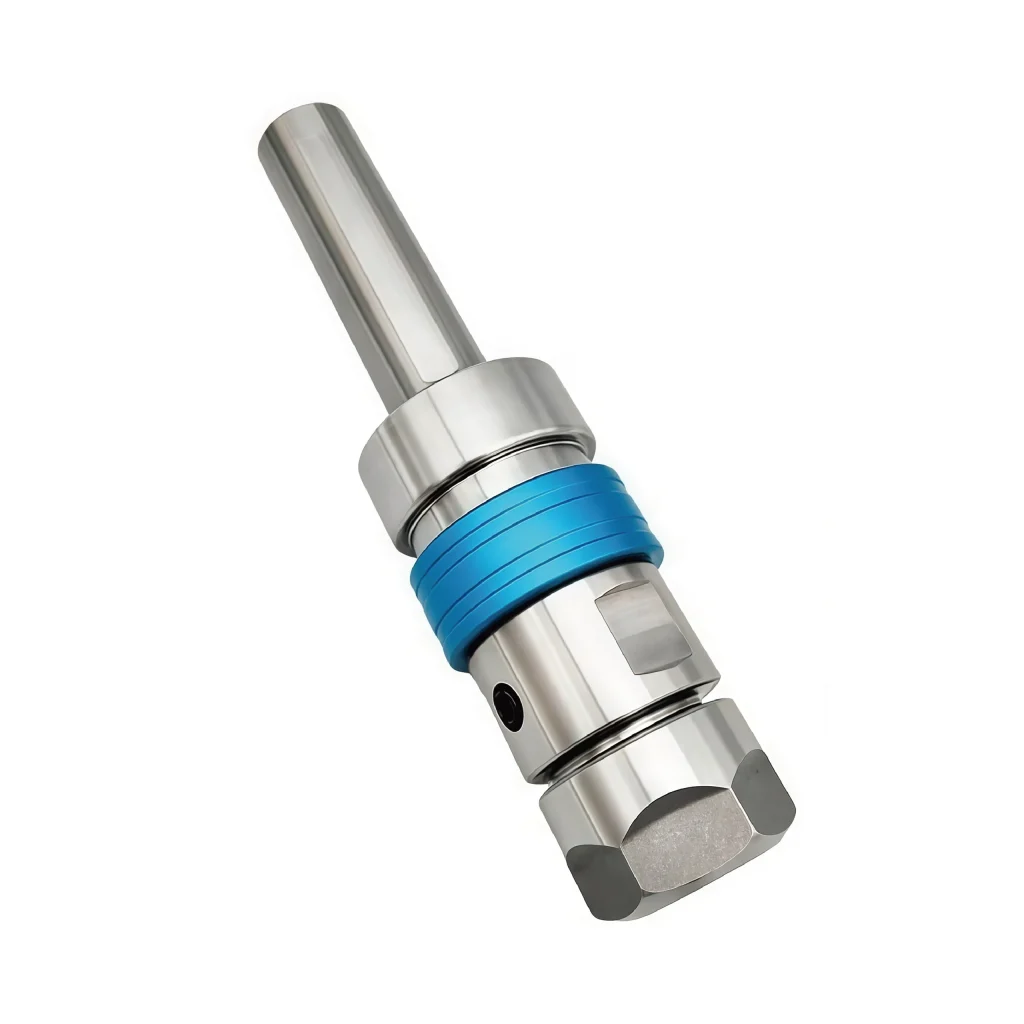

| STRAIGHT MICRO-TELESCOPING TAPPING HOLDER | ||||||||
| 订单号 order No. |
Range 攻丝范围 |
ØD1 | ØD | L1 | L | 伸缩长度 Lenght Comp |
攻丝筒夹 Collet s |
|
| 压缩F2 Comp |
伸长F1 Tens |
|||||||
| C16-TER16-125L | M3-M10 | 28 | 46 | 60/100 | 125 | 15 | 15 | ER16 |
| C16-TER20-125L | M3-M12 | 34 | 46 | 60/100 | 125 | 15 | 15 | ER20 |
| C16-TER25-125L | M3-M16 | 42 | 46 | 60/100 | 125 | 15 | 15 | ER25 |
| C20-TER16-125L | M3-M10 | 28 | 46 | 60/100 | 125 | 15 | 15 | ER16 |
| C20-TER20-125L | M3-M12 | 34 | 46 | 60/100 | 125 | 15 | 15 | ER20 |
| C20-TER25-125L | M3-M16 | 42 | 46 | 60/100 | 125 | 15 | 15 | ER25 |
| C25-TER16-125L | M3-M10 | 28 | 46 | 60/100 | 125 | 15 | 15 | ER16 |
| C25-TER20-125L | M3-M12 | 34 | 46 | 60/100 | 125 | 15 | 15 | ER20 |
| C25-TER25-125L | M3-M16 | 42 | 46 | 60/100 | 125 | 15 | 15 | ER25 |
| C25-TER32-125L | M6-M20 | 50 | 46 | 60/100 | 125 | 15 | 15 | ER32 |
| C32-TER25-125L | M3-M16 | 42 | 46 | 60/100 | 125 | 15 | 15 | ER25 |
| C32-TER32-125L | M6-M20 | 50 | 46 | 60/100 | 125 | 15 | 15 | ER32 |
| C32-TER40-130L | M12-M33 | 63 | 46 | 60/100 | 130 | 15 | 15 | ER40 |
