Product Details & Technical Resources

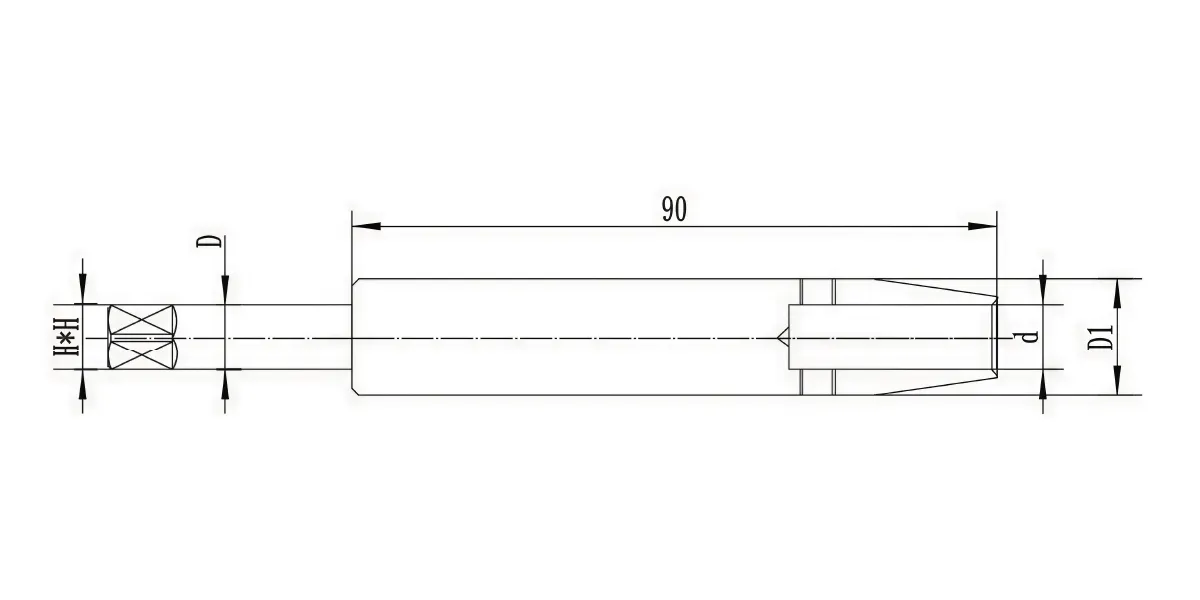

CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.

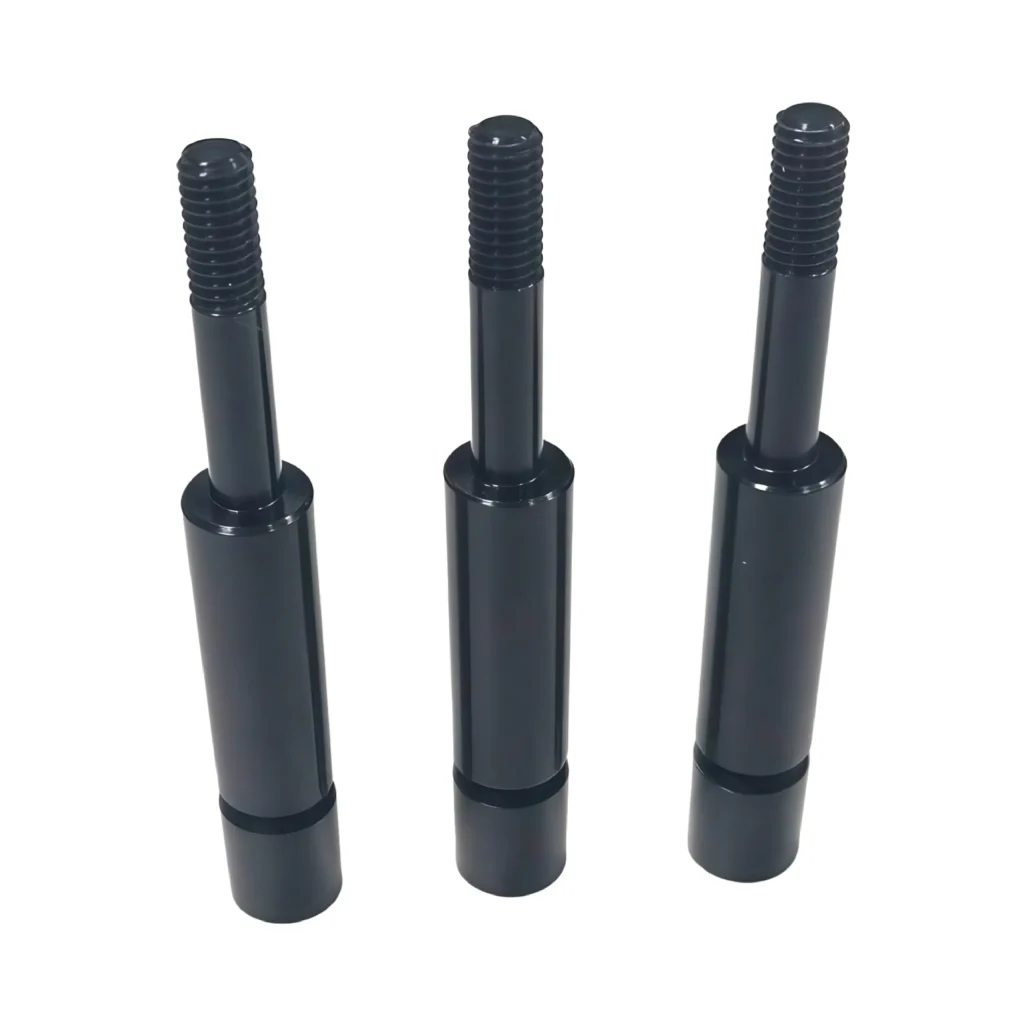

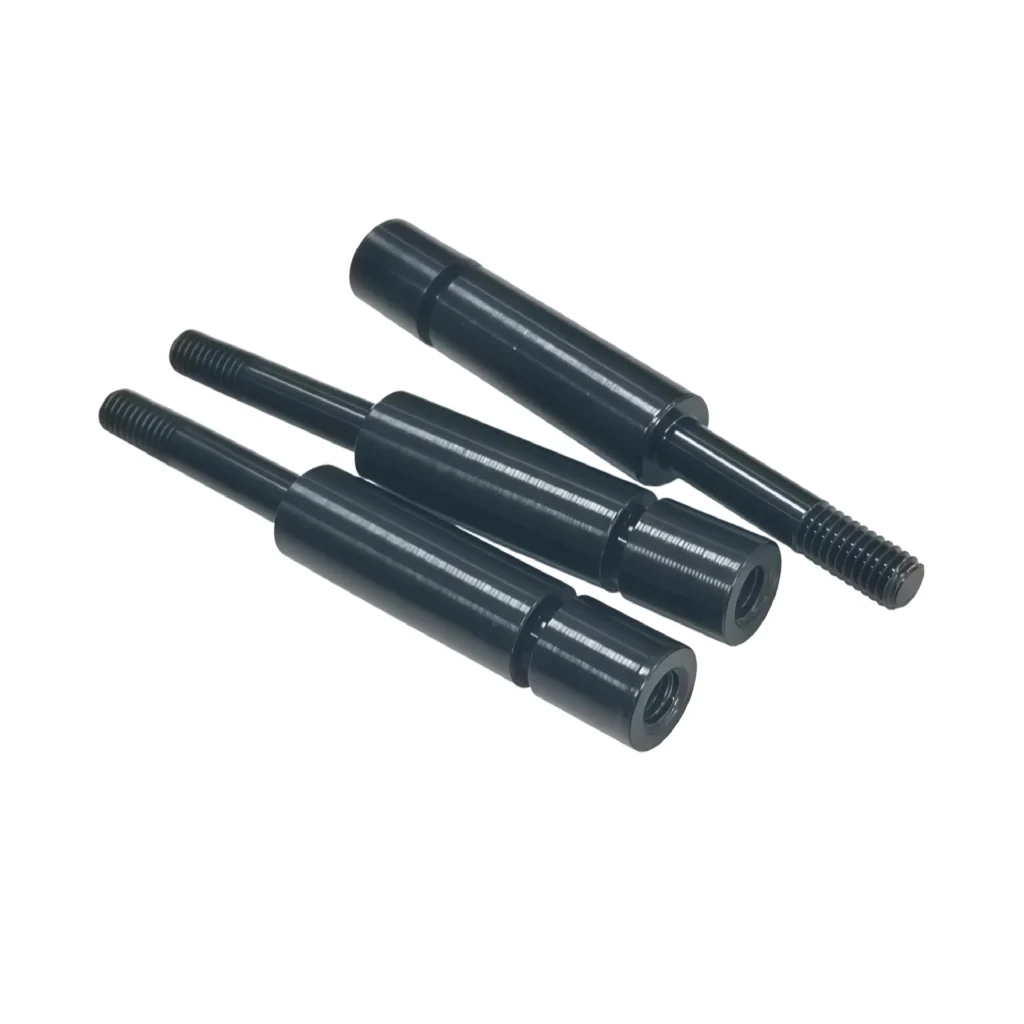

| Tap Extension Bar | |||||
| 订单号 order No. |
D | d | D1 | H*H | REMARKS |

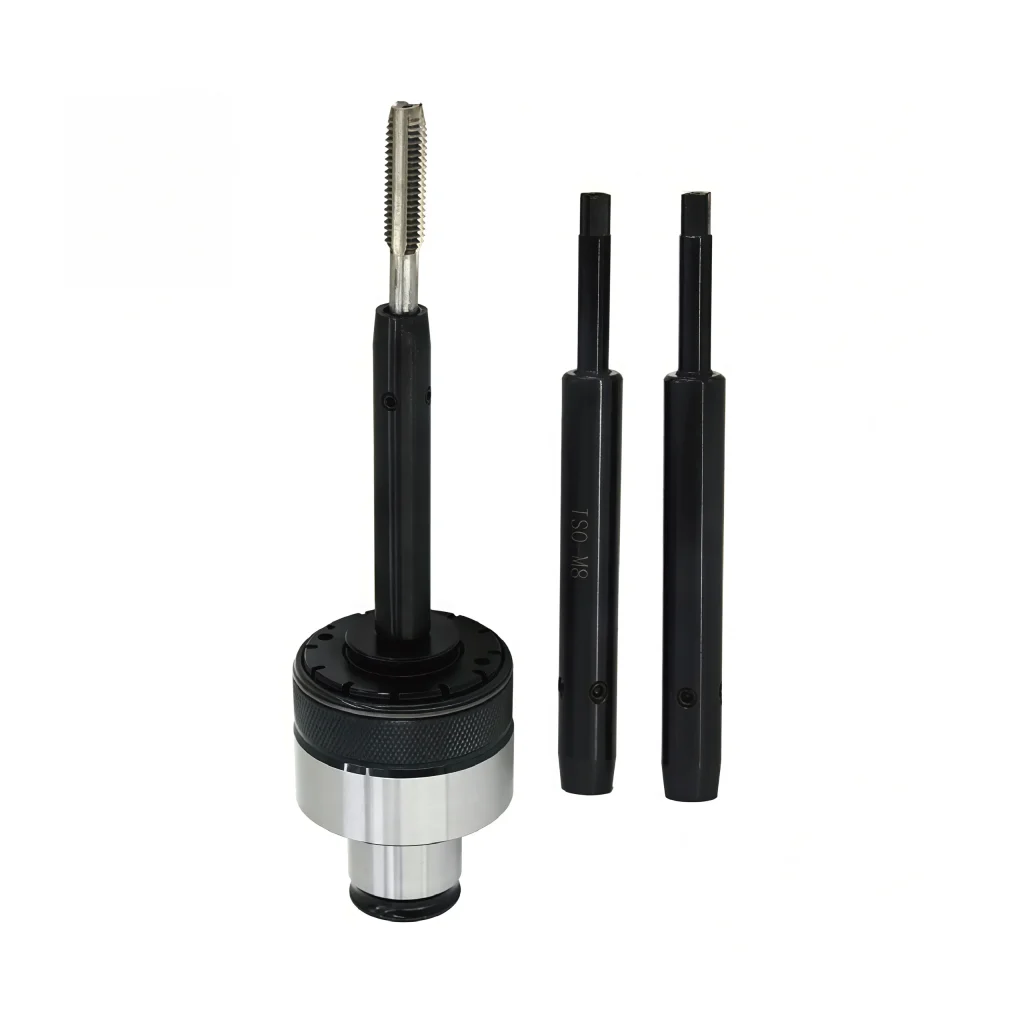

| M3 | 3.15 | 3.15 | 8 | 2.5 | This product works with a torque chuck and provi -des tap breakage prote -ction. All products in this cate -gory(including unlisted specifica tions)can be custom-made to order. |
| M4 | 4 | 4 | 3.15 | ||
| M5 | 5 | 5 | 10 | 4 | |
| M6 | 6.3 | 6.3 | 12 | 5 | |
| M8 | |||||
| M10 | 8 | 8 | 16 | 6.3 | |
| M12 | 9 | 9 | 7.1 | ||
