Product Details & Technical Resources

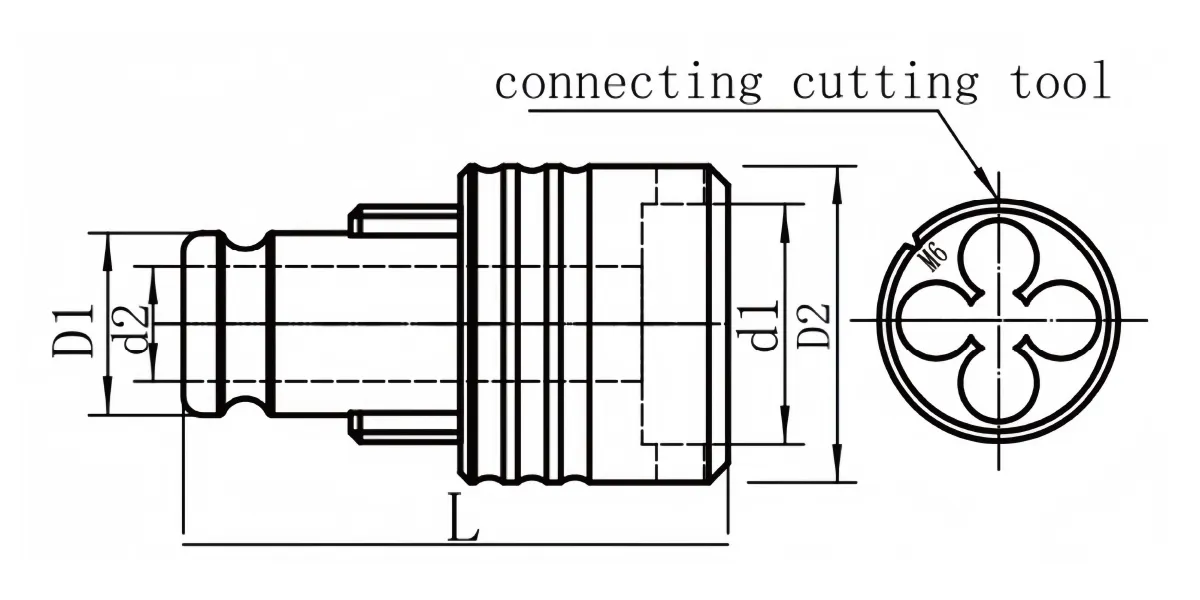

CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.

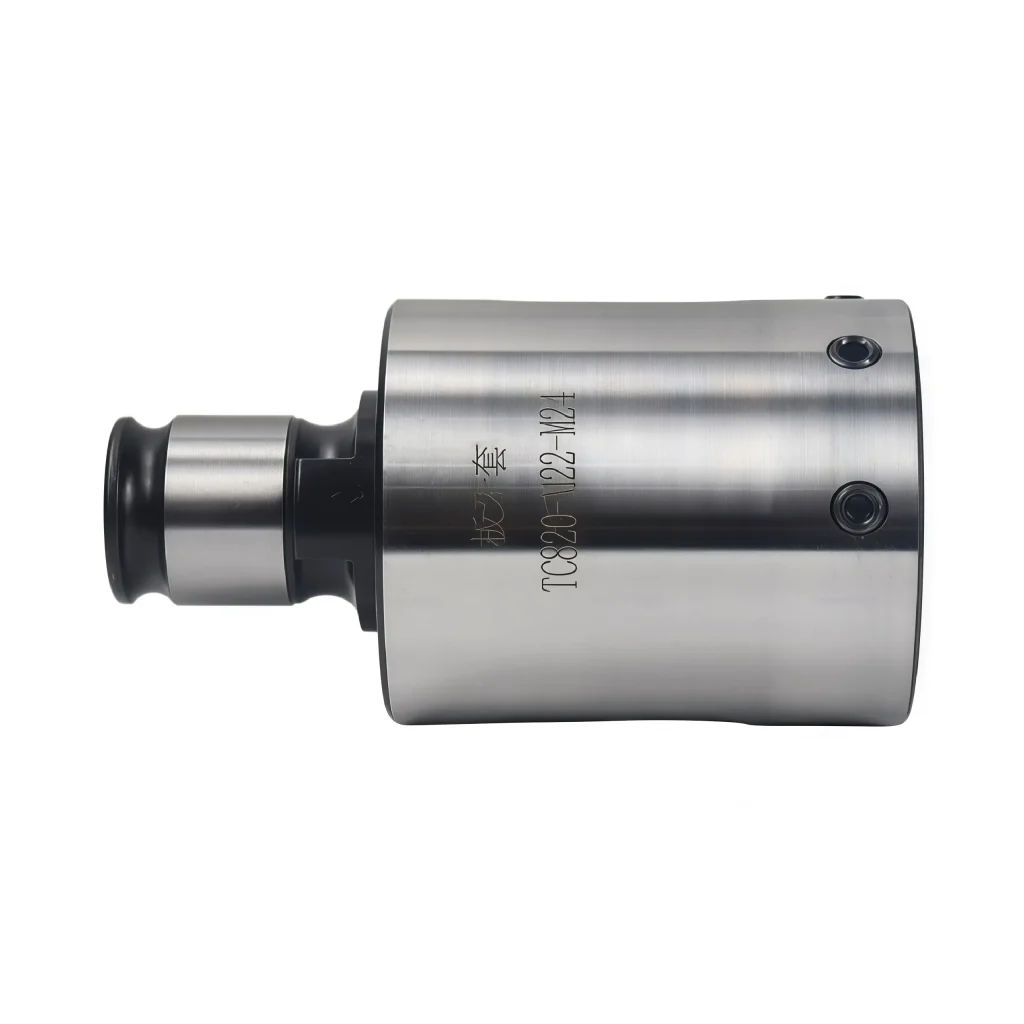

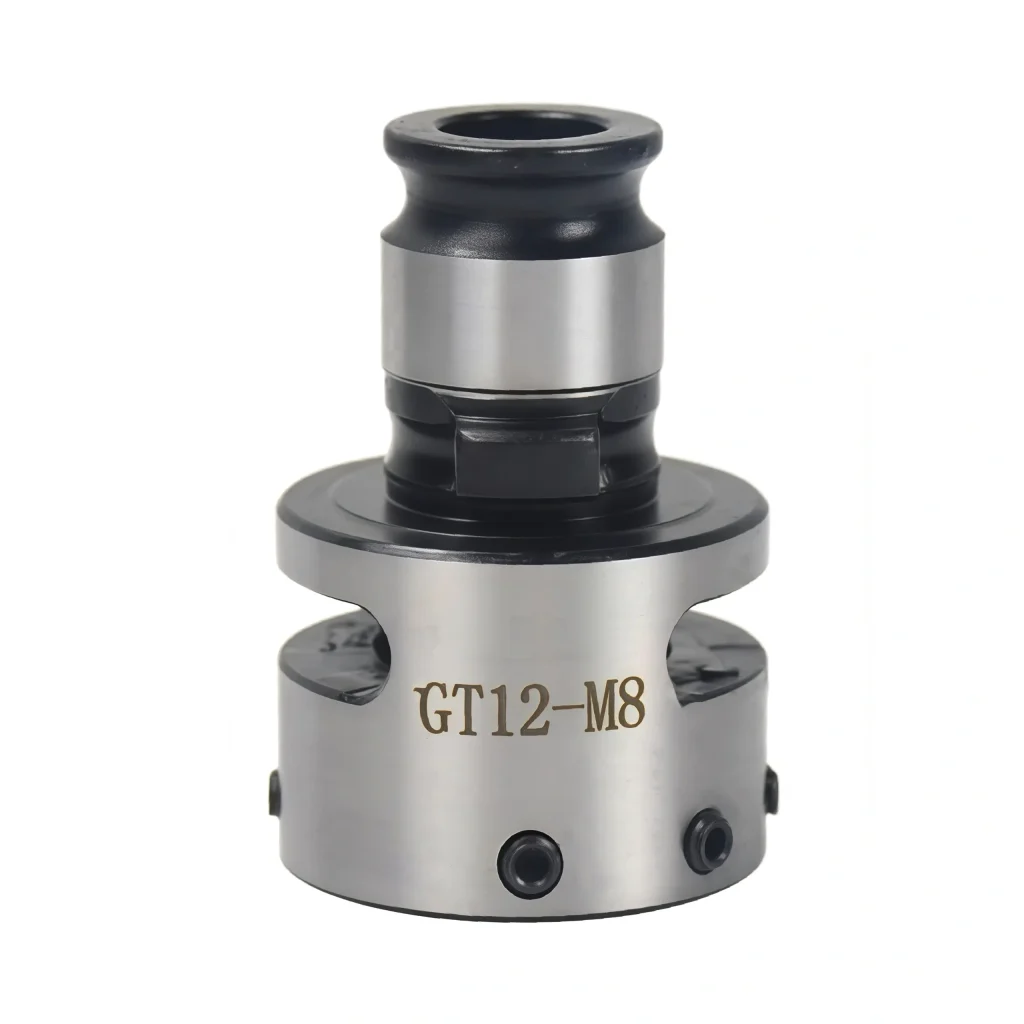

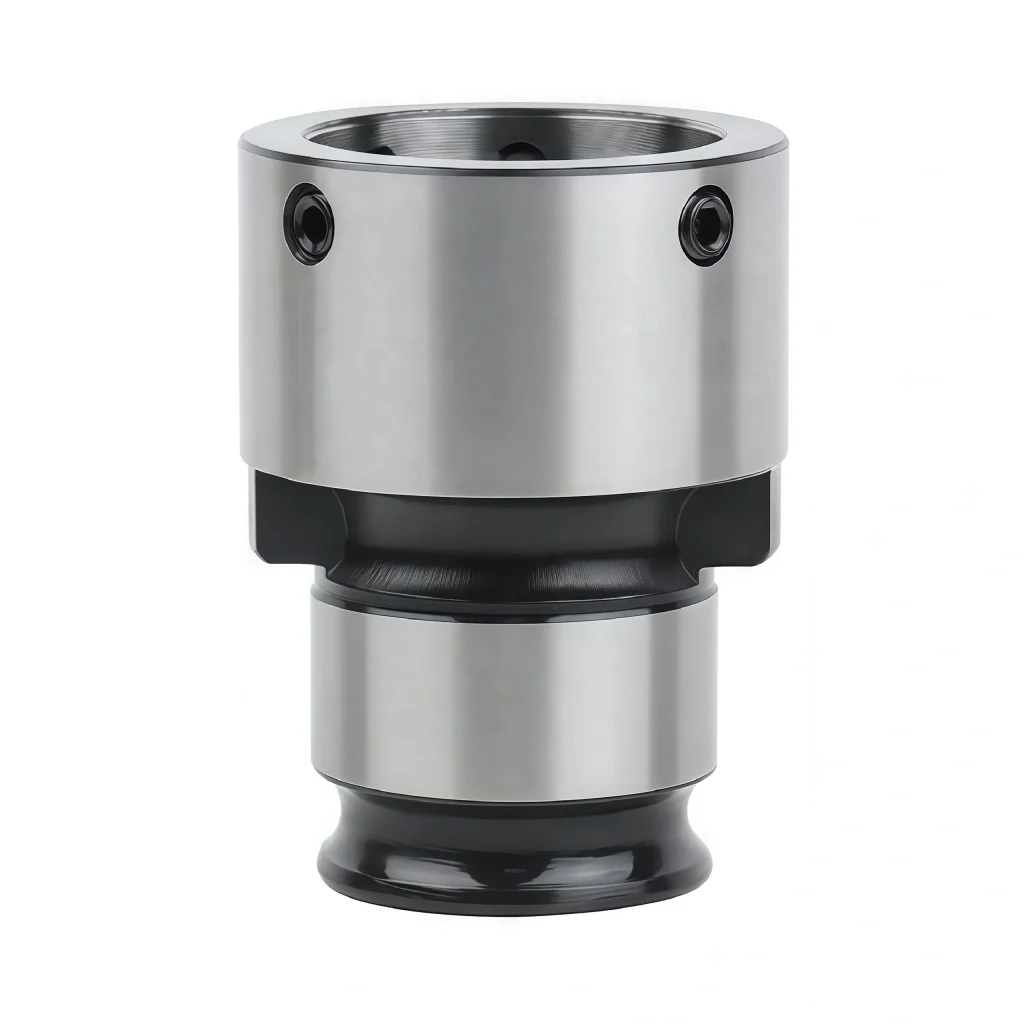

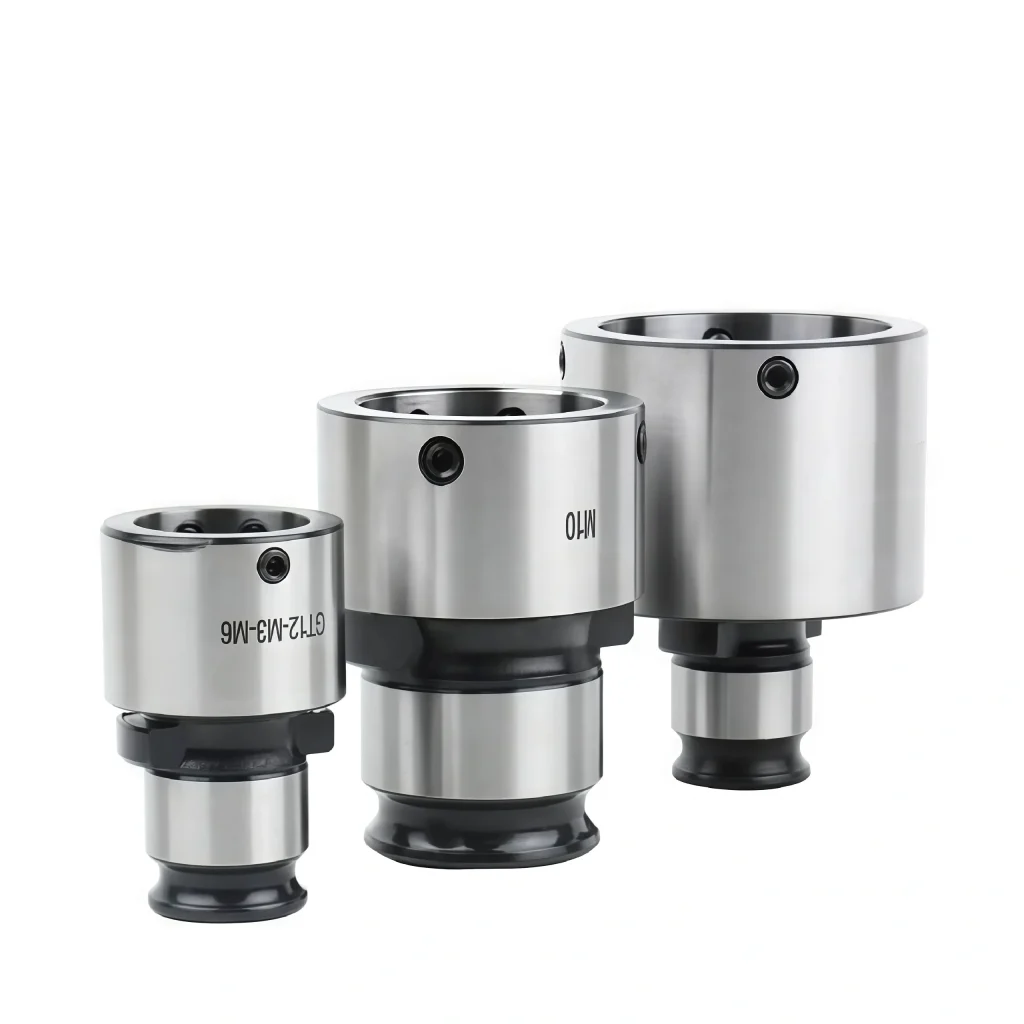

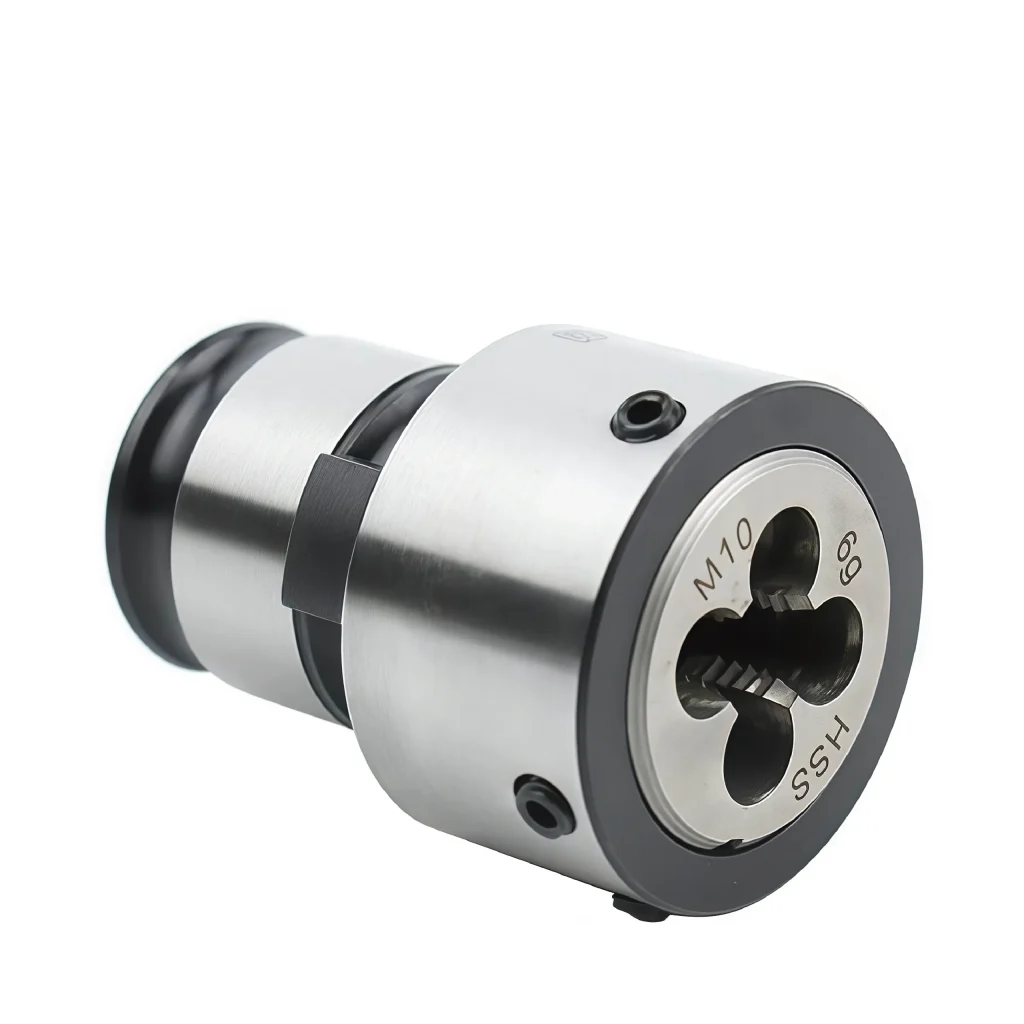

| Thread Round Die Holder | |||||||
| 订单号 order No. |
D1 | D2 | d1 | d2 | L | Gripl range 攻丝范围 |
Maximum tapping iength 最大攻丝长度 |
| TC312-20 | 19 | 33 | 20 | 12 | 57 | M3-M6 | 55 |
| TC312-Q25 | 25 | M7-M9. | |||||
| TC820-⑦20 | 31 | 33 | 20 | 18 | 60 | M3-M6 | 58 |
| TC820-Q25 | 25 | M7-M9 | |||||
| TC820-30 | 46 | 30 | 77 | M10-M11 | 75 | ||
| TC820-38 | 38 | M12-M16 | |||||
