Product Details & Technical Resources

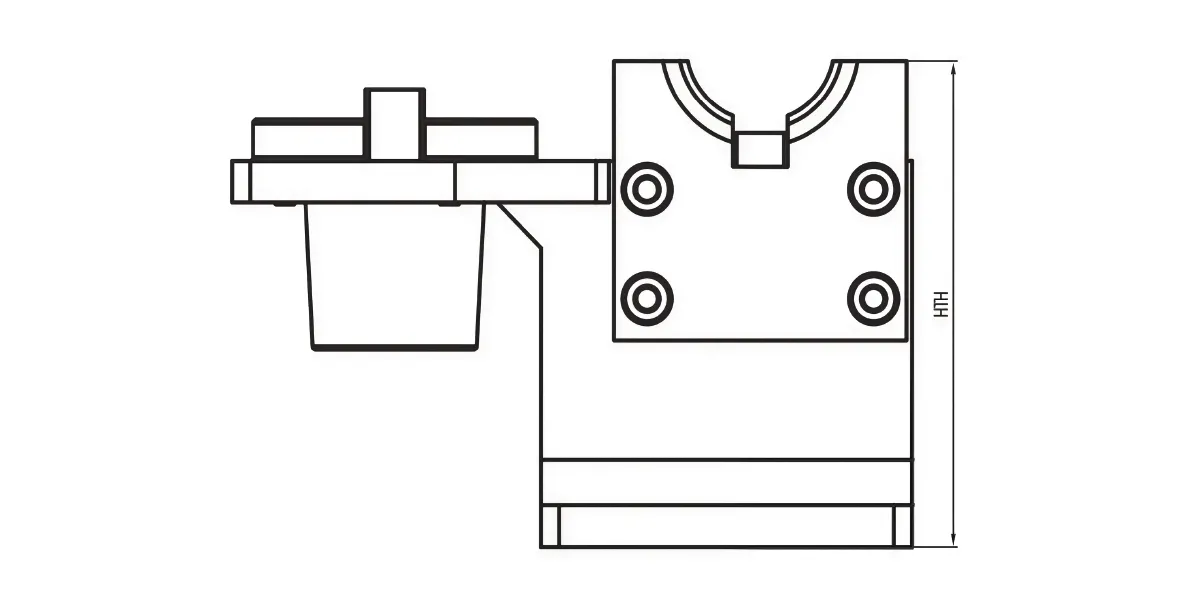

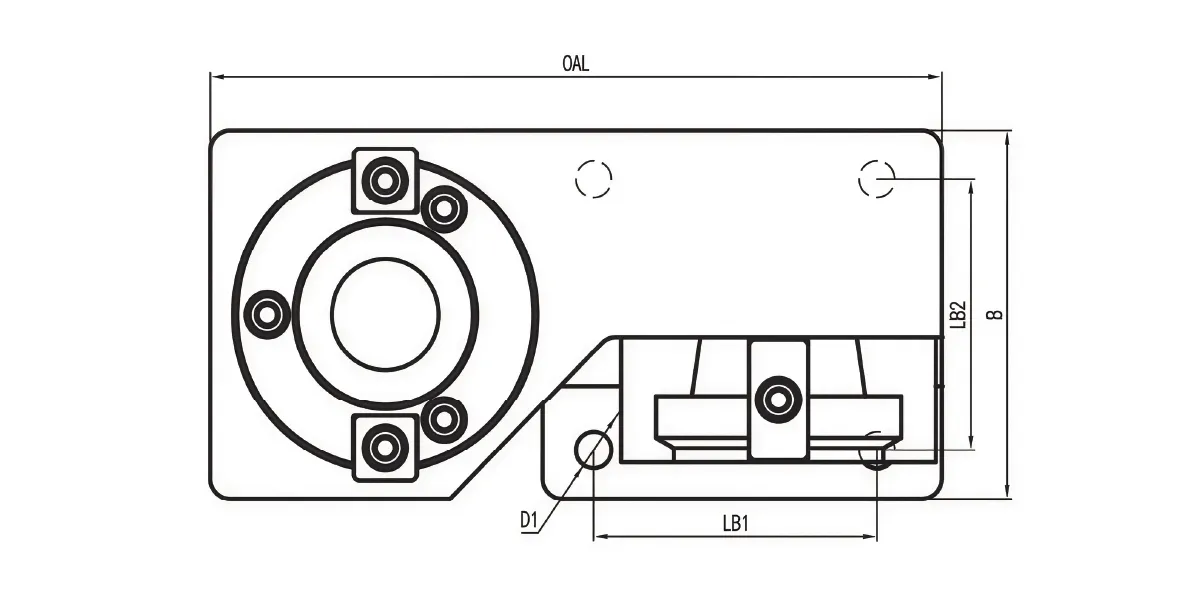

CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.

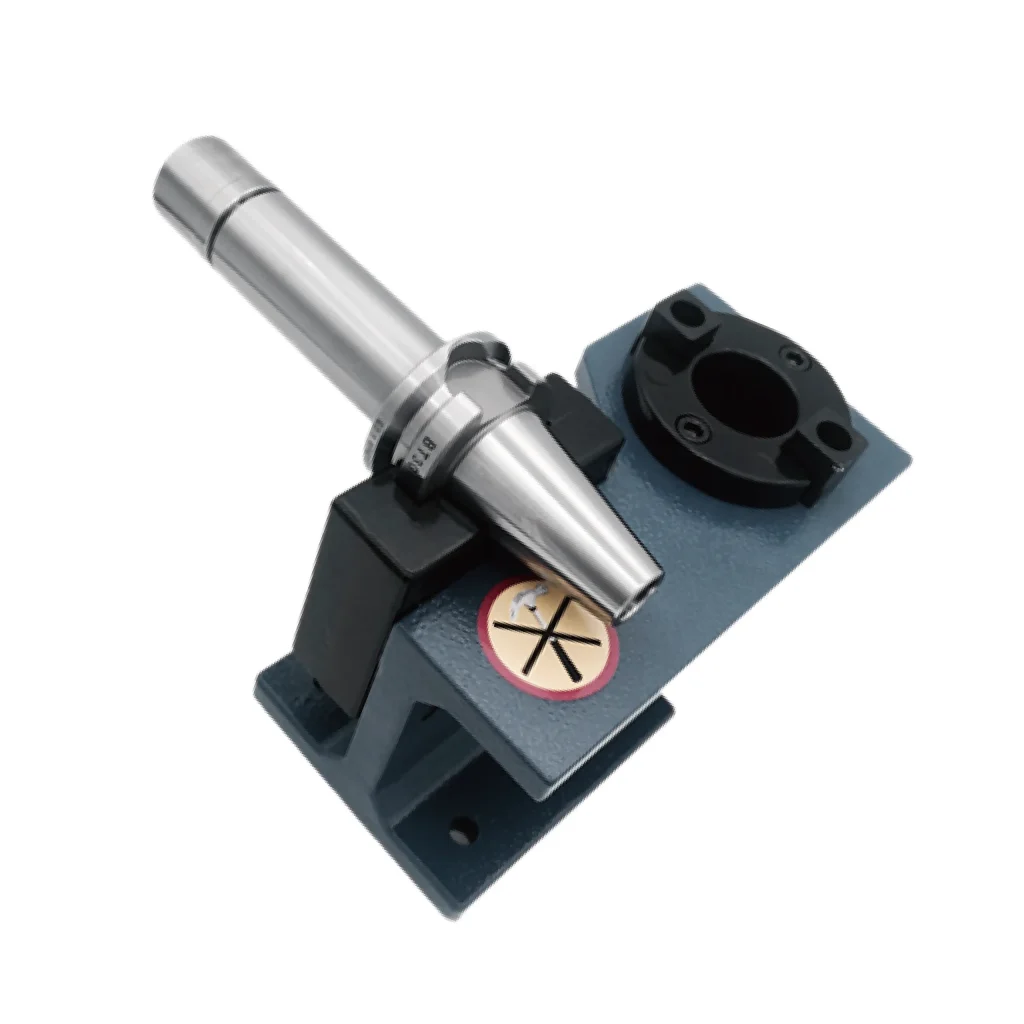

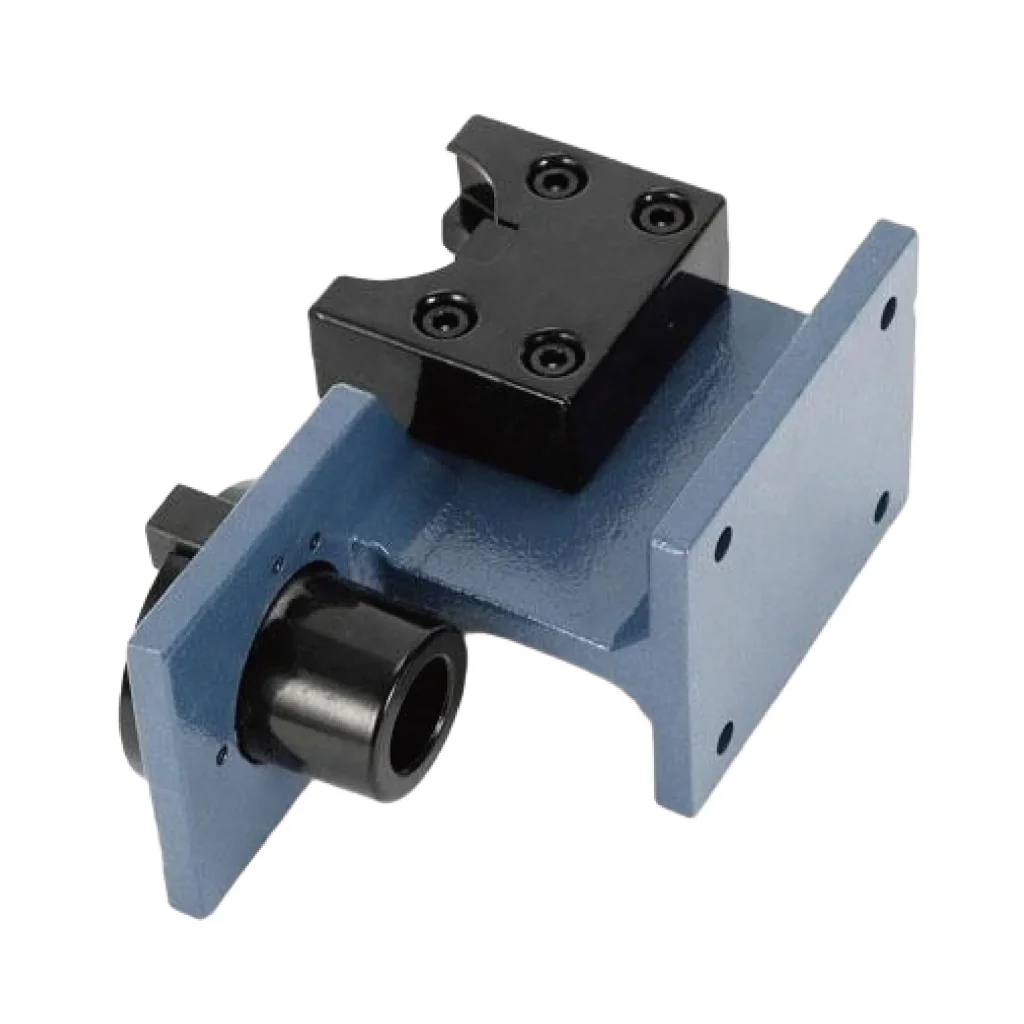

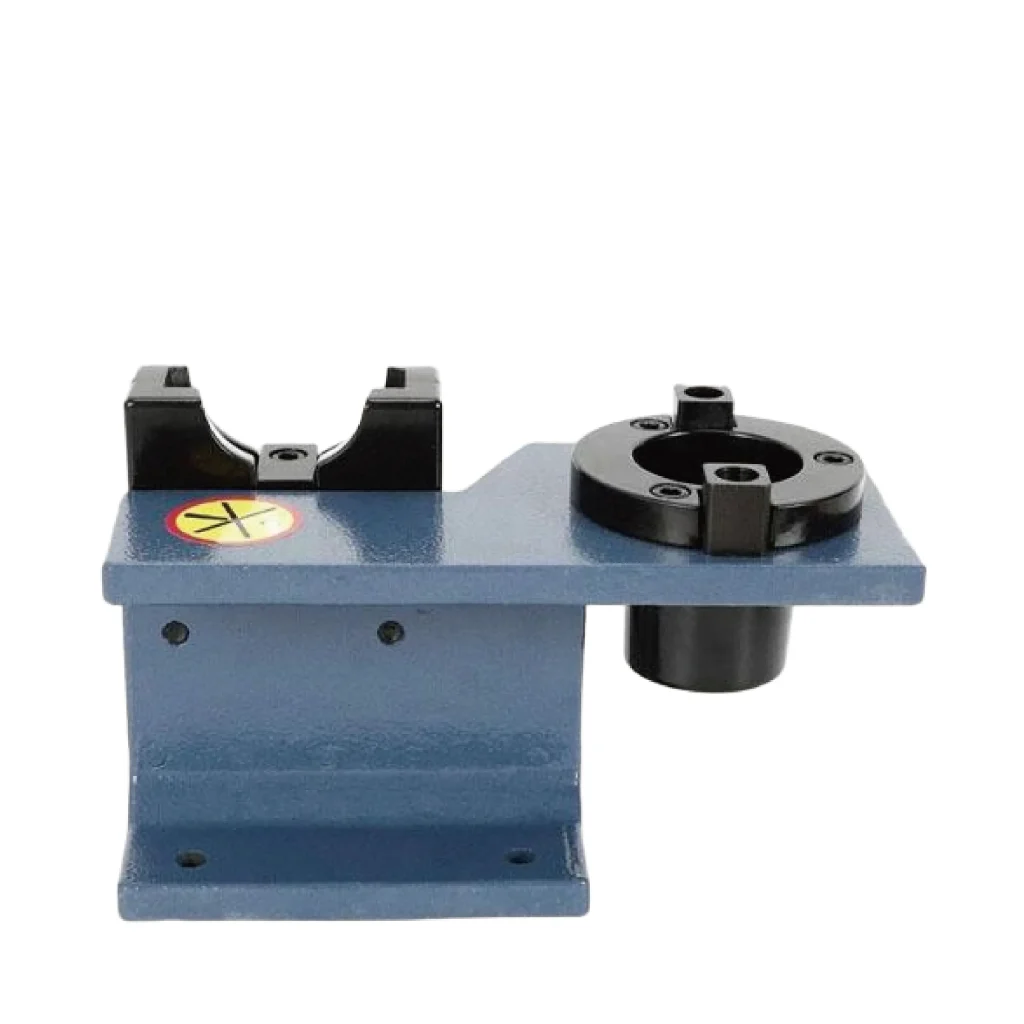

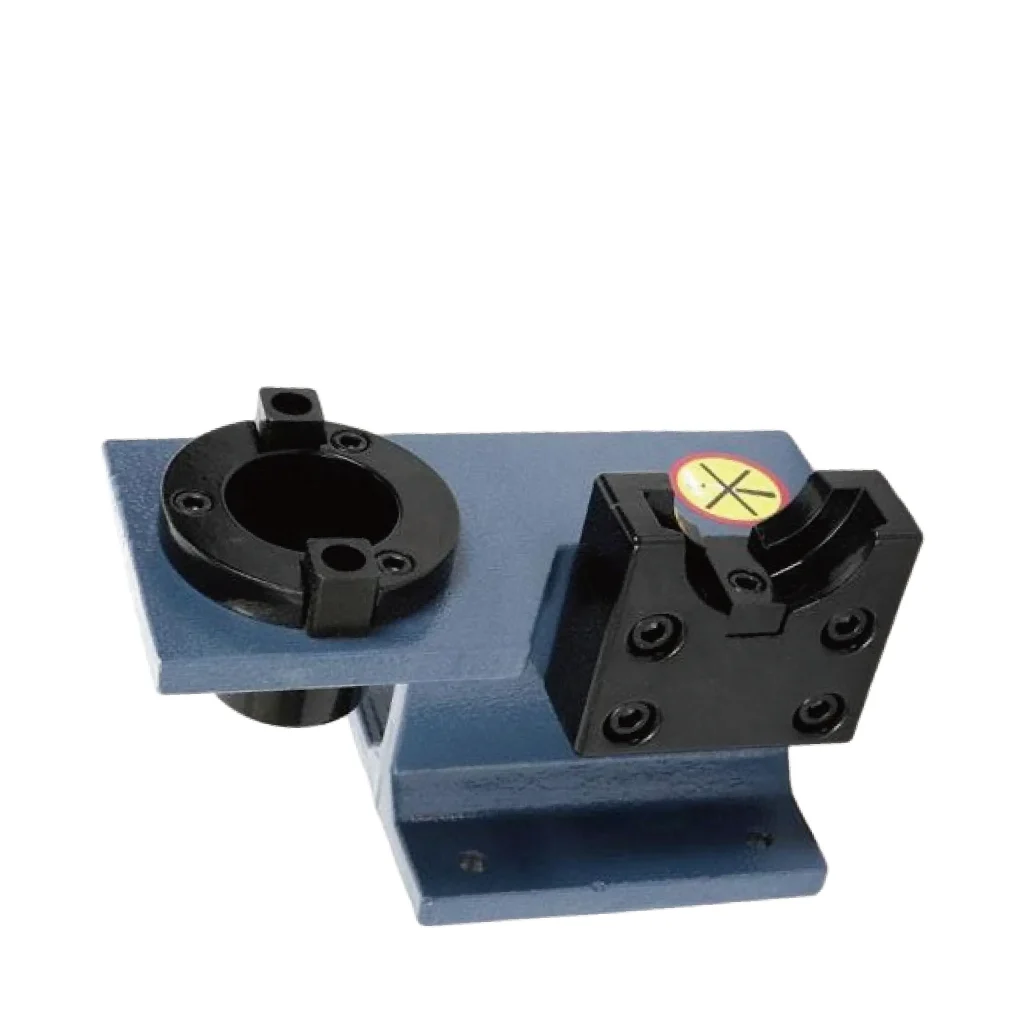

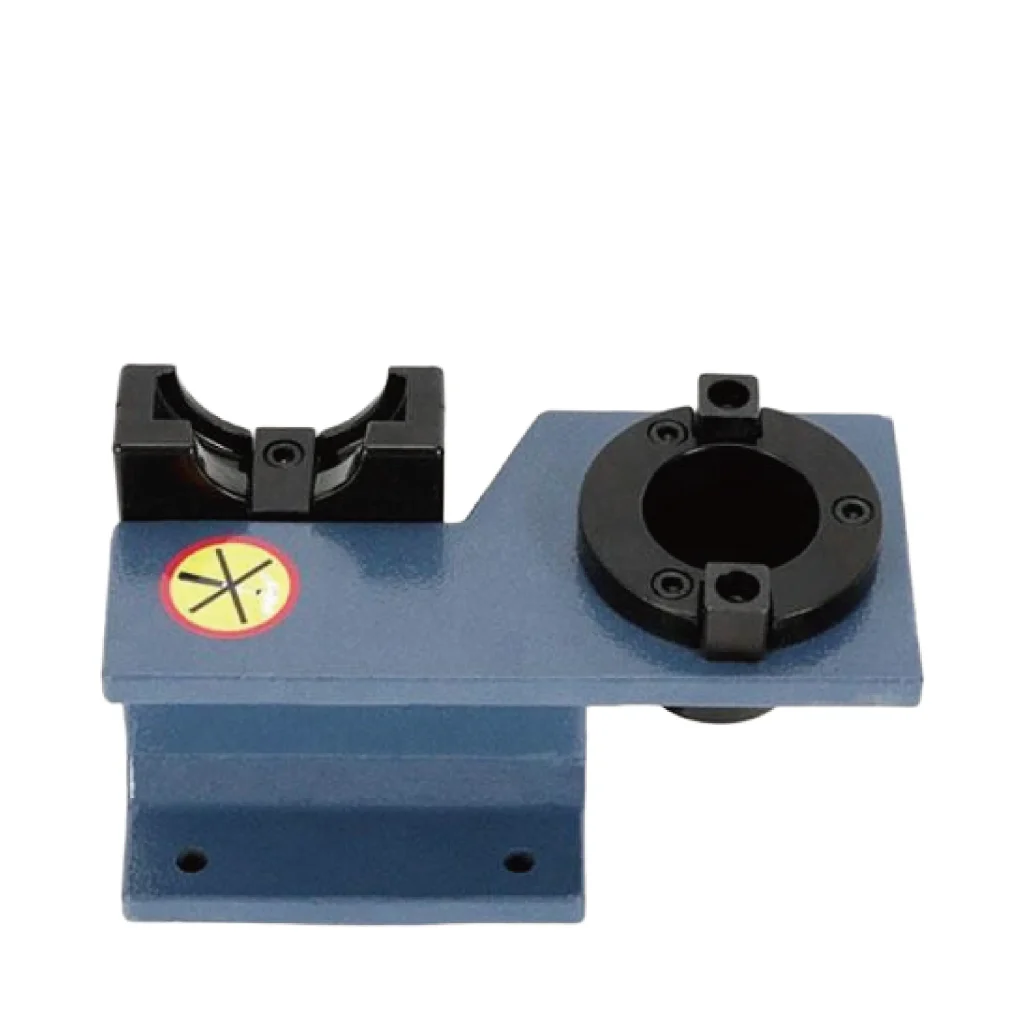

| BT/SK Tool Holder Locking Device | |||||||
| 型号 MODEL |
刀柄接口类似 及型号 |
尺寸SIZE (mm) |
|||||
| OAL | B | HTH | LB1 | LB2 | D1 | ||
| LD-BT30A | BT30 | 185 | 90 | 128 | 73 | 67.2 | 9 |
| LD-BT40A | BT40 | 185 | 90 | 130 | 73 | 67.5 | 9 |
| LD-BT50A | BT50 | 255 | 130 | 165 | 100 | 100 | 14 |
| LD-SK40A | SK40 | 185 | 90 | 130 | 73 | 67.5 | 9 |
| LD-SK50A | SK50 | 185 | 130 | 165 | 100 | 100 | 14 |
