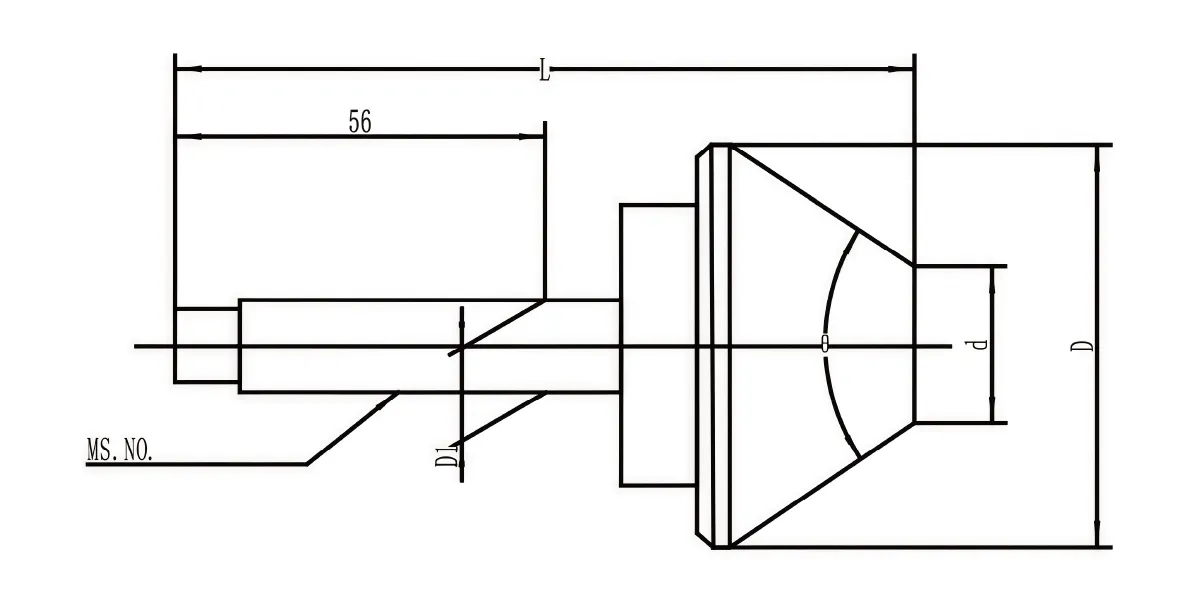

CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
eview key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.

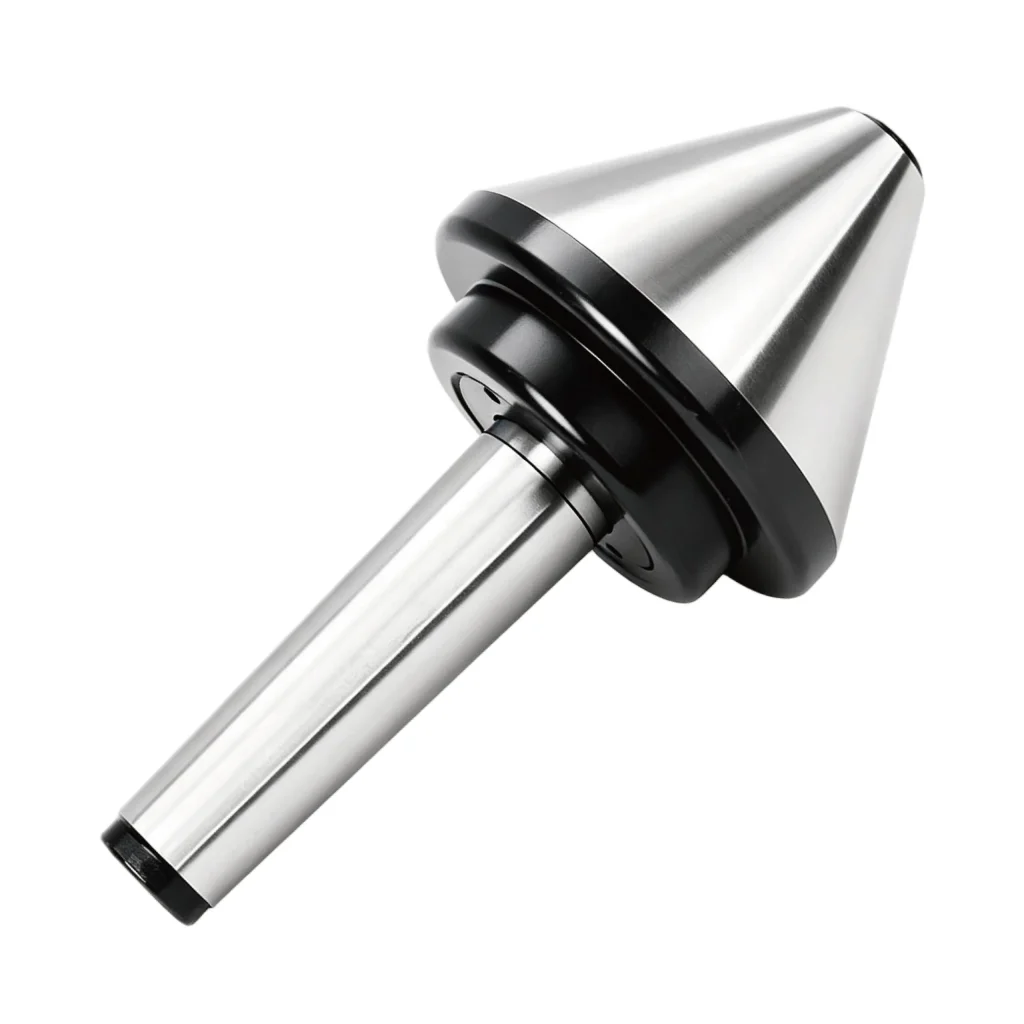

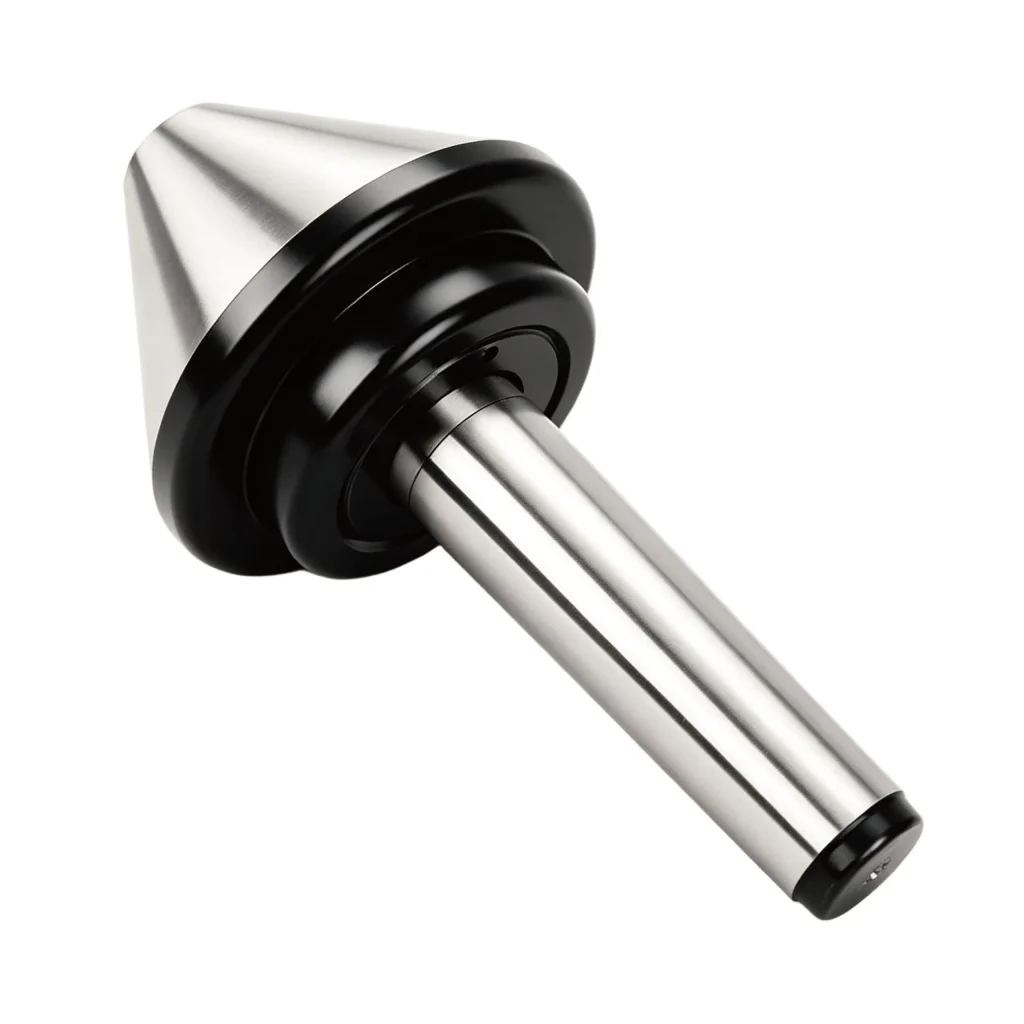

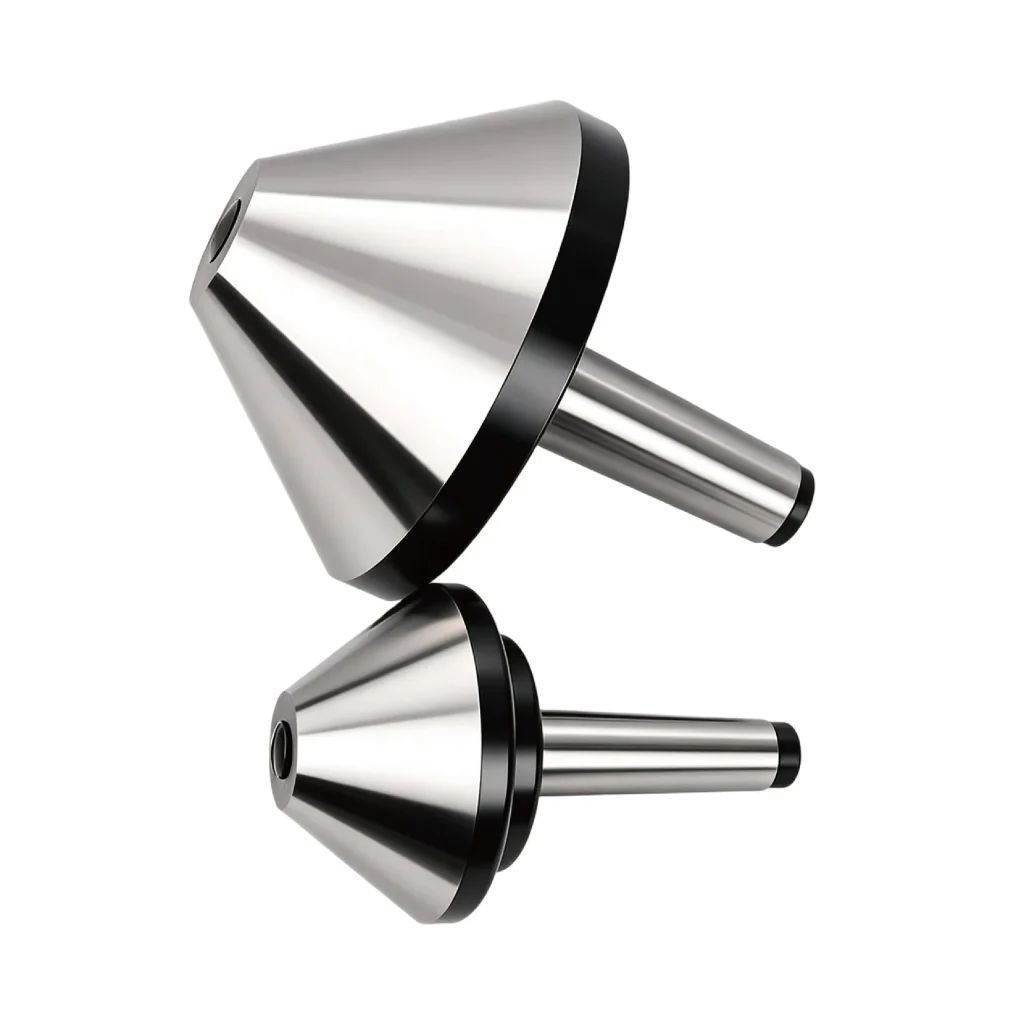

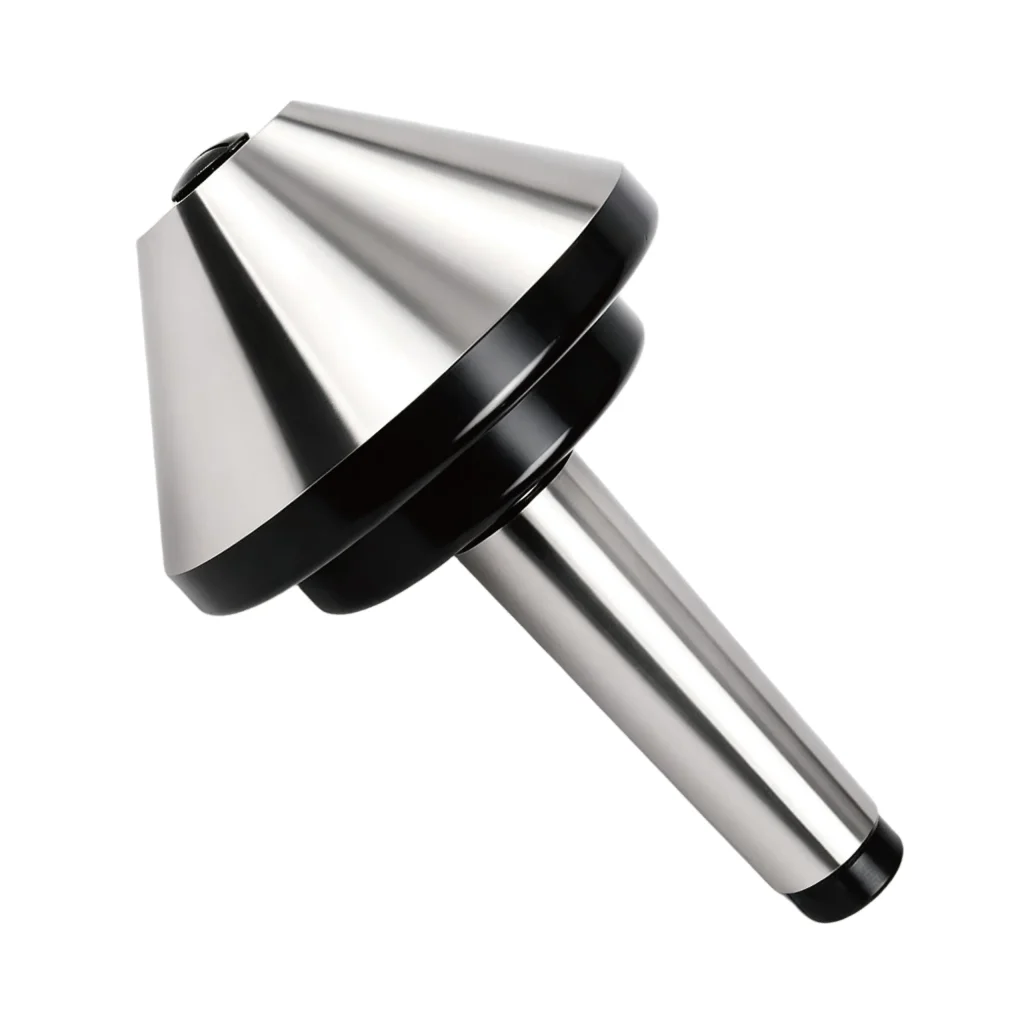

| Umbrella Dead Center | |||||||
| 订单号Order No. | MS.NO | L | L | D | D₁ | d | θ |
| DS2×60(60°) | MS2 | 132 | 64 | 60 | 17.780 | 20 | 60° |
| DS2×61.9(70°) | MS2 | 135 | 64 | 61.9 | 17.780 | 12.7 | 70° |
| DS3×76.2(70°) | MS3 | 152 | 81 | 76.2 | 23.825 | 19 | 70° |
| DS3×100(60°) | MS3 | 170 | 81 | 100 | 23.825 | 30 | 60° |
| DS3×100(75°) | MS3 | 164 | 81 | 100 | 23.825 | 32 | 75° |
| DS4×160(60°) | MS4 | 232 | 102.5 | 160 | 31.267 | 40 | 60° |
| DS4×160(75°) | MS4 | 225 | 102.5 | 160 | 31.267 | 35 | 75° |
| DS5×200(75°) | MS5 | 252 | 1295 | 200 | 44.399 | 40 | 75° |
| DS5×250(75°) | MS5 | 281 | 129.5 | 250 | 44.399 | 57 | 75° |
| DS6×200(75°) | MS6 | 320 | 182 | 200 | 63.348 | 40 | 75° |
| DS6×250(75°) | MS6 | 355 | 182 | 250 | 63.348 | 57 | 75° |
