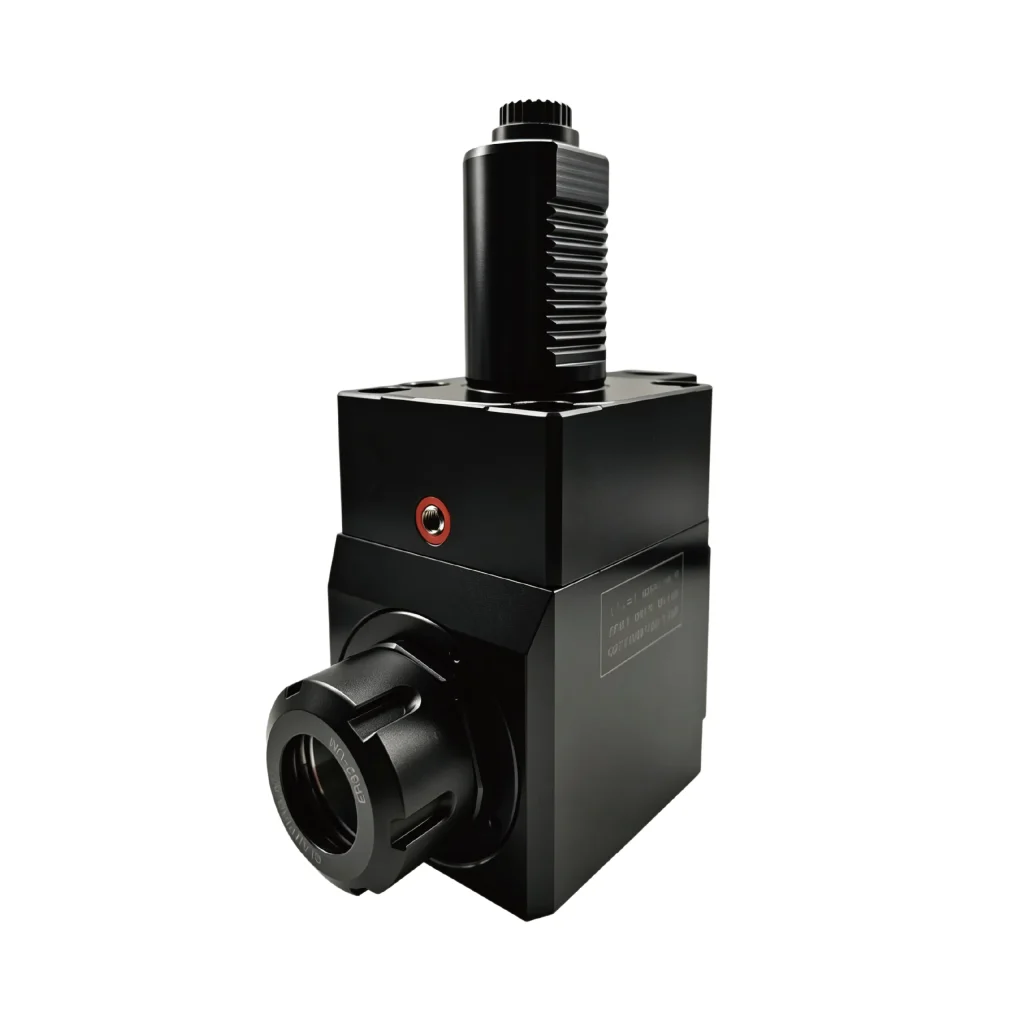

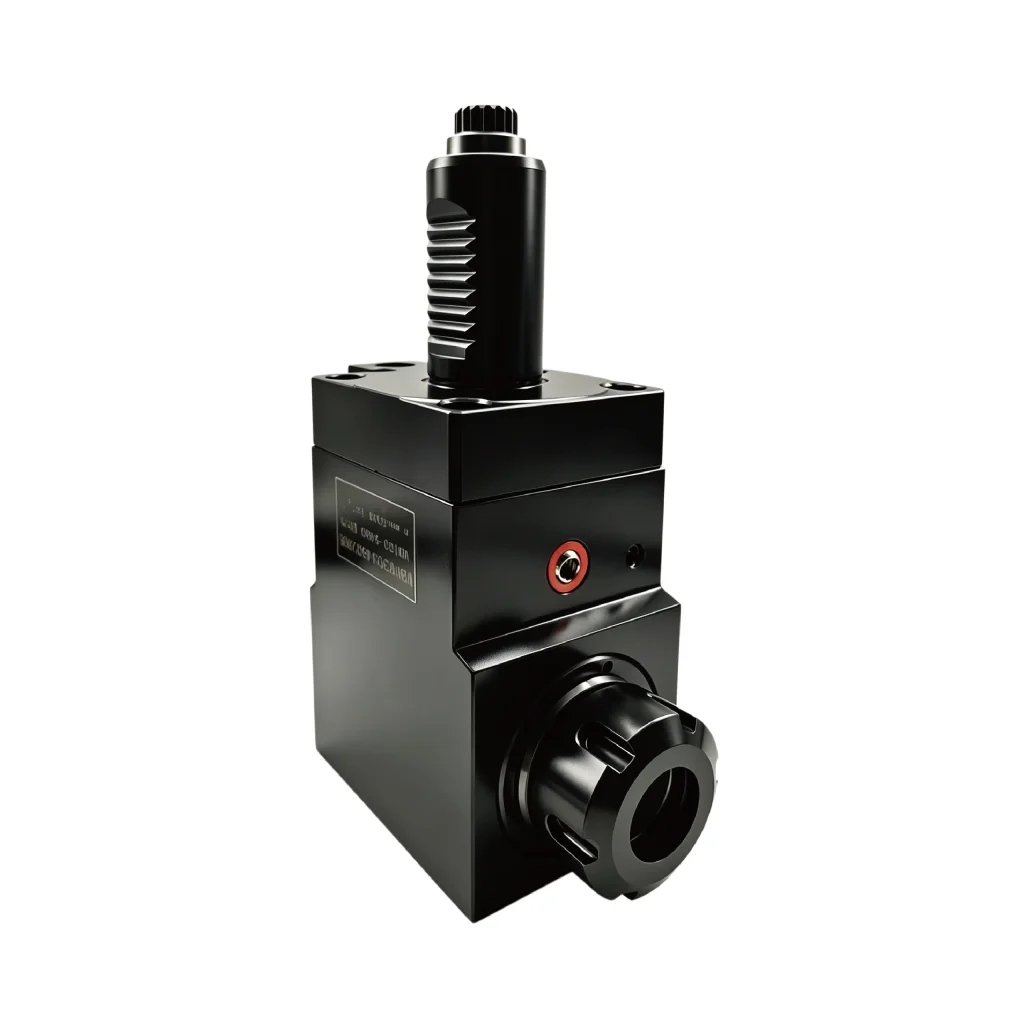

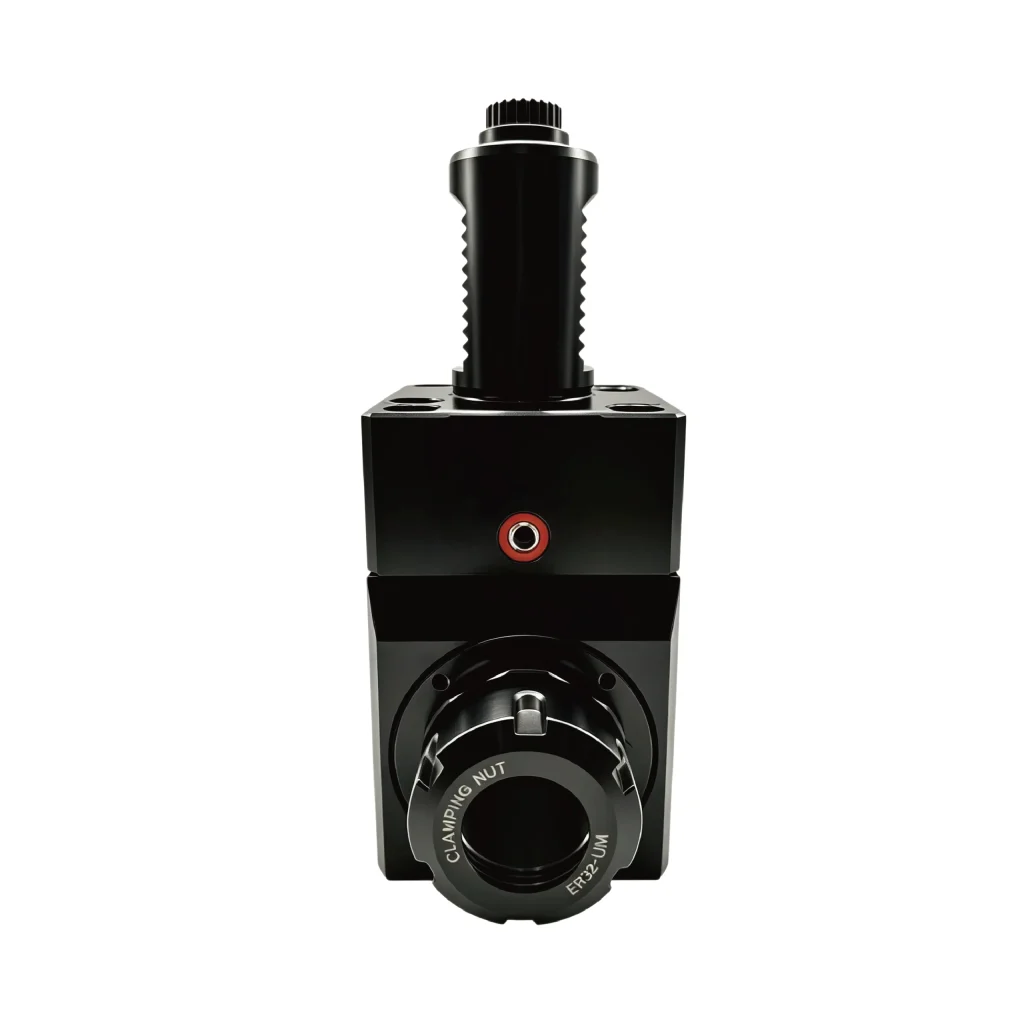

VDI Driven Tool Holder, DIN 5480
VDI Driven Tool Holder, DIN 5480 (90°)
Built with a high-strength alloy steel body and carbide tip, this dead center provides stable support and wear-resistant performance for precision turning and grinding applications.
Product Details & Technical Resources

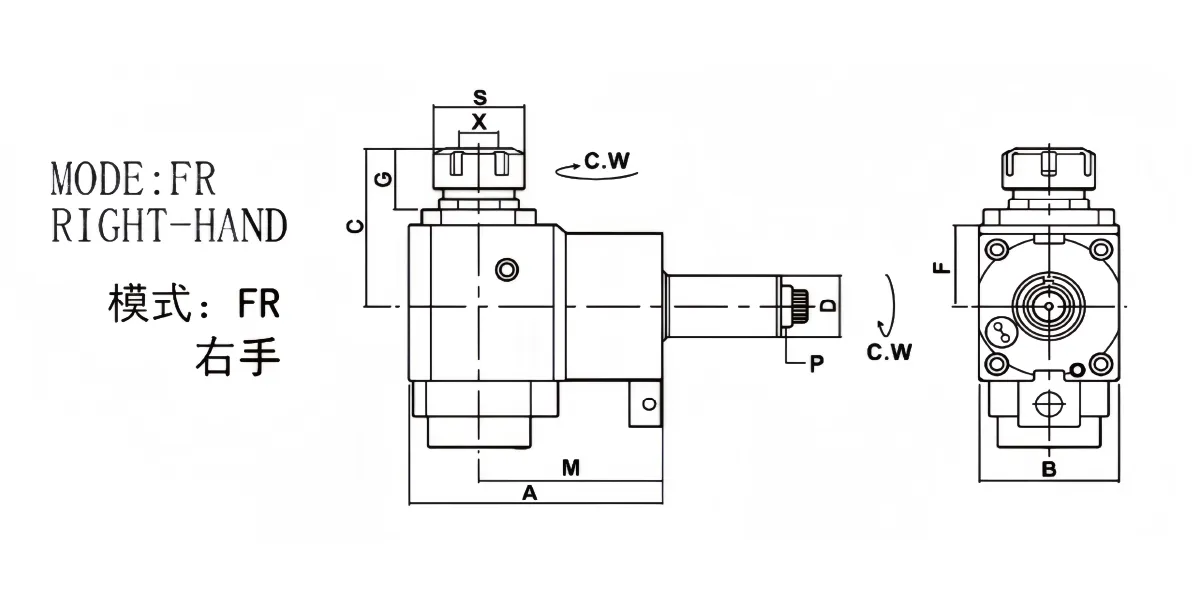

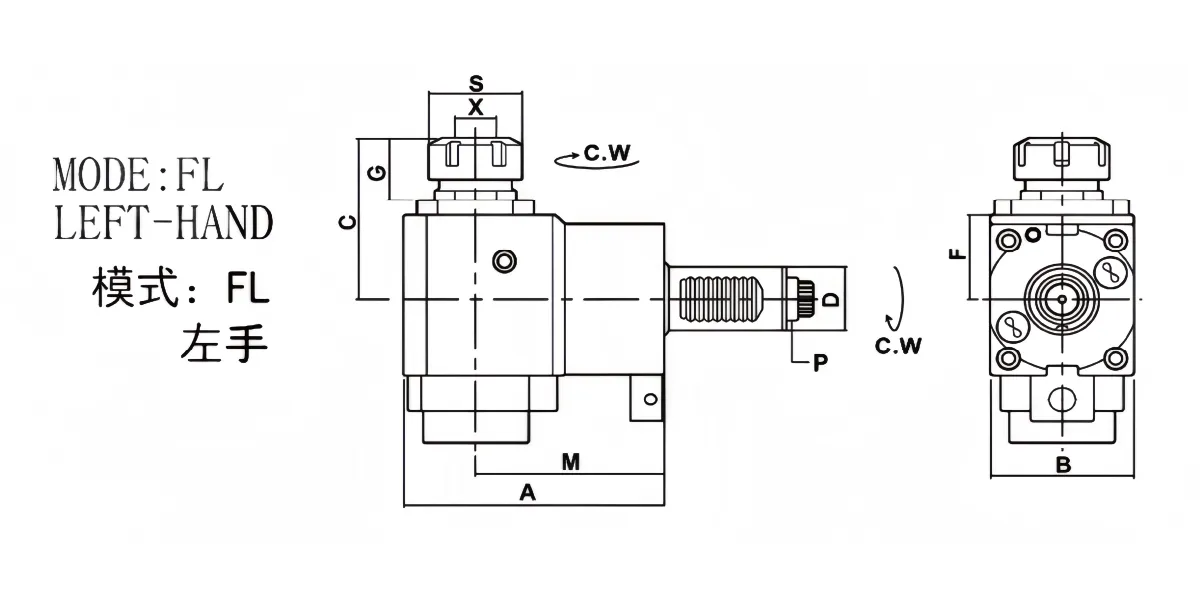

CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.
| VDI Driven Tool Holder, DIN 5480(90°) | |||||||||||
| 型号Model | XCapacity | S | MaximumR.P.M | I | A | B | C | F | G | M | PDIN5480 |
| 30-5480-ER25 | 1-16ER25 | 42 | 4000 | 1:1 | 87 | 64 | 77.5 | 36 | 30 | 55 | W16X0.8 |
| 30-5480-ER25 | 1-16ER25 | 42 | 4000 | 1:1 | 117 | 64 | 77.5 | 36 | 30 | 85 | W16X0.8 |
| 30-5480-ER25 | 1-16ER25 | 42 | 4000 | 1:1 | 132 | 64 | 77.5 | 36 | 30 | 100 | W16X0.8 |
| 40-5480-ER32 | 2-20ER32 | 50 | 5000 | 1:1 | 103 | 76 | 89.5 | 40 | 36.5 | 65 | W20X0.8 |
| 40-5480-ER32 | 2-20ER32 | 50 | 5000 | 1:1 | 123 | 76 | 89.5 | 40 | 36.5 | 85 | W20X0.8 |
| 40-5480-ER32 | 2-20ER32 | 50 | 5000 | 1:1 | 138 | 76 | 89.5 | 40 | 36.5 | 100 | W20X0.8 |
