Products
Product Details & Technical Resources

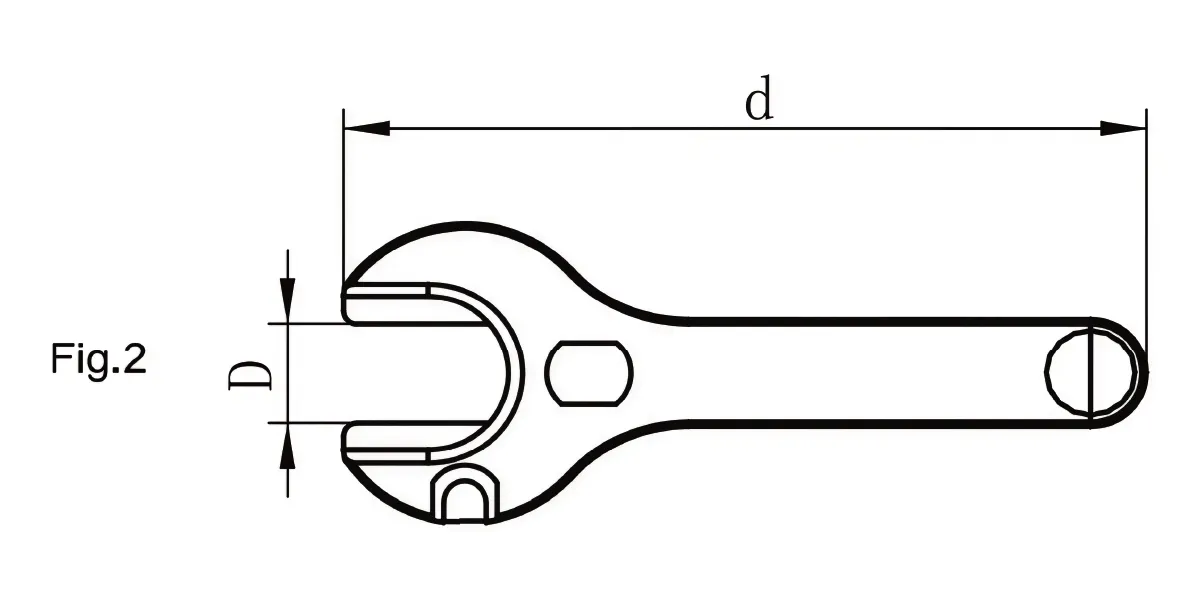

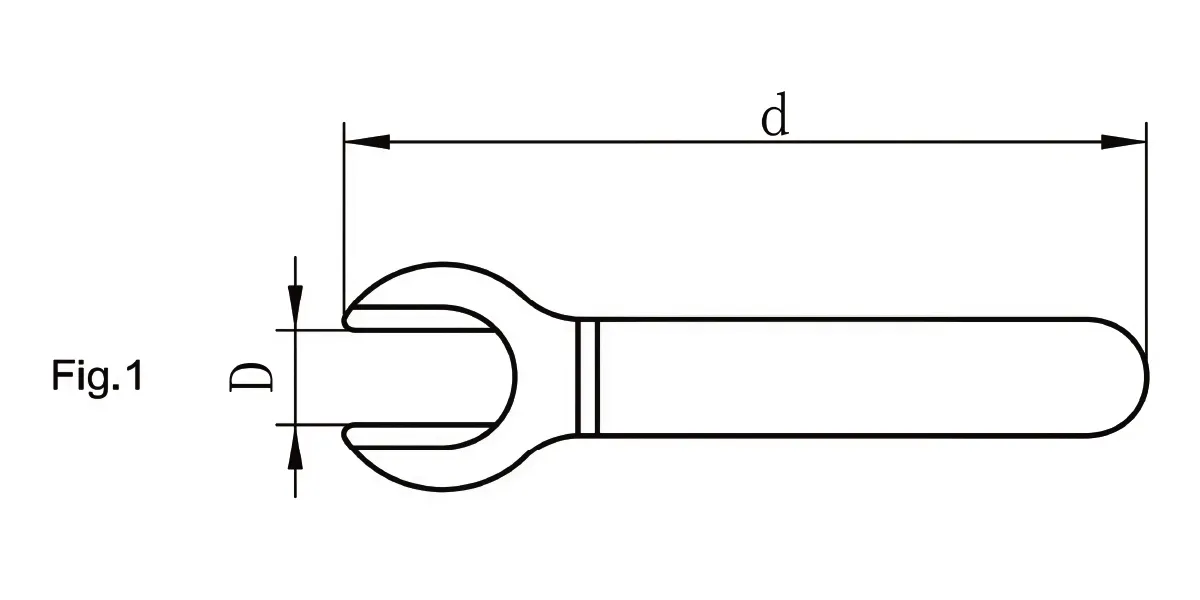

CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.

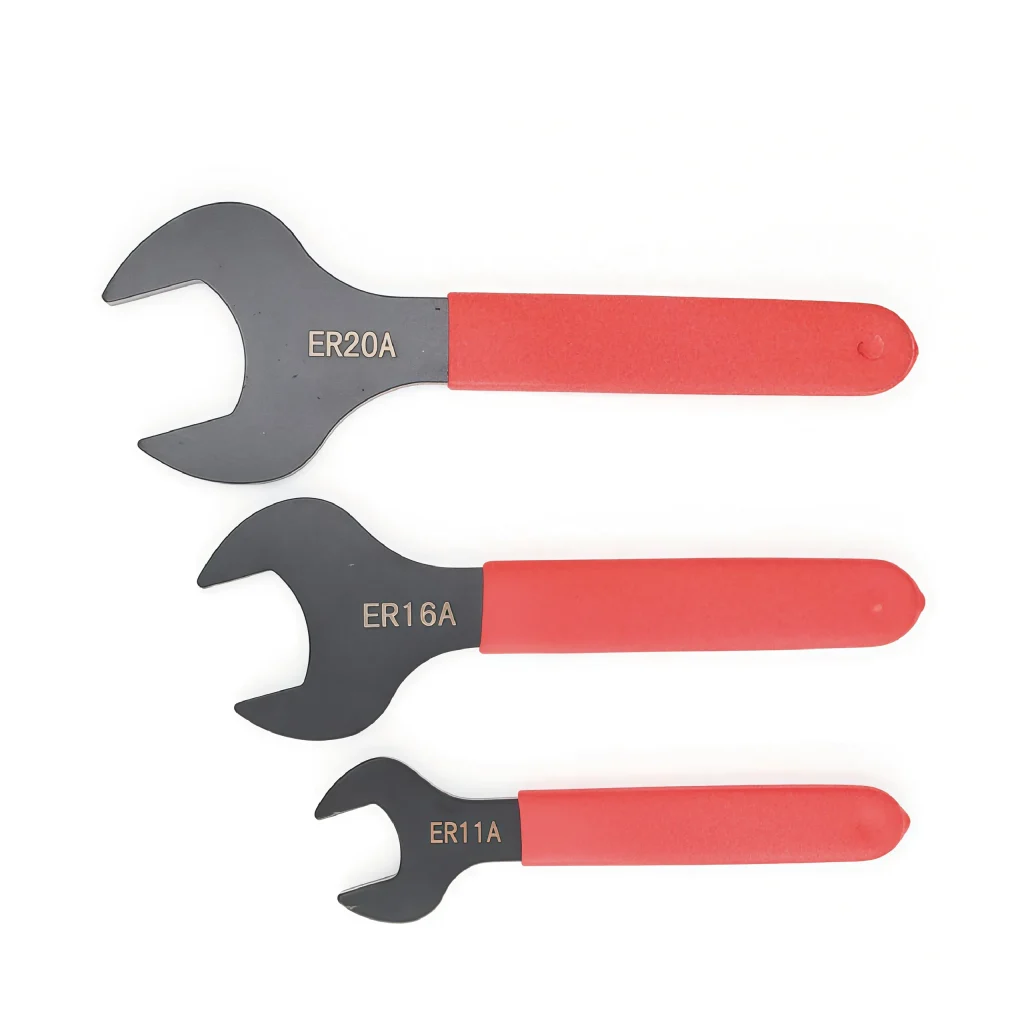

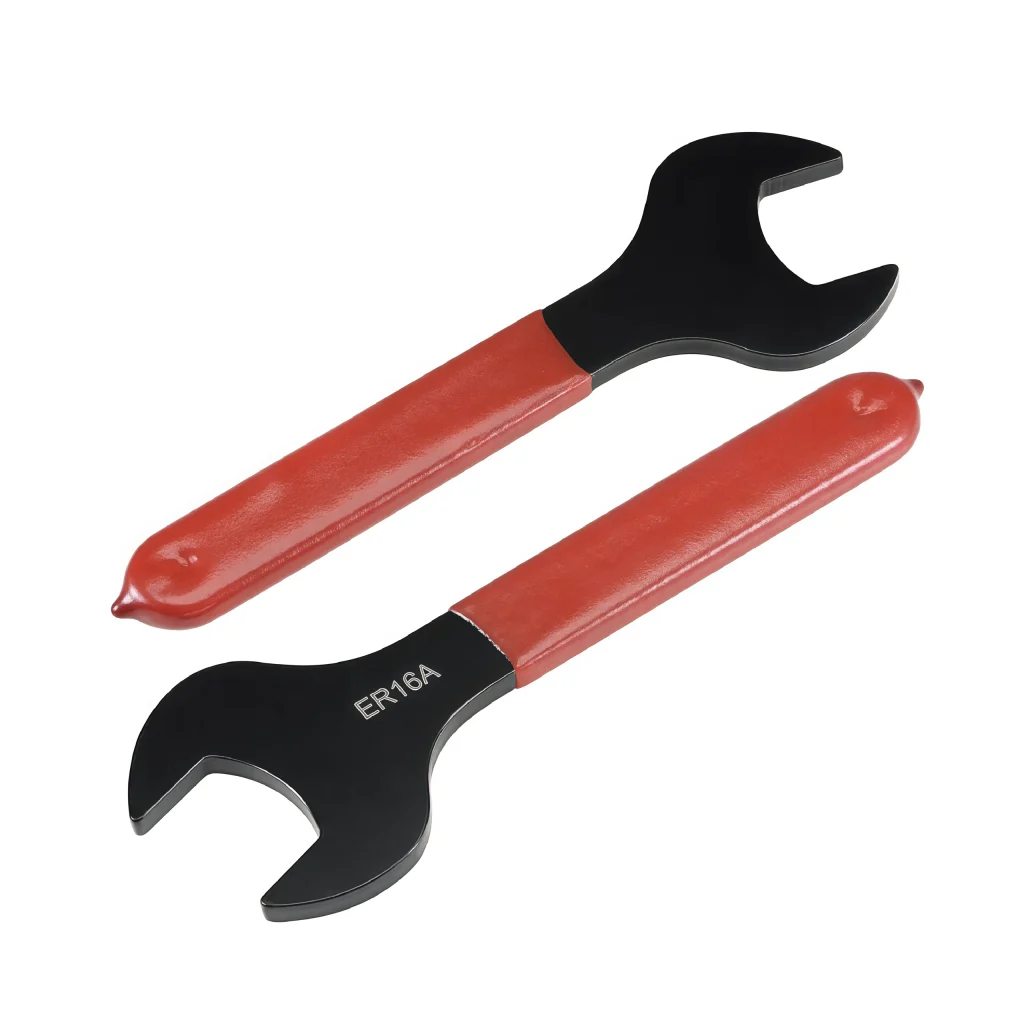

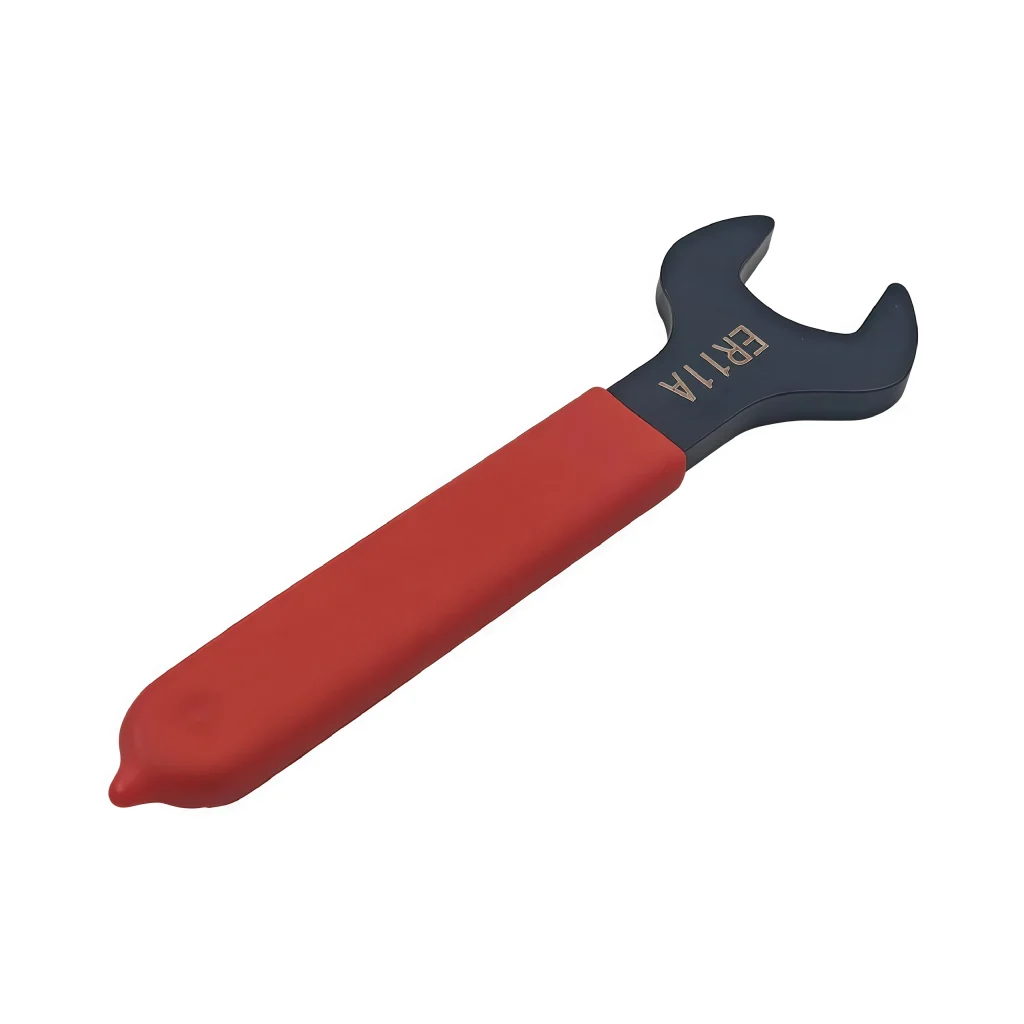

| ER Wrenches | |||||
| 订单号 Order No. |
螺帽外径 | L | D | d | 重量/Weight |
| ER11-A | 19 | 120 | 40 | 17 | 0.10 |
| ER16-A | 28 | 140 | 53 | 25 | 0.15 |
| ER20-A | 34 | 160 | 60 | 30 | 0.20 |
| ER8-M | 12 | 75 | 13 | 8 | 0.05 |
| ER11-M | 16 | 95 | 17 | 11.5 | 0.04 |
| ER16-M | 22 | 117 | 22.5 | 15 | 0.06 |
| ER20-M | 28 | 129 | 28.5 | 19.5 | 0.07 |
| ER25-M | 35 | 143 | 36 | 25 | 0.09 |
| ER25UM | 42 | 206 | 65 | 37 | 0.22 |
| ER32UM | 50 | 253 | 75 | 44 | 0.30 |
| ER40UM | 63 | 289 | 90 | 58 | 0.50 |
| ER50UM | 78 | 351 | 110 | 74 | 0.90 |
Application Examples
